1 |

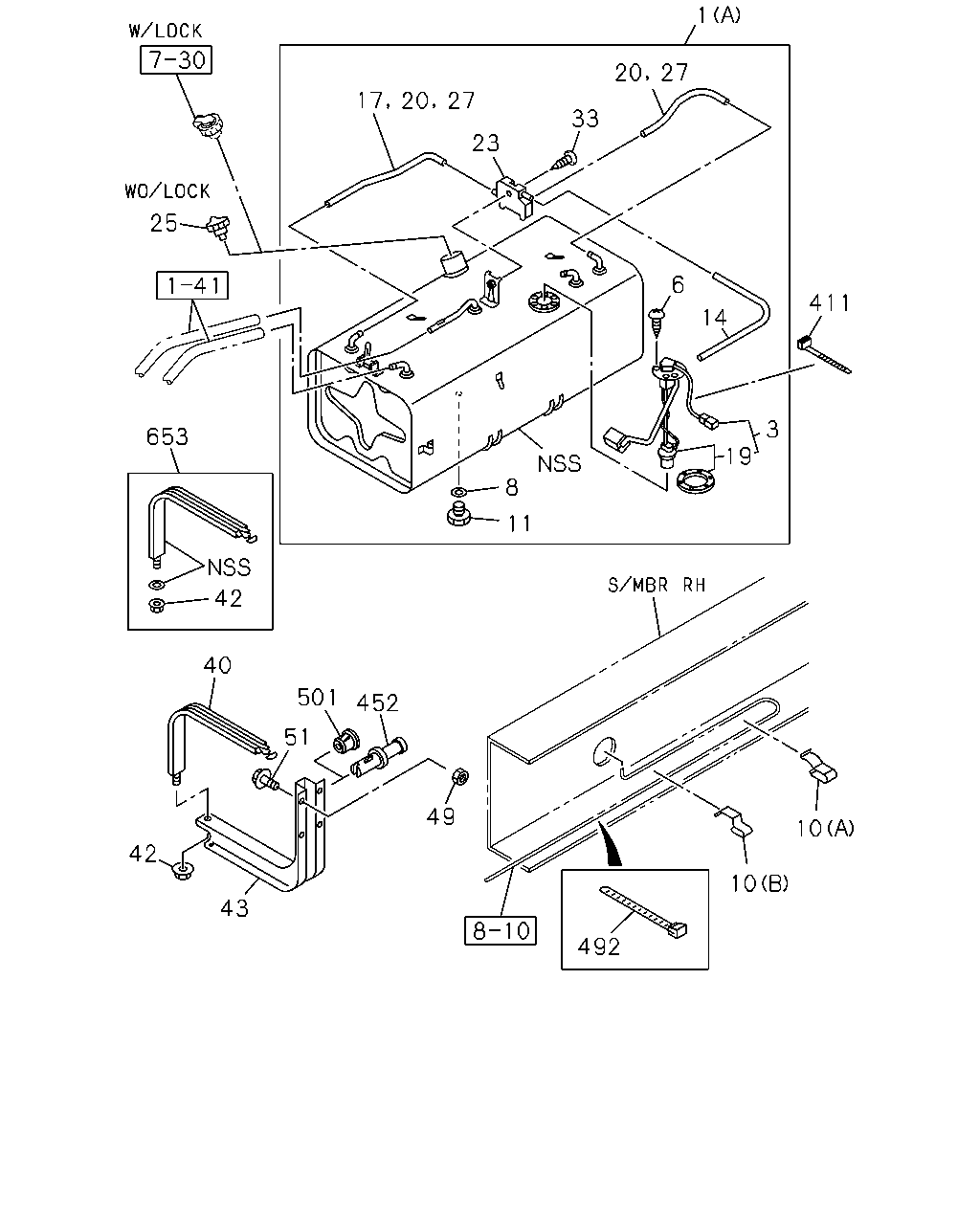

03.001 TANK; FUEL
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
(A)
753X340X327 75L
|
8-97350-988-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
EXC. FUEL TANK 75 LITTER<7GX>
(A)
753X340X327 75L
|
8-97350-988-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>
(A)
753X340X327 75L
|
8-97350-987-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
(A)
753X340X327 75L
|
8-97350-987-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
4HF1-S ENG(RLS)
(A)
1000X340X327 100L
|
8-97350-991-0 |
01 |
1 |
0211-0212 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
(A)
1000X340X327 100L
|
8-97350-991-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX>
(B)
732X375X375 75L
|
8-97356-868-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
(B)
732X375X375 75L
|
8-97356-868-0 |
01 |
1 |
0402-0402 |
● |
|
|
| |
1 |
03.001 TANK; FUEL
(B)
732X375X375 75L
|
8-97375-633-4 |
01 |
1 |
0402- |
● |
|
|
| |
1 |
03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02>
(B)
980X380X375 100L
|
8-97356-869-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
(B)
980X380X375 100L
|
8-97356-869-0 |
01 |
1 |
0402-0402 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
(B)
979X380X375 100L
|
8-97375-634-1 |
01 |
1 |
0402-0501 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
(B)
979X380X375 100L
|
8-97376-818-0 |
01 |
1 |
0502-0503 |
|
● |
● |
| |
1 |
03.001 TANK; FUEL
(B)
979X380X375 100L
|
8-97375-634-5 |
01 |
1 |
0504- |
|
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
4HF1-S ENG(RLS)
03.001
|
8-94316-190-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
03.001
|
8-94316-190-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
03.001
|
8-94316-190-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX>
|
8-97363-006-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02>
|
8-97363-006-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-97363-006-0 |
01 |
1 |
0402- |
● |
● |
● |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HF1-S ENG(RLS)
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0211-0212 |
● |
● |
● |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0301-0301 |
● |
|
|
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0301-0301 |
|
● |
● |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0302-0603 |
● |
● |
● |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0604- |
● |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
4HF1-S ENG(RLS)
01.550
|
1-21729-043-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
01.550
|
1-21729-043-0 |
01 |
1 |
0301-0301 |
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
01.550
|
1-21729-043-0 |
01 |
1 |
0301-0301 |
|
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 75 LITTER<7GX>
08.955
ID=8.2 OD=17
|
9-09572-008-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02>
08.955
ID=8.2 OD=17
|
9-09572-008-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955
ID=8.2 OD=17
|
9-09572-008-0 |
01 |
1 |
0402- |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
EXC. FRAME-KICK UP<7EW>
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
0211- |
● |
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
0211- |
|
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
EXC. FRAME-KICK UP<7EW>
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
0211- |
● |
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
0211- |
|
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
EXC. FRAME-KICK UP<7EW>
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
0211- |
● |
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
0211- |
|
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
EXC. FRAME-KICK UP<7EW>
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
0211- |
● |
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
0211- |
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
4HF1-S ENG(RLS)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0301-0301 |
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0301-0301 |
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 75 LITTER<7GX>
08.900
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02>
08.900
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
08.900
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0402-0512 |
● |
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
02.343
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601- |
● |
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=320
|
8-98157-805-0 |
01 |
1 |
1004- |
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=420
|
8-98157-809-0 |
01 |
1 |
1004- |
|
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
EXC. FUEL TANK 75 LITTER<7GX>
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>
00.034
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
00.034
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0211-0212 |
|
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
17 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>
L=430
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
17 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
L=430
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
4HF1-S ENG(RLS)
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX>
|
8-97363-616-0 |
01 |
1 |
0302-0401 |
● |
|
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02>
|
8-97363-616-0 |
01 |
1 |
0302-0401 |
|
● |
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-97363-616-0 |
01 |
1 |
0402- |
● |
● |
● |
| |
20 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
0211-0212 |
● |
|
|
| |
20 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
EXC. FUEL TANK 75 LITTER<7GX>
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
0301-0401 |
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
4HF1-S ENG(RLS)
|
8-97077-713-1 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
23 |
03.162 JOINT; BREATHER HOSE
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
|
8-97077-713-1 |
01 |
1 |
0301-0401 |
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
|
8-97077-713-1 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-94258-609-1 |
01 |
1 |
0211- |
● |
● |
● |
| |
27 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
27 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
27 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
L=470
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
0211-0212 |
|
● |
● |
| |
27 |
03.163 HOSE; BREATHER
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
L=470
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
0301-0401 |
|
● |
● |
| |
33 |
03.162 SCREW; JOINT TO FUEL TANK
4HF1-S ENG(RLS)
02.334
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
33 |
03.162 SCREW; JOINT TO FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 75 LITTER<7GX>
02.334
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
33 |
03.162 SCREW; JOINT TO FUEL TANK
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER<N02>
02.334
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
|
8-94438-385-4 |
02 |
1 |
0211-0212 |
● |
● |
● |
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 75 LITTER<7GX>
|
8-94438-385-4 |
02 |
1 |
0301-0401 |
● |
|
|
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 100 LITTER<N02>
|
8-94438-385-4 |
02 |
1 |
0301-0401 |
|
● |
● |
| |
42 |
03.023 NUT; SUPPORT BELT
M8 FLANGE
|
9-09130-408-0 |
02 |
1 |
0211- |
● |
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW>
|
8-97035-518-0 |
02 |
1 |
0211-0212 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW>
EXC. FUEL TANK 75 LITTER<7GX>
|
8-97035-518-0 |
02 |
1 |
0301-0401 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FRAME-KICK UP<7EW>
|
8-97035-517-0 |
02 |
1 |
0211-0212 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97035-517-0 |
02 |
1 |
0211-0212 |
|
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX>
EXC. FRAME-KICK UP<7EW>
|
8-97035-517-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02>
|
8-97035-517-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FRAME-KICK UP<7EW>
|
8-97035-517-0 |
01 |
1 |
0402- |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97035-517-0 |
01 |
1 |
0402- |
|
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
|
8-97035-517-0 |
02 |
1 |
0301-0401 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FUEL TANK 100 LITTER<N02>
|
8-97035-517-0 |
02 |
1 |
0301-0401 |
|
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW>
FUEL TANK 75 LITTER<7GX>
|
8-97181-224-0 |
02 |
1 |
0301-0401 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW>
|
8-97181-224-0 |
02 |
1 |
0402- |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX>
EXC. FRAME-KICK UP<7EW>
|
8-97181-220-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02>
|
8-97181-220-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FRAME-KICK UP<7EW>
|
8-97181-220-0 |
01 |
1 |
0402- |
● |
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97181-220-0 |
01 |
1 |
0402- |
|
● |
● |
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
0211-0602 |
● |
● |
● |
| |
49 |
03.023 NUT; BRKT
04.085
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
0603- |
● |
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0211-0212 |
● |
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
4HF1-S ENG(RLS)
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0301-0501 |
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0301-0501 |
|
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ)
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0502-0512 |
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0502-0512 |
|
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
4HF1-N ENG(RJZ)
07.068
M10X30 FLANGE
|
0-28661-030-0 |
08 |
1 |
0601- |
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
07.068
M10X30 FLANGE
|
0-28661-030-0 |
08 |
1 |
0601- |
|
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME-KICK UP<7EW>
03.162
L=140
|
5-09707-031-1 |
02 |
1 |
0502- |
● |
|
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162
L=140
|
5-09707-031-1 |
02 |
1 |
0502- |
|
● |
● |
| |
452 |
03.028 BREATHER; FUEL TANK
|
8-97062-954-1 |
01 |
1 |
0211-0212 |
● |
● |
● |
| |
452 |
03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 75 LITTER<7GX>
|
8-97062-954-1 |
01 |
1 |
0301-0401 |
● |
|
|
| |
452 |
03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 100 LITTER<N02>
|
8-97062-954-1 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
452 |
03.028 BREATHER; FUEL TANK
FUEL TANK 75 LITTER<7GX>
|
8-97357-261-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
452 |
03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02>
|
8-97357-261-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
452 |
03.028 BREATHER; FUEL TANK
|
8-97357-261-0 |
01 |
1 |
0402- |
● |
● |
● |
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1-S ENG(RLS)
EXHAUST BRAKE<NF8>
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0211-0501 |
● |
● |
● |
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1-N ENG(RJZ)
EXHAUST BRAKE<NF8>
EXC. FRAME-KICK UP<7EW>
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0502- |
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1-N ENG(RJZ)
EXHAUST BRAKE<NF8>
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0502- |
|
● |
● |
| |
501 |
03.028 GROMMET; BRKT
EXC. FRAME-KICK UP<7EW>
|
8-97096-990-0 |
01 |
1 |
0211-0212 |
● |
|
|
| |
501 |
03.028 GROMMET; BRKT
|
8-97096-990-0 |
01 |
1 |
0211-0212 |
|
● |
● |
| |
501 |
03.028 GROMMET; BRKT
EXC. FRAME-KICK UP<7EW>,FUEL TANK 75
LITTER<7GX>
|
8-97096-990-0 |
01 |
1 |
0301-0401 |
● |
|
|
| |
501 |
03.028 GROMMET; BRKT
EXC. FUEL TANK 100 LITTER<N02>
|
8-97096-990-0 |
01 |
1 |
0301-0401 |
|
● |
● |
| |
653 |
03.022 BAND KIT; FUEL TANK
FUEL TANK 75 LITTER<7GX>
|
5-87411-970-0 |
02 |
1 |
0301-0401 |
● |
|
|
| |
653 |
03.022 BAND KIT; FUEL TANK
FUEL TANK 100 LITTER<N02>
|
5-87411-970-0 |
02 |
1 |
0301-0401 |
|
● |
● |
| |
653 |
03.022 BAND KIT; FUEL TANK
|
5-87411-970-0 |
02 |
1 |
0402- |
● |
● |
● |
