Sayfa 1-31 - Isuzu EPC

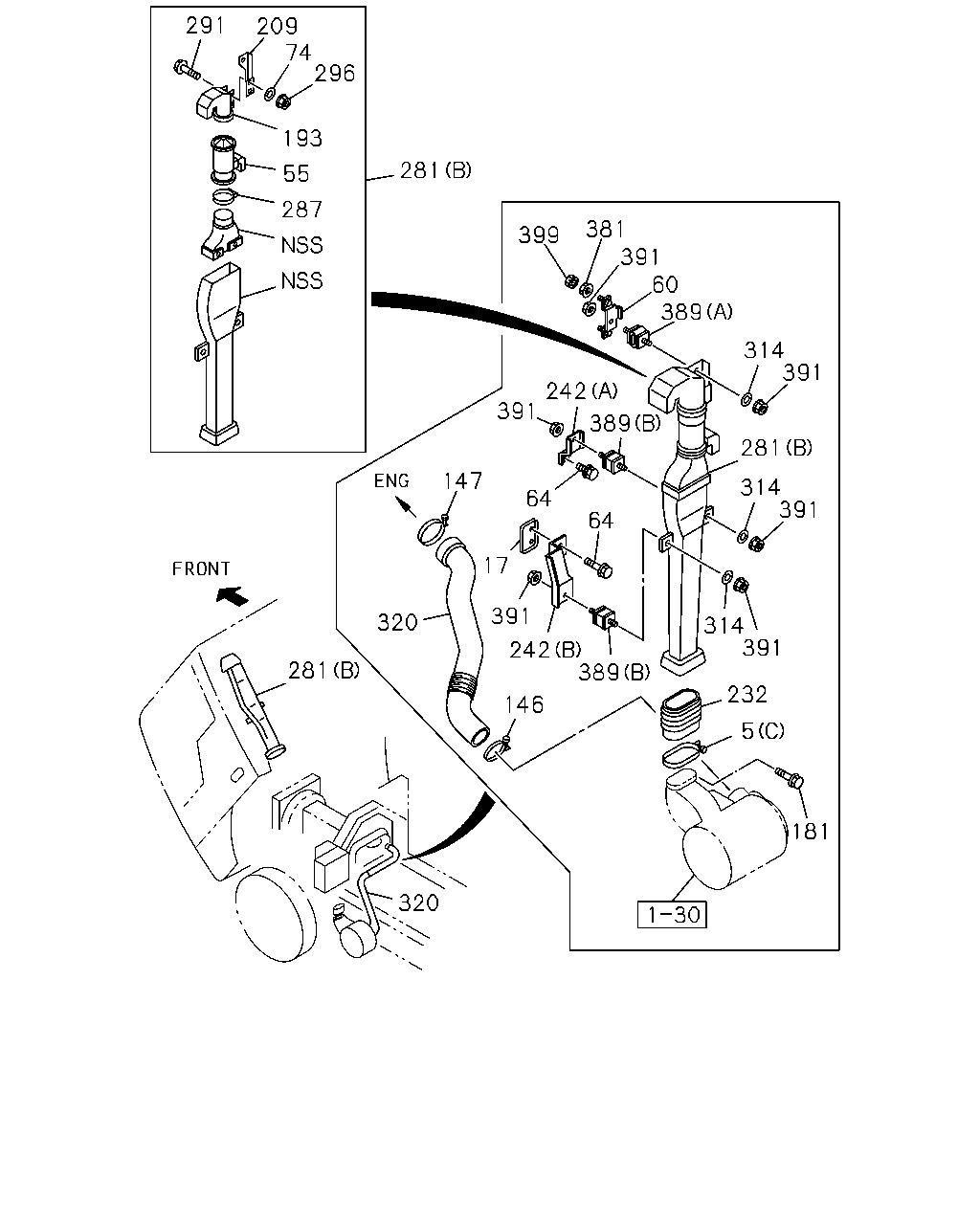

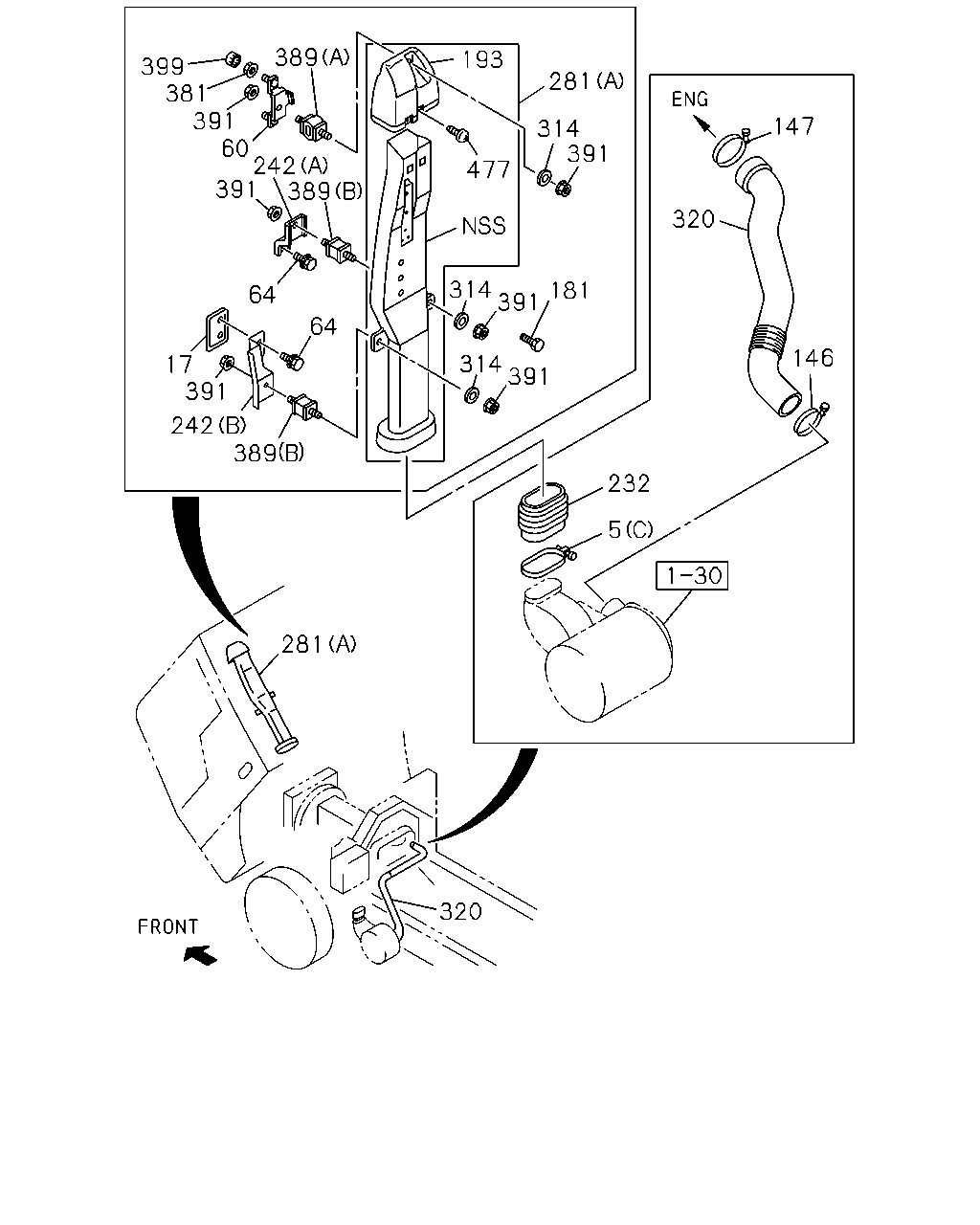

1-31 — AIR DUCT (#77692) — 253 parça

389 193 399 381 391 60 242 391 389 281 147 314 391 477 320 314 391 181 64 64 146 314 391 17 391 242 389 232 5 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (C) D=101.6	9-09915-502-1	01	1	0211-0501	●	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (C) D=101.6	9-09915-502-1	01	1	0502-	●	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (B) ID=67	9-09915-069-1	02	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (B) ID=67	9-09915-069-1	02	1	0502-			●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) 03.417 (A) ID=82	9-09915-511-1	01	1	0502-			●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS)	8-97853-699-2	01	1	0211-0501	●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	0502-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS)	8-97856-957-0	01	1	0211-0501	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ)	8-97856-957-1	01	1	0502-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.407 ID=92	9-09915-072-1	01	1	0211-0501			●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.407 ID=92	9-09915-072-1	01	1	0502-			●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0502-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-0	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-	●	●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97219-710-0	01	1	0211-0501			●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97219-710-1	01	1	0502-			●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97109-423-0	01	1	0211-0501	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97109-423-0	01	1	0502-0802	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407	8-98115-594-0	01	1	0803-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A)	8-97853-633-1	01	1	0211-0501	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A)	8-97853-633-2	01	1	0502-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B)	8-97857-844-0	01	1	0211-0501	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B)	8-97857-844-1	01	1	0502-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0501	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0502-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-848-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-848-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOWROOF<6XQ> (A)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOWROOF<6XQ> (A)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-847-2	01	1	0502-		●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1003-			●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS)	8-97069-875-1	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ)	8-97069-875-2	01	1	0502-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	0502-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0211-0501	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A)	8-97080-149-0	01	1	0502-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0211-0501	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B)	8-97081-886-0	02	1	0502-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE	8-94279-517-0	06	1	0502-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501	●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	0502-	●	●
477	03.417 SCREW; COVER 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0211-0501	●	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0502-0604	●	●
477	03.417 SCREW; COVER 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-	●	●

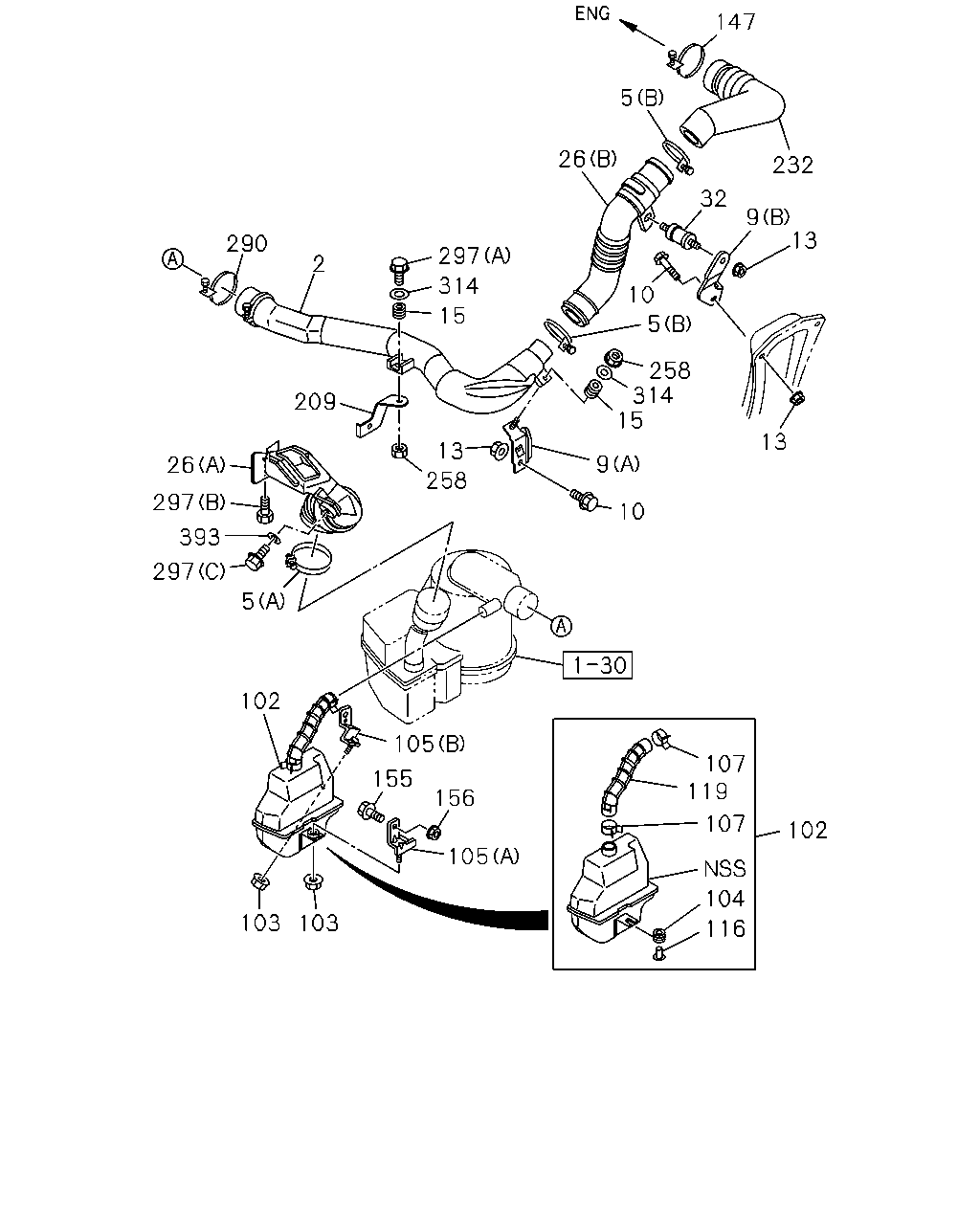

147 5 26 32 232 9 13 10 5 258 314 15 13 9 10 13 258 209 15 314 297 2 290 26 297 393 297 5 102 105 155 156 105 103 103 107 119 107 102 104 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.417 HOSE; ACL 4HF1-S ENG(RLS)	8-97218-392-0	01	1	0211-0501			●
2	03.417 HOSE; ACL 4HF1-N ENG(RJZ)	8-97218-392-0	01	1	0502-			●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (C) D=101.6	9-09915-502-1	01	1	0211-0501	●	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (C) D=101.6	9-09915-502-1	01	1	0502-	●	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (B) ID=67	9-09915-069-1	02	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (B) ID=67	9-09915-069-1	02	1	0502-			●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) 03.417 (A) ID=82	9-09915-511-1	01	1	0502-			●
9	03.417 BRACKET; INT PIPE 4HF1-S ENG(RLS) (A)	8-97089-655-0	01	1	0211-0501			●
9	03.417 BRACKET; INT PIPE 4HF1-N ENG(RJZ) (A)	8-97089-655-0	01	1	0502-			●
9	03.417 BRACKET; INT PIPE 4HF1-S ENG(RLS) (B)	8-97102-618-0	01	1	0211-0501			●
9	03.417 BRACKET; INT PIPE 4HF1-N ENG(RJZ) (B)	8-97102-618-0	01	1	0502-			●
10	03.417 BOLT; BRKT FIX 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501			●
10	03.417 BOLT; BRKT FIX 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512			●
10	03.417 BOLT; BRKT FIX 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
10	03.417 BOLT; BRKT FIX 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●
10	03.417 BOLT; BRKT FIX 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
10	03.417 BOLT; BRKT FIX 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
13	03.417 NUT; BRKT FIX 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0501			●
13	03.417 NUT; BRKT FIX 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602			●
13	03.417 NUT; BRKT FIX 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-			●
15	03.417 INSULATOR 4HF1-S ENG(RLS)	8-94338-739-0	01	1	0211-0501			●
15	03.417 INSULATOR 4HF1-S ENG(RLS)	8-94338-739-0	01	1	0211-0501			●
15	03.417 INSULATOR 4HF1-N ENG(RJZ)	8-94338-739-0	02	1	0502-			●
26	03.417 DUCT; AIR INT 4HF1-S ENG(RLS) (A)	8-97089-952-1	01	1	0211-0501			●
26	03.417 DUCT; AIR INT 4HF1-N ENG(RJZ) (A)	8-97089-952-1	01	1	0502-			●
26	03.417 DUCT; AIR INT 4HF1-S ENG(RLS) (B)	8-97218-393-1	01	1	0211-0501			●
26	03.417 DUCT; AIR INT 4HF1-N ENG(RJZ) (B)	8-97218-393-2	01	1	0502-			●
32	03.417 RUBBER; AIR DUCT MTG 4HF1-S ENG(RLS)	8-97077-387-0	01	1	0211-0501			●
32	03.417 RUBBER; AIR DUCT MTG 4HF1-N ENG(RJZ)	8-97077-387-0	01	1	0502-			●
102	03.402 RESONATOR; AIR INT 4HF1-S ENG(RLS)	8-97091-928-1	01	1	0211-0501			●
102	03.402 RESONATOR; AIR INT 4HF1-N ENG(RJZ)	8-97091-928-1	01	1	0502-			●
103	03.402 NUT; RESONATOR 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
103	03.402 NUT; RESONATOR 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
103	03.402 NUT; RESONATOR 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●
104	03.417 RUBBER; MOUNTING,RESONATOR 4HF1-S ENG(RLS)	8-97095-600-0	02	1	0211-0501			●
104	03.417 RUBBER; MOUNTING,RESONATOR 4HF1-N ENG(RJZ)	8-97095-600-0	02	1	0502-			●
105	03.403 BRACKET; RESONATOR 4HF1-S ENG(RLS) (B)	8-97091-931-1	01	1	0211-0501			●
105	03.403 BRACKET; RESONATOR 4HF1-N ENG(RJZ) (B)	8-97091-931-1	01	1	0502-			●
105	03.403 BRACKET; RESONATOR 4HF1-S ENG(RLS) (A)	8-97092-824-1	01	1	0211-0501			●
105	03.403 BRACKET; RESONATOR 4HF1-N ENG(RJZ) (A)	8-97092-824-1	01	1	0502-			●
107	03.417 CLIP; PROTECTOR 4HF1-S ENG(RLS)	8-97095-785-0	02	1	0211-0501			●
107	03.417 CLIP; PROTECTOR 4HF1-N ENG(RJZ)	8-97095-785-0	02	1	0502-			●
116	01.745 RETAINER; RESONATOR 4HF1-S ENG(RLS)	8-97105-842-0	02	1	0211-0501			●
116	01.745 RETAINER; RESONATOR 4HF1-N ENG(RJZ)	8-97105-842-0	02	1	0502-			●
119	03.403 HOSE; RESONATOR 4HF1-S ENG(RLS)	8-97105-844-0	01	1	0211-0501			●
119	03.403 HOSE; RESONATOR 4HF1-N ENG(RJZ)	8-97105-844-0	01	1	0502-			●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.407 ID=92	9-09915-072-1	01	1	0211-0501			●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.407 ID=92	9-09915-072-1	01	1	0502-			●
155	03.417 BOLT; BRKT 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●
155	03.417 BOLT; BRKT 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
155	03.417 BOLT; BRKT 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
156	03.417 NUT; BRKT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602			●
156	03.417 NUT; BRKT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0211-0501	●	●
209	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0502-	●	●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) 03.417	8-97072-530-0	01	1	0211-0501			●
209	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) 03.417	8-97072-530-0	01	1	0502-			●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97219-710-0	01	1	0211-0501			●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97219-710-1	01	1	0502-			●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97109-423-0	01	1	0211-0501	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97109-423-0	01	1	0502-0802	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407	8-98115-594-0	01	1	0803-	●	●
258	03.417 NUT; AIR DUCT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●
258	03.417 NUT; AIR DUCT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
258	03.417 NUT; AIR DUCT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612	●	●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-1002			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-1002			●
258	03.417 NUT; AIR DUCT 4HF1-N ENG(RJZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1003-			●
290	03.374 CLIP; ACL TO AIR DUCT 4HF1-S ENG(RLS) 01.166 ID=76	1-09704-069-0	01	1	0211-0501			●
290	03.374 CLIP; ACL TO AIR DUCT 4HF1-N ENG(RJZ) 01.166 ID=76	1-09704-069-0	01	1	0502-			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0512			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) (B)	0-51640-840-0	01	1	0601-			●
297	03.417 BOLT; DUCT 4HF1-S ENG(RLS) 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0211-0501			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-			●
297	03.417 BOLT; DUCT 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●
297	03.417 BOLT; DUCT 4HF1-S ENG(RLS) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512	●	●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0612	●	●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0612			●
297	03.417 BOLT; DUCT 4HF1-N ENG(RJZ) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0701-			●
297	03.417 BOLT; DUCT 4HF1-S ENG(RLS) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1003-			●
393	03.417 WASHER; LK,AIR DUCT 4HF1-N ENG(RJZ) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0505-			●
393	03.417 WASHER; LK,AIR DUCT 4HF1-S ENG(RLS) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0211-0501			●

291 209 74 296 193 281 55 287 381 391 60 389 399 314 391 242 391 389 281 147 314 391 64 64 17 391 320 314 391 242 389 281 232 146 5 181 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (C) D=101.6	9-09915-502-1	01	1	0211-0501	●	●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (C) D=101.6	9-09915-502-1	01	1	0502-	●	●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) (B) ID=67	9-09915-069-1	02	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) (B) ID=67	9-09915-069-1	02	1	0502-			●
5	03.407 CLIP; AIR DUCT 4HF1-S ENG(RLS) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501			●
5	03.407 CLIP; AIR DUCT 4HF1-N ENG(RJZ) 03.417 (A) ID=82	9-09915-511-1	01	1	0502-			●
17	03.403 GASKET; AIR DUCT 4HF1-S ENG(RLS)	8-97853-699-2	01	1	0211-0501	●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	0502-	●	●
55	03.402 CLEANER ASM; AIR,PRE 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	0211-0501	●	●
55	03.402 CLEANER ASM; AIR,PRE 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	0502-	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-S ENG(RLS)	8-97856-957-0	01	1	0211-0501	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1-N ENG(RJZ)	8-97856-957-1	01	1	0502-	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-	●	●
74	03.417 WASHER; PL,ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501	●	●
74	03.417 WASHER; PL,ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605	●	●
74	03.417 WASHER; PL,ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●
146	03.417 CLIP; HOSE,ACL 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●
147	03.417 CLIP; HOSE TO ENG 4HF1-S ENG(RLS) 03.407 ID=92	9-09915-072-1	01	1	0211-0501			●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ) 03.407 ID=92	9-09915-072-1	01	1	0502-			●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0502-	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-0	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-	●	●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0211-0501	●	●
209	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	0502-	●	●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) 03.417	8-97072-530-0	01	1	0211-0501			●
209	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) 03.417	8-97072-530-0	01	1	0502-			●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97219-710-0	01	1	0211-0501			●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97219-710-1	01	1	0502-			●
232	03.417 HOSE; CONN 4HF1-S ENG(RLS)	8-97109-423-0	01	1	0211-0501	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ)	8-97109-423-0	01	1	0502-0802	●	●
232	03.417 HOSE; CONN 4HF1-N ENG(RJZ) 03.407	8-98115-594-0	01	1	0803-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (A)	8-97853-633-1	01	1	0211-0501	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (A)	8-97853-633-2	01	1	0502-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS) (B)	8-97857-844-0	01	1	0211-0501	●	●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ) (B)	8-97857-844-1	01	1	0502-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-1	01	1	0211-0501	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> (B)	8-97120-084-2	01	1	0502-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-848-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-848-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOWROOF<6XQ> (A)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOWROOF<6XQ> (A)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97161-847-2	01	1	0502-		●
287	03.417 CLIP; AIR DUCT 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	0211-0501	●	●
287	03.417 CLIP; AIR DUCT 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	0502-	●	●
291	03.405 BOLT; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0501	●	●
291	03.405 BOLT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0502-0512	●	●
291	03.405 BOLT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
296	03.405 NUT; ACL 4HF1-S ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●
296	03.405 NUT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●
296	03.405 NUT; ACL 4HF1-N ENG(RJZ) HEAVY DUTY AIR CLEANER<K46> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-S ENG(RLS) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-1002			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1-N ENG(RJZ) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1003-			●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS)	8-97069-875-1	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ)	8-97069-875-2	01	1	0502-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HF1-S ENG(RLS) 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	0502-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0211-0501	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (A)	8-97080-149-0	01	1	0502-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0211-0501	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ) 03.417 (B)	8-97081-886-0	02	1	0502-	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-S ENG(RLS) M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 FLANGE	8-94279-517-0	06	1	0502-0910	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1-N ENG(RJZ) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501	●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	0502-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
