1-30 — AIR CLEANER (#77691) — 138 parça

1 208 2 91 2 6 3 68 3 8 94 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97312-426-1	01	1	0211-0501	●	●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ)	8-97312-426-1	01	1	0502-	●	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97102-676-1	01	1	0211-0501			●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ)	8-97102-676-1	01	1	0502-			●
2	03.403 NUT; WING,ELEMENT 4HF1-S ENG(RLS)	1-14217-068-0	02	1	0211-0501	●	●
2	03.403 NUT; WING,ELEMENT 4HF1-N ENG(RJZ)	1-14217-068-0	02	1	0502-	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	1-14219-225-0	02	1	0211-0501	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1-N ENG(RJZ)	1-14219-225-0	02	1	0502-	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	9-14219-279-0	01	1	0211-0501			●
3	03.403 WASHER; SEAL,WING NUT 4HF1-N ENG(RJZ)	9-14219-279-0	01	1	0502-			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-94156-052-0	01	1	0211-0501	●	●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ)	8-94156-052-0	01	1	0502-	●	●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-97173-027-0	01	1	0211-0501			●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ)	8-97173-027-0	01	1	0502-			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS) BEST VALUE PARTS	5-87610-029-3	01	1	0211-0501	●	●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ) BEST VALUE PARTS	5-87610-029-3	01	1	0502-	●	●
8	03.410 COVER ASM; ACL 4HF1-S ENG(RLS)	8-97093-023-0	01	1	0211-0501	●	●
8	03.410 COVER ASM; ACL 4HF1-N ENG(RJZ)	8-97093-023-0	01	1	0502-	●	●
44	03.403 BOLT; ACL 4HF1-S ENG(RLS) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0211-0501	●	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0502-0512	●	●
44	03.403 BOLT; ACL 4HF1-N ENG(RJZ) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	0211-0501	●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	0502-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0211-0501	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (C)	8-97091-040-1	01	1	0211-0501		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0502-	●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (C)	8-97091-040-1	01	1	0502-		●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97038-519-1	01	1	0211-0501			●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97038-519-1	01	1	0502-			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (B)	8-97090-030-0	01	1	0211-0501			●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (B)	8-97090-030-0	01	1	0502-			●
68	03.415 INDICATOR; SERVICE 4HF1-S ENG(RLS)	1-14219-212-0	01	1	0211-0501	●	●
68	03.415 INDICATOR; SERVICE 4HF1-N ENG(RJZ)	1-14219-212-0	01	1	0502-	●	●
91	03.403 CLAMP 4HF1-S ENG(RLS)	8-97093-696-2	01	1	0211-0501	●	●
91	03.403 CLAMP 4HF1-N ENG(RJZ)	8-97093-696-2	01	1	0502-	●	●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (C)	8-94447-157-0	01	1	0211-0501	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (C)	8-94447-157-0	01	1	0502-	●	●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (A)	8-94439-205-0	01	1	0211-0501			●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94439-205-0	01	1	0502-			●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (B)	8-97148-258-0	01	1	0211-0501			●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (B)	8-97148-258-0	01	1	0502-			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 (B) M10X35 FLANGE	0-28681-035-0	04	1	0211-0501	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 (B) M10X35 FLANGE	0-28681-035-0	04	1	0502-0512	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
208	03.407 DUCT; ACL 4HF1-S ENG(RLS)	8-97074-904-1	01	1	0211-0501	●	●
208	03.407 DUCT; ACL 4HF1-N ENG(RJZ)	8-97074-904-1	01	1	0502-	●	●

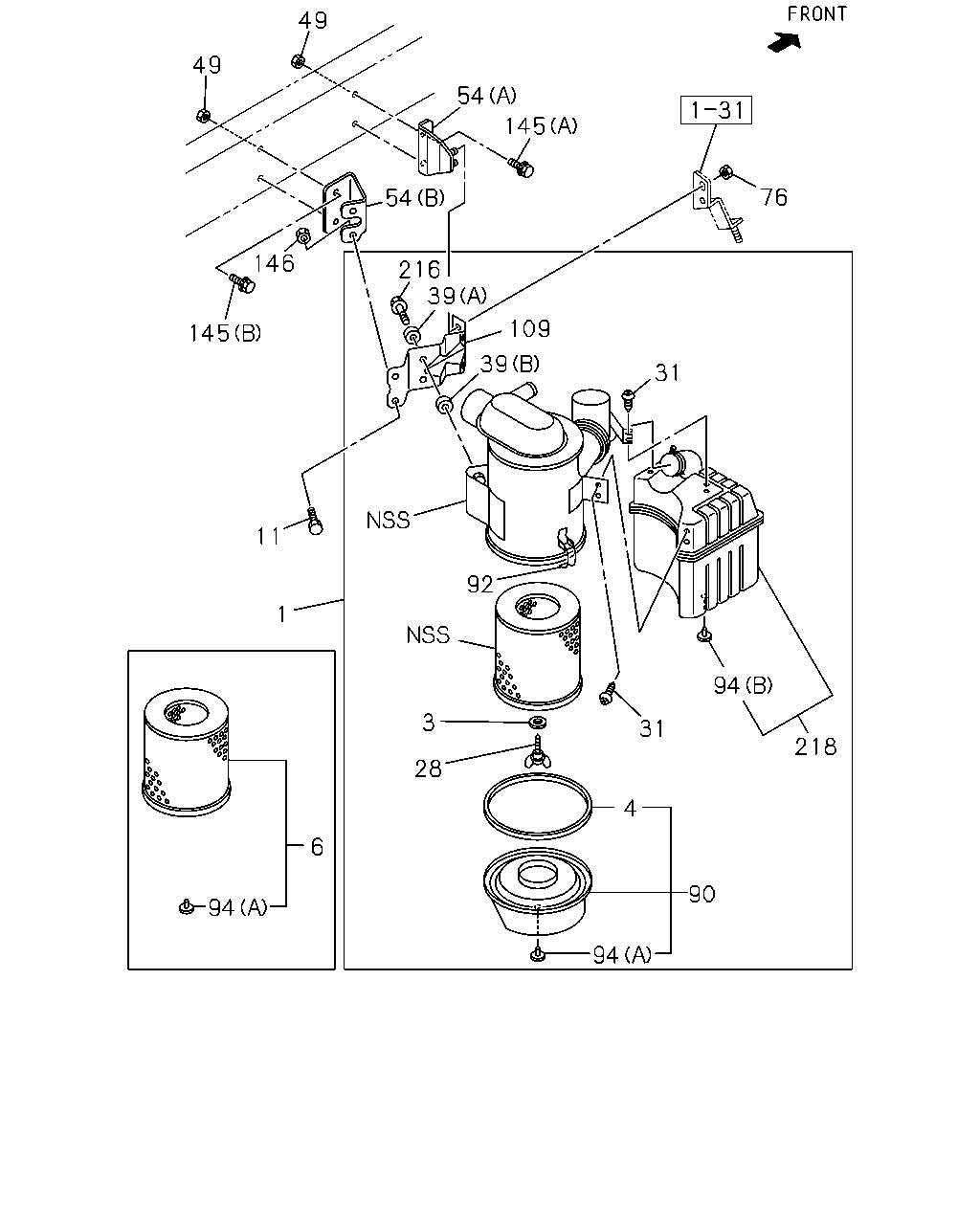

49 49 54 145 76 54 146 216 39 109 145 39 31 11 92 1 94 3 31 218 28 4 6 90 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97312-426-1	01	1	0211-0501	●	●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ)	8-97312-426-1	01	1	0502-	●	●
1	03.402 CLEANER ASM; AIR 4HF1-S ENG(RLS)	8-97102-676-1	01	1	0211-0501			●
1	03.402 CLEANER ASM; AIR 4HF1-N ENG(RJZ)	8-97102-676-1	01	1	0502-			●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	1-14219-225-0	02	1	0211-0501	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1-N ENG(RJZ)	1-14219-225-0	02	1	0502-	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1-S ENG(RLS)	9-14219-279-0	01	1	0211-0501			●
3	03.403 WASHER; SEAL,WING NUT 4HF1-N ENG(RJZ)	9-14219-279-0	01	1	0502-			●
4	03.403 GASKET; COVER TO BODY 4HF1-S ENG(RLS)	8-94361-137-0	01	1	0211-0501			●
4	03.403 GASKET; COVER TO BODY 4HF1-N ENG(RJZ)	8-94361-137-0	01	1	0502-			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-94156-052-0	01	1	0211-0501	●	●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ)	8-94156-052-0	01	1	0502-	●	●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS)	8-97173-027-0	01	1	0211-0501			●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ)	8-97173-027-0	01	1	0502-			●
6	03.410 FILTER; ACL 4HF1-S ENG(RLS) BEST VALUE PARTS	5-87610-029-3	01	1	0211-0501	●	●
6	03.410 FILTER; ACL 4HF1-N ENG(RJZ) BEST VALUE PARTS	5-87610-029-3	01	1	0502-	●	●
11	03.403 BOLT; ACL 4HF1-S ENG(RLS) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
11	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0502-0512			●
11	03.403 BOLT; ACL 4HF1-N ENG(RJZ) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
28	03.403 BOLT; WING,ACL 4HF1-S ENG(RLS)	9-14217-090-0	01	1	0211-0501			●
28	03.403 BOLT; WING,ACL 4HF1-N ENG(RJZ)	9-14217-090-0	01	1	0502-			●
31	03.406 SCREW; ACL 4HF1-S ENG(RLS) 03.402	8-97100-001-0	04	1	0211-0501			●
31	03.406 SCREW; ACL 4HF1-N ENG(RJZ) 03.402	8-97100-001-0	04	1	0502-			●
39	03.403 RUBBER; MTG,BOLT 4HF1-S ENG(RLS) (A)	8-97100-002-0	04	1	0211-0501			●
39	03.403 RUBBER; MTG,BOLT 4HF1-N ENG(RJZ) (A)	8-97100-002-0	04	1	0502-			●
39	03.403 RUBBER; MTG,BOLT 4HF1-S ENG(RLS) (B)	8-97100-007-0	02	1	0211-0501			●
39	03.403 RUBBER; MTG,BOLT 4HF1-N ENG(RJZ) (B)	8-97100-007-0	02	1	0502-			●
49	03.403 NUT; ACL 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501			●
49	03.403 NUT; ACL 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602			●
49	03.403 NUT; ACL 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	0211-0501	●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	0502-	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0211-0501	●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (C)	8-97091-040-1	01	1	0211-0501		●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0502-	●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (C)	8-97091-040-1	01	1	0502-		●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (A)	8-97038-519-1	01	1	0211-0501			●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (A)	8-97038-519-1	01	1	0502-			●
54	03.405 BRACKET; ACL 4HF1-S ENG(RLS) (B)	8-97090-030-0	01	1	0211-0501			●
54	03.405 BRACKET; ACL 4HF1-N ENG(RJZ) (B)	8-97090-030-0	01	1	0502-			●
76	03.405 NUT; BRKT TO ACL 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
76	03.405 NUT; BRKT TO ACL 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602			●
76	03.405 NUT; BRKT TO ACL 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
90	03.406 CUP; ACL 4HF1-S ENG(RLS)	8-97215-621-0	01	1	0211-0501			●
90	03.406 CUP; ACL 4HF1-N ENG(RJZ)	8-97215-621-0	01	1	0502-			●
92	03.405 CLIP; WIRE,ACL 4HF1-S ENG(RLS)	8-94118-230-0	03	1	0211-0501			●
92	03.405 CLIP; WIRE,ACL 4HF1-N ENG(RJZ)	8-94118-230-0	03	1	0502-			●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (C)	8-94447-157-0	01	1	0211-0501	●	●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (C)	8-94447-157-0	01	1	0502-	●	●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (A)	8-94439-205-0	01	1	0211-0501			●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (A)	8-94439-205-0	01	1	0502-			●
94	03.415 VALVE; VACUATOR 4HF1-S ENG(RLS) (B)	8-97148-258-0	01	1	0211-0501			●
94	03.415 VALVE; VACUATOR 4HF1-N ENG(RJZ) (B)	8-97148-258-0	01	1	0502-			●
109	03.405 STAY; ACL 4HF1-S ENG(RLS)	8-97215-622-0	01	1	0211-0501			●
109	03.405 STAY; ACL 4HF1-N ENG(RJZ)	8-97215-622-0	01	1	0502-			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) 03.162 (B) M10X35 FLANGE	0-28681-035-0	04	1	0211-0501	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 (B) M10X35 FLANGE	0-28681-035-0	04	1	0502-0512	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 02.277 (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) (A) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
145	03.405 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
146	03.405 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
146	03.405 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
216	03.402 BOLT; ACL TO SILENCER 4HF1-S ENG(RLS)	8-97126-074-0	04	1	0211-0501			●
216	03.402 BOLT; ACL TO SILENCER 4HF1-N ENG(RJZ)	8-97126-074-0	04	1	0502-			●
218	03.417 RESONATOR; ACL 4HF1-S ENG(RLS)	8-97106-120-1	01	1	0211-0501			●
218	03.417 RESONATOR; ACL 4HF1-N ENG(RJZ)	8-97106-120-1	01	1	0502-			●
