Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#77690) — 67 parça

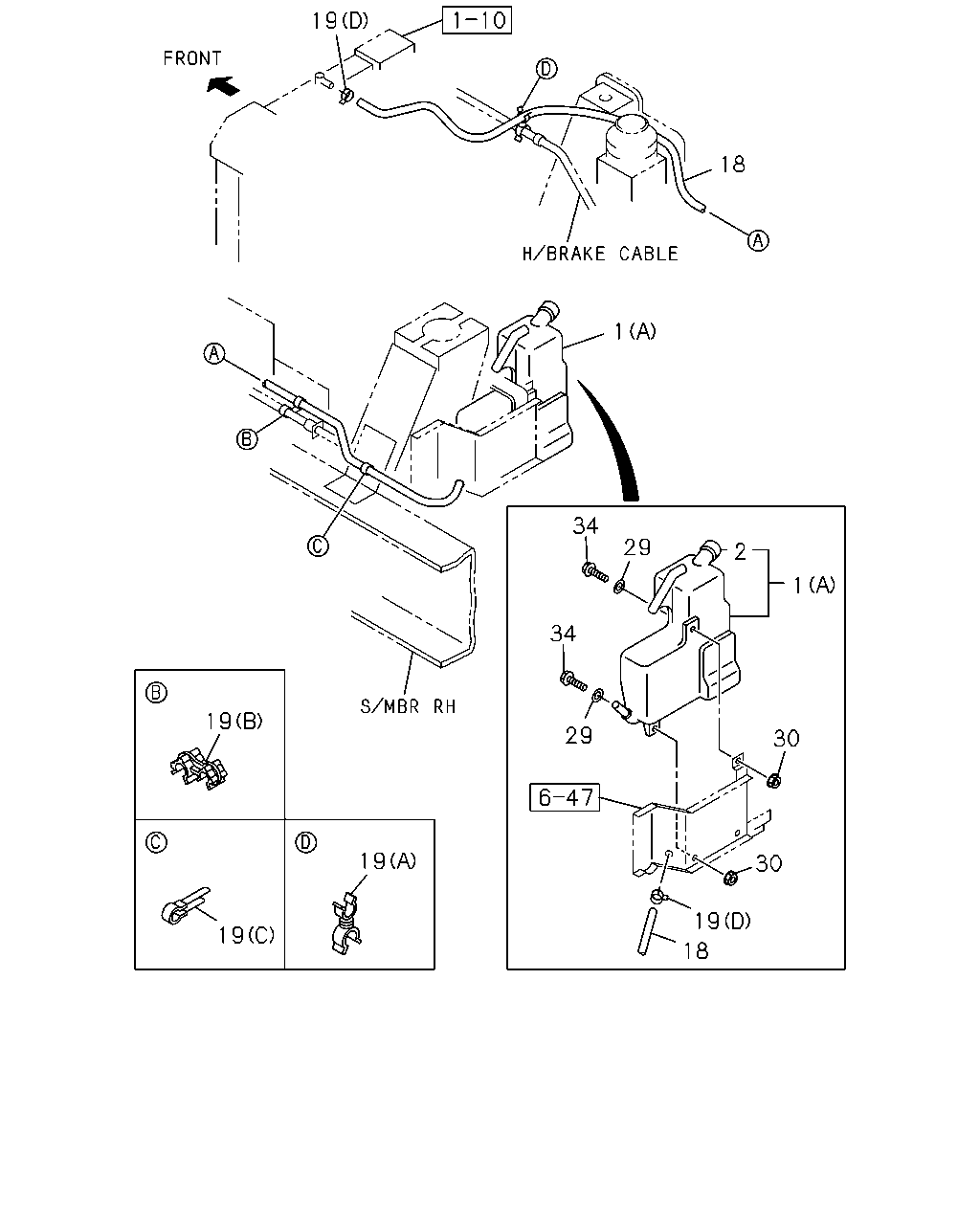

19 18 1 34 29 2 1 34 19 29 30 19 30 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0502-1010	●	●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (B)	8-94378-388-1	01	1	0211-0501			●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (B)	8-94378-388-1	01	1	0502-			●
2	01.203 CAP; SURGE TANK 4HF1-S ENG(RLS)	8-97217-796-0	01	1	0211-0501	●	●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0502-1010	●	●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4HF1-S ENG(RLS)	8-94449-363-0	01	1	0211-0501			●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-94449-363-0	01	1	0502-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS)	8-97160-993-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ)	8-97385-003-0	01	1	0502-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS) L=1760	8-97233-040-1	01	1	0211-0501			●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1760	8-97233-040-1	01	1	0502-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	0502-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (C) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (B) ID=10 & 12	8-94416-613-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=10 & 12	8-94416-613-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98150-358-0	02	1	0912-	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0211-0501	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-N ENG(RJZ) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0605	●	●
29	01.203 WASHER; PL,RESERVE TANK 4HF1-N ENG(RJZ) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-	●	●
30	01.203 NUT 4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	03	1	0211-0501	●	●
30	01.203 NUT 4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	03	1	0502-0602	●	●
30	01.203 NUT 4HF1-N ENG(RJZ) 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
34	01.203 BOLT; RESERVE TANK 4HF1-S ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0211-0501	●	●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0502-0512	●	●
34	01.203 BOLT; RESERVE TANK 4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0601-	●	●

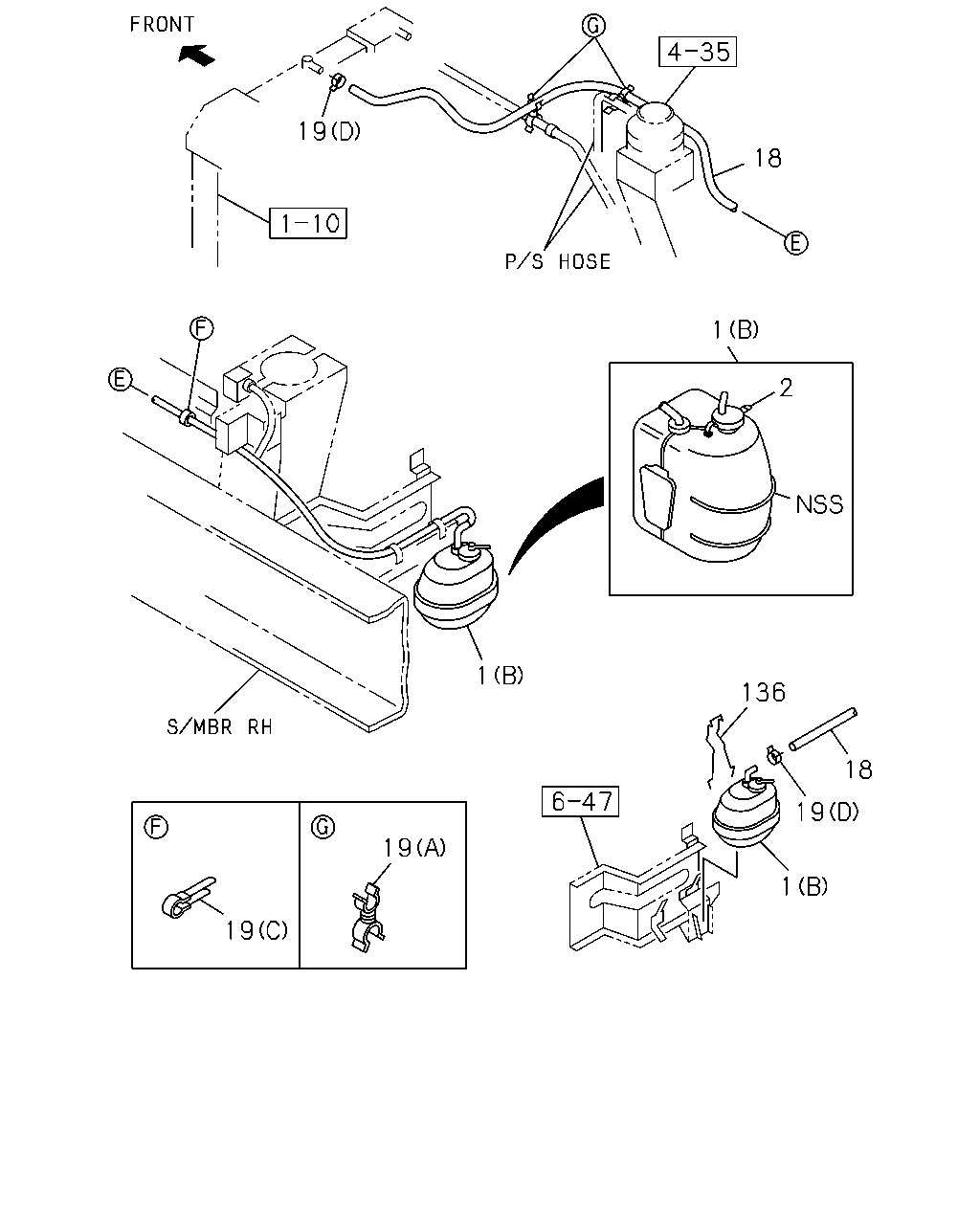

19 18 1 2 1 136 18 19 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (A)	8-97210-844-0	01	1	0211-0501	●	●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-97210-844-0	01	1	0502-1010	●	●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (A)	8-98178-177-0	01	1	1011-	●	●
1	01.219 TANK; SURGE,RAD 4HF1-S ENG(RLS) (B)	8-94378-388-1	01	1	0211-0501			●
1	01.219 TANK; SURGE,RAD 4HF1-N ENG(RJZ) (B)	8-94378-388-1	01	1	0502-			●
2	01.203 CAP; SURGE TANK 4HF1-S ENG(RLS)	8-97217-796-0	01	1	0211-0501	●	●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-97217-796-0	01	1	0502-1010	●	●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-98178-074-0	01	1	1011-	●	●
2	01.203 CAP; SURGE TANK 4HF1-S ENG(RLS)	8-94449-363-0	01	1	0211-0501			●
2	01.203 CAP; SURGE TANK 4HF1-N ENG(RJZ)	8-94449-363-0	01	1	0502-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS)	8-97160-993-2	01	1	0211-0501	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ)	8-97385-003-0	01	1	0502-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-S ENG(RLS) L=1760	8-97233-040-1	01	1	0211-0501			●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1-N ENG(RJZ) L=1760	8-97233-040-1	01	1	0502-			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	0502-	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.104 (A) ID=12 & 16.5	8-94400-865-0	01	1	0502-		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (C) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (C) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) (B) ID=10 & 12	8-94416-613-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) (B) ID=10 & 12	8-94416-613-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0211-0501	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1-N ENG(RJZ) 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0502-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	0211-0911	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98150-358-0	02	1	0912-	●	●	●
136	01.219 STOPPER; SURGE TANK 4HF1-S ENG(RLS)	8-97087-220-0	01	1	0211-0501			●
136	01.219 STOPPER; SURGE TANK 4HF1-N ENG(RJZ)	8-97087-220-0	01	1	0502-			●

56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET 4HF1-S ENG(RLS)	8-97124-740-0	01	1	0211-0501	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1-N ENG(RJZ)	8-97124-740-0	01	1	0502-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-S ENG(RLS) (A) ID=40	8-97245-216-0	02	1	0211-0501	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (A) ID=40	8-97245-216-0	02	1	0502-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-S ENG(RLS) (B) ID=50	8-97245-217-0	01	1	0211-0501	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1-N ENG(RJZ) (B) ID=50	8-97245-217-0	01	1	0502-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1-S ENG(RLS)	8-97162-163-0	01	1	0211-0501	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1-N ENG(RJZ)	8-97162-163-0	01	1	0502-	●	●	●
