1-10 — RADIATOR (#77689) — 112 parça

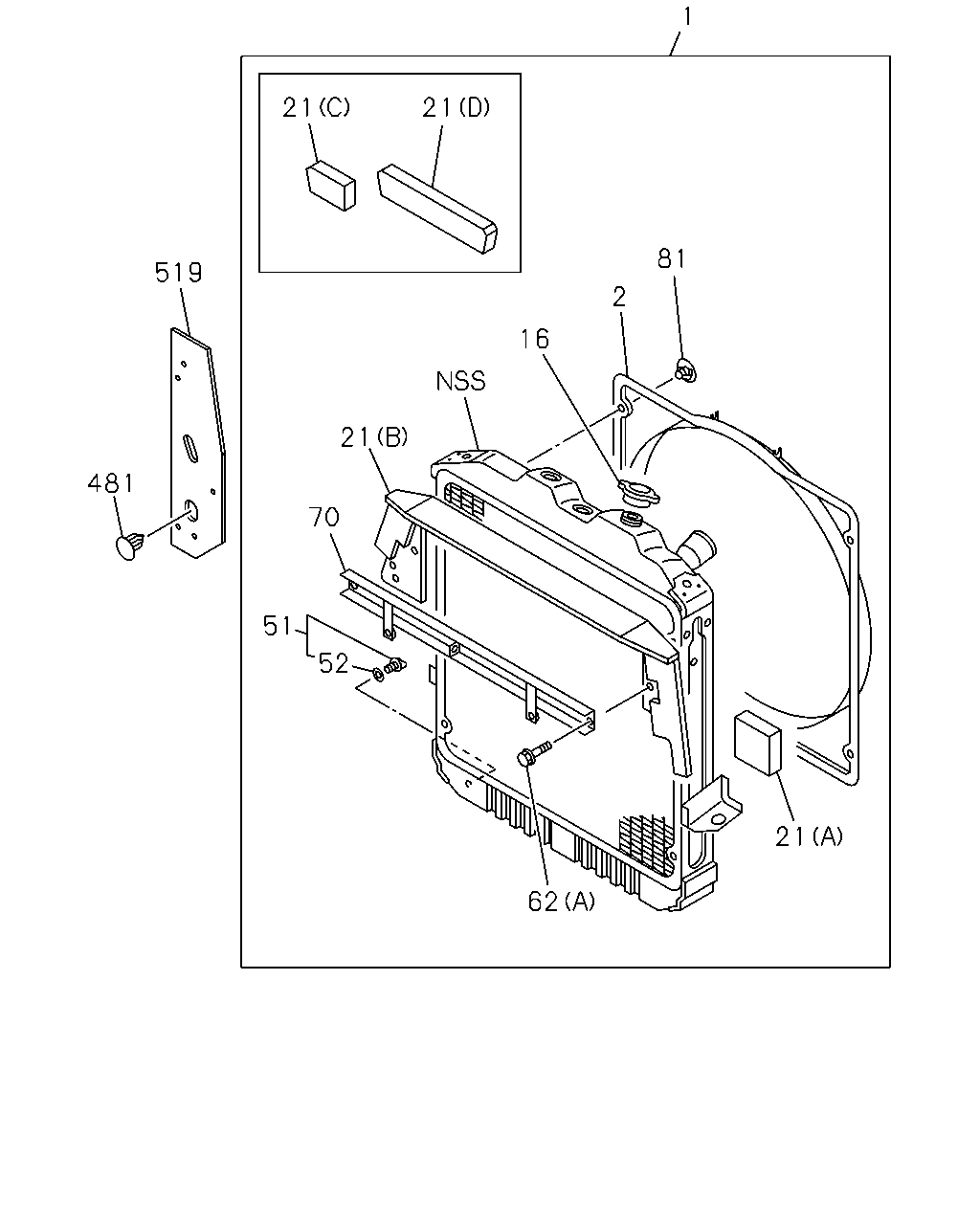

1 21 21 81 519 2 16 21 481 70 51 52 21 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97384-104-1	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-104-1	01	1	0502-		●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97223-465-0	01	1	0211-0305	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97371-009-0	01	1	0306-0501	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97371-009-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97219-055-0	01	1	0211-0305	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97219-055-0	01	1	0211-0305		●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97371-008-0	01	1	0306-0501	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97371-008-0	01	1	0306-0501		●	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW>	8-97371-008-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97371-008-0	01	1	0502-		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ)	8-97371-008-0	01	1	0502-			●
2	01.277 GUIDE; FAN 4HF1-S ENG(RLS)	8-97203-091-0	01	1	0211-0501	●	●	●
2	01.277 GUIDE; FAN 4HF1-N ENG(RJZ)	8-97203-091-0	01	1	0502-	●	●	●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97177-872-0	01	1	0211-0305	●	●	●
16	01.203 CAP; RAD 4HF1-S ENG(RLS)	8-97371-017-0	01	1	0306-0501	●	●	●
16	01.203 CAP; RAD 4HF1-N ENG(RJZ)	8-97371-017-0	01	1	0502-	●	●	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (A)	8-97232-020-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97232-020-0	01	1	0502-		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW> (B)	8-97384-106-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-106-0	01	1	0502-		●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (C)	8-97164-332-0	01	1	0211-0501	●	●	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (C)	8-97164-332-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> (C)	8-97164-332-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97164-332-0	01	1	0502-		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (C)	8-97164-332-0	01	1	0502-			●
21	01.276 SEAL; RAD 4HF1-S ENG(RLS) (D)	8-97164-333-0	01	1	0211-0501	●	●	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (D)	8-97164-333-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW> (D)	8-97164-333-0	01	1	0502-	●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60) (D)	8-97164-333-0	01	1	0502-		●
21	01.276 SEAL; RAD 4HF1-N ENG(RJZ) (D)	8-97164-333-0	01	1	0502-			●
51	08.951 PLUG; DRAIN 4HF1-S ENG(RLS) 08.915 W/GASKET	8-94321-236-0	01	1	0211-0501	●	●	●
51	08.951 PLUG; DRAIN 4HF1-N ENG(RJZ) 08.915 W/GASKET	8-94321-236-0	01	1	0502-	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HF1-S ENG(RLS) 01.203 ID=10	9-09720-557-0	01	1	0211-0501	●	●	●
52	08.951 GASKET; DRAIN PLUG 4HF1-N ENG(RJZ) 01.203 ID=10	9-09720-557-0	01	1	0502-	●	●	●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●	●
62	01.271 BOLT; STAY 4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0211-0501	●	●	●
70	01.271 STAY; RAD 4HF1-N ENG(RJZ)	8-97047-899-0	01	1	0502-	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-S ENG(RLS)	8-97088-810-0	04	1	0211-0501	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HF1-N ENG(RJZ)	8-97088-810-0	04	1	0502-	●	●	●
481	01.276 BOLT; SEAL FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97228-568-0	05	1	0502-	●
481	01.276 BOLT; SEAL FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97228-568-0	05	1	0502-		●
519	01.276 SEAL; RAD SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97324-382-1	01	1	0502-	●
519	01.276 SEAL; RAD SIDE 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97324-382-1	01	1	0502-		●

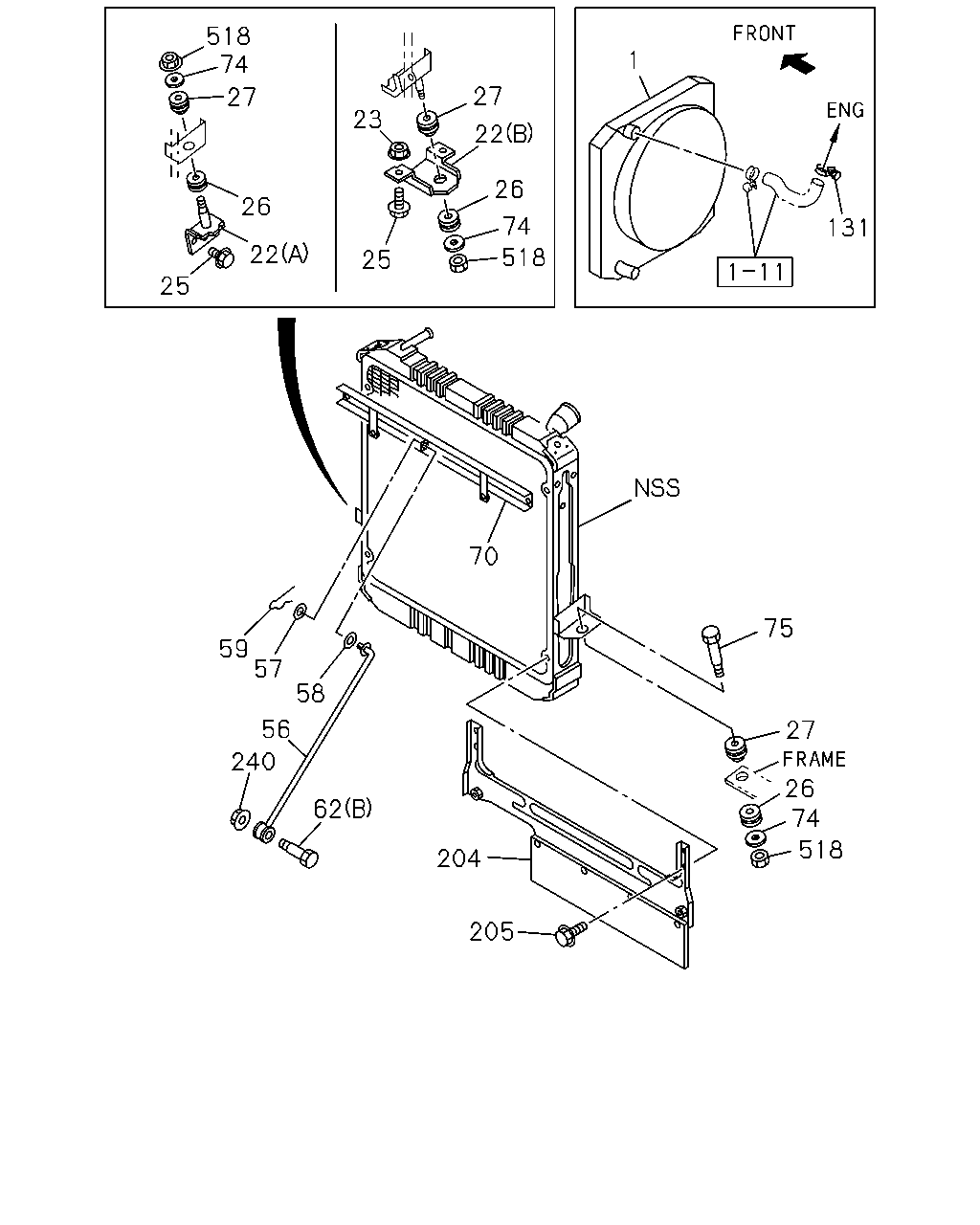

518 74 1 27 27 23 22 26 26 74 131 22 518 25 25 70 75 59 57 58 56 27 240 26 74 62 518 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME-KICK UP<7EW>	8-97384-104-1	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-104-1	01	1	0502-		●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97223-465-0	01	1	0211-0305	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97371-009-0	01	1	0306-0501	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97371-009-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97219-055-0	01	1	0211-0305	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97219-055-0	01	1	0211-0305		●	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97371-008-0	01	1	0306-0501	●
1	01.219 RADIATOR ASM 4HF1-S ENG(RLS)	8-97371-008-0	01	1	0306-0501		●	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60), FRAME-KICK UP<7EW>	8-97371-008-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97371-008-0	01	1	0502-		●
1	01.219 RADIATOR ASM 4HF1-N ENG(RJZ)	8-97371-008-0	01	1	0502-			●
22	01.270 BRACKET; RAD MTG FRAME-KICK UP<7EW> (A)	8-97072-647-1	01	1	0211-	●
22	01.270 BRACKET; RAD MTG EXC. FRAME-KICK UP<7EW> (B)	8-94257-949-1	01	1	0211-	●
22	01.270 BRACKET; RAD MTG (B)	8-94257-949-1	01	1	0211-		●	●
23	01.271 NUT; RAD MTG EXC. FRAME-KICK UP<7EW> 07.874 M10 FLANGE	5-09440-006-0	02	1	0211-	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	0211-		●	●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97351-496-0	01	1	0211-0501	●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97351-496-0	01	1	0502-	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97350-322-0	01	1	0211-0501	●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97350-322-0	01	1	0211-0501		●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97350-322-0	01	1	0502-	●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ)	8-97350-322-0	01	1	0502-		●
56	01.270 STAY; RAD 4HF1-S ENG(RLS)	8-97351-498-0	01	1	0211-0501			●
56	01.270 STAY; RAD 4HF1-N ENG(RJZ)	8-97351-498-0	01	1	0502-			●
57	01.271 WASHER; PL,STAY 4HF1-S ENG(RLS) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●
58	01.271 WASHER; CURVED,STAY 4HF1-S ENG(RLS) ID=12	8-97011-676-0	01	1	0211-0501	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0502-	●	●	●
59	01.271 PIN; SNAP,STAY 4HF1-S ENG(RLS) 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●
62	01.271 BOLT; STAY 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●	●
62	01.271 BOLT; STAY 4HF1-N ENG(RJZ) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●
70	01.271 STAY; RAD 4HF1-S ENG(RLS)	8-97047-899-0	01	1	0211-0501	●	●	●
70	01.271 STAY; RAD 4HF1-N ENG(RJZ)	8-97047-899-0	01	1	0502-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER FRAME-KICK UP<7EW> 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	0211-0610	●
74	01.270 WASHER; PL,CUSHION RUBBER FRAME-KICK UP<7EW> ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●
74	01.270 WASHER; PL,CUSHION RUBBER FRAME-KICK UP<7EW> ID=10.5 OD=36	8-97031-437-0	01	1	0211-	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRAME-KICK UP<7EW> 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0211-0610	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0211-0610		●	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRAME-KICK UP<7EW> ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	0611-		●	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRAME-KICK UP<7EW> 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	0211-	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	0211-		●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HF1-S ENG(RLS) ID=40	8-97245-216-0	01	1	0211-0501	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4HF1-N ENG(RJZ) ID=40	8-97245-216-0	01	1	0502-	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-3	01	1	0211-0501	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-98002-685-0	01	1	0502-	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●
518	01.270 NUT FRAME-KICK UP<7EW> 00.854 M8 FLANGE	5-09440-005-0	01	1	0211-0610	●
518	01.270 NUT FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0611-	●
518	01.270 NUT EXC. FRAME-KICK UP<7EW> 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0610	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0610		●	●
518	01.270 NUT EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
