◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#77688) — 75 parça
çizim 135545
537 537 70 68 67
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.480 CABLE ASM; IDLE CONT
4HF1-S ENG(RLS) L=945 		8-97856-223-4 01 1 0211-0501 ● ● ●
67 03.480 CABLE ASM; IDLE CONT
4HF1-N ENG(RJZ) L=945 		8-97856-223-4 01 1 0502- ● ● ●
68 03.480 KNOB; IDLE CONT
4HF1-S ENG(RLS) 		8-97853-765-1 01 1 0211-0501 ● ● ●
68 03.480 KNOB; IDLE CONT
4HF1-N ENG(RJZ) 		8-97853-765-1 01 1 0502- ● ● ●
70 03.483 NUT; CONT CABLE
4HF1-S ENG(RLS) M18 		8-97853-233-0 01 1 0211-0501 ● ● ●
70 03.483 NUT; CONT CABLE
4HF1-N ENG(RJZ) M18 		8-97853-233-0 01 1 0502- ● ● ●
537 03.483 CLIP; IDLING CONT CABLE
4HF1-S ENG(RLS) 04.342 ID=7 		5-09707-053-0 02 1 0211-0501 ● ● ●
537 03.483 CLIP; IDLING CONT CABLE
4HF1-N ENG(RJZ) 04.342 ID=7 		5-09707-053-0 02 1 0502- ● ● ●
çizim 135546
158 83 80 35 35 545 81 89 90 124 80 80 14 230 24 242 65 46 171
BalonParca AdiParca NoAdetTipApplied Date A B C
14 03.451 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 0211- ● ● ●
24 03.483 BOLT; BRKT
03.459 		0-20800-840-0 01 1 0211- ● ● ●
35 03.459 STOPPER; ACCEL PEDAL
4HF1-S ENG(RLS) 		8-97302-305-0 02 1 0211-0501 ● ● ●
35 03.459 STOPPER; ACCEL PEDAL
4HF1-N ENG(RJZ) 		8-97302-305-0 02 1 0502- ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
04.040 ID=4 		9-09185-404-0 01 1 0211-0604 ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0605- ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0211- ● ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97859-100-0 01 1 0211- ● ● ●
80 03.452 LINK ASM; ENG CONT
4HF1-S ENG(RLS) (A) 		8-97859-518-3 01 1 0211-0501 ● ● ●
80 03.452 LINK ASM; ENG CONT
4HF1-N ENG(RJZ) (A) 		8-97859-518-3 01 1 0502- ● ● ●
81 03.459 SPRING; RETURN,ENG CONT LEVER
4HF1-S ENG(RLS) 		8-97853-205-1 01 1 0211-0501 ● ● ●
81 03.459 SPRING; RETURN,ENG CONT LEVER
4HF1-N ENG(RJZ) 		8-97853-205-1 01 1 0502- ● ● ●
83 03.452 BRACKET; CONT LINK
4HF1-S ENG(RLS) 		8-97859-519-0 01 1 0211-0501 ● ● ●
83 03.452 BRACKET; CONT LINK
4HF1-N ENG(RJZ) 		8-97859-519-0 01 1 0502- ● ● ●
89 03.454 LEVER; RELAY
4HF1-S ENG(RLS) 		8-97857-617-4 01 1 0211-0501 ● ● ●
89 03.454 LEVER; RELAY
4HF1-N ENG(RJZ) 		8-97857-617-4 01 1 0502- ● ● ●
90 03.454 LEVER; RELAY,ENG CONT
4HF1-S ENG(RLS) 		8-97857-613-6 01 1 0211-0501 ● ● ●
90 03.454 LEVER; RELAY,ENG CONT
4HF1-N ENG(RJZ) 		8-97857-613-6 01 1 0502- ● ● ●
124 03.463 NUT; LEVER
4HF1-S ENG(RLS) 09.011 ID=9.9 PUSH NUT 		8-97012-098-0 01 1 0211-0501 ● ● ●
124 03.463 NUT; LEVER
4HF1-N ENG(RJZ) 09.011 ID=9.9 PUSH NUT 		8-97012-098-0 01 1 0502- ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0211- ● ● ●
171 03.483 BRACKET ASM; ACCEL PEDAL 8-97857-482-1 01 1 0211- ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0211- ● ● ●
242 03.483 NUT; ACCEL PEDAL
02.559 M8 		9-09110-408-0 01 1 0211-0512 ● ● ●
242 03.483 NUT; ACCEL PEDAL
02.334 M8 		0-91110-508-0 01 1 0601- ● ● ●
545 03.463 WASHER; NYLON
4HF1-S ENG(RLS) 12.242 ID=10.5 OD=16 		9-09855-178-0 01 1 0211-0501 ● ● ●
545 03.463 WASHER; NYLON
4HF1-N ENG(RJZ) 12.242 ID=10.5 OD=16 		9-09855-178-0 01 1 0502- ● ● ●

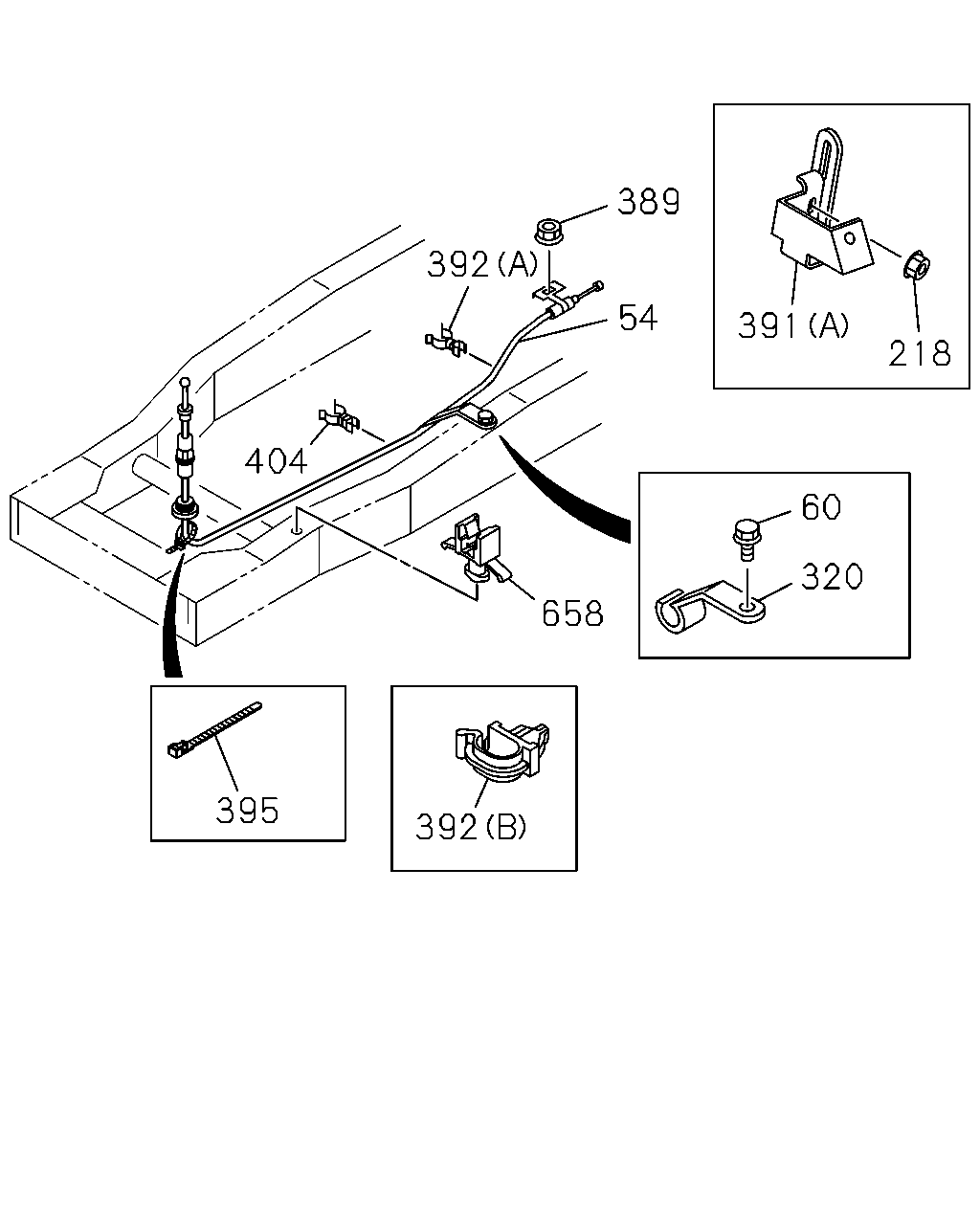

çizim 135547
389 392 54 391 218 404 60 320 658 395 392
BalonParca AdiParca NoAdetTipApplied Date A B C
54 03.430 CABLE; ENG CONT
4HF1-S ENG(RLS) L=2011 		8-97205-638-2 01 1 0211-0501 ● ● ●
54 03.430 CABLE; ENG CONT
4HF1-N ENG(RJZ) L=2011 		8-97205-638-2 01 1 0502- ● ● ●
60 08.155 BOLT; CABLE
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ●
60 08.155 BOLT; CABLE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ● ●
60 08.155 BOLT; CABLE
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
218 03.452 NUT; BRKT
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
218 03.452 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
320 03.483 CLIP; FRAME
4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 		8-94178-110-0 01 1 0211-0501 ● ●
320 03.483 CLIP; FRAME
4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41) 06.672 		8-94178-110-0 01 1 0502- ● ●
389 03.483 NUT; ACCEL CONT CABLE FIX
4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
389 03.483 NUT; ACCEL CONT CABLE FIX
4HF1-N ENG(RJZ) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ●
389 03.483 NUT; ACCEL CONT CABLE FIX
4HF1-N ENG(RJZ) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-S ENG(RLS) (A) 		8-97172-882-0 01 1 0211-0501 ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-N ENG(RJZ) (A) 		8-97172-882-0 01 1 0502- ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-S ENG(RLS) (B) 		8-97357-141-0 01 1 0211-0501 ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-N ENG(RJZ) (B) 		8-97357-141-0 01 1 0502- ● ● ●
392 03.483 CLIP; ACCEL CONT CABLE
4HF1-S ENG(RLS) (A) ID=6 & 10 		8-94154-844-0 01 1 0211-0501 ● ● ●
392 03.483 CLIP; ACCEL CONT CABLE
4HF1-N ENG(RJZ) (A) ID=6 & 10 		8-94154-844-0 01 1 0502- ● ● ●
392 03.483 CLIP; ACCEL CONT CABLE
4HF1-S ENG(RLS) 04.342 (B) ID=9.5 		5-09709-020-0 01 1 0211-0501 ●
392 03.483 CLIP; ACCEL CONT CABLE
4HF1-N ENG(RJZ) 04.342 (B) ID=9.5 		5-09709-020-0 01 1 0502- ●
395 03.483 CLIP; BAND,ACCEL CONT CABLE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140 		5-09707-031-1 01 1 0211-0501 ● ●
395 03.483 CLIP; BAND,ACCEL CONT CABLE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) 03.162 L=140 		5-09707-031-1 01 1 0502- ● ●
404 03.483 CLIP; CABLE
4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6 		8-94472-577-0 01 1 0211-0501 ● ●
404 03.483 CLIP; CABLE
4HF1-N ENG(RJZ) HEATER & DEFROSTER(C41) ID=20.2 & 6 		8-94472-577-0 01 1 0502- ● ●
658 03.430 CLIP; ENG CONT CABLE
4HF1-S ENG(RLS) 04.930 ID=10 H=40 		8-94462-219-0 01 1 0211-0501 ● ●
658 03.430 CLIP; ENG CONT CABLE
4HF1-N ENG(RJZ) 04.930 ID=10 H=40 		8-94462-219-0 01 1 0502- ● ●

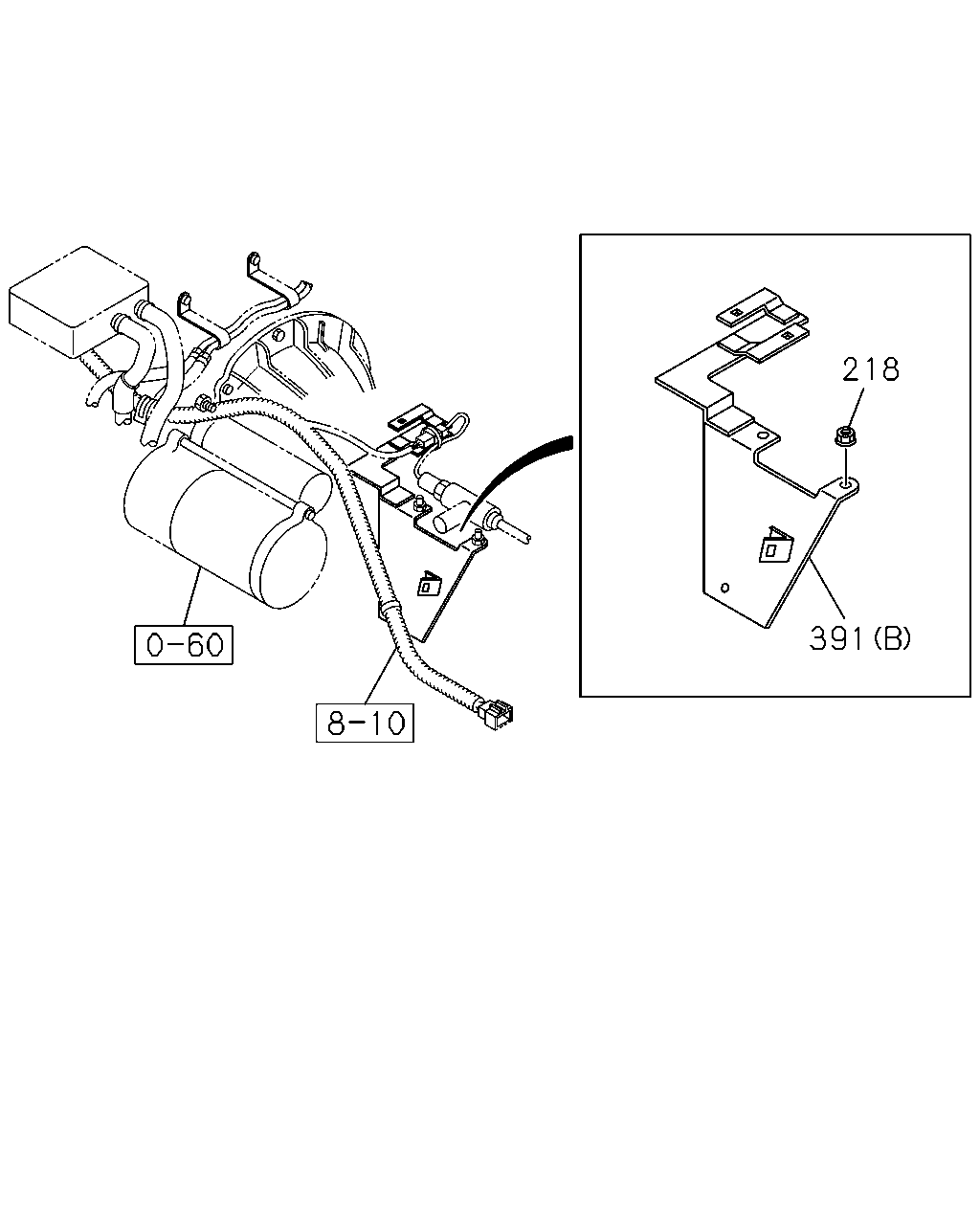

çizim 135548
218 391
BalonParca AdiParca NoAdetTipApplied Date A B C
218 03.452 NUT; BRKT
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
218 03.452 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
218 03.452 NUT; BRKT
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-S ENG(RLS) (A) 		8-97172-882-0 01 1 0211-0501 ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-N ENG(RJZ) (A) 		8-97172-882-0 01 1 0502- ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-S ENG(RLS) (B) 		8-97357-141-0 01 1 0211-0501 ● ● ●
391 03.452 BRACKET; ENG CONT
4HF1-N ENG(RJZ) (B) 		8-97357-141-0 01 1 0502- ● ● ●
