0-60 — ENGINE ELECTRICAL CONTROL PARTS (#77677) — 55 parça

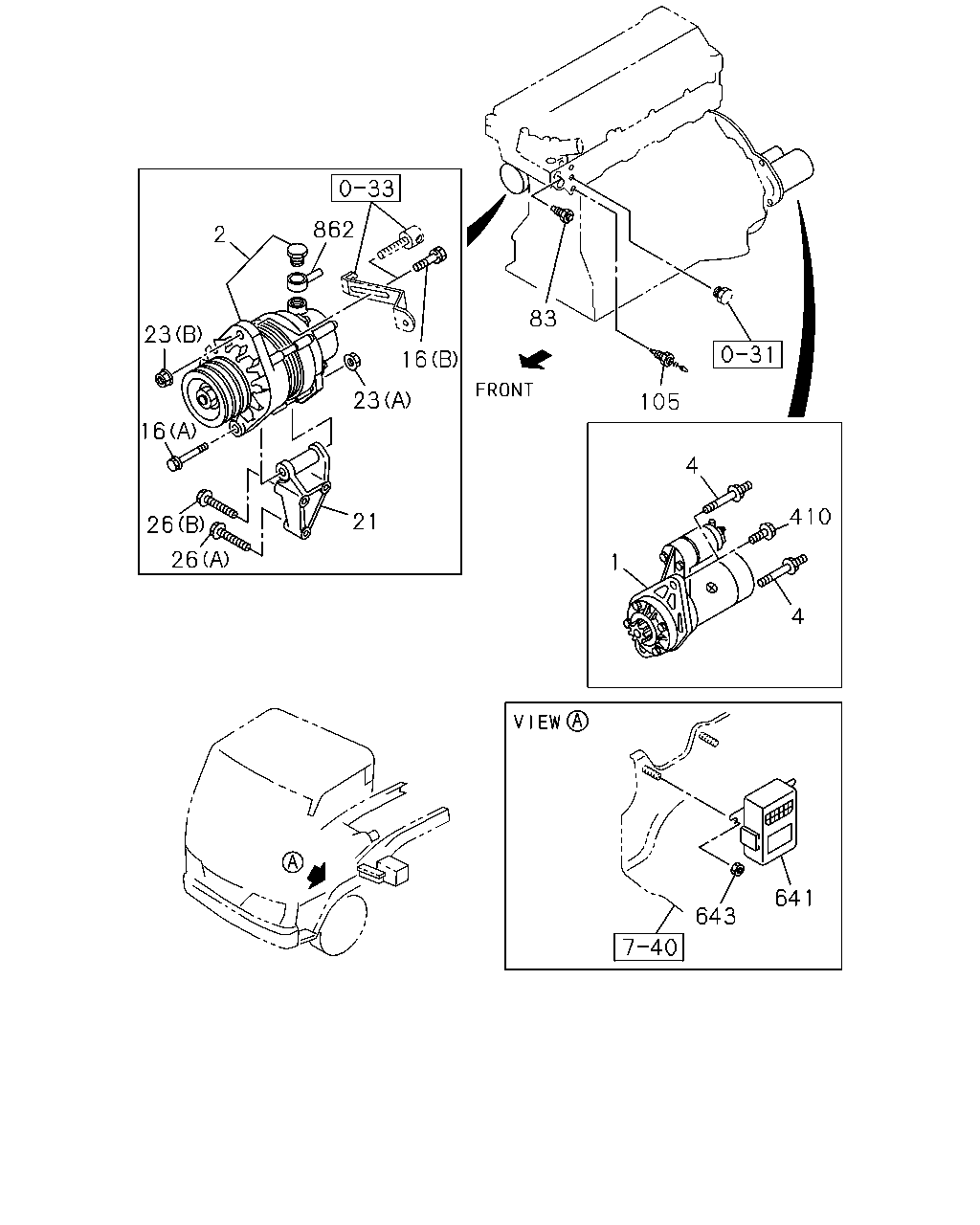

çizim 135523
862 2 83 23 16 23 105 16 4 410 21 26 26 1 4 641 643
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-0 01 1 1312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0502-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-1 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A 		8-97186-551-1 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A HITACHI 		8-97351-572-1 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 24V 50A 		8-97186-551-1 01 1 0306-0308 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502- ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0502- ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0211-0501 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502- ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
08.917 (A) M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
04.085 (A) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
03.890 (B) M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0601- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0211-0501 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0502- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0211-0501 ●
641 02.510 TIMER; QOS 8-97215-648-0 01 1 0211-0301 ●
641 02.510 TIMER; QOS 8-97361-318-0 01 1 0302-0501 ●
641 02.510 TIMER; QOS 8-97361-318-3 01 1 0502- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0309-0501 ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0502- ●
çizim 135525
46 10 10 46 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0211- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0211- ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0211-0501 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
