Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

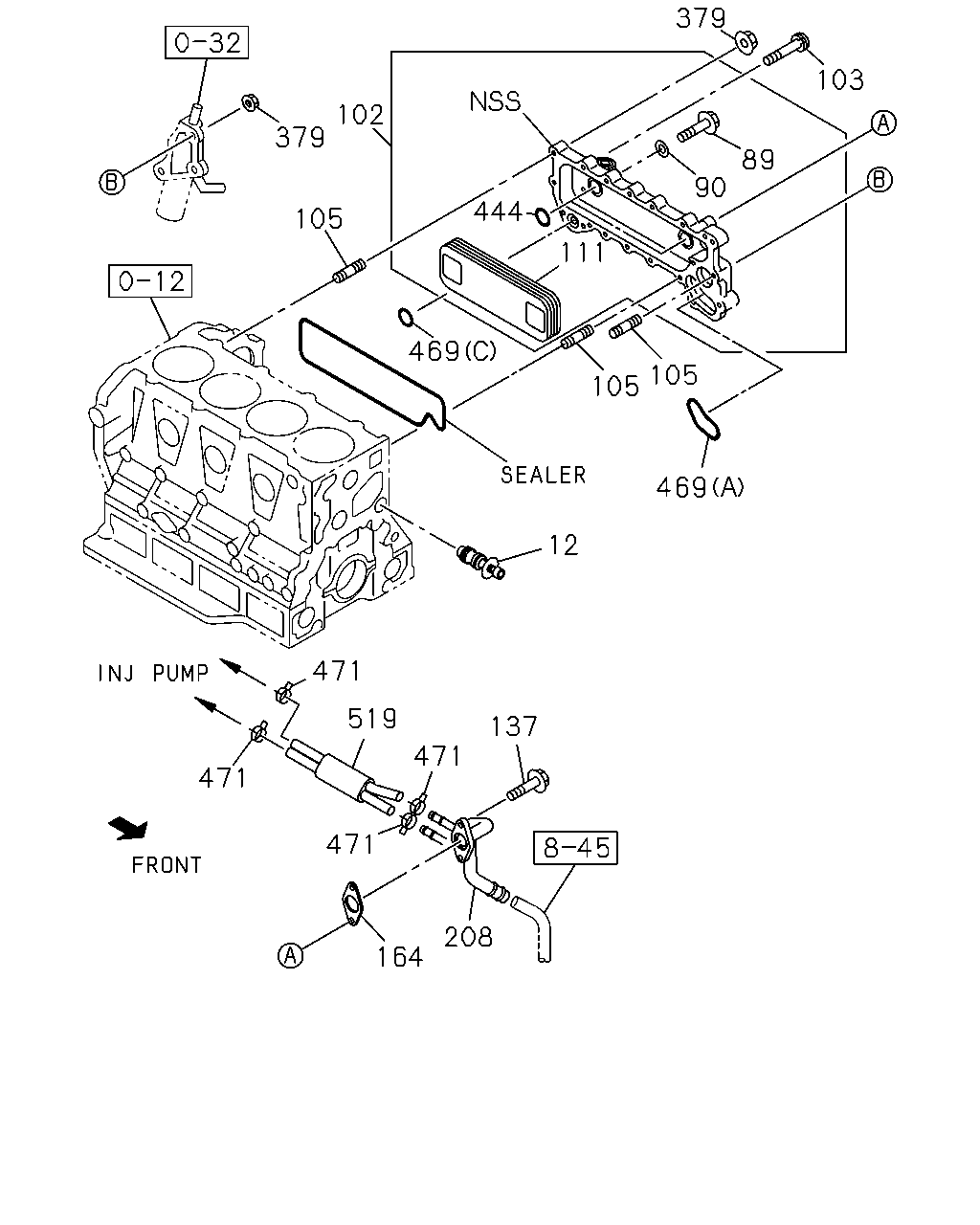

0-50 — OIL COOLER AND OIL FILTER (#77672) — 77 parça

379 103 102 379 89 90 444 105 111 469 105 105 469 12 471 519 137 471 471 471 208 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0211-0501	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0502-		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-1211		●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1212-		●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0211-0501	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0502-		●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0211-0406	●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0407-0501	●
102	01.540 COOLER ASM; OIL	8-97385-200-6	01	1	0502-		●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0211-0501	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0502-0512		●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0601-		●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0211-0501	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0502-0512		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0601-		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0211-0501	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0502-		●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0211-0501	●
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0502-		●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0211-0501	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0502-		●
208	01.540 PIPE; WATER,HTR	8-97139-585-1	01	1	0211-0501	●
208	01.540 PIPE; WATER,HTR	8-97139-585-1	01	1	0502-		●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0501	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602		●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-		●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0211-0406	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0501	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0502-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	0211-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	0211-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0502-0606		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0211-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0502-		●
471	01.540 CLIP; HOSE 03.162 ID=15.5	8-94221-519-0	04	1	0211-0501	●
471	01.540 CLIP; HOSE 03.162 ID=15.5	8-94221-519-0	04	1	0502-		●
519	01.540 HOSE; RUBBER	8-97160-961-1	01	1	0211-0501	●
519	01.540 HOSE; RUBBER	8-97160-961-1	01	1	0502-		●

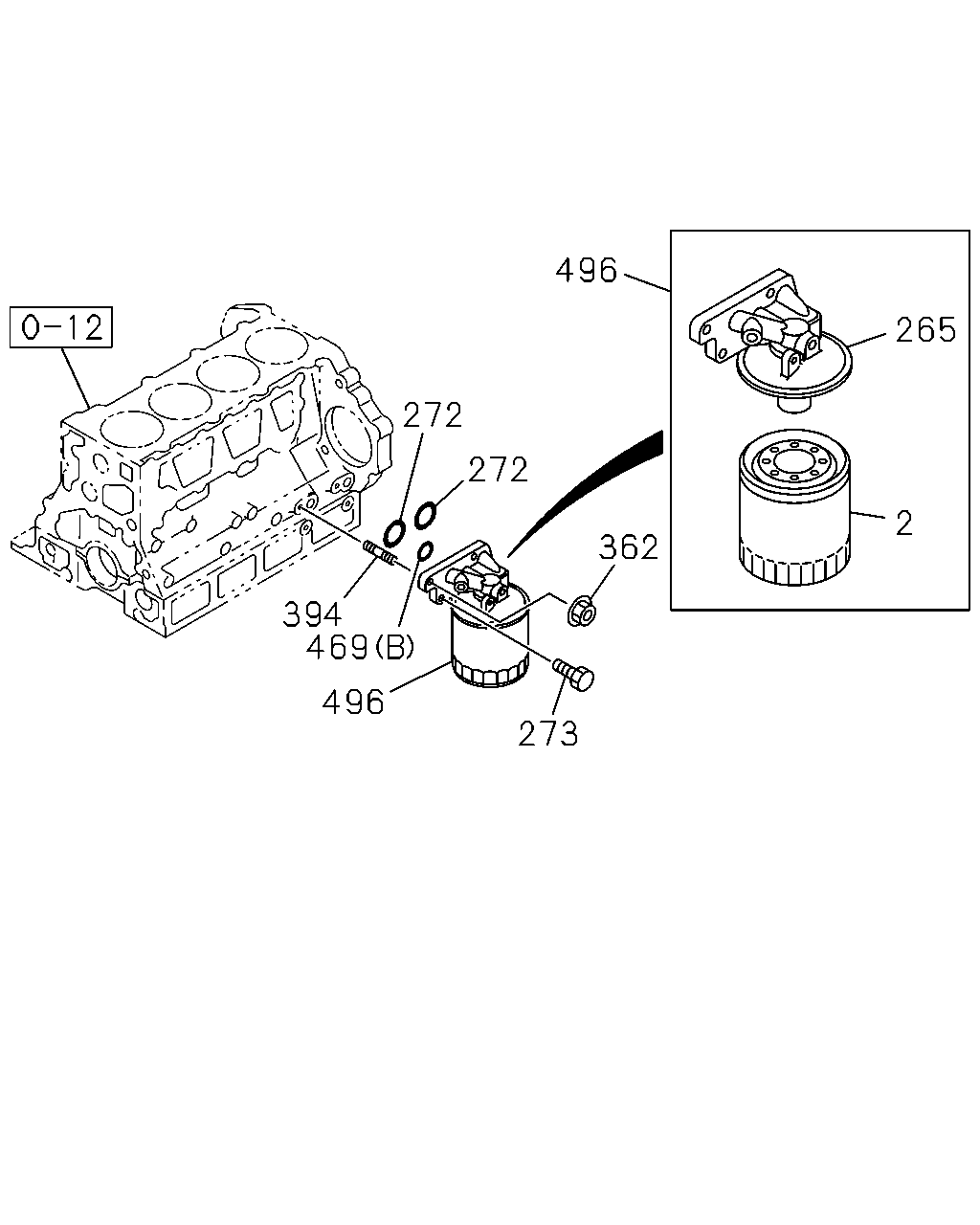

496 12 265 272 272 2 362 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0211-0501	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0502-		●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	0211-0501	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	0502-		●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0211-0501	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0502-		●
265	01.837 BODY; OIL FILTER	8-97247-088-1	01	1	0211-0501	●
265	01.837 BODY; OIL FILTER	8-97247-088-2	01	1	0502-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	0211-0211	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-0501	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0502-		●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0211-0501	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0502-0512		●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0211-0501	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0502-0512		●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	0211-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	0211-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0502-0606		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0211-0501	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0502-		●
496	01.835 FILTER ASM; OIL	8-97247-082-1	01	1	0211-0501	●
496	01.835 FILTER ASM; OIL	8-97247-082-3	01	1	0502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
