8-21 — METER ASM (#7767) — 140 parça

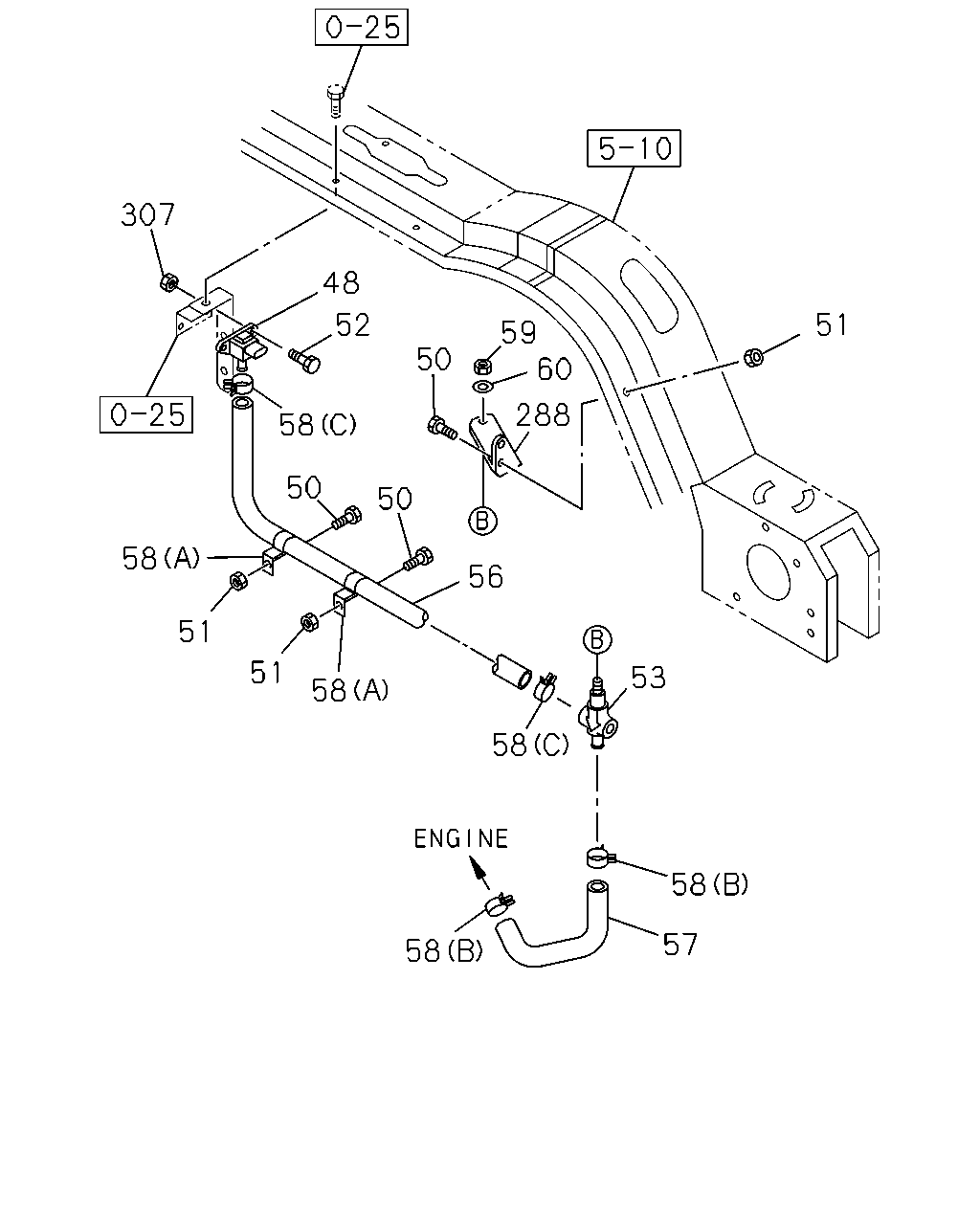

307 48 52 51 59 60 50 288 58 50 50 58 56 51 51 53 58 58 58 57 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	SENSOR; BOOST 6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5)	1-81531-011-0	01	1	9905-9910	●
48	SENSOR; BOOST ELECTRONIC GOV RED3(KG5)	1-81531-011-0	01	1	9911-0003	●
48	SENSOR; BOOST ELECTRONIC GOV RED3(KG5)	1-81531-011-0	01	1	0004-	●
48	SENSOR; BOOST	1-81531-011-0	01	1	0004-		●
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9902-9909	●
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	03	1	9910-0003	●
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●
50	BOLT; FIX M8X25 FLANGE	0-28680-825-0	03	1	0004-		●
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9902-9909	●
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	03	1	9910-0003	●
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	03	1	0004-	●
51	NUT; FIX M8 FLANGE	0-91150-108-0	03	1	0004-		●
52	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28680-616-0	02	1	9902-0003	●
52	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28680-616-0	02	1	0004-	●
52	BOLT; SENSOR M6X16 FLANGE	0-28680-616-0	02	1	0004-		●
53	UNION; BOOST UNIT ELECTRONIC GOV RED3(KG5)	1-09661-017-0	01	1	9902-0003	●
53	UNION; BOOST UNIT ELECTRONIC GOV RED3(KG5)	1-09661-017-0	01	1	0004-	●
53	UNION; BOOST UNIT	1-09661-017-0	01	1	0004-		●
56	HOSE; NIPPLE TO SENSOR ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000	0-04740-300-0	01	1	9902-0003	●
56	HOSE; NIPPLE TO SENSOR ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000	0-04740-300-0	01	1	0004-	●
56	HOSE; NIPPLE TO SENSOR L=560 SERVICED BY L=3000	0-04740-300-0	01	1	0004-		●
57	HOSE; BOOST ELECTRONIC GOV RED3(KG5)	1-83159-017-0	01	1	9902-0003	●
57	HOSE; BOOST ELECTRONIC GOV RED3(KG5)	1-83159-017-0	01	1	0004-	●
57	HOSE; BOOST	1-83159-017-0	01	1	0004-		●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9909	●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9910-0003	●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-	●
58	CLIP; HOSE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0004-		●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (B) ID=20.8	8-94125-862-0	02	1	9902-0003	●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (B) ID=20.8	8-94125-862-1	02	1	0004-	●
58	CLIP; HOSE (B) ID=20.8	8-94125-862-1	02	1	0004-		●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (C) ID=7.8	8-94246-958-0	02	1	9902-0003	●
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (C) ID=7.8	8-94246-958-0	02	1	0004-	●
58	CLIP; HOSE (C) ID=7.8	8-94246-958-0	02	1	0004-		●
59	NUT; UNION ELECTRONIC GOV RED3(KG5) M10	9-09111-410-0	01	1	9902-0003	●
59	NUT; UNION ELECTRONIC GOV RED3(KG5) M10	9-09111-410-0	01	1	0004-	●
59	NUT; UNION M10	9-09111-410-0	01	1	0004-		●
60	WASHER; LK,UNION ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	9902-0003	●
60	WASHER; LK,UNION ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	0004-	●
60	WASHER; LK,UNION ID=10.2	9-09150-510-0	01	1	0004-		●
288	BRACKET ELECTRONIC GOV RED3(KG5)	1-47477-379-0	01	1	9902-9909	●
288	BRACKET ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG>	1-47477-469-0	01	1	9910-0003	●
288	BRACKET ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG>	1-47477-469-0	01	1	0004-	●
288	BRACKET	1-47477-469-0	01	1	0004-		●
307	NUT ELECTRONIC GOV RED3(KG5) M6	9-09110-406-0	02	1	9902-0003	●
307	NUT ELECTRONIC GOV RED3(KG5) M6	9-09110-406-0	02	1	0004-	●
307	NUT M6	9-09110-406-0	02	1	0004-		●

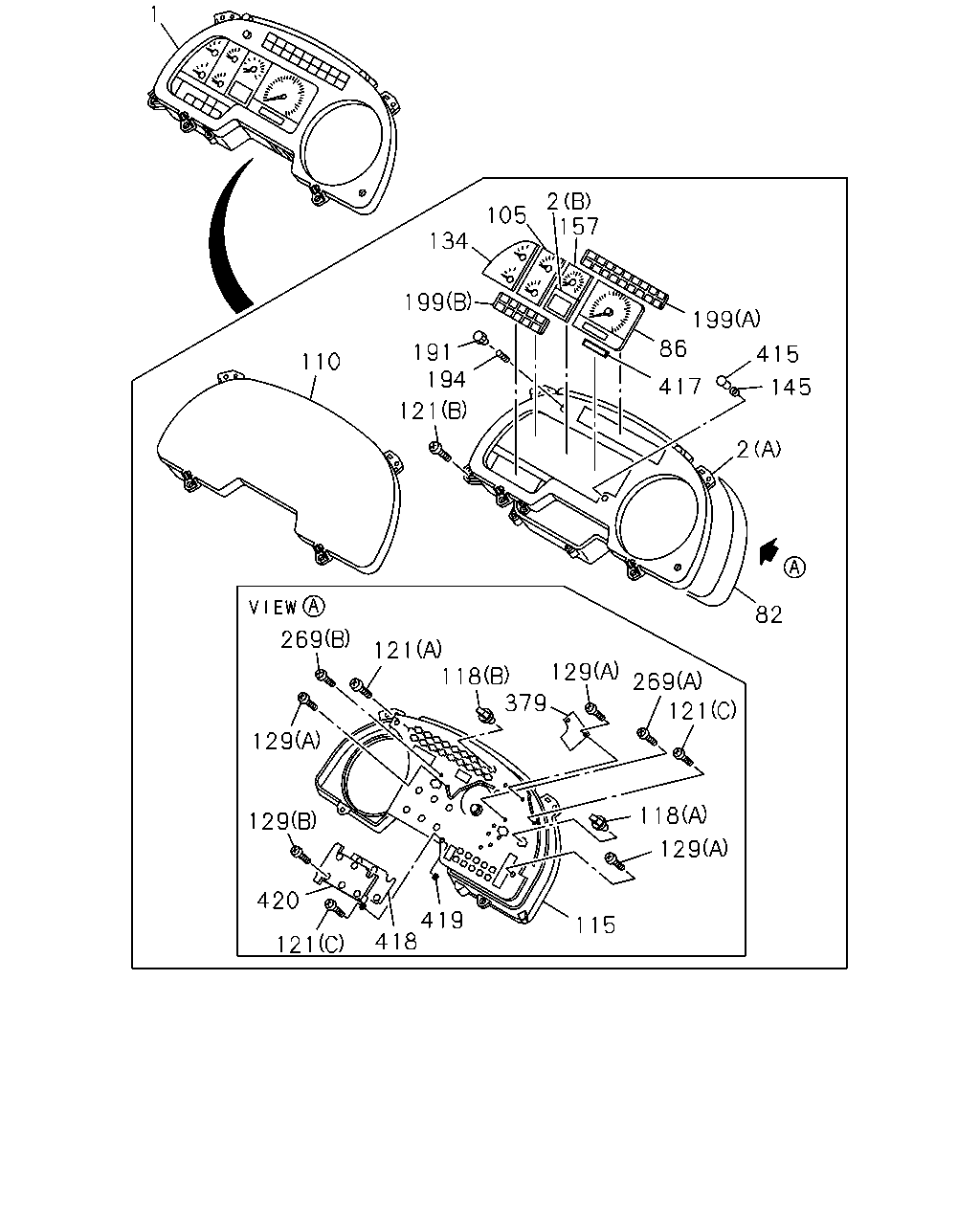

1 2 157 105 134 199 199 86 191 194 415 110 417 145 121 2 82 269 121 129 118 379 269 121 129 118 129 129 420 419 418 115 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-168-2	01	1	9902-9910	●
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-685-0	01	1	9911-0003	●
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-685-1	01	1	0004-	●
1	METER COMPL; CLUSTER	1-83115-685-1	01	1	0004-		●
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>	1-83115-167-2	01	1	9905-9910	●
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>	1-83115-684-0	01	1	9911-	●
2	PANEL; CLUSTER DUAL AIR GAUGE<UG2> (A)	1-83119-644-0	01	1	9902-0003	●
2	PANEL; CLUSTER (A)	1-83119-644-0	01	1	0004-	●	●
2	PANEL; CLUSTER DUAL AIR GAUGE<UG2> (B)	1-83119-652-0	01	1	9902-0003	●
2	PANEL; CLUSTER (B)	1-83119-652-0	01	1	0004-	●	●
82	CASE ASM; CLUSTER METER DUAL AIR GAUGE<UG2>	1-83119-653-0	01	1	9902-0003	●
82	CASE ASM; CLUSTER METER	1-83119-653-0	01	1	0004-	●	●
86	TACHOMETER; CLUSTER METER DUAL AIR GAUGE<UG2>	1-83120-879-0	01	1	9902-0003	●
86	TACHOMETER; CLUSTER METER	1-83120-879-0	01	1	0004-	●	●
105	GAUGE; THERMO & FUEL,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83180-281-0	01	1	9902-0003	●
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-281-0	01	1	0004-	●	●
110	GLASS; CLUSTER METER DUAL AIR GAUGE<UG2>	1-83119-646-0	01	1	9902-0003	●
110	GLASS; CLUSTER METER	1-83119-646-0	01	1	0004-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83189-372-0	01	1	9902-0003	●
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-372-0	01	1	0004-	●	●
118	BULB; CLUSTER METER DUAL AIR GAUGE<UG2> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9902-0003	●
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	0004-	●	●
118	BULB; CLUSTER METER DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9902-0003	●
118	BULB; CLUSTER METER (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	0004-	●	●
121	SCREW; PANEL FIX,CLUSTER METER DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-084-0	01	1	9902-0003	●
121	SCREW; PANEL FIX,CLUSTER METER (B) M3 TAPPING	1-83119-084-0	01	1	0004-	●	●
121	SCREW; PANEL FIX,CLUSTER METER DUAL AIR GAUGE<UG2> (A) M4 TAPPING	1-83119-442-0	05	1	9902-0003	●
121	SCREW; PANEL FIX,CLUSTER METER (A) M4 TAPPING	1-83119-442-0	05	1	0004-	●	●
121	SCREW; PANEL FIX,CLUSTER METER DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-676-0	02	1	9902-0003	●
121	SCREW; PANEL FIX,CLUSTER METER (C) M3 TAPPING	1-83119-676-0	02	1	0004-	●	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER DUAL AIR GAUGE<UG2> (A) M3 TAPPING	1-83119-657-0	09	1	9902-0003	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (A) M3 TAPPING	1-83119-657-0	09	1	0004-	●	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-675-0	06	1	9902-0003	●
129	SCREW; PRINTED CIRCUIT,CLUSTER METER (B) M3 TAPPING	1-83119-675-0	06	1	0004-	●	●
134	GAUGE; OIL PRESSURE & VOLTAGE DUAL AIR GAUGE<UG2>	1-83180-283-0	01	1	9902-0003	●
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-283-0	01	1	0004-	●	●
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83119-680-0	01	1	9902-0003	●
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER	1-83119-680-0	01	1	0004-	●	●
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-214-0	01	1	9902-9910	●
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	9911-0003	●
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2>	1-83150-235-0	01	1	0004-	●
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-235-0	01	1	0004-		●
157	METER; AIR PRESSURE,CLUSTER METER EXC. DUAL AIR GAUGE<UG2>	1-83150-217-0	01	1	9905-	●
191	KNOB; BULB CHECK DUAL AIR GAUGE<UG2>	1-83119-672-0	01	1	9902-0003	●
191	KNOB; BULB CHECK	1-83119-672-0	01	1	0004-	●	●
194	SPRING; BULB CHECK KNOB DUAL AIR GAUGE<UG2>	1-83119-673-0	01	1	9902-0003	●
194	SPRING; BULB CHECK KNOB	1-83119-673-0	01	1	0004-	●	●
199	LENS; WARNING LAMP DUAL AIR GAUGE<UG2> (A)	1-83119-683-0	01	1	9902-0003	●
199	LENS; WARNING LAMP (A)	1-83119-683-0	01	1	0004-	●	●
199	LENS; WARNING LAMP DUAL AIR GAUGE<UG2> (B)	1-83119-684-0	01	1	9902-0003	●
199	LENS; WARNING LAMP (B)	1-83119-684-0	01	1	0004-	●	●
269	SCREW; METER CLUSTER DUAL AIR GAUGE<UG2> (A) M3	1-83119-273-0	02	1	9902-0003	●
269	SCREW; METER CLUSTER (A) M3	1-83119-273-0	02	1	0004-	●	●
269	SCREW; METER CLUSTER DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-677-0	05	1	9902-0003	●
269	SCREW; METER CLUSTER (B) M3 TAPPING	1-83119-677-0	05	1	0004-	●	●
379	CIRCUIT; DROP DUAL AIR GAUGE<UG2>	1-83189-369-0	01	1	9902-0003	●
379	CIRCUIT; DROP	1-83189-369-0	01	1	0004-	●	●
415	KNOB; TRIP,METER DUAL AIR GAUGE<UG2>	1-83119-674-0	01	1	9902-0003	●
415	KNOB; TRIP,METER	1-83119-674-0	01	1	0004-	●	●
417	DISPLAY; ODO & TRIP,METER DUAL AIR GAUGE<UG2>	1-83119-671-0	01	1	9902-0003	●
417	DISPLAY; ODO & TRIP,METER	1-83119-671-0	01	1	0004-	●	●
418	CIRCUIT; CONTROL,METER DUAL AIR GAUGE<UG2>	1-83189-376-0	01	1	9902-0003	●
418	CIRCUIT; CONTROL,METER	1-83189-376-0	01	1	0004-	●	●
419	SPACER; CIRCUIT,METER DUAL AIR GAUGE<UG2>	1-83119-678-0	02	1	9902-0003	●
419	SPACER; CIRCUIT,METER	1-83119-678-0	02	1	0004-	●	●
420	HEAT SINK; METER DUAL AIR GAUGE<UG2>	1-83119-679-0	01	1	9902-0003	●
420	HEAT SINK; METER	1-83119-679-0	01	1	0004-	●	●

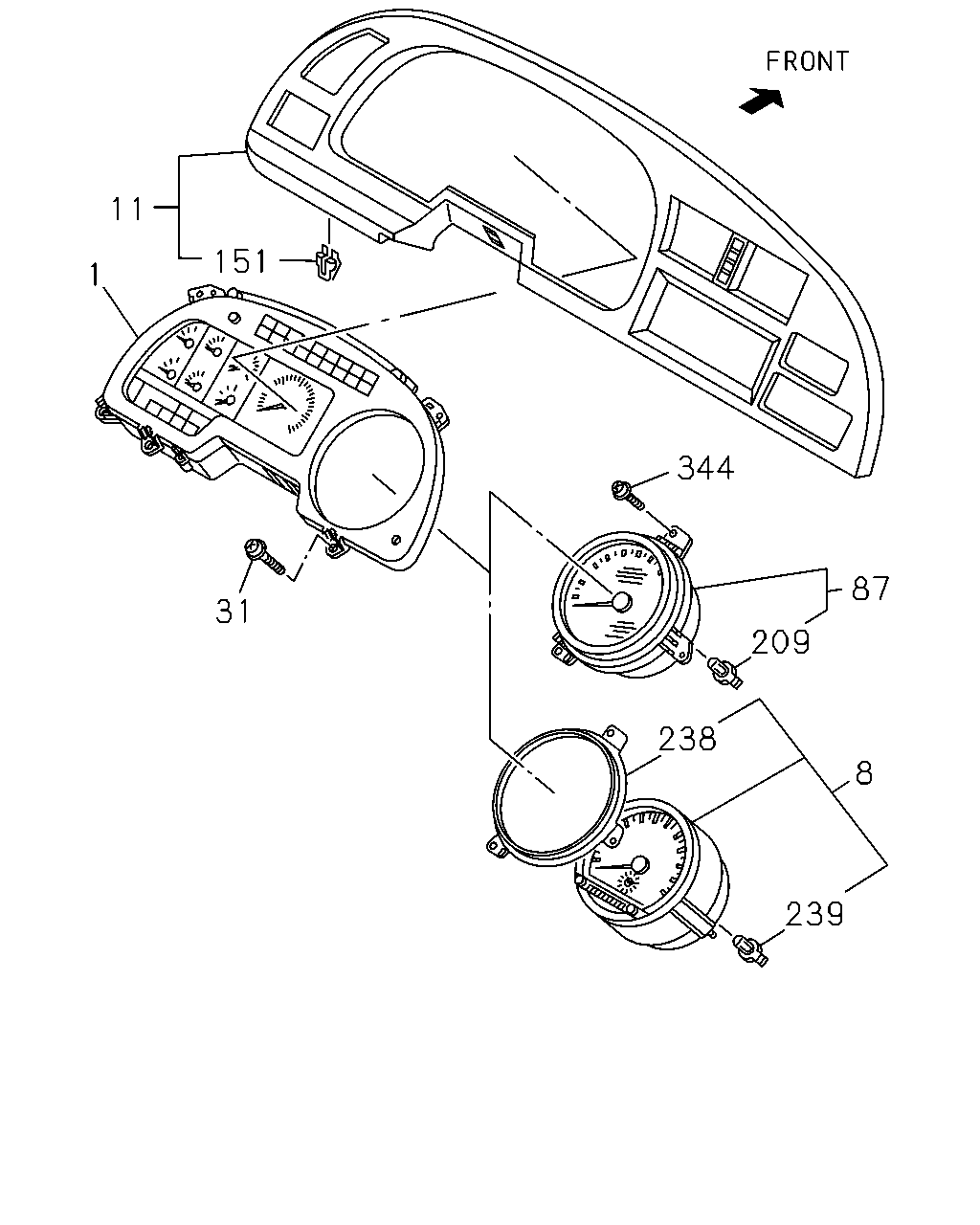

11 151 1 344 87 31 209 238 8 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-168-2	01	1	9902-9910	●
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-685-0	01	1	9911-0003	●
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2>	1-83115-685-1	01	1	0004-	●
1	METER COMPL; CLUSTER	1-83115-685-1	01	1	0004-		●
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>	1-83115-167-2	01	1	9905-9910	●
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>	1-83115-684-0	01	1	9911-	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-856-0	01	1	9902-	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	1-83120-857-0	01	1	9902-	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83120-847-0	01	1	0004-		●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	1-83120-849-0	01	1	0004-		●
11	CLUSTER ASM; METER	1-72418-022-6	01	1	9902-	●
11	CLUSTER ASM; METER	1-72418-012-9	01	1	0004-		●
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9902-0003	●
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0004-	●	●
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83120-844-0	01	1	9902-0003	●
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83120-844-0	01	1	0004-	●	●
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9902-0003	●
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	0004-	●	●
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9902-0003	●
209	BULB; SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	0004-	●	●
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83129-311-0	01	1	9902-0003	●
238	PANEL; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83129-311-0	01	1	0004-	●	●
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	5-82194-034-0	03	1	9902-	●
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	1-82194-101-0	03	1	0004-		●
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9902-0003	●
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0004-	●	●
