◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#77668) — 34 parça

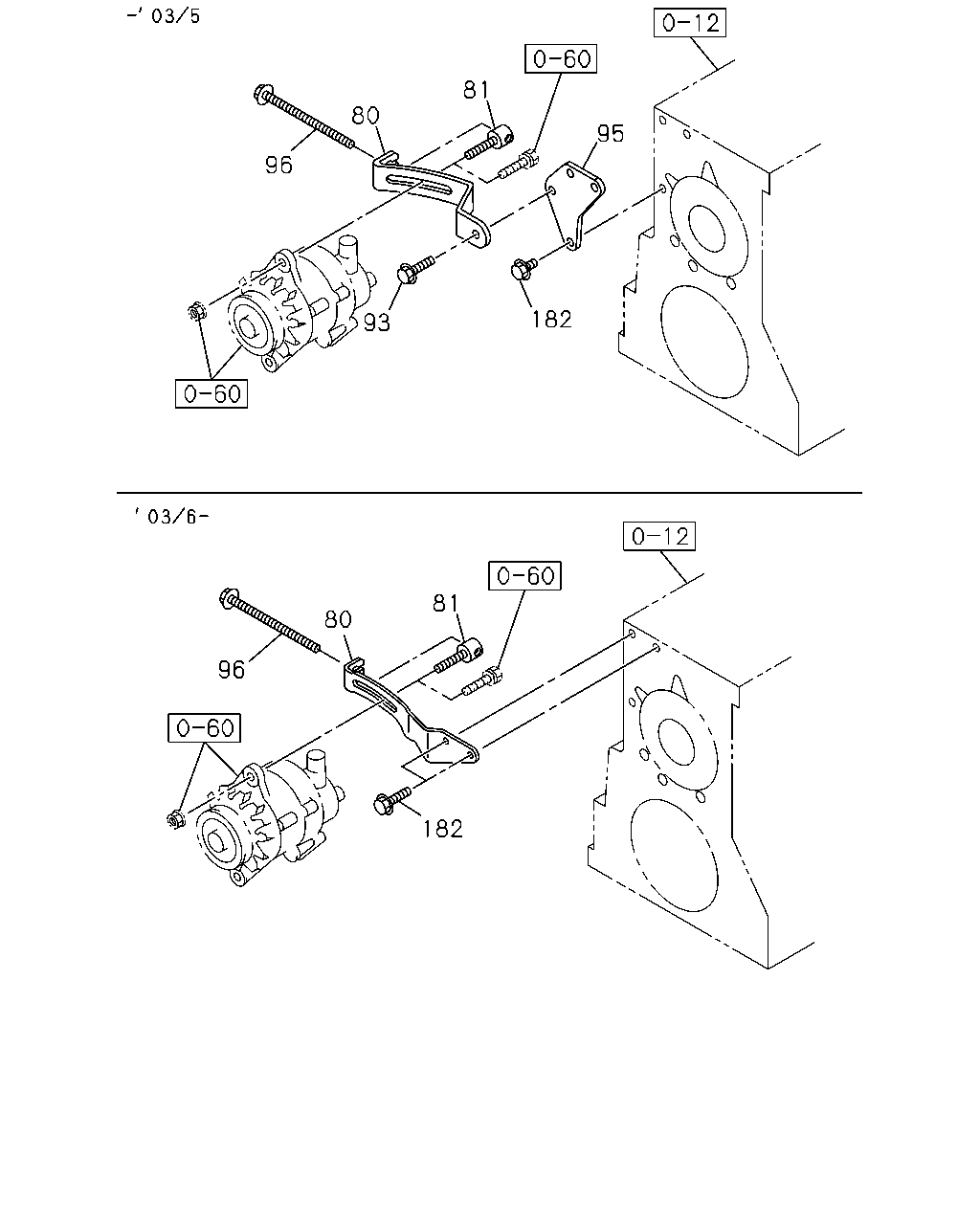

çizim 135518
81 80 95 96 182 93 81 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0501 ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0502- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0211-0501 ●
81 02.317 PIECE; SLIDING 8-97257-223-0 01 1 0502- ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0305 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0211-0501 ●
96 02.317 BOLT; ADJ PLATE
M8X130 FLANGE 		8-97172-720-1 01 1 0502- ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0211-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0501 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0512 ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●

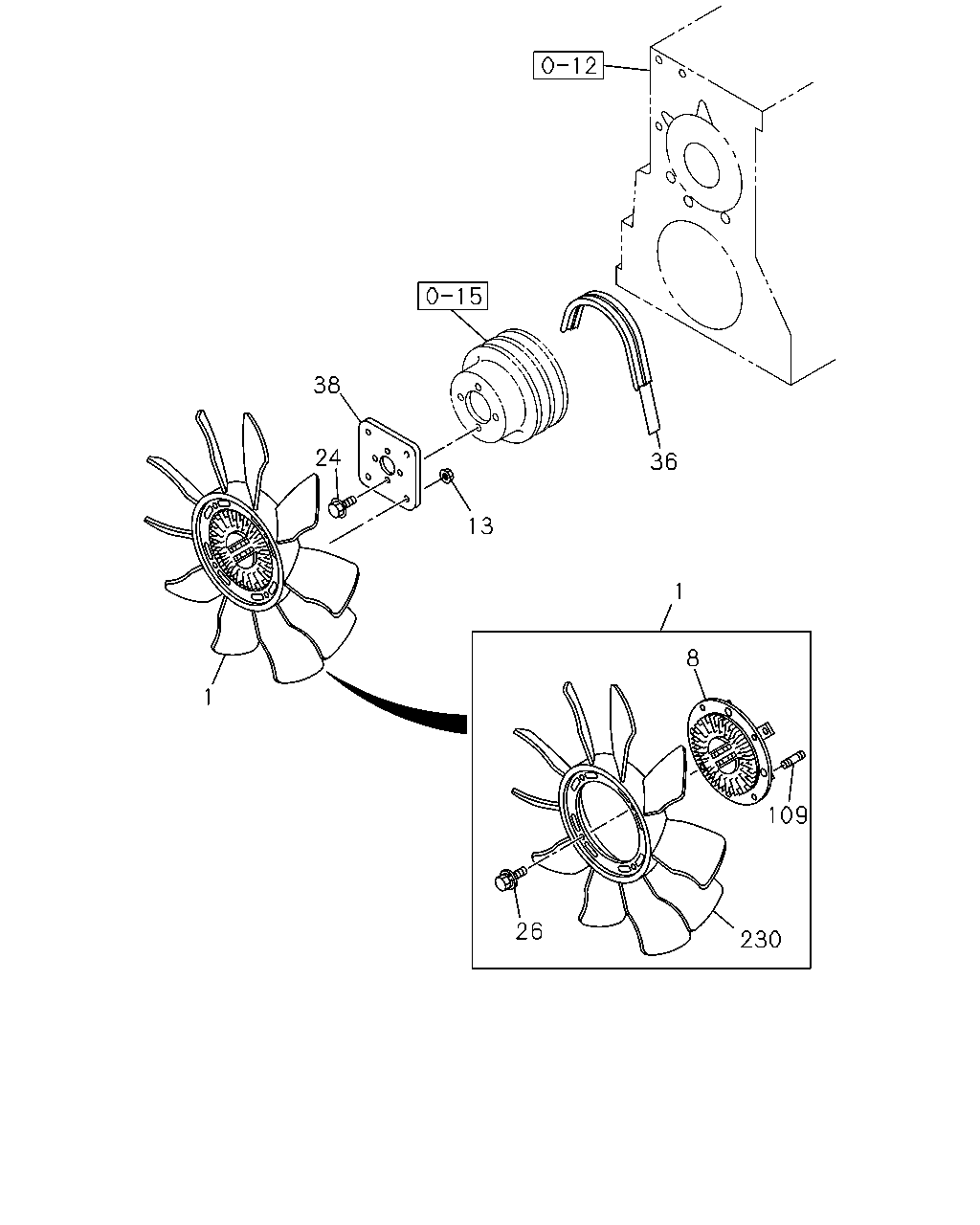

çizim 135522
38 24 36 13 1 8 1 109 26 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0502- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0211-0501 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0502- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0502- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211-0501 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502- ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0211-0501 ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0502- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211-0501 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0502- ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
