◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶

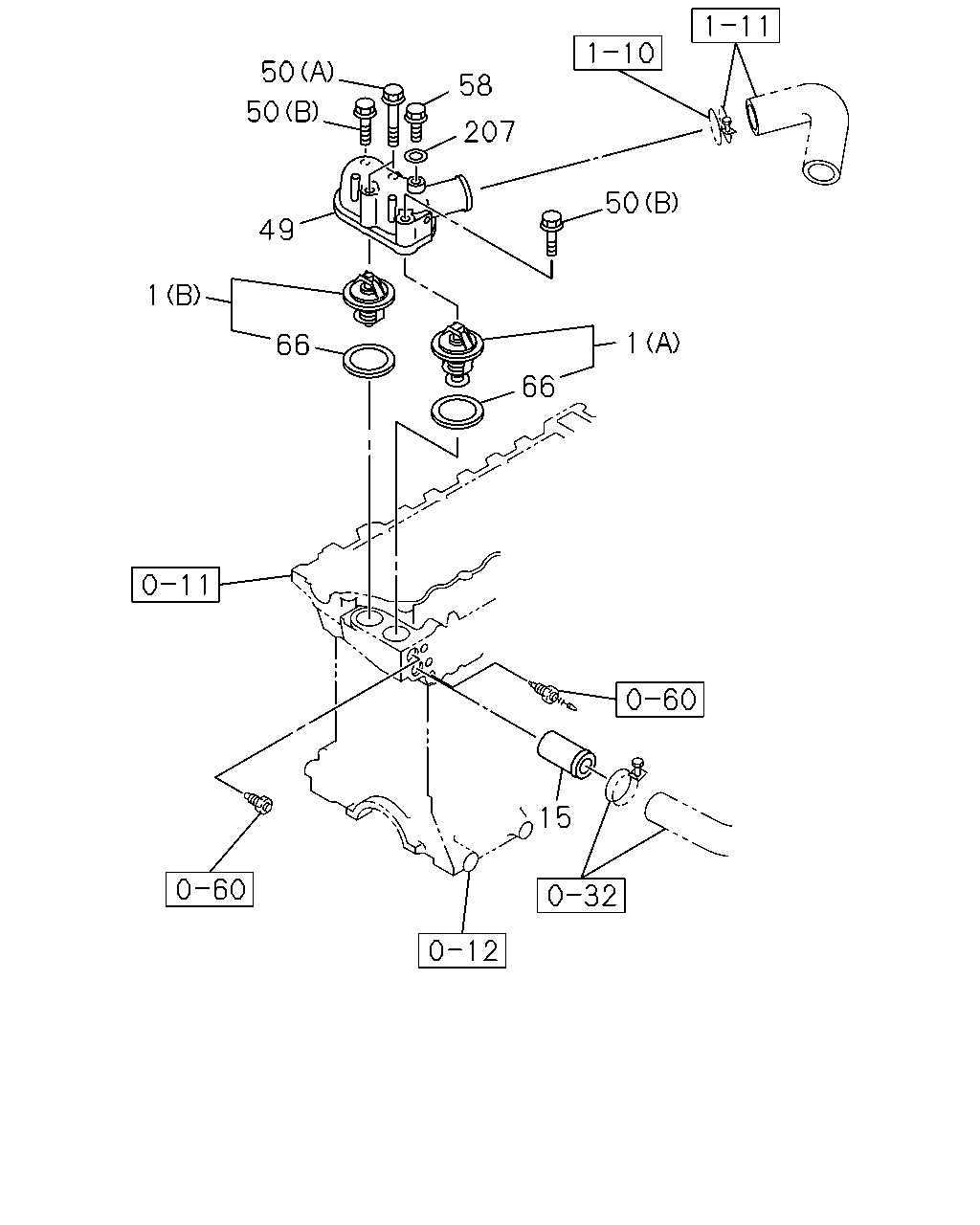

0-31 — THERMOSTAT AND HOUSING (#77666) — 26 parça

50 50 49 1 66 15 1 66 50 207 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97300-787-2	01	1	0211-0501	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-787-3	01	1	0502-		●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-2	01	1	0211-0501	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-3	01	1	0502-		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-792-1	01	1	0211-0501	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-792-2	01	1	0502-		●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0211-0501	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0502-		●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	0211-0407	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	0408-0501	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-1	01	1	0502-		●
50	01.252 BOLT; OUTLET PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
50	01.252 BOLT; OUTLET PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
50	01.252 BOLT; OUTLET PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
50	01.252 BOLT; OUTLET PIPE 01.097 (A) M8X65 FLANGE	1-09044-072-1	02	1	0211-0501	●
50	01.252 BOLT; OUTLET PIPE 01.097 (A) M8X65 FLANGE	1-09044-072-1	02	1	0502-		●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0211-0501	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0502-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	01	1	0211-0501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	01	1	0211-0501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	01	1	0502-1501		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-97300-793-0	01	1	0502-1501		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-		●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0211-0501	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
