0-22 — ENGINE MOUNTING (#77661) — 62 parça
çizim 135490
22 22 20 252 16 177 2 22 1 22 22 2 20 252 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0502- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0211-0501 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0502- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0211-0501 ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 0502- ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0502-0512 ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0501 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0502-0512 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0501 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ●

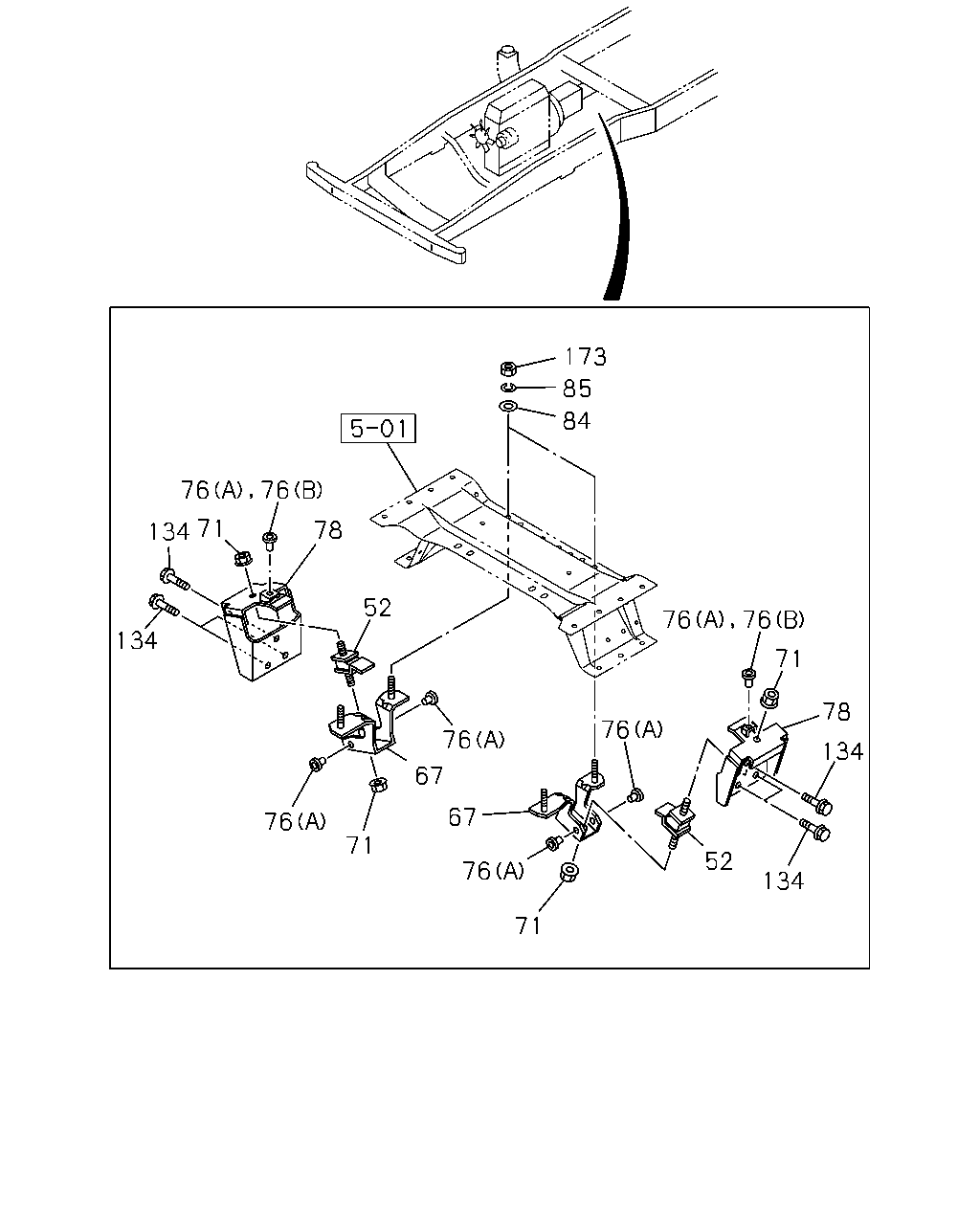

çizim 135493
173 85 84 76 76 134 71 78 52 76 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-94111-903-0 03 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0502-0509 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
FRAME-KICK UP<7EW> 		8-94111-903-0 02 1 0510-0510 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0510- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-776-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-776-1 01 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-778-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-778-1 01 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-567-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-567-1 01 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-566-0 01 1 0211-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97371-918-0 01 1 0307-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97371-918-1 01 1 0502- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
76 00.002 STOPPER; ENG MTG RUBBER
FRAME-KICK UP<7EW> 00.027 (A) 		8-94111-904-0 02 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
FRAME-KICK UP<7EW> 00.027 (A) 		8-94111-904-0 02 1 0502-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 1404- ●
76 00.002 STOPPER; ENG MTG RUBBER
FRAME-KICK UP<7EW> (B) 		8-97039-947-1 04 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
FRAME-KICK UP<7EW> (B) 		8-97039-947-1 04 1 0502-1403 ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1404- ●
76 00.002 STOPPER; ENG MTG RUBBER
EXC. FRAME-KICK UP<7EW> 00.027 (A) 		8-94111-904-0 06 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
EXC. FRAME-KICK UP<7EW> 00.027 (A) 		8-94111-904-0 06 1 0502-1403 ●
78 00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-756-0 02 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
FRAME-KICK UP<7EW> 		8-97255-756-1 02 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-560-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-560-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-561-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR
EXC. FRAME-KICK UP<7EW> 		8-97325-561-1 01 1 0502- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0502-0512 ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0211-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
