0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#77660) — 72 parça

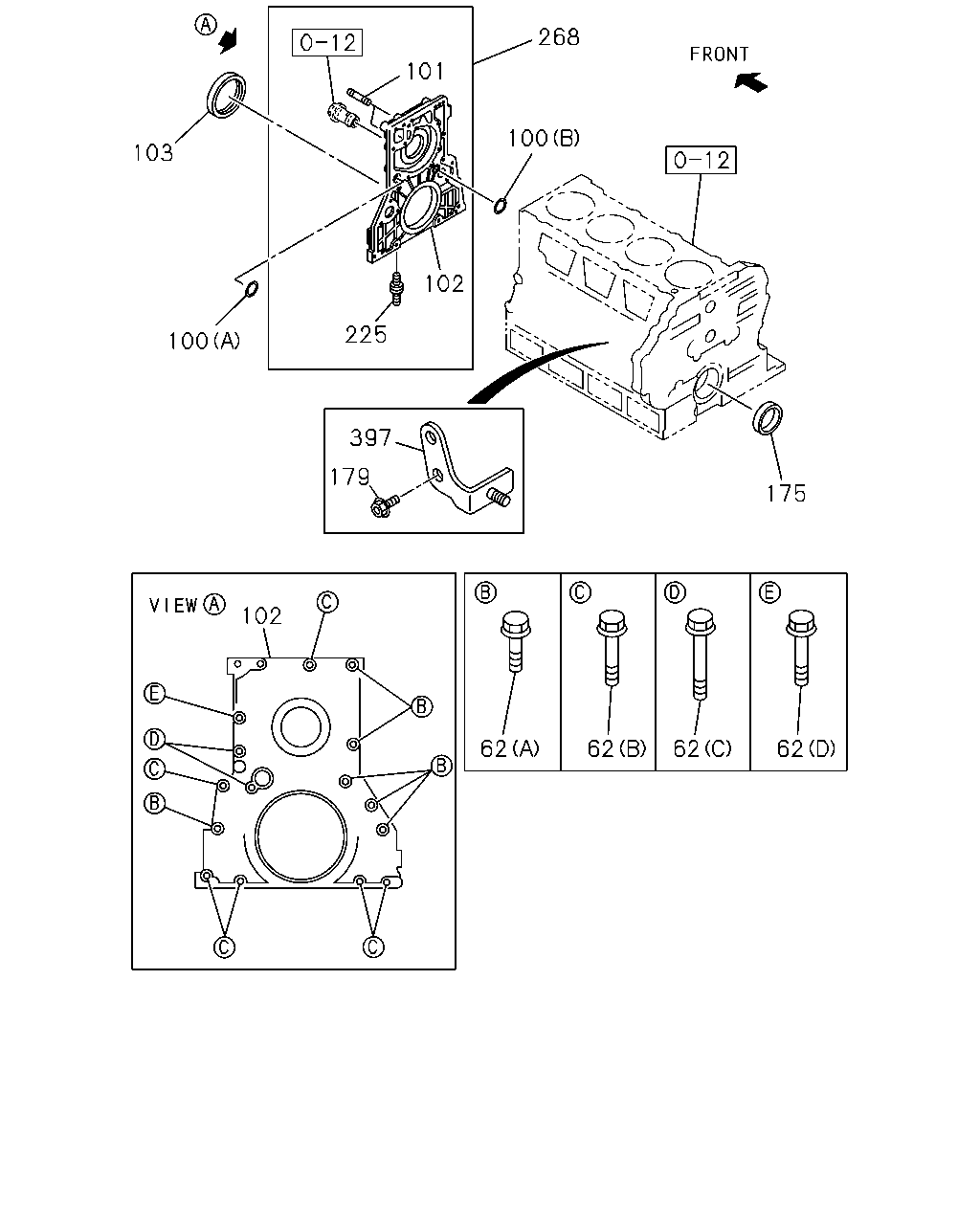

268 101 100 103 102 225 100 397 179 175 102 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0211-0501	●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0502-0512		●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-		●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0211-0501	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0502-0512		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0601-0706		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0707-0708		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0709-0807		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0808-		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0211-0501	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0502-0706		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0707-0708		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0709-0807		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0808-		●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0306-0501	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0502-0512		●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0211-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0211-0501	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-		●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0211-0501	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0502-		●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0211-0501	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0502-0604		●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0605-		●
102	00.137 RETAINER; FRT	8-97212-677-0	01	1	0211-0501	●
102	00.137 RETAINER; FRT	8-97212-677-0	01	1	0502-0807		●
102	00.137 RETAINER; FRT	8-98081-351-1	01	1	0808-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0502-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0211-0501	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0502-		●
179	00.206 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
179	00.206 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
179	00.206 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0211-0501	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0502-		●
268	00.206 COVER; FRT	8-97305-076-0	01	1	0211-0501	●
268	00.206 COVER; FRT	8-97305-076-1	01	1	0502-0807		●
268	00.206 COVER; FRT	8-98079-080-1	01	1	0808-		●
397	00.206 BRACKET; CONNECTOR	8-97163-042-0	01	1	0211-0501	●
397	00.206 BRACKET; CONNECTOR	8-97163-042-0	01	1	0502-		●

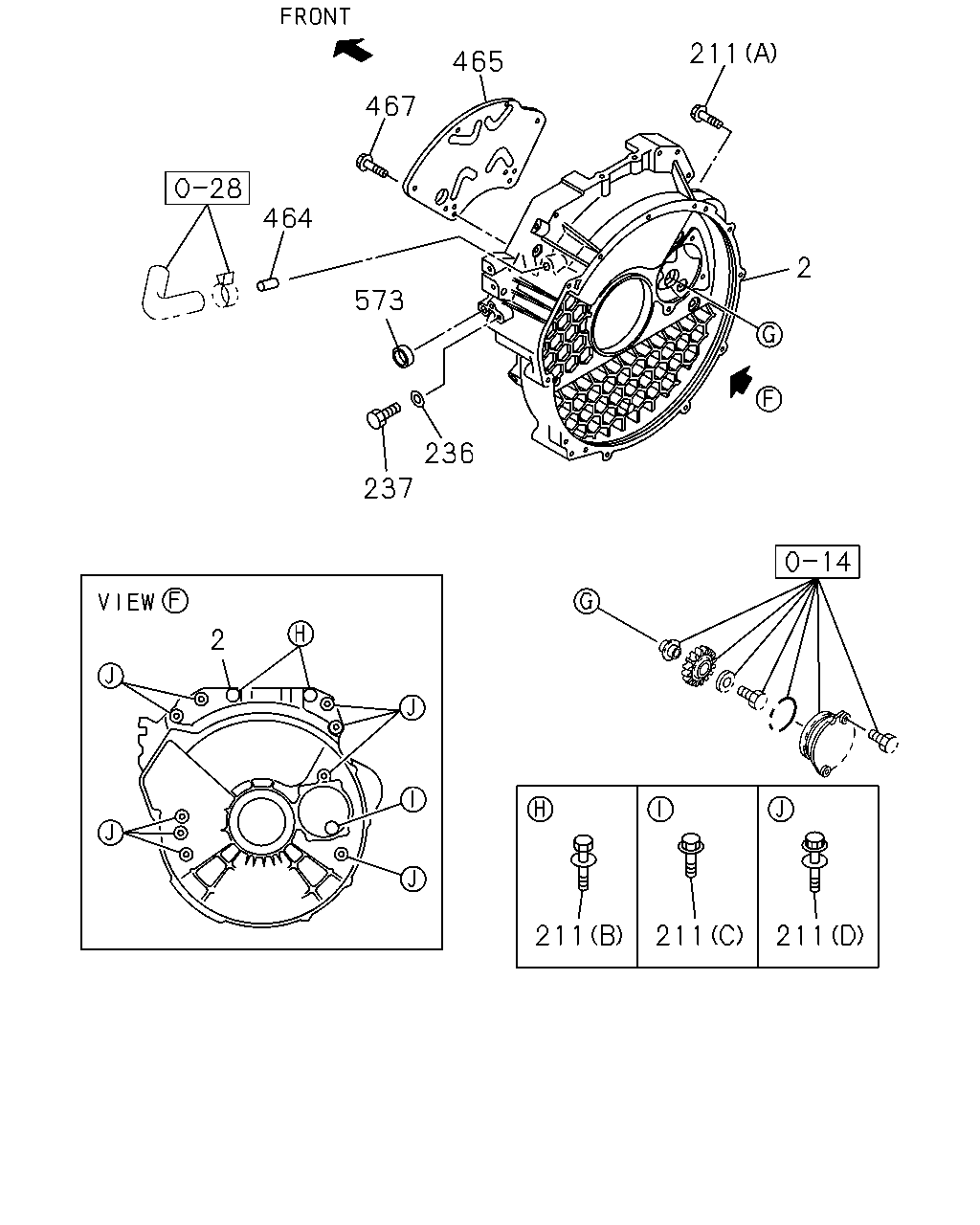

211 465 467 464 2 573 236 237 2 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-0501	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0502-		●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0211-0501	●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512		●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0601-		●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0501	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-		●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-0501	●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-1102		●
211	00.669 BOLT; HSG (D) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-		●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0211-0501	●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0502-		●
236	00.669 GASKET; FLYWHEEL HSG 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-0501	●
236	00.669 GASKET; FLYWHEEL HSG 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0502-		●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0211-0501	●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0502-0512		●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0211-0501	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-		●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0211-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-0501	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0502-		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0211-0501	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0805		●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0211-0501	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-		●
