Isuzu WW
▶
TRUCKS
▶
EXR
▶
10807 - EXR FUEL TANK 400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶

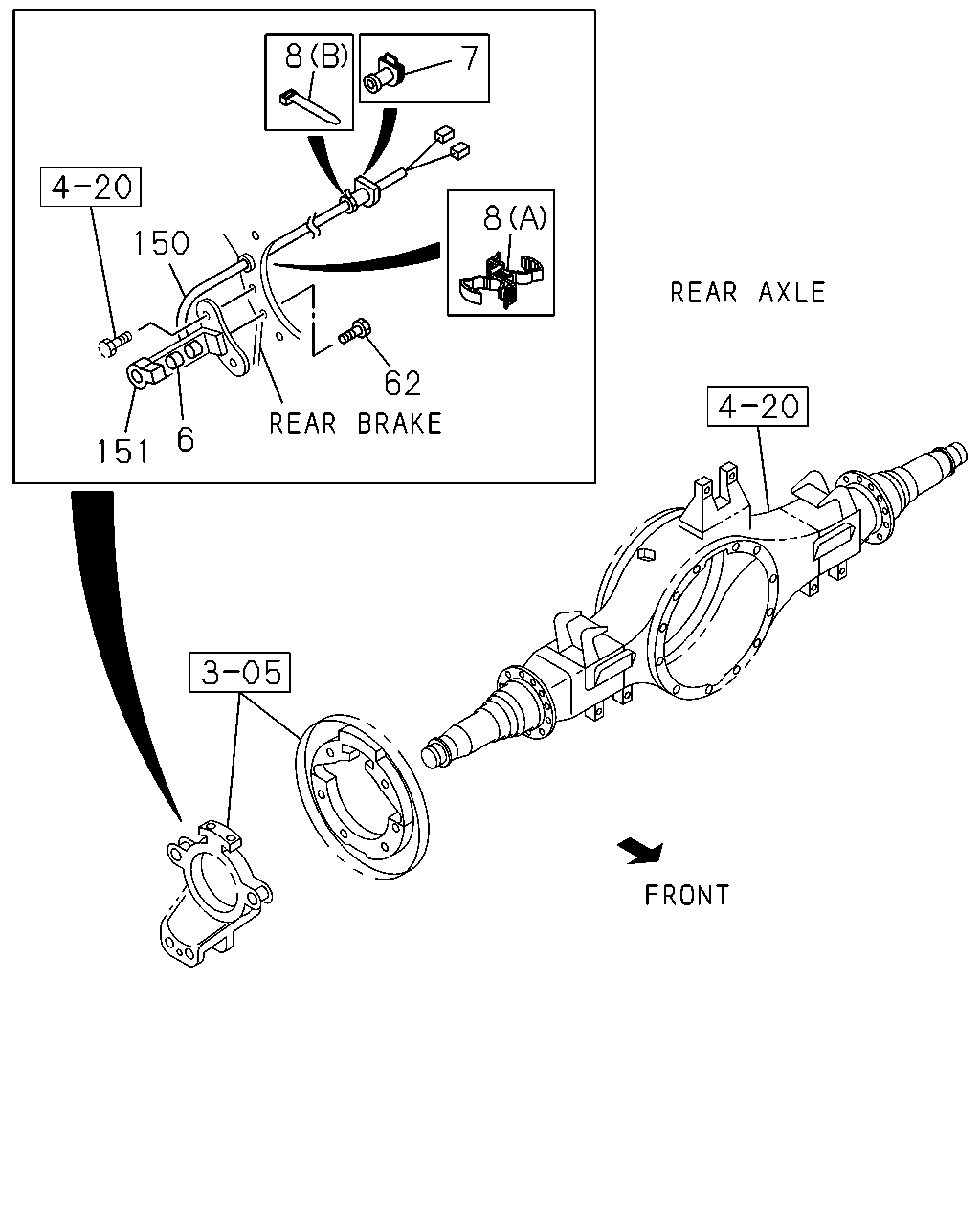

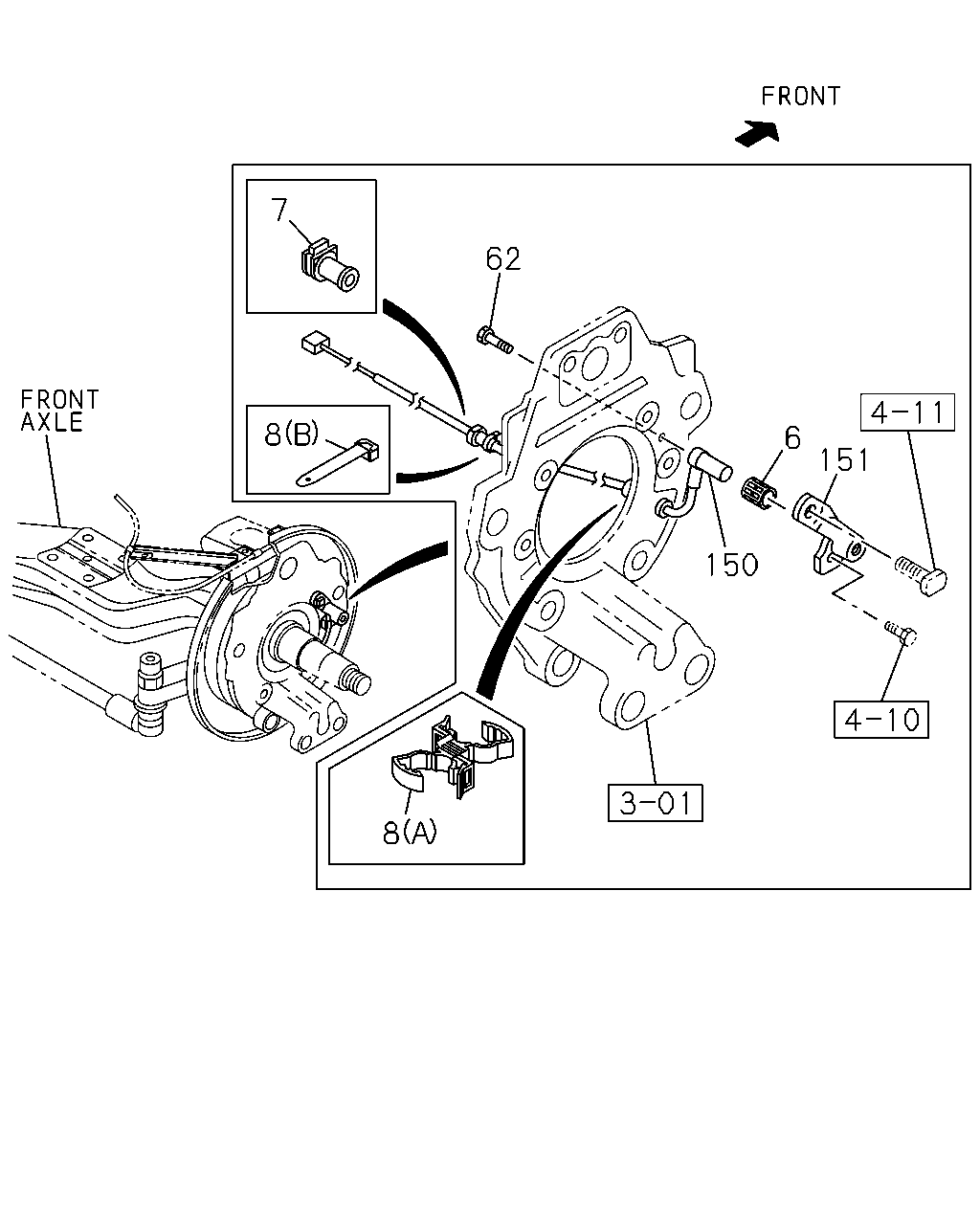

8-20 — METER CABLE
(#7766) — 56 parça
Tümü
A - EXR6MC
B - EXR5MC
◀
[820A] NO.3 (25 parça)
[820A] NO.2 (25 parça)
[820A] NO.1 (6 parça)
▶
7
62
8
6
151
150
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-260-1
02
1
9905-
●
7
GROMMET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> ID=8
1-82699-740-0
01
1
9905-9906
●
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> ID=8
1-82699-740-0
01
1
9907-
●
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) ID=8
1-82699-740-1
02
1
9905-
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=6-10 & 6-10
1-09709-192-1
01
1
9905-
●
8
CLIP; HARNESS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> (B) L=140
5-09707-031-1
01
1
9905-9906
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) L=140
5-09707-031-1
01
1
9907-
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=140
5-09707-031-1
02
1
9905-
●
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) M8X16
9-05820-816-0
02
1
9905-
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-83127-502-1
02
1
9907-9912
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-83127-517-1
02
1
0001-
●
150
SENSOR; SPEED,ABS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2>
1-83127-644-0
01
1
9905-9906
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2>
1-83127-644-0
01
1
9907-
●
150
SENSOR; SPEED,ABS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2>
1-83127-645-0
01
1
9905-9906
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2>
1-83127-645-0
01
1
9907-
●
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-422-0
01
1
9905-
●
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-421-0
01
1
9905-
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-324-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-405-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-325-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-406-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-327-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-404-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-326-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-403-0
01
1
9910-
●
8
7
8
150
62
6
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-260-1
02
1
9905-
●
7
GROMMET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> ID=8
1-82699-740-0
01
1
9905-9906
●
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> ID=8
1-82699-740-0
01
1
9907-
●
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) ID=8
1-82699-740-1
02
1
9905-
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=6-10 & 6-10
1-09709-192-1
01
1
9905-
●
8
CLIP; HARNESS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2> (B) L=140
5-09707-031-1
01
1
9905-9906
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> (B) L=140
5-09707-031-1
01
1
9907-
●
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=140
5-09707-031-1
02
1
9905-
●
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) M8X16
9-05820-816-0
02
1
9905-
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-83127-502-1
02
1
9907-9912
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-83127-517-1
02
1
0001-
●
150
SENSOR; SPEED,ABS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2>
1-83127-644-0
01
1
9905-9906
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2>
1-83127-644-0
01
1
9907-
●
150
SENSOR; SPEED,ABS
BRAKE SYSTEM HEAVY DUTY(J55) BRAKE SYSTEM RETARDER<RE2>
1-83127-645-0
01
1
9905-9906
●
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2>
1-83127-645-0
01
1
9907-
●
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-422-0
01
1
9905-
●
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-421-0
01
1
9905-
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-324-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-405-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-325-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-406-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-327-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-404-0
01
1
9910-
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-326-0
01
1
9905-9909
●
151
BRACKET; SPD SENSOR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
1-83129-403-0
01
1
9910-
●
228
232
32
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
BOX; GEAR,FLEX SHAFT
ZF M/T<X9E>
1-83126-409-0
01
1
9902-9904
●
162
NUT; GEAR BOX
ZF M/T<X9E> M22
1-80249-005-0
01
1
9902-9904
●
228
PROTECTOR; SENSOR
8-97168-308-0
01
1
9902-0003
●
228
PROTECTOR; SENSOR
8-97168-308-0
01
1
0004-
●
●
232
ADAPTER; SPEED SENSOR
ZF M/T<X9E>
1-80249-006-0
01
1
9905-0003
●
232
ADAPTER; SPEED SENSOR
ZF M/T<X9E>
1-80249-006-0
01
1
0004-
●
●
