0-14 — CAMSHAFT AND VALVE (#77658) — 111 parça

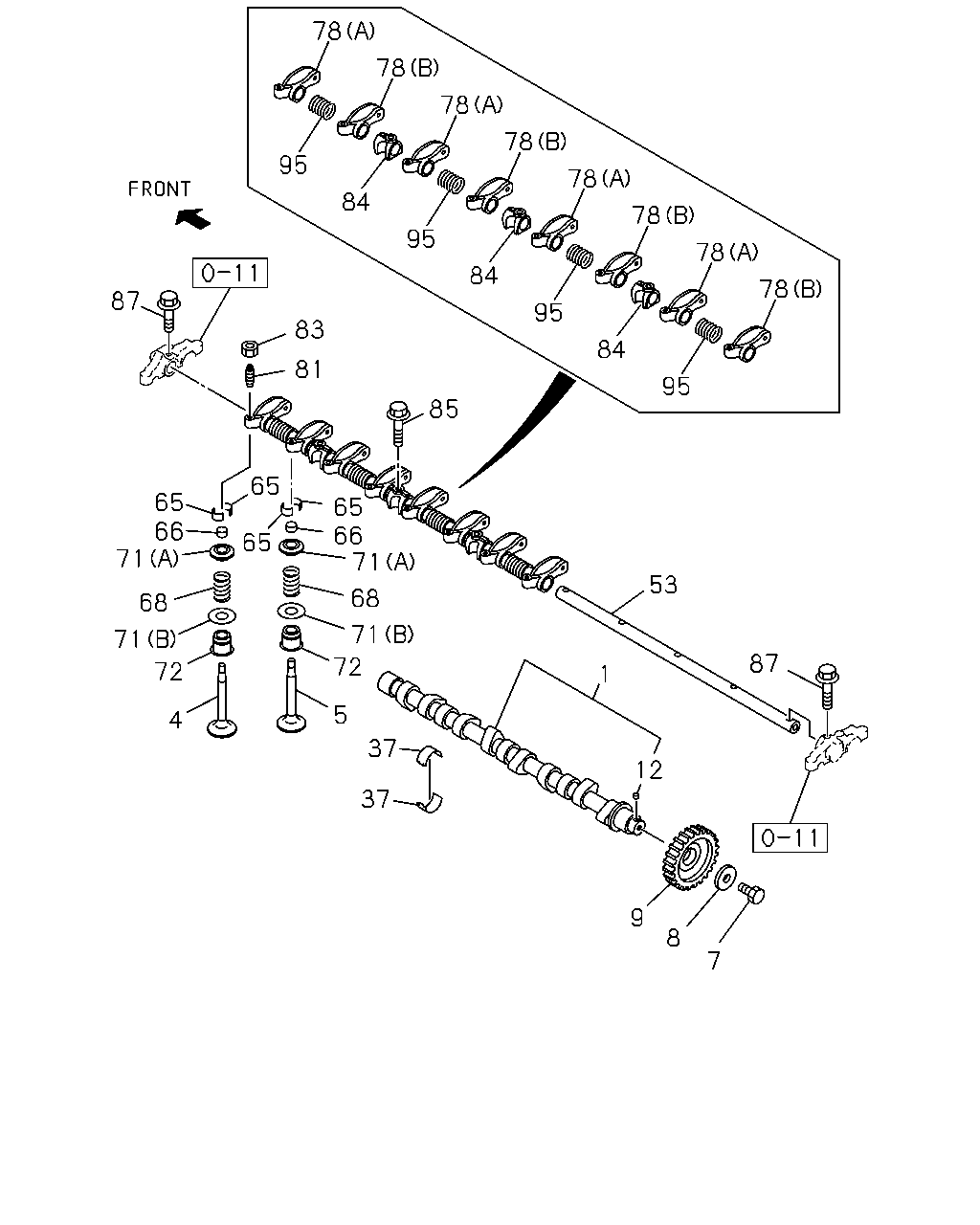

78 78 78 78 95 78 84 78 95 78 84 78 87 95 83 84 81 95 85 65 66 71 65 65 66 71 65 53 68 68 71 71 87 72 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0211-0501	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0502-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0502-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0502-		●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0211-0501	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0502-		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0501	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0502-		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0211-0501	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0502-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0211-0501	●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0502-		●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0211-0501	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0502-0706		●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-		●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0211-0501	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0502-		●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0211-0501	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0502-		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0211-0501	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0502-		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0211-0501	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0502-		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0211-0501	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0502-		●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0211-0501	●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0502-		●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0211-0501	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0502-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0211-0501	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0502-		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0211-0501	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0502-		●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0211-0501	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0502-		●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0211-0501	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0502-		●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0211-0501	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0502-		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0211-0501	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0502-		●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0211-0501	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0502-0512		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0211-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0502-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0211-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0502-		●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0211-0501	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0502-		●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0211-0501	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0502-		●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0211-0501	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0502-0512		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0211-0501	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0502-		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0211-0501	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0502-		●

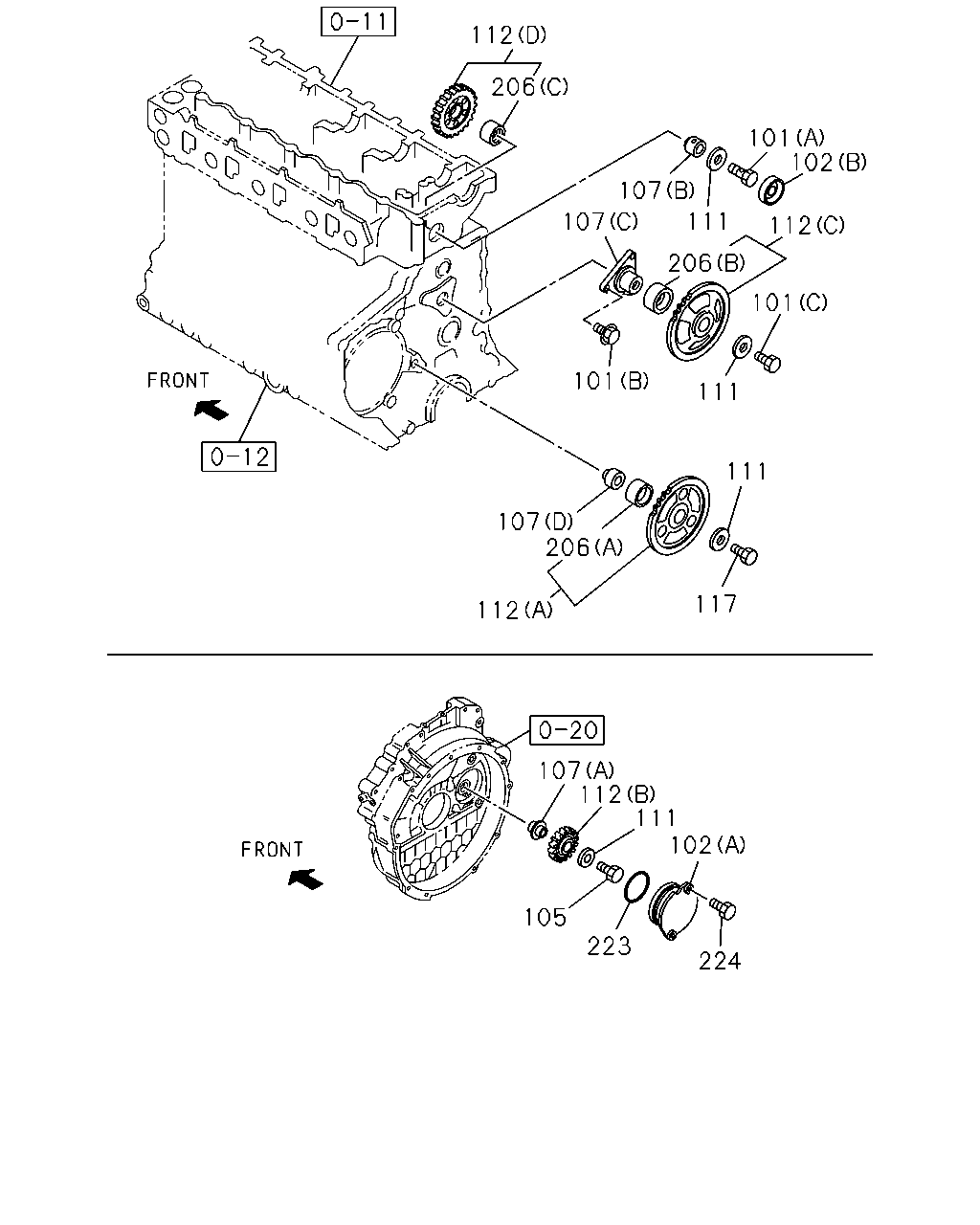

112 206 101 102 107 107 111 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0211-0501	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0502-0512		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-		●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0211-0501	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0502-		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0211-0501	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0502-1310		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-		●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0211-0501	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0502-		●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0211-0501	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0502-		●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	0211-0501	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	0502-0512		●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0601-		●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0502-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0502-0609		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0502-		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0502-		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	04	1	0211-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0502-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0211-0501	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0502-		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	0211-0501	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0502-		●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	0211-0501	●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-1	01	1	0502-		●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0211-0501	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0502-		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0211-0501	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0502-		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0211-0501	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0502-		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0211-0501	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0502-0802		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-		●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0211-0501	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0502-0809		●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-		●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	0211-0211	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-0501	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0502-		●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
