◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#77656) — 54 parça

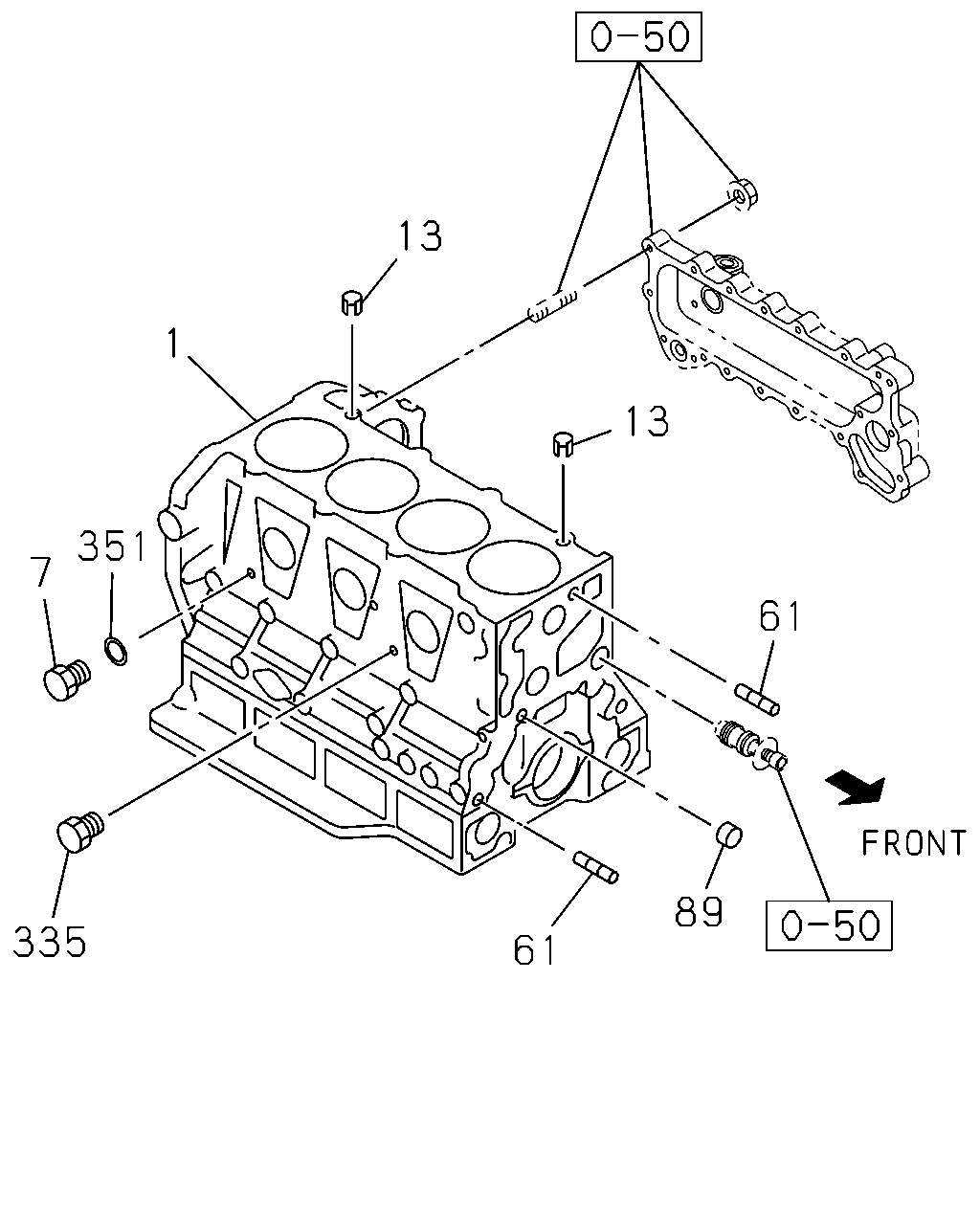

çizim 135494
13 1 13 351 7 61 89 335 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0211-0501 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0502- ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0211-0501 ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0502- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0502- ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0211-0501 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0502- ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0211-0501 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 0502-0712 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 0801- ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502- ●

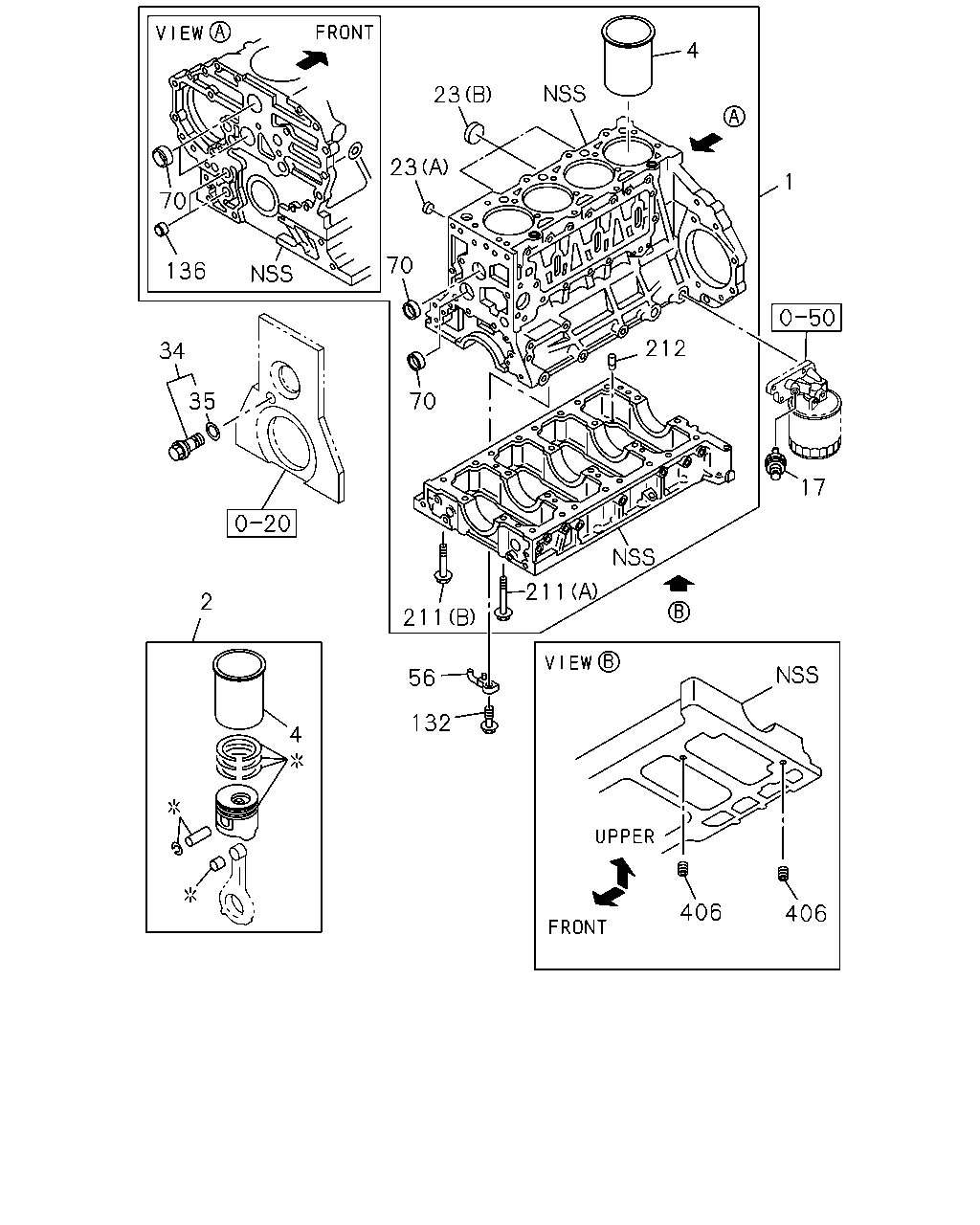

çizim 135507
70 136 34 35 2 4 56 132 406 406 17 1 4 212 211 211 70 70 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97163-853-5 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97163-853-7 01 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-4 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-4 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-1 04 1 0502- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-1 04 1 0502- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0211-0501 ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0502- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 0502- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0211-0501 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 0502-0706 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0707- ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0211-0501 ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0502- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-0 04 1 0211-0501 ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 0502- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0211-0501 ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0502- ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0211-0501 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0502-0704 ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0211-0501 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0502-0812 ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0502- ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0211-0501 ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0502- ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502- ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0211-0501 ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0502- ●
