◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

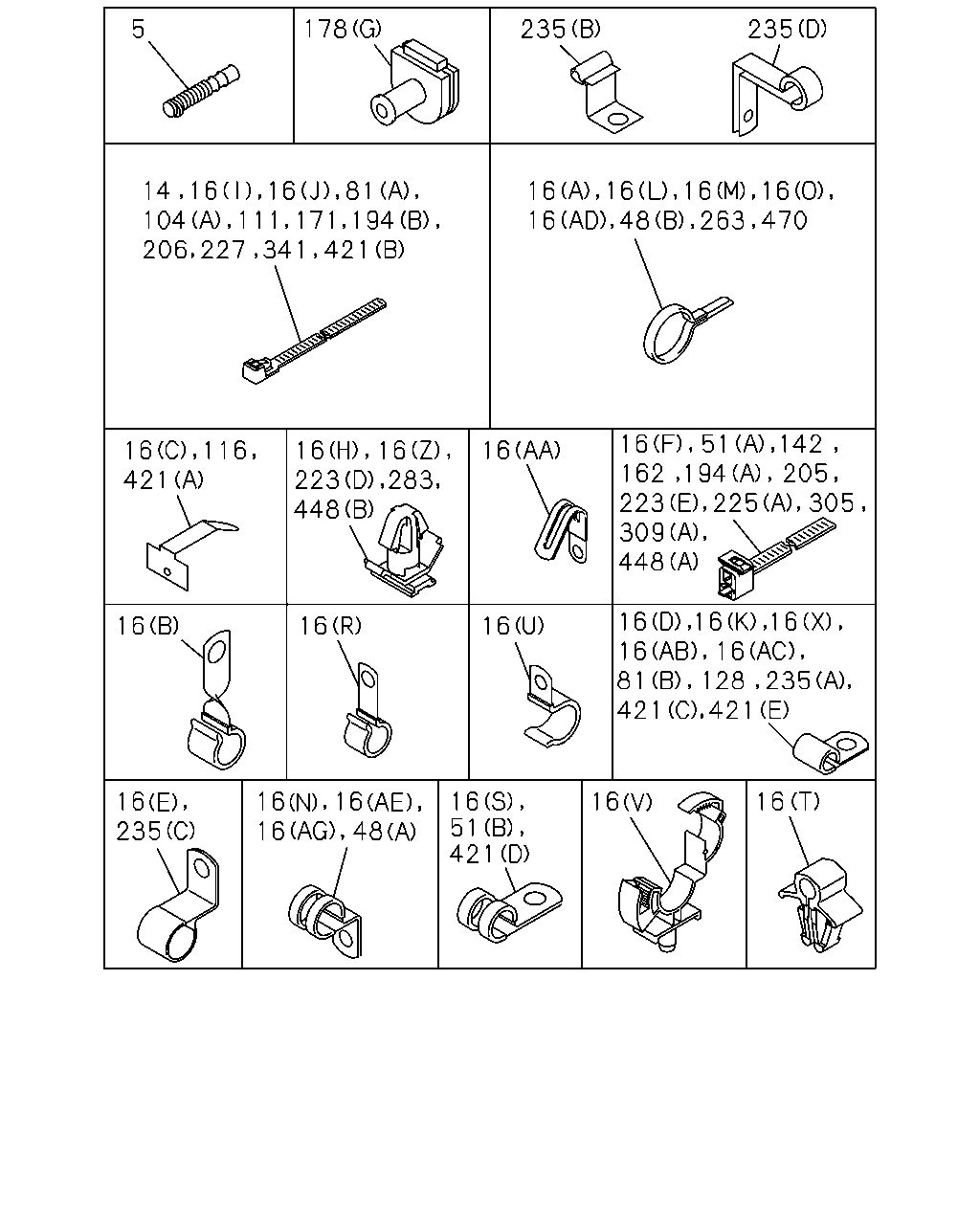

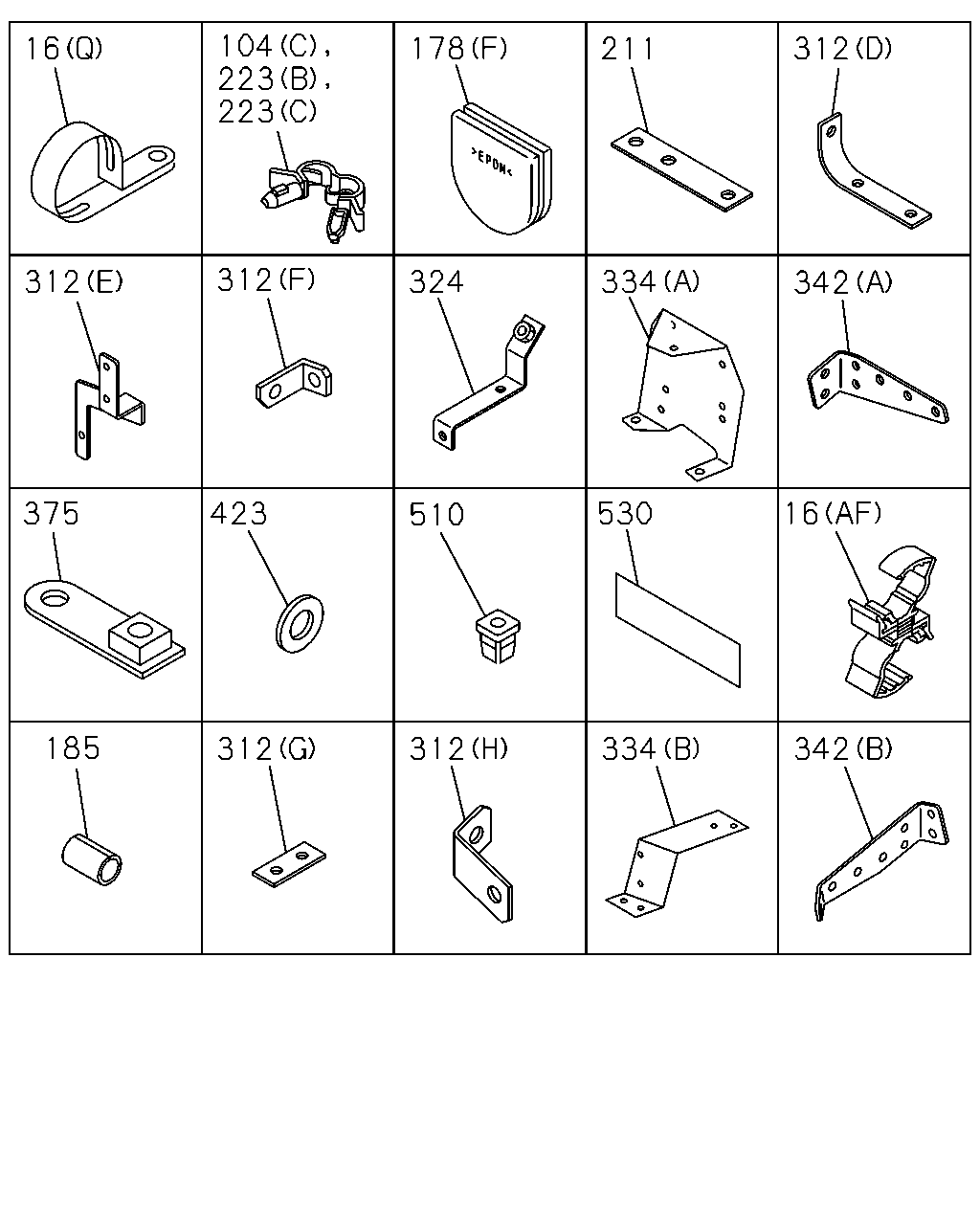

8-15 — FIXING PARTS; WIRING HARNESS (#7765) — 877 parça

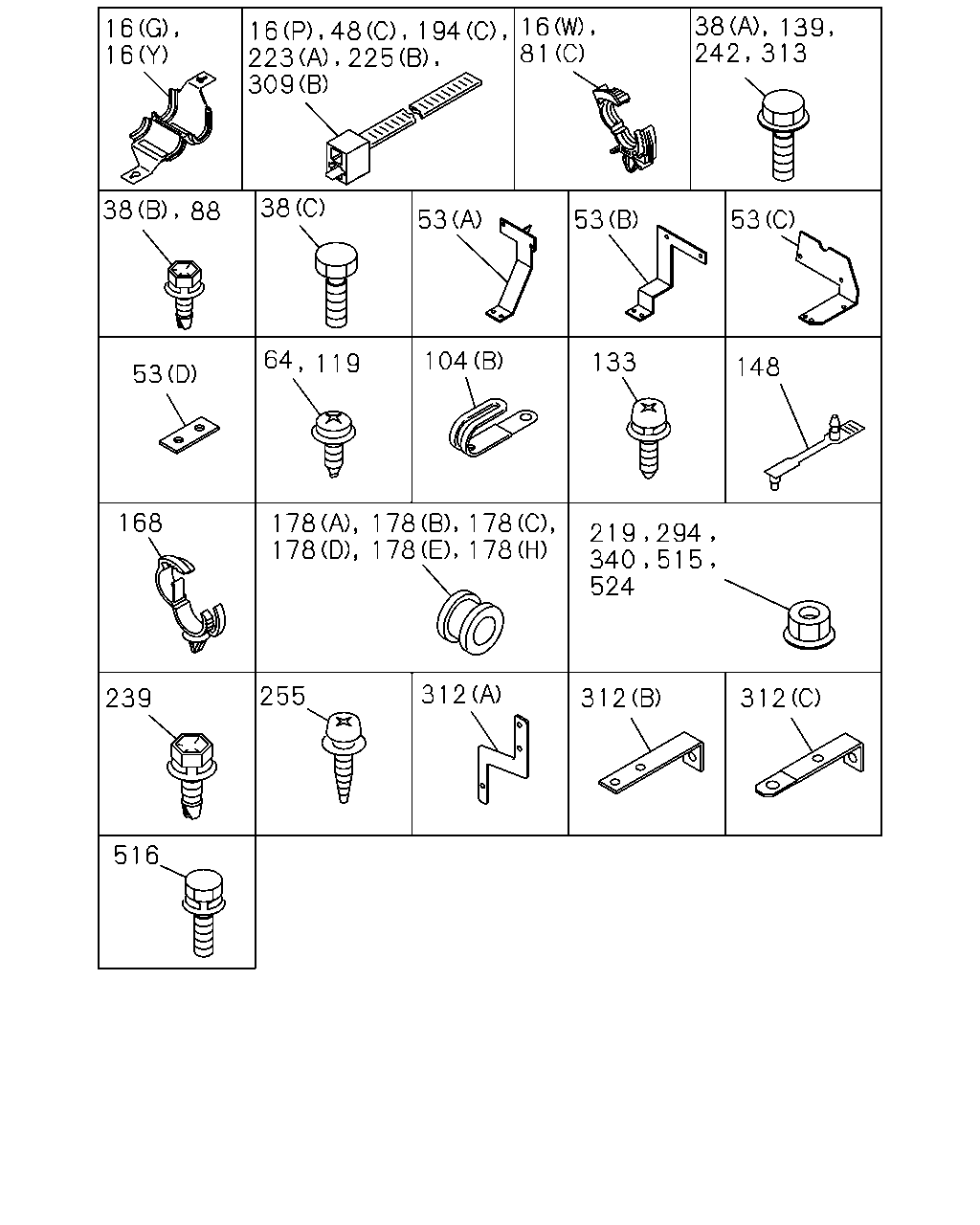

çizim 7209
38 139 16 81 16 16 194 309 38 38 88 53 53 53 64 104 133 119 148 53 168 178 178 178 178 178 178 524 312 255 312 312 239 516 16 48 225 223 242 313 219 294 340 515
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 10 1 9902-0001 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 09 1 0002- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 0004- ● ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 0004- ● ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 9902-0003 ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0004- ● ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 9902-0003 ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 0004- ● ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 9902-0003 ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 0004- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9902-9902 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 9903-0003 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0004- ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9902-9903 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 9902-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9903-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 0004- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9902-9903 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 04 1 9904-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 9908-0003 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 07 1 9902-9903 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 9904-0003 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
(W) ID=7-10 		8-94472-578-0 01 1 9902- ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 0004- ● ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 9902- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 10 1 9902-9903 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ) (M) ID=20 L=50 		9-09917-430-0 03 1 9904-9904 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 9905-0003 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 9904-9907 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9908-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9902-0001 ●
16 CLIP; HARNESS
(O) ID=22 L=52 		9-09917-431-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 9903-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 0004- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (J) L=140 		5-09707-031-1 06 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=11 L=20 		9-09525-035-0 02 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=11X2 L=16 		9-09535-025-0 02 1 9905- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (B) ID=15 L=42 		1-09700-479-0 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (A) ID=14 L=44 		9-09917-427-0 03 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK),TAIWAN EQUIPMENT(WW5) (A) ID=14 L=44 		9-09917-427-0 03 1 9905- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=16 		9-09525-025-0 01 1 9902-9902 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 9903-0003 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 0004- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 9902-0003 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 0004- ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (AA) L=36 		8-94224-891-1 01 1 9902- ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (X) ID=16 L=40 		9-09525-576-0 01 1 9902- ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 9902-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9908-0003 ●
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 0004- ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 9902-0003 ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0004- ● ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 9902-0003 ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 0004- ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
(AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 9905-0001 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0004- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (L) ID=11 L=41 		1-09700-403-0 02 1 9904-0005 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 02 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 9904- ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
(E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009- ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 01 1 9902-9903 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 02 1 9904-9907 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 08 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 04 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0004- ●
38 BOLT; CLIP,HARNESS
(C) M6X8 		0-20800-608-0 01 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(C) M6X8 		0-20800-608-0 01 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 07 1 9902-9903 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9904-9908 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9909- ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(A) M12X16 FLANGE 		1-09044-079-0 01 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(A) M12X16 FLANGE 		1-09044-079-0 01 1 0004- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9902-0003 ●
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0004- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0003 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-0003 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0004- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0004- ●
38 BOLT; CLIP,HARNESS
ARGENTINE EQUIPMENT(NBQ) (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9904 ●
38 BOLT; CLIP,HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9905- ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9904 ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9908- ●
38 BOLT; CLIP,HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) M8X30 FLANGE 		0-28680-830-0 07 1 9902-9903 ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 03 1 9904-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 03 1 0004- ● ●
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (A) M10X20 FLANGE 		0-28681-020-0 01 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 3500MM(35W) (A) M8X30 FLANGE 		0-28680-830-0 06 1 9904-9904 ●
38 BOLT; CLIP,HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) M8X30 FLANGE 		0-28680-830-0 06 1 9905-0003 ●
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 0004-0005 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0004-0005 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 3200MM(32W) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0006- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 3500MM(35W) (A) M8X30 FLANGE 		0-28680-830-0 05 1 0006- ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9904-9904 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907 ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0003 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0003 ●
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0004- ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0004- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0004- ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0004- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 07 1 0004- ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 08 1 0006- ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 04 1 9905- ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9902-0003 ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0004- ● ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) ID=35 H=45 L=33 		1-09700-947-0 02 1 9902-9903 ●
48 CLIP; FRAME HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 9904-0003 ●
48 CLIP; FRAME HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 0004- ● ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (C) L=300 		1-09707-001-1 08 1 9902-0003 ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 08 1 0004-0005 ● ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 07 1 0006- ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (B) ID=20 L=50 		9-09917-430-0 05 1 9902-9903 ●
48 CLIP; FRAME HARNESS
MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. BRAZIL EQUIPMENT(TKK) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9904-0005 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0006- ●
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BRAZIL EQUIPMENT(TKK) (B) ID=11 L=41 		1-09700-403-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
BRAZIL EQUIPMENT(TKK) (B) ID=11 L=41 		1-09700-403-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0005 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3200MM(32W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 06 1 9905-0003 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3200MM(32W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 06 1 0004- ● ●
53 BRACKET; HARNESS
EXC. CAB UP +110MM<TGG> (C) 		1-82699-826-0 01 1 9902- ●
53 BRACKET; HARNESS
EXC. CAB UP +110MM<TGG> (B) 		1-82699-916-0 01 1 9902- ●
53 BRACKET; HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (D) 		1-82699-239-0 02 1 9902- ●
53 BRACKET; HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) 		1-82699-592-2 01 1 9902- ●
64 SCREW; CLIP
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 9902-0003 ●
64 SCREW; CLIP
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0004- ●
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0004- ●
64 SCREW; CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 9902- ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9902-0003 ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0004- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 9902-0003 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0004- ● ●
81 CLIP; HARNESS
(C) ID=7-10 		8-94472-578-0 02 1 9904-9907 ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=7-10 		8-94472-578-0 02 1 9908-0003 ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=7-10 		8-94472-578-0 02 1 0004- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 9902-0003 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0004- ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9902-0003 ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0004- ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0004- ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0004- ● ●
119 SCREW; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9902- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9902-0003 ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0004- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 02 1 9905- ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28680-825-0 01 1 9902-9904 ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0003 ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 01 1 0004- ●
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28680-825-0 01 1 0004- ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 9902-0003 ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0004- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 02 1 9902- ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 0004- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9902-9903 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9904-0003 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0004- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0004-0007 ● ●
178 GROMMET; HARNESS
(H) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0008- ● ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9902-9903 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9904-0003 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0004- ● ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 0004- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 9905- ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=6 		1-82699-468-0 03 1 9905- ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ● ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ●
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 9902-0003 ●
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0004- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 9902-0003 ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 0004- ● ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 9902-0003 ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0004- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9902-9903 ●
219 NUT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8 FLANGE 		0-91150-108-0 02 1 9902-9903 ●
219 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
219 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
219 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9908-0003 ●
219 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0004- ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0004- ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 9902-9903 ●
219 NUT
EXC. BRAZIL EQUIPMENT(TKK) M8 FLANGE 		0-91150-108-0 02 1 9904-9904 ●
219 NUT
WHEEL BASE 3200MM(32W) M8 FLANGE 		0-91150-108-0 07 1 9905-0003 ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 9905-0003 ●
219 NUT
WHEEL BASE 3200MM(32W) M8 FLANGE 		0-91150-108-0 07 1 0004-0005 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 0004-0005 ●
219 NUT
WHEEL BASE 3200MM(32W) M8 FLANGE 		0-91150-108-0 06 1 0006- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ●
219 NUT
MJA7U M/T(X6G),MJD7S M/T(Y2Y) M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ●
219 NUT
WHEEL BASE 3500MM(35W) M8 FLANGE 		0-91150-108-0 06 1 9904-0005 ●
219 NUT
WHEEL BASE 3500MM(35W) M8 FLANGE 		0-91150-108-0 05 1 0006- ●
219 NUT
M10 FLANGE 		0-91250-210-0 01 1 9902-0003 ●
219 NUT
M10 FLANGE 		0-91250-210-0 01 1 0004- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 0006- ●
219 NUT
EXC. BRAZIL EQUIPMENT(TKK) M8 FLANGE 		0-91150-108-0 07 1 9902-9904 ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9905-0003 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 9905-0003 ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0004- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0004- ●
219 NUT
MJA7U M/T(X6G) M10 FLANGE 		0-91150-210-0 01 1 9902- ●
219 NUT
MJA7U M/T(X6G),MJD7S M/T(Y2Y) M10 FLANGE 		0-91150-210-0 01 1 9902- ●
219 NUT
M8 FLANGE 		0-91150-108-0 08 1 0004- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=600 		1-09707-107-0 01 1 9902-9903 ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9904-9904 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) (B) ID=13-18 L=14.5 		1-09709-290-0 02 1 9902- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) OD=9 H=9.5 		1-09709-179-0 01 1 9905- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 9902-9903 ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 9902-0003 ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0004- ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (B) L=250 		1-09707-126-0 02 1 9905-0003 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (B) L=250 		1-09707-126-0 02 1 0004- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9902-0003 ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0004- ● ●
242 BOLT; BRKT,HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 9902-0003 ●
242 BOLT; BRKT,HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 0004- ● ●
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28680-820-0 02 1 9902- ●
242 BOLT; BRKT,HARNESS
M10X20 FLANGE 		0-28681-020-0 02 1 9902-0003 ●
242 BOLT; BRKT,HARNESS
M10X20 FLANGE 		0-28681-020-0 02 1 0004- ●
242 BOLT; BRKT,HARNESS
EXC. CAB UP +110MM<TGG> M8X20 FLANGE 		0-28080-820-0 04 1 9902-9910 ●
242 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> M8X20 FLANGE 		0-28080-820-0 04 1 9902-9910 ●
242 BOLT; BRKT,HARNESS
EXC. CAB UP +110MM<TGG> M8X18 FLANGE 		0-28080-818-0 04 1 9911- ●
242 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> M8X18 FLANGE 		0-28080-818-0 04 1 9911- ●
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28680-820-0 04 1 0004- ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9902-9903 ●
255 SCREW; TAP CLIP
EXC. ARGENTINE EQUIPMENT(NBQ) M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9904-9904 ●
255 SCREW; TAP CLIP
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9905-0003 ●
255 SCREW; TAP CLIP
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0004- ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0004- ●
294 NUT
M8 FLANGE 		0-91150-108-0 03 1 9902-9903 ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ●
294 NUT
CAB UP +110MM<TGG> BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 01 1 9902-9903 ●
294 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
294 NUT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9904-9904 ●
294 NUT
6WA1 TC-C(55L),6WG1 TC-R(75L) M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
294 NUT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9907 ●
294 NUT
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 9908-0003 ●
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9908-0003 ●
294 NUT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 9908-0003 ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-0003 ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0004- ● ●
294 NUT
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0004- ●
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0004- ●
294 NUT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 0004- ●
294 NUT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 01 1 0004- ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0004- ●
294 NUT
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ●
294 NUT
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 02 1 9905- ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=250 		1-09707-126-0 01 1 9902-0003 ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=250 		1-09707-126-0 01 1 0004- ● ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 9902-0003 ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0004- ● ●
312 BRACKET; CLIP HARNESS
(D) 		1-47477-156-2 01 1 9902-0003 ●
312 BRACKET; CLIP HARNESS
(D) 		1-47477-156-2 01 1 0004- ● ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 9902-9903 ●
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82699-970-0 01 1 9904-9907 ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 9908-0003 ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 0004- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),CAB UP +110MM<TGG> (E) 		1-82699-593-1 01 1 9902-9907 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=60 H=30 		1-47477-716-1 01 1 9902-0003 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=60 H=30 		1-47477-716-1 01 1 0004- ●
312 BRACKET; CLIP HARNESS
(C) L=60 H=30 		1-47477-716-1 01 1 0004- ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (F) 		1-82699-199-0 01 1 9902-9903 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-825-0 01 1 9902-9907 ●
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (B) L=120 H=35 		1-82699-970-0 01 1 9908- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) (H) 		1-82699-199-0 01 1 0004- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82699-239-0 01 1 0004- ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9902-9907 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 9902-9903 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9902-9903 ●
313 BOLT; BRKT
CAB UP +110MM<TGG> M8X30 FLANGE 		0-28680-830-0 01 1 9902-9903 ●
313 BOLT; BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28680-830-0 01 1 9904-9904 ●
313 BOLT; BRKT
CAB UP +110MM<TGG> M8X30 FLANGE 		0-28680-830-0 01 1 9904-9904 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9904-9904 ●
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-R(75L) M8X30 FLANGE 		0-28680-830-0 01 1 9905-9907 ●
313 BOLT; BRKT
CAB UP +110MM<TGG> M8X30 FLANGE 		0-28680-830-0 01 1 9905-9907 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9905-9907 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9908-0003 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9908-0003 ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0004- ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0004- ● ●
313 BOLT; BRKT
6WG1 TC-N(71L) M8X30 FLANGE 		0-28680-830-0 02 1 0004- ●
313 BOLT; BRKT
6WG1 TC-N(71L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0004- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9902-0003 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9902-0003 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0004- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0004- ●
515 NUT; BRKT
M10 		9-09110-510-0 02 1 9902-0003 ●
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0004- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-0003 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0004- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 9902- ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0004- ●
çizim 7210
5 178 235 235 104 111 171 194 16 16 16 16 16 142 309 448 16 116 421 16 16 448 16 16 16 16 16 16 81 16 16 16 235 16 16 51 421 16 14 16 16 81 206 227 341 421 48 263 470 223 283 16 51 162 194 205 223 225 305 128 235 421 421 16 16 16 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 9902-0003 ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0004- ● ●
14 CLIP; BAND,HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) L=140 		5-09707-031-1 01 1 9902-0003 ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 9902-0003 ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0004- ● ●
14 CLIP; BAND,HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 10 1 9902-0001 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 09 1 0002- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 0004- ● ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 0004- ● ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 9902-0003 ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0004- ● ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 9902-0003 ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 0004- ● ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 9902-0003 ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 0004- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9902-9902 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 9903-0003 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0004- ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9902-9903 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 9902-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9903-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 0004- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9902-9903 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 04 1 9904-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 9908-0003 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 07 1 9902-9903 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 9904-0003 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
(W) ID=7-10 		8-94472-578-0 01 1 9902- ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 0004- ● ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 9902- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 10 1 9902-9903 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ) (M) ID=20 L=50 		9-09917-430-0 03 1 9904-9904 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 9905-0003 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 9904-9907 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9908-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9902-0001 ●
16 CLIP; HARNESS
(O) ID=22 L=52 		9-09917-431-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 9903-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 0004- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (J) L=140 		5-09707-031-1 06 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=11 L=20 		9-09525-035-0 02 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=11X2 L=16 		9-09535-025-0 02 1 9905- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (B) ID=15 L=42 		1-09700-479-0 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (A) ID=14 L=44 		9-09917-427-0 03 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK),TAIWAN EQUIPMENT(WW5) (A) ID=14 L=44 		9-09917-427-0 03 1 9905- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=16 		9-09525-025-0 01 1 9902-9902 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 9903-0003 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 0004- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 9902-0003 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 0004- ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (AA) L=36 		8-94224-891-1 01 1 9902- ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (X) ID=16 L=40 		9-09525-576-0 01 1 9902- ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 9902-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9908-0003 ●
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 0004- ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 9902-0003 ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0004- ● ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 9902-0003 ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 0004- ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
(AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 9905-0001 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0004- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (L) ID=11 L=41 		1-09700-403-0 02 1 9904-0005 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 02 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 9904- ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
(E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009- ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 01 1 9902-9903 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 02 1 9904-9907 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 08 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 04 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0004- ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 08 1 0006- ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 04 1 9905- ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9902-0003 ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0004- ● ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (A) ID=35 H=45 L=33 		1-09700-947-0 02 1 9902-9903 ●
48 CLIP; FRAME HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 9904-0003 ●
48 CLIP; FRAME HARNESS
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 0004- ● ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (C) L=300 		1-09707-001-1 08 1 9902-0003 ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 08 1 0004-0005 ● ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 07 1 0006- ●
48 CLIP; FRAME HARNESS
EXC. BRAZIL EQUIPMENT(TKK) (B) ID=20 L=50 		9-09917-430-0 05 1 9902-9903 ●
48 CLIP; FRAME HARNESS
MJA7U M/T(X6G),MJD7S M/T(Y2Y) EXC. BRAZIL EQUIPMENT(TKK) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9904-0005 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0006- ●
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BRAZIL EQUIPMENT(TKK) (B) ID=11 L=41 		1-09700-403-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
BRAZIL EQUIPMENT(TKK) (B) ID=11 L=41 		1-09700-403-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
BRAZIL EQUIPMENT(TKK) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9902-9903 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0005 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3500MM(35W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3200MM(32W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 06 1 9905-0003 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3200MM(32W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 06 1 0004- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 9902-0003 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0004- ● ●
51 CLIP; COOLER CMPR
6WG1 TC-N(71L) (B) ID=19 L=32 		1-09701-235-0 01 1 0004- ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 9902-0003 ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0004- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 9902-0003 ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0004- ● ●
81 CLIP; HARNESS
(C) ID=7-10 		8-94472-578-0 02 1 9904-9907 ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=7-10 		8-94472-578-0 02 1 9908-0003 ●
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=7-10 		8-94472-578-0 02 1 0004- ● ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 9902-0003 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=20 		9-09525-035-0 01 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0004- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0004- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 9902-0003 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0004- ● ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 03 1 9902-0003 ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 03 1 0004- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		9-09525-535-0 01 1 0004- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32 		9-09525-862-0 01 1 9902-0003 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32 		9-09525-862-0 01 1 0004- ● ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 9902-9904 ●
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) L=180 		1-09707-162-1 01 1 9905- ●
142 CLIP; HARNESS,ENG
6WG1 TC-R(75L) L=180 		1-09707-162-1 02 1 9905-9909 ●
142 CLIP; HARNESS,ENG
6WG1 TC-C(72L),6WG1 TC-R(75L) L=180 		1-09707-162-1 02 1 9910-0003 ●
142 CLIP; HARNESS,ENG
6WG1 TC-C(72L),6WG1 TC-R(75L) L=180 		1-09707-162-1 02 1 0004- ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0004- ●
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 9902-0003 ●
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0004- ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9902-9903 ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 9904-9907 ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9908-0003 ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0004- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9902-9903 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9904-0003 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0004- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0004-0007 ● ●
178 GROMMET; HARNESS
(H) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0008- ● ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9902-9903 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9904-0003 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0004- ● ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 0004- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 9905- ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=6 		1-82699-468-0 03 1 9905- ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ● ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ●
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 9902-0003 ●
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0004- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 9902-0003 ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 0004- ● ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 9902-0003 ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0004- ● ●
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 9902-0003 ●
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0004- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9902-0003 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=600 		1-09707-107-0 01 1 9902-9903 ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9904-9904 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) (B) ID=13-18 L=14.5 		1-09709-290-0 02 1 9902- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) OD=9 H=9.5 		1-09709-179-0 01 1 9905- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 9902-9903 ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 9902-0003 ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0004- ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (B) L=250 		1-09707-126-0 02 1 9905-0003 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (B) L=250 		1-09707-126-0 02 1 0004- ● ●
227 CLIP; FOG LAMP HARNESS
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> L=140 		5-09707-031-1 02 1 9902- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9902-9903 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (C) ID=14 H=15 L=20 		8-94437-032-0 01 1 9904-9907 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (D) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF M/T<X9E> (A) ID=11 L=16 		9-09525-025-0 01 1 9904-9908 ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 9902-9903 ●
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9902-0003 ●
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0004- ● ●
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 9902-0003 ●
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0004- ● ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=250 		1-09707-126-0 01 1 9902-0003 ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=250 		1-09707-126-0 01 1 0004- ● ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 9902-0003 ●
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0004- ● ●
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9902-0003 ●
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0004- ● ●
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 12 1 9902-0003 ●
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 12 1 0004- ● ●
421 CLIP; FLOOR HARNESS
(C) ID=16 L=20 		9-09525-532-0 02 1 9902-9903 ●
421 CLIP; FLOOR HARNESS
(D) ID=19 L=32 		1-09701-235-0 02 1 9904-9904 ●
421 CLIP; FLOOR HARNESS
(E) ID=19 L=20 		9-09525-832-0 02 1 9905-0003 ●
421 CLIP; FLOOR HARNESS
(E) ID=19 L=20 		9-09525-832-0 02 1 0004- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 9902- ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (A) L=180 		1-09707-162-1 01 1 9904-0003 ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (A) L=180 		1-09707-162-1 01 1 0004- ● ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (B) OD=9 H=6 		1-09709-178-0 01 1 9904-0003 ●
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (B) OD=9 H=6 		1-09709-178-0 01 1 0004- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9902-0003 ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0004- ● ●
çizim 44578
104 223 223 16 178 211 312 312 312 324 334 342 375 423 530 16 510 185 312 312 334 342
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 10 1 9902-0001 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 09 1 0002- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(AD) ID=20 L=70 		1-09700-485-0 02 1 0004- ● ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(R) ID=15 L=35 		1-09700-507-0 01 1 0004- ● ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 9902-0003 ●
16 CLIP; HARNESS
(Q) ID=42.7 L=38 		1-09700-583-1 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(N) ID=20 H=23 L=27 		1-09700-861-0 01 1 0004- ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9902-9903 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9904-0003 ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0004- ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0004- ● ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 9902-0003 ●
16 CLIP; HARNESS
(S) ID=19 L=32 		1-09701-235-0 02 1 0004- ● ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 9902-0003 ●
16 CLIP; HARNESS
(P) L=300 		1-09707-001-1 03 1 0004- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9902-9902 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 9903-0003 ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0004- ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9902-9903 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0004- ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 9902-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9902-9902 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9903-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0004- ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(Z) OD=9 H=13.5 		1-09709-180-0 01 1 0004- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9902-9903 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 04 1 9904-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 9908-0003 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 01 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 07 1 9902-9903 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 9904-0003 ●
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(AF) ID=6-10 & 6-10 		1-09709-192-1 01 1 0004- ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(U) 		8-94403-348-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
(W) ID=7-10 		8-94472-578-0 01 1 9902- ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(V) ID=14-20 		8-97061-603-0 03 1 0004- ● ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(D) ID=16 L=20 		9-09525-535-0 01 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 9902- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 10 1 9902-9903 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ) (M) ID=20 L=50 		9-09917-430-0 03 1 9904-9904 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 9905-0003 ●
16 CLIP; HARNESS
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
6WG1 TC-N(71L) (M) ID=20 L=50 		9-09917-430-0 03 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9902-9903 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 9904-9907 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 9908-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9902-0001 ●
16 CLIP; HARNESS
(O) ID=22 L=52 		9-09917-431-0 03 1 9902-0003 ●
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0004- ● ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 9903-0003 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 02 1 0004- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (J) L=140 		5-09707-031-1 06 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=11 L=20 		9-09525-035-0 02 1 9905- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=11X2 L=16 		9-09535-025-0 02 1 9905- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (B) ID=15 L=42 		1-09700-479-0 02 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 9905-0003 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) (B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0004- ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ) (A) ID=14 L=44 		9-09917-427-0 03 1 9904-9904 ●
16 CLIP; HARNESS
EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK),TAIWAN EQUIPMENT(WW5) (A) ID=14 L=44 		9-09917-427-0 03 1 9905- ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=16 		9-09525-025-0 01 1 9902-9902 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 9903-0003 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (K) ID=11 L=24 		9-09525-045-0 01 1 0004- ● ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 9902-0003 ●
16 CLIP; HARNESS
HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 02 1 0004- ● ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (AA) L=36 		8-94224-891-1 01 1 9902- ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (X) ID=16 L=40 		9-09525-576-0 01 1 9902- ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 9902-9907 ●
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9908-0003 ●
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q> (H) OD=9 H=6 		1-09709-178-0 01 1 0004- ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 9902-0003 ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 0004- ● ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 9902-0003 ●
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 		1-09987-246-2 04 1 0004- ● ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
(AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0004-0005 ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (L) ID=11 L=41 		1-09700-403-0 01 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (AE) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0004- ● ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 9905-0001 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0002-0003 ●
16 CLIP; HARNESS
WHEEL BASE 3200MM(32W) (M) ID=20 L=50 		9-09917-430-0 05 1 0004- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0004- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (L) ID=11 L=41 		1-09700-403-0 02 1 9904-0005 ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) ZF M/T<X9E> (L) ID=11 L=41 		1-09700-403-0 02 1 0006- ●
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (M) ID=20 L=50 		9-09917-430-0 06 1 9904- ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9902-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
(E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0004-0008 ●
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009- ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 01 1 9902-9903 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 02 1 9904-9907 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 9908-0003 ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ● ●
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0004- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 08 1 0004- ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0004- ●
16 CLIP; HARNESS
(A) ID=14 L=44 		9-09917-427-0 04 1 0004- ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0004- ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0004- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9902-0003 ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0004- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9902-9903 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9904-0003 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0004- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0004-0007 ● ●
178 GROMMET; HARNESS
(H) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0008- ● ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9902-9903 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9904-0003 ●
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0004- ● ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 9902-0003 ●
178 GROMMET; HARNESS
(F) 		1-82699-891-0 01 1 0004- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 9905- ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=6 		1-82699-468-0 03 1 9905- ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9902-9903 ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9904-0003 ●
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ● ●
178 GROMMET; HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0004- ●
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-0008 ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=105 		1-47477-409-0 02 1 9905- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=600 		1-09707-107-0 01 1 9902-9903 ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9904-9904 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (E) L=180 		1-09707-162-1 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 9905-0003 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3200MM(32W) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0004- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) (B) ID=13-18 L=14.5 		1-09709-290-0 02 1 9902- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (D) OD=9 H=9.5 		1-09709-179-0 01 1 9905- ●
312 BRACKET; CLIP HARNESS
(D) 		1-47477-156-2 01 1 9902-0003 ●
312 BRACKET; CLIP HARNESS
(D) 		1-47477-156-2 01 1 0004- ● ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 9902-9903 ●
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82699-970-0 01 1 9904-9907 ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 9908-0003 ●
312 BRACKET; CLIP HARNESS
(B) L=120 		1-82699-465-0 01 1 0004- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),CAB UP +110MM<TGG> (E) 		1-82699-593-1 01 1 9902-9907 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=60 H=30 		1-47477-716-1 01 1 9902-0003 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=60 H=30 		1-47477-716-1 01 1 0004- ●
312 BRACKET; CLIP HARNESS
(C) L=60 H=30 		1-47477-716-1 01 1 0004- ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (F) 		1-82699-199-0 01 1 9902-9903 ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-825-0 01 1 9902-9907 ●
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (B) L=120 H=35 		1-82699-970-0 01 1 9908- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) (H) 		1-82699-199-0 01 1 0004- ●
312 BRACKET; CLIP HARNESS
6WG1 TC-N(71L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82699-239-0 01 1 0004- ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> 		1-82699-996-0 01 1 9902-9904 ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-996-0 01 1 9905-0003 ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-996-1 01 1 0004- ●
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> 		1-82699-996-1 01 1 0004- ●
334 BRACKET
(A) 		1-53458-709-1 01 1 9902-0003 ●
334 BRACKET
(A) 		1-53458-709-1 01 1 0004- ●
334 BRACKET
(B) 		1-53458-362-0 01 1 0004- ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 9902-0003 ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0004-0007 ● ●
342 BRACKET; HARNESS CAB MTG
ISUZU M/T<X9A> (A) 		1-82699-625-0 01 1 0008- ●
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (B) 		1-82698-224-0 01 1 0008- ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-82698-224-0 01 1 0008- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 9902-0003 ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0004- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9902-0003 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0004- ● ●
423 WASHER; HARNESS,EARTH
ARGENTINE EQUIPMENT(NBQ) ID=8.4 		1-09503-264-0 01 1 9904-9904 ●
423 WASHER; HARNESS,EARTH
ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK), TAIWAN EQUIPMENT(WW5) ID=8.4 		1-09503-264-0 01 1 9905- ●
510 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 9902-0003 ●
510 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0004- ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0004- ●
510 GROMMET; SCREW
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 01 1 9902- ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 02 1 9902- ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 9902-0003 ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0004- ● ●
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 180X40 		1-72498-019-0 01 1 0006- ●
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X30 		1-72498-014-1 01 1 9902-9903 ●
530 SEAL; HARNESS
100X30 		1-72498-014-1 01 1 9902-9903 ●
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 9904-0003 ●
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 9904-0003 ●
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0004- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
