9-31 — REAR BODY; FLOOR AND FENDER (#77649) — 68 parça

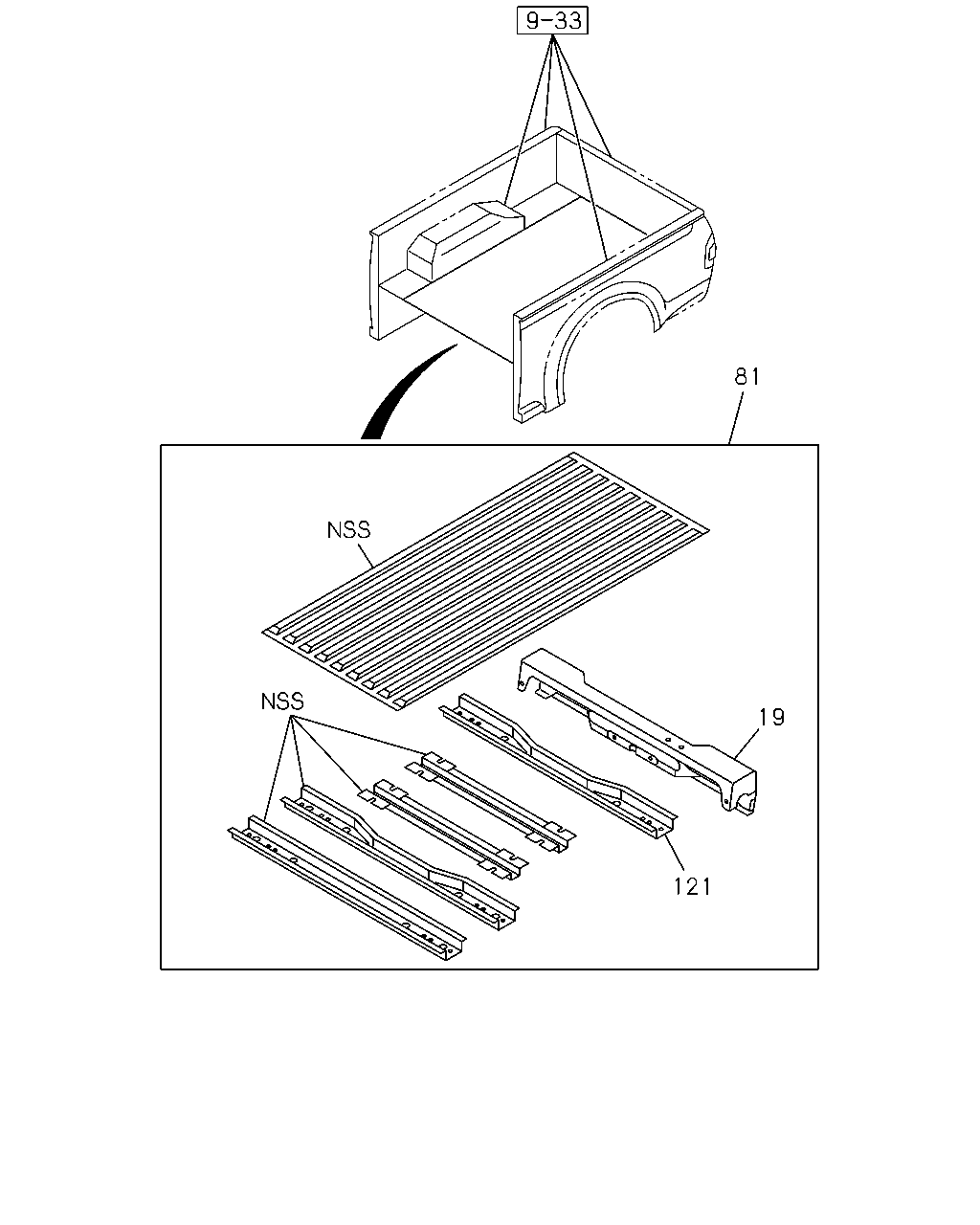

81 19 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97251-570-7	01	1	1008-	●
19	17.208 BOLSTER; RR END,RR BODY	8-97251-570-7	01	1	1008-		●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-648-7	01	1	1008-			●
19	17.208 BOLSTER; RR END,RR BODY	8-97236-648-7	01	1	1008-				●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0807-	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97236-639-5	01	1	1008-	●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX>	8-97236-639-5	01	1	1008-	●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX>	8-93333-729-7	01	1	1008-			●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX>	8-93333-729-7	01	1	1008-			●	●
121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-97236-647-2	01	1	1008-	●		●
121	17.208 BOLSTER; RR BODY	8-97236-647-2	01	1	1008-		●		●

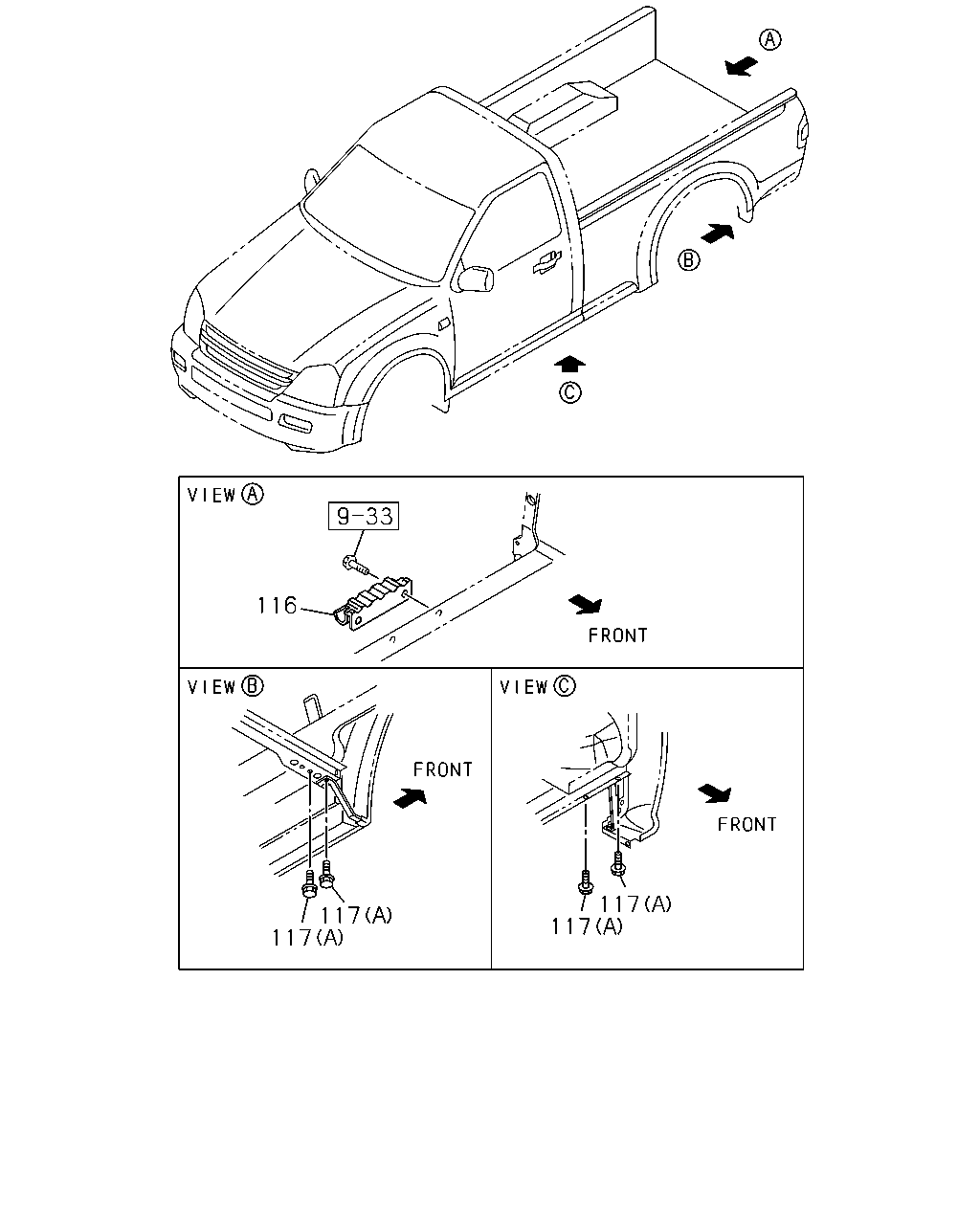

116 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-97289-528-0	01	1	0306-0611	●
116	17.400 SUPPORT; RR BODY,SILL	8-97289-528-0	01	1	0306-0611		●
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98053-898-0	01	1	0612-	●
116	17.400 SUPPORT; RR BODY,SILL	8-98053-898-0	01	1	0612-		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511	●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511	●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511		●		●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-		●		●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0511	●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0511		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-	●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0611	●		●
117	17.400 BOLT; SILL 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0611		●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●		●
117	17.400 BOLT; SILL (B) M8X16.5	8-98058-001-0	04	1	0612-		●		●

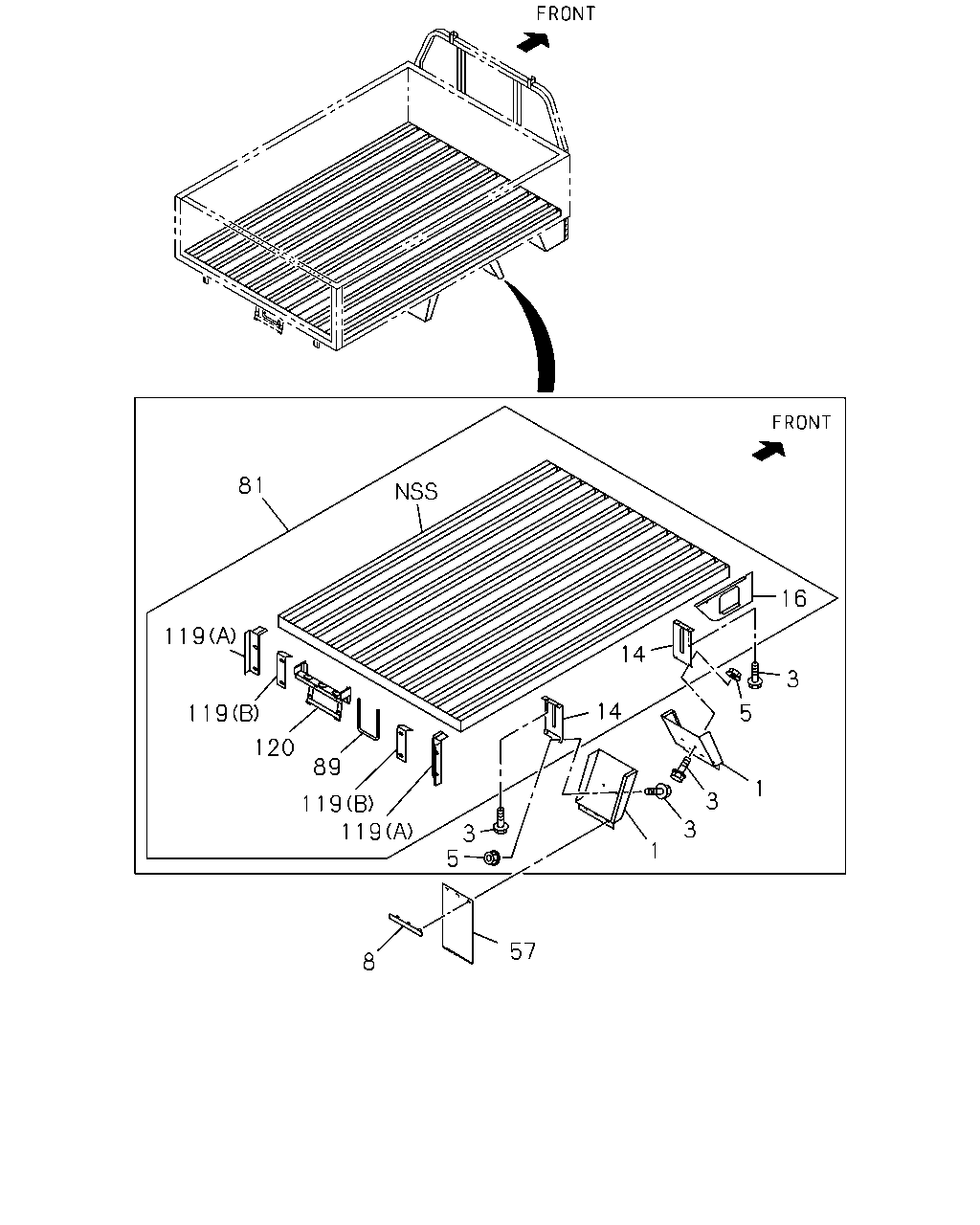

81 16 119 14 3 14 5 119 120 89 1 3 3 119 119 3 5 1 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT	8-97263-540-2	01	1	0807-	●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT	8-97263-541-2	01	1	0807-	●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR	8-97263-542-3	01	1	0807-	●
1	08.203 FENDER; RR,RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR	8-97263-543-3	01	1	0807-	●
3	08.203 BOLT; FENDER TO RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0807-	●
5	17.447 NUT; FENDER TO BRKT BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6 FLANGE	8-94197-193-0	08	1	0807-	●
8	08.212 HOLDER; FLAP RUBBER BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-203-0	02	1	0807-	●
14	08.212 SUPPORT; RR FENDER BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97356-079-0	04	1	0807-	●
16	17.455 CONNECTOR; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97245-189-1	01	1	0807-	●
16	17.455 CONNECTOR; GUARD FRAME BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97245-190-1	01	1	0807-	●
57	08.214 RUBBER; FLAP RR BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97354-206-0	02	1	0807-	●
81	17.400 FLOOR ASM; RR BODY BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97244-823-2	01	1	0807-	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97236-639-5	01	1	1008-	●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX>	8-97236-639-5	01	1	1008-	●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX>	8-93333-729-7	01	1	1008-			●	●
81	17.400 FLOOR ASM; RR BODY REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX>	8-93333-729-7	01	1	1008-			●	●
89	17.400 STEP; RR BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97262-129-0	01	1	0807-	●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A)	8-97263-708-0	01	1	0807-	●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A)	8-97263-709-0	01	1	0807-	●
119	02.662 BRACKET; COMB LAMP BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B)	8-97322-728-0	02	1	0807-	●
120	07.800 BRACKET; NUMBER PLATE BODY COLOR ALPINE WHITE(877),BODY COLORSTERLING SILVER MET(936) REAR BODY FLAT BED(E39)	8-97263-719-0	01	1	0807-	●

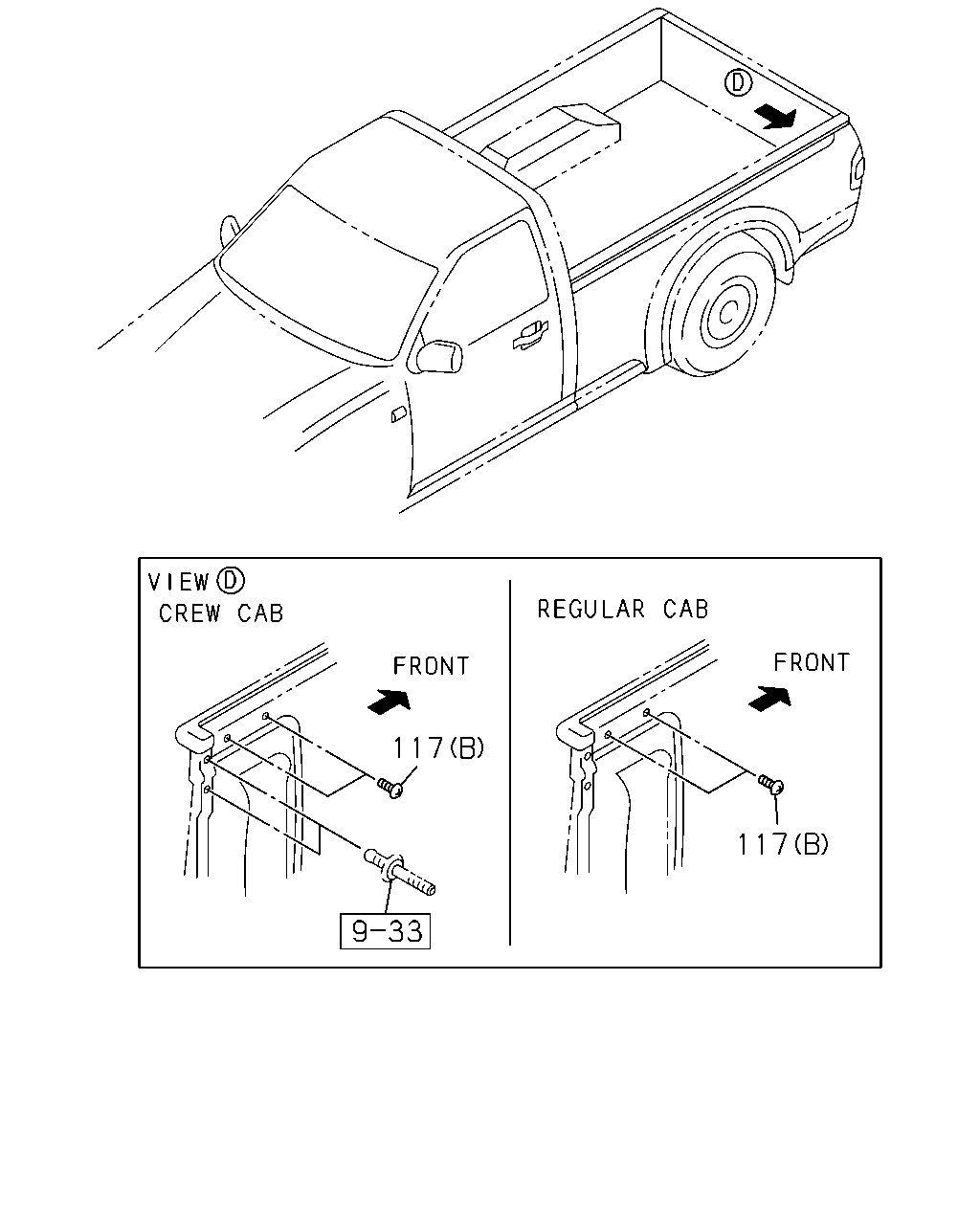

117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511	●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511	●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511		●		●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0306-0511		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-	●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-		●		●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0512-		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0511	●
117	17.400 BOLT; SILL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0306-0511		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-	●
117	17.400 BOLT; SILL 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0512-		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0611	●		●
117	17.400 BOLT; SILL 01.269 (B) M8X16.5	1-09104-027-1	04	1	0306-0611		●		●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5	8-98058-001-0	04	1	0612-	●		●
117	17.400 BOLT; SILL (B) M8X16.5	8-98058-001-0	04	1	0612-		●		●
