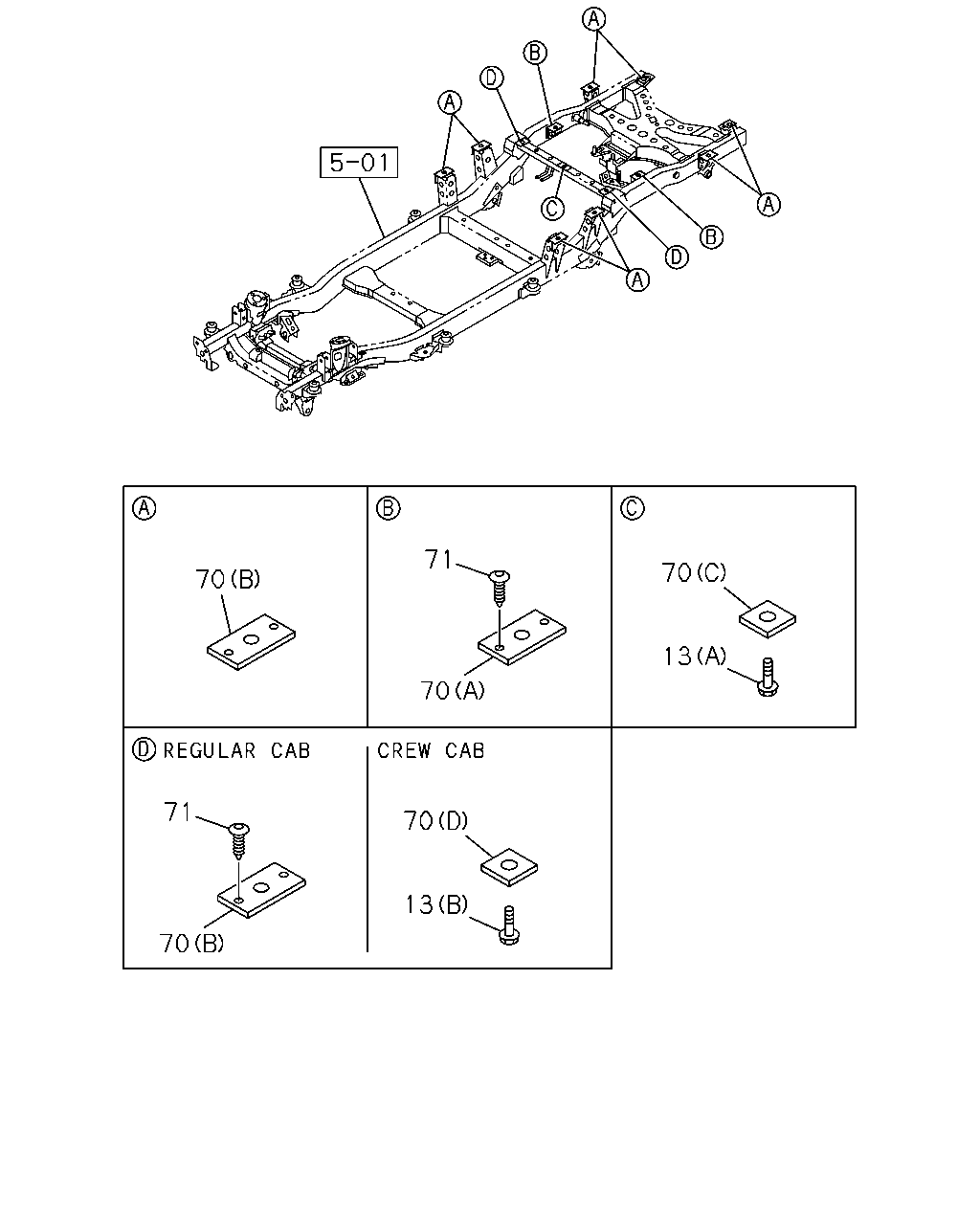

9-30 — REAR BODY ASM AND MOUNTING (#77648) — 107 parça

13 70 70 14 14 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	09.008 BOLT; RR BODY MTG REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER	8-97169-423-0	06	1	0306-0611	●
13	09.008 BOLT; RR BODY MTG REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER	8-98056-124-0	06	1	0612-	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X50 FLANGE	8-97354-201-0	02	1	0306-0611		●
13	09.008 BOLT; RR BODY MTG (B) M12X50 FLANGE	8-97354-201-0	02	1	0306-0611			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE	8-98056-126-0	02	1	0612-		●
13	09.008 BOLT; RR BODY MTG (B) M12X35 FLANGE	8-98056-126-0	02	1	0612-			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	08	1	0306-0512	●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-97310-611-2	08	1	0306-0512				●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	08	1	0601-	●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-98030-678-0	08	1	0601-				●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	04	1	0306-0512		●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-97310-611-2	04	1	0306-0512			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	04	1	0601-		●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-98030-678-0	04	1	0601-			●
14	09.011 WASHER; PL,RR BODY MTG REAR BODY FLAT BED(E39) 07.874 ID=12.5	5-09503-093-0	08	1	0306-	●
15	09.011 NUT; RR BODY MTG REAR BODY FLAT BED(E39) M12 FLANGE	8-97028-764-0	08	1	0306-	●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	08	1	0306-0709	●
70	08.214 CUSHION; RR BODY MTG (B)	8-97367-342-0	08	1	0306-0709				●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	08	1	0710-1401	●
70	08.214 CUSHION; RR BODY MTG (B)	8-98090-511-0	08	1	0710-1401				●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63)	8-98090-511-0	08	1	1405-	●
70	08.214 CUSHION; RR BODY MTG	8-98090-511-0	08	1	1405-				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-97367-344-0	02	1	0306-0709	●	●
70	08.214 CUSHION; RR BODY MTG (A)	8-97367-344-0	02	1	0306-0709			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-98090-513-0	02	1	0710-	●	●
70	08.214 CUSHION; RR BODY MTG (A)	8-98090-513-0	02	1	0710-			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	03	1	0306-0709	●
70	08.214 CUSHION; RR BODY MTG (C)	8-97367-343-0	03	1	0306-0709				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	03	1	0710-	●
70	08.214 CUSHION; RR BODY MTG (C)	8-98090-512-0	03	1	0710-				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-97367-341-0	02	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (D)	8-97367-341-0	02	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-98090-510-0	02	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (D)	8-98090-510-0	02	1	0710-			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	04	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (B)	8-97367-342-0	04	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	04	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (B)	8-98090-511-0	04	1	0710-			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	01	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (C)	8-97367-343-0	01	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	01	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (C)	8-98090-512-0	01	1	0710-			●

71 70 70 13 70 71 70 13 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	09.008 BOLT; RR BODY MTG REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER	8-97169-423-0	06	1	0306-0611	●
13	09.008 BOLT; RR BODY MTG REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER	8-98056-124-0	06	1	0612-	●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X50 FLANGE	8-97354-201-0	02	1	0306-0611		●
13	09.008 BOLT; RR BODY MTG (B) M12X50 FLANGE	8-97354-201-0	02	1	0306-0611			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE	8-98056-126-0	02	1	0612-		●
13	09.008 BOLT; RR BODY MTG (B) M12X35 FLANGE	8-98056-126-0	02	1	0612-			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	08	1	0306-0512	●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-97310-611-2	08	1	0306-0512				●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	08	1	0601-	●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-98030-678-0	08	1	0601-				●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-97310-611-2	04	1	0306-0512		●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-97310-611-2	04	1	0306-0512			●
13	09.008 BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE	8-98030-678-0	04	1	0601-		●
13	09.008 BOLT; RR BODY MTG (A) M12X50 FLANGE	8-98030-678-0	04	1	0601-			●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	08	1	0306-0709	●
70	08.214 CUSHION; RR BODY MTG (B)	8-97367-342-0	08	1	0306-0709				●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	08	1	0710-1401	●
70	08.214 CUSHION; RR BODY MTG (B)	8-98090-511-0	08	1	0710-1401				●
70	08.214 CUSHION; RR BODY MTG REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63)	8-98090-511-0	08	1	1405-	●
70	08.214 CUSHION; RR BODY MTG	8-98090-511-0	08	1	1405-				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-97367-344-0	02	1	0306-0709	●	●
70	08.214 CUSHION; RR BODY MTG (A)	8-97367-344-0	02	1	0306-0709			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (A)	8-98090-513-0	02	1	0710-	●	●
70	08.214 CUSHION; RR BODY MTG (A)	8-98090-513-0	02	1	0710-			●	●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	03	1	0306-0709	●
70	08.214 CUSHION; RR BODY MTG (C)	8-97367-343-0	03	1	0306-0709				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	03	1	0710-	●
70	08.214 CUSHION; RR BODY MTG (C)	8-98090-512-0	03	1	0710-				●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-97367-341-0	02	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (D)	8-97367-341-0	02	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (D)	8-98090-510-0	02	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (D)	8-98090-510-0	02	1	0710-			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-97367-342-0	04	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (B)	8-97367-342-0	04	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (B)	8-98090-511-0	04	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (B)	8-98090-511-0	04	1	0710-			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-97367-343-0	01	1	0306-0709		●
70	08.214 CUSHION; RR BODY MTG (C)	8-97367-343-0	01	1	0306-0709			●
70	08.214 CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL(E63) (C)	8-98090-512-0	01	1	0710-		●
70	08.214 CUSHION; RR BODY MTG (C)	8-98090-512-0	01	1	0710-			●
71	08.214 CLIP; CUSHION REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18	8-94178-705-0	06	1	0306-	●
71	08.214 CLIP; CUSHION 03.023 ID=6 OD=16 L=18	8-94178-705-0	06	1	0306-				●
71	08.214 CLIP; CUSHION REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18	8-94178-705-0	04	1	0306-		●
71	08.214 CLIP; CUSHION 03.023 ID=6 OD=16 L=18	8-94178-705-0	04	1	0306-			●

1 1

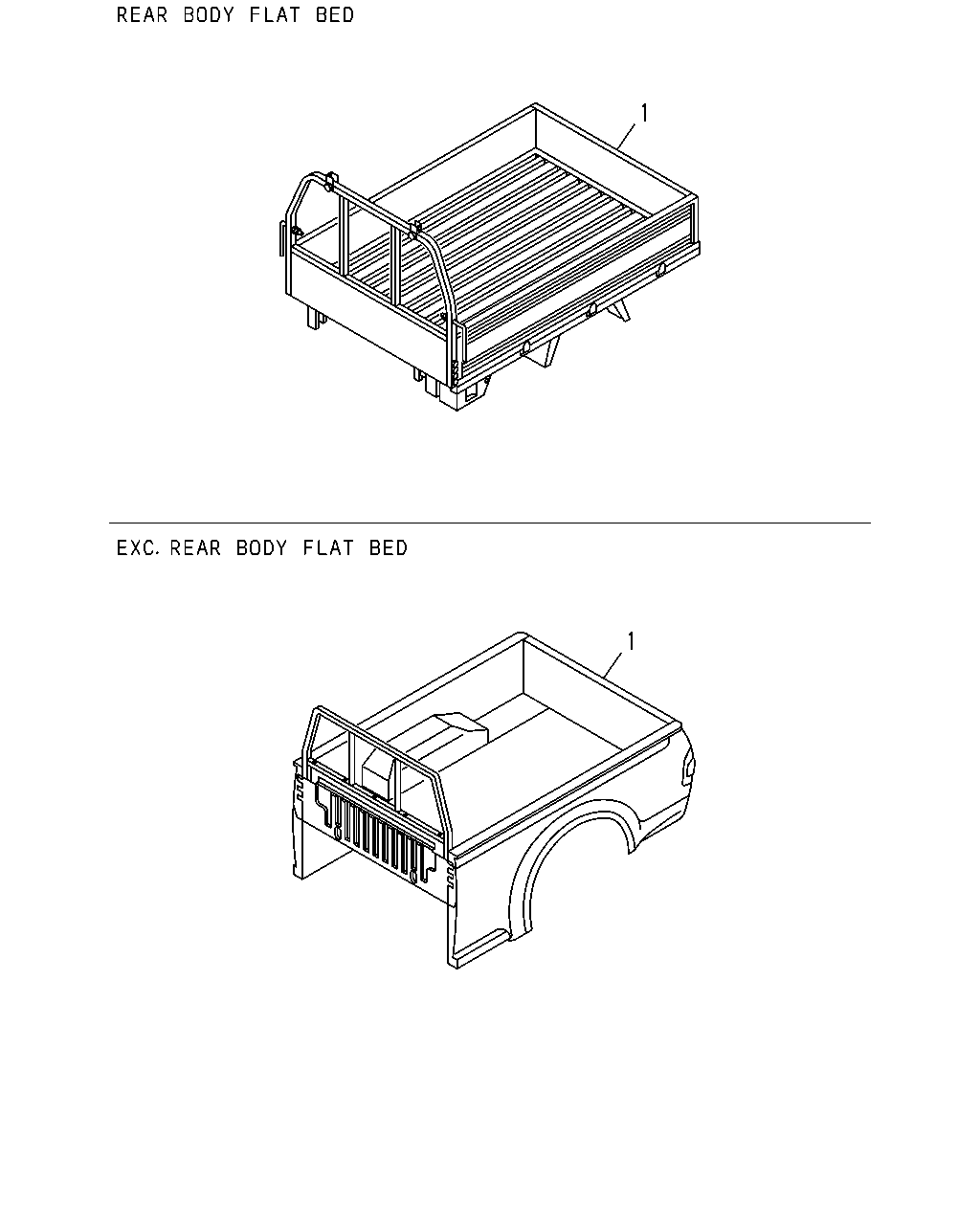

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	17.090 BODY ASM; REAR BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) SILVER	8-97416-142-0	01	1	0807-	●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-614-0	01	1	0610-		●
1	17.090 BODY ASM; REAR GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-614-0	01	1	0610-			●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-610-0	01	1	0610-		●
1	17.090 BODY ASM; REAR EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-610-0	01	1	0610-			●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>	8-98090-611-0	01	1	0610-		●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98090-606-0	01	1	0610-		●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ>	8-98098-137-0	01	1	0710-0809	●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84)	8-98098-137-0	01	1	0710-0809				●
1	17.090 BODY ASM; REAR OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89>	8-98098-137-0	01	1	0810-	●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84)	8-98098-137-0	01	1	0810-				●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0710-0809	●
1	17.090 BODY ASM; REAR EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0710-0809				●
1	17.090 BODY ASM; REAR OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0810-	●
1	17.090 BODY ASM; REAR EXC. BODY SIDE MOLDING(B84)	8-98098-136-0	01	1	0810-				●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>	8-98098-135-0	01	1	0710-0809	●
1	17.090 BODY ASM; REAR BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>	8-98098-135-0	01	1	0810-	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-98098-134-0	01	1	0710-0809	●
1	17.090 BODY ASM; REAR REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84)	8-98098-134-0	01	1	0810-	●
1	17.090 BODY ASM; REAR REAR BODY FLAT BED(E39) WHITE	8-97364-139-0	01	1	0306-0806	●
1	17.090 BODY ASM; REAR BODY COLOR ALPINE WHITE(877) REAR BODY FLAT BED(E39) WHITE	8-97364-139-0	01	1	0807-	●
