8-80 — WINDSHIELD WIPER AND WASHER (#77645) — 111 parça

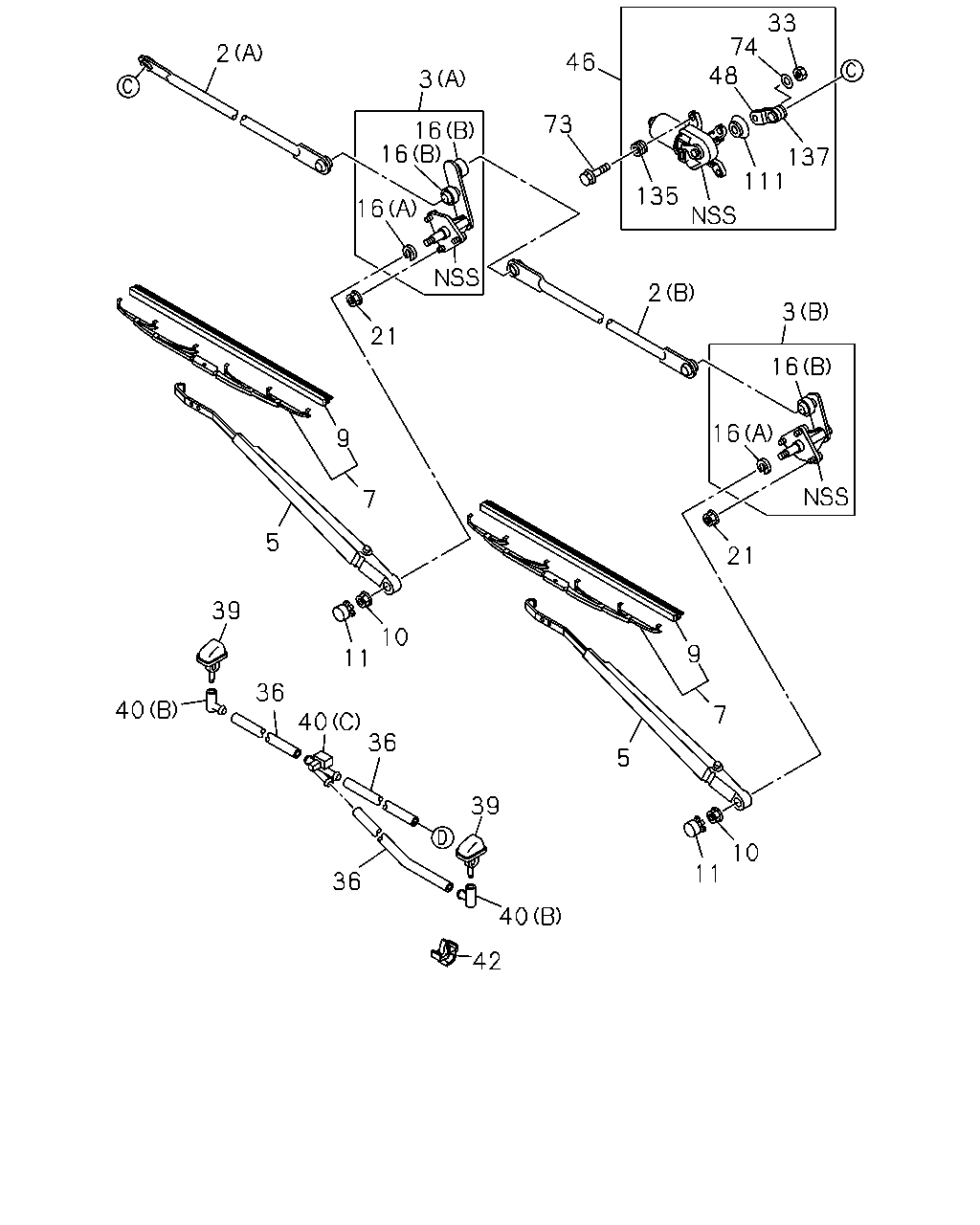

33 74 48 2 46 3 73 16 16 137 111 135 16 2 3 21 16 16 9 7 5 21 39 10 9 11 36 40 7 40 36 5 39 10 11 36 40 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.063 LINK; FRT WIPER (A)	8-97352-434-0	01	1	0306-	●	●	●	●
2	16.063 LINK; FRT WIPER (B)	8-97352-435-0	01	1	0306-	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97349-891-0	01	1	0306-0609	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-98057-714-0	01	1	0610-	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97352-433-1	01	1	0306-0609	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-98057-713-0	01	1	0610-	●	●	●	●
5	16.063 ARM; WIPER	8-97351-482-0	01	1	0306-	●	●	●	●
5	16.063 ARM; WIPER	8-97351-483-0	01	1	0306-	●	●	●	●
7	16.062 BLADE; WIPER	8-97351-484-0	01	1	0306-	●	●	●	●
7	16.062 BLADE; WIPER	8-97351-485-0	01	1	0306-	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=550	8-97349-901-0	01	1	0306-	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97349-904-0	01	1	0306-	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 M10 FLANGE	8-94144-220-0	02	1	0306-0610	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE	8-98049-367-0	02	1	0611-	●	●	●	●
11	16.063 COVER; WIPER ARM 10.147	8-94367-999-0	02	1	0306-	●	●	●	●
16	16.063 SEAL; BALL JOINT 10.159 (B)	8-97025-889-0	03	1	0306-	●	●	●	●
16	16.063 SEAL; BALL JOINT (A)	8-97349-894-0	02	1	0306-	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	06	1	0306-0509	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 04.594 M6 FLANGE	0-91150-106-0	06	1	0510-0603	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 01.062 M6 FLANGE	0-91180-106-0	06	1	0604-	●	●	●	●
33	16.064 NUT; MOTOR TO ARM	8-97349-898-0	01	1	0306-	●	●	●	●
36	16.065 HOSE; WASHER SERVICED BY L=10000	8-97349-607-0	01	1	0306-	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97238-519-0	02	1	0306-0609	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98008-112-0	02	1	0610-	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0306-0609	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0306-0609	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	02	1	0306-0609	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	03	1	0610-	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97364-370-0	01	1	0306-0609	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-98057-622-0	01	1	0610-	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97349-895-0	01	1	0306-0609	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-98057-654-0	01	1	0610-	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	0306-0609	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-98048-997-0	04	1	0610-	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR	8-97349-897-0	01	1	0306-	●	●	●	●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT	8-97349-896-0	01	1	0306-	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	0306-0609	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-98057-655-0	04	1	0610-	●	●	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159	8-97025-889-0	01	1	0306-	●	●	●	●

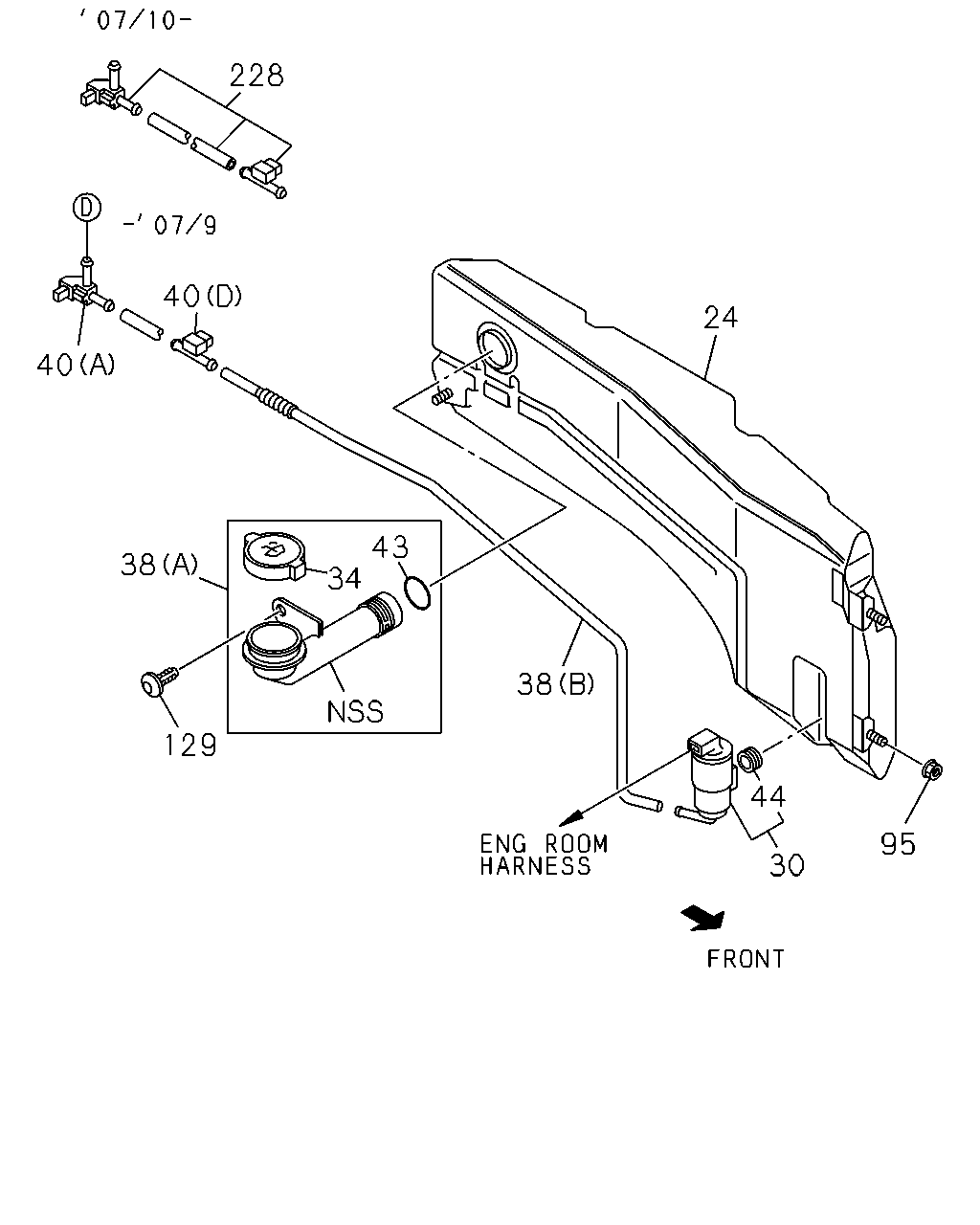

228 40 24 40 43 34 38 38 129 44 95 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	16.065 TANK ASM; WASHER	8-97314-347-0	01	1	0306-0609	●	●	●	●
24	16.065 TANK ASM; WASHER	8-98057-609-0	01	1	0610-	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97314-350-0	01	1	0306-	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97349-905-0	01	1	0306-	●	●	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-97310-064-1	01	1	0306-	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-97361-901-0	01	1	0306-0504	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-98011-321-0	01	1	0505-	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0306-0609	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0306-0609	●	●	●	●
43	16.065 RUBBER; GASKET,TANK	8-97349-906-0	01	1	0306-	●	●	●	●
44	16.065 GASKET; MOTOR TO TANK 10.154	8-94352-050-0	01	1	0306-	●	●	●	●
95	16.065 NUT; WASHER TANK 07.833 M6 W/DISHED WASHER	8-94170-192-0	03	1	0306-0610	●	●	●	●
95	16.065 NUT; WASHER TANK M6 W/DISHED WASHER	8-98049-368-0	03	1	0611-	●	●	●	●
129	16.065 CLIP; JOINT HOSE 16.800 L=19 BLACK	8-94363-776-0	01	1	0306-	●	●	●	●
228	16.065 HOSE ASM; WASHER	8-98115-892-0	01	1	0610-	●	●	●	●

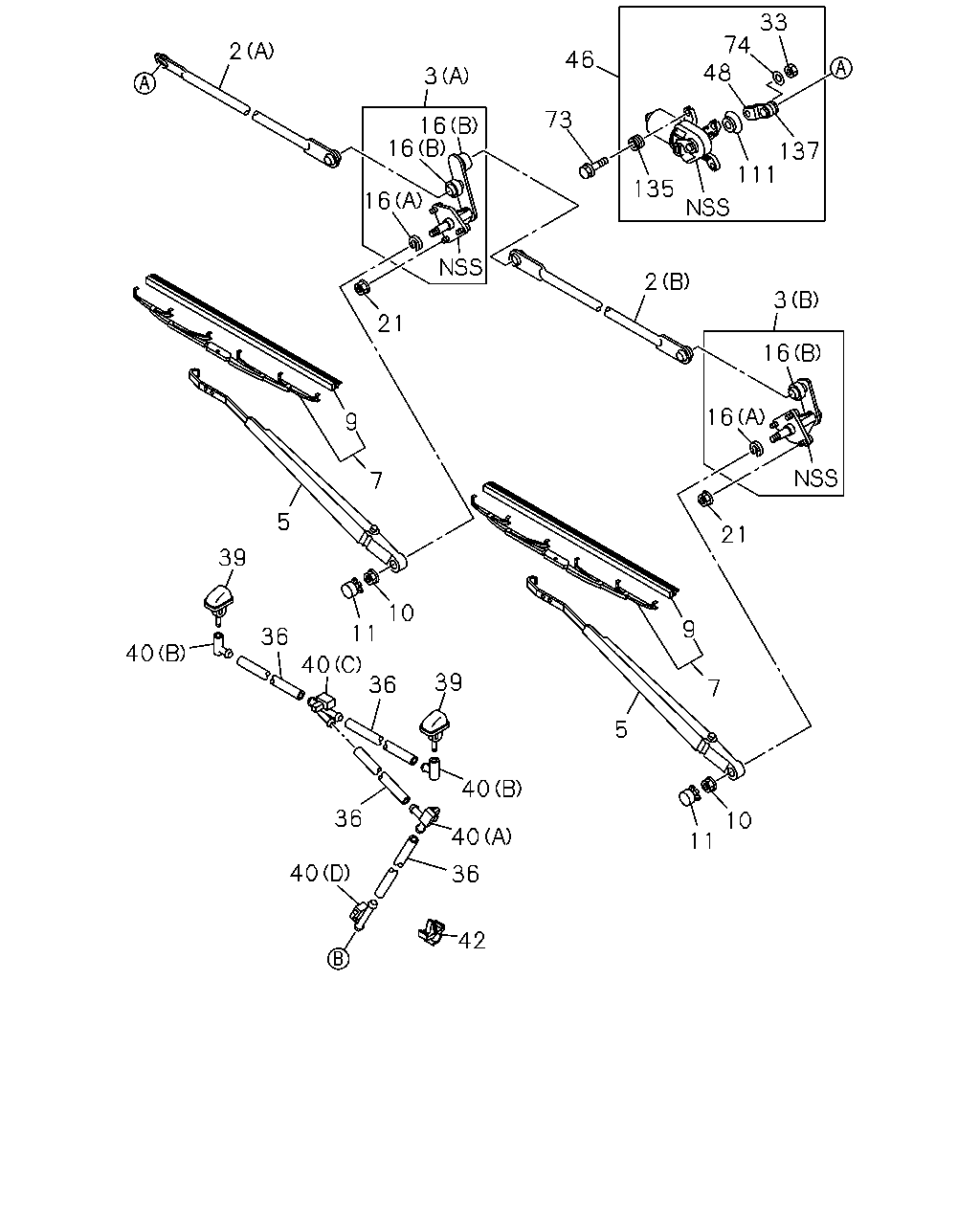

33 74 48 2 46 3 73 16 16 137 111 135 16 2 3 21 16 16 9 7 5 21 39 10 9 11 36 40 40 36 39 7 5 40 36 10 40 11 40 36 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.063 LINK; FRT WIPER (A)	8-97352-434-0	01	1	0306-	●	●	●	●
2	16.063 LINK; FRT WIPER (B)	8-97352-435-0	01	1	0306-	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97349-891-0	01	1	0306-0609	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-98057-714-0	01	1	0610-	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97352-433-1	01	1	0306-0609	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-98057-713-0	01	1	0610-	●	●	●	●
5	16.063 ARM; WIPER	8-97351-482-0	01	1	0306-	●	●	●	●
5	16.063 ARM; WIPER	8-97351-483-0	01	1	0306-	●	●	●	●
7	16.062 BLADE; WIPER	8-97351-484-0	01	1	0306-	●	●	●	●
7	16.062 BLADE; WIPER	8-97351-485-0	01	1	0306-	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=550	8-97349-901-0	01	1	0306-	●	●	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97349-904-0	01	1	0306-	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 M10 FLANGE	8-94144-220-0	02	1	0306-0610	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE	8-98049-367-0	02	1	0611-	●	●	●	●
11	16.063 COVER; WIPER ARM 10.147	8-94367-999-0	02	1	0306-	●	●	●	●
16	16.063 SEAL; BALL JOINT 10.159 (B)	8-97025-889-0	03	1	0306-	●	●	●	●
16	16.063 SEAL; BALL JOINT (A)	8-97349-894-0	02	1	0306-	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 10.147 M6 W/DISHED WASHER	8-94423-325-0	06	1	0306-0509	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 04.594 M6 FLANGE	0-91150-106-0	06	1	0510-0603	●	●	●	●
21	16.063 NUT; WIPER LINK PIVOT 01.062 M6 FLANGE	0-91180-106-0	06	1	0604-	●	●	●	●
33	16.064 NUT; MOTOR TO ARM	8-97349-898-0	01	1	0306-	●	●	●	●
36	16.065 HOSE; WASHER SERVICED BY L=10000	8-97349-607-0	01	1	0306-	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97238-519-0	02	1	0306-0609	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-98008-112-0	02	1	0610-	●	●	●	●
40	16.065 JOINT; WASHER HOSE 10.155 (A)	8-94335-627-0	01	1	0306-0609	●	●	●	●
40	16.065 JOINT; WASHER HOSE (B)	8-97178-847-0	02	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (C)	8-97215-337-0	01	1	0306-	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97314-270-0	01	1	0306-0609	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	02	1	0306-0609	●	●	●	●
42	16.065 CLIP; WASHER HOSE 10.156 ID=5.8 L=8	8-94155-681-0	03	1	0610-	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97364-370-0	01	1	0306-0609	●	●	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-98057-622-0	01	1	0610-	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-97349-895-0	01	1	0306-0609	●	●	●	●
48	16.063 ARM; WIPER MOTOR	8-98057-654-0	01	1	0610-	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	0306-0609	●	●	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-98048-997-0	04	1	0610-	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR	8-97349-897-0	01	1	0306-	●	●	●	●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT	8-97349-896-0	01	1	0306-	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	0306-0609	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-98057-655-0	04	1	0610-	●	●	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.159	8-97025-889-0	01	1	0306-	●	●	●	●

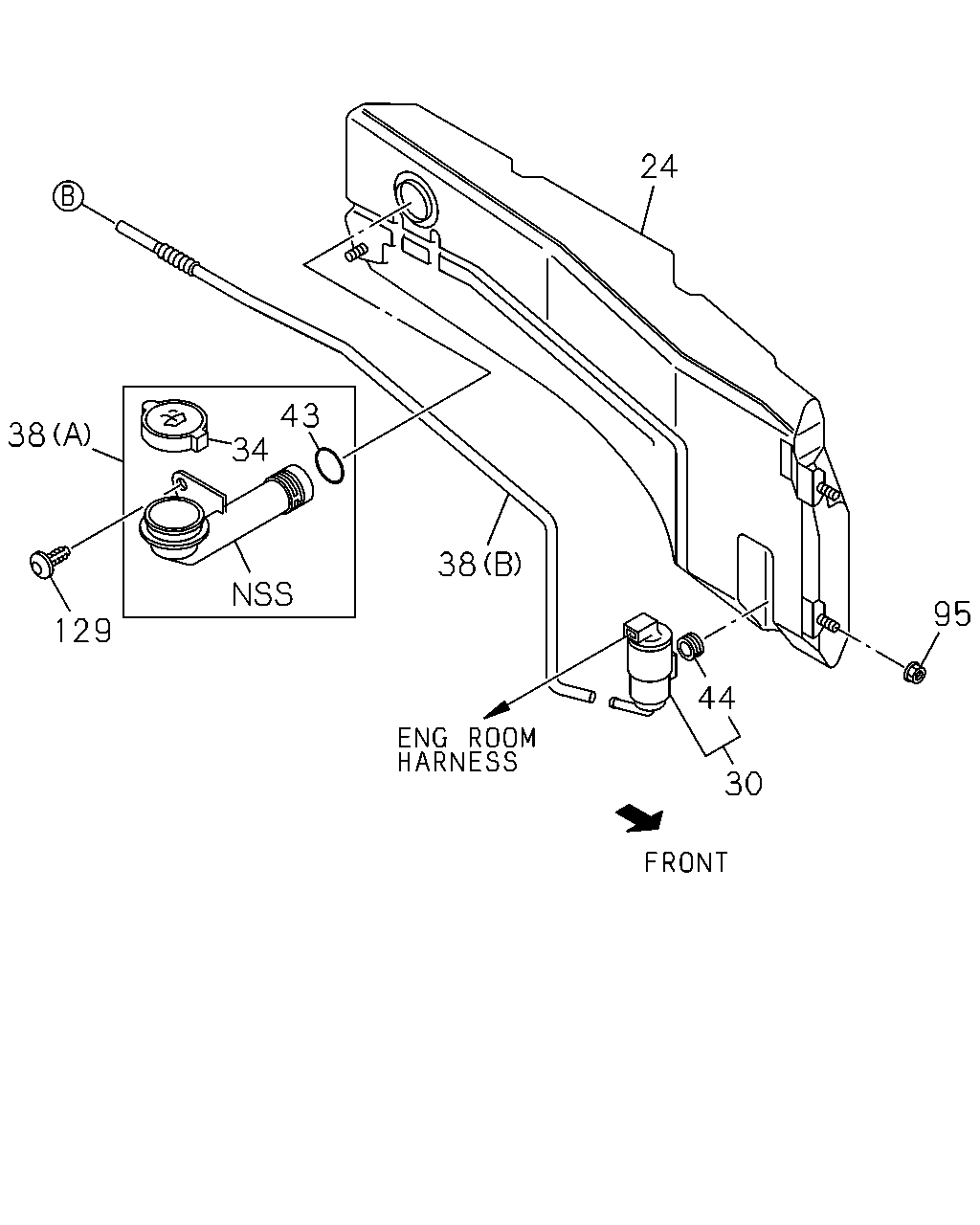

24 43 34 38 38 95 129 44 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	16.065 TANK ASM; WASHER	8-97314-347-0	01	1	0306-0609	●	●	●	●
24	16.065 TANK ASM; WASHER	8-98057-609-0	01	1	0610-	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97314-350-0	01	1	0306-	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97349-905-0	01	1	0306-	●	●	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-97310-064-1	01	1	0306-	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-97361-901-0	01	1	0306-0504	●	●	●	●
38	16.065 HOSE; JOINT,TANK (B)	8-98011-321-0	01	1	0505-	●	●	●	●
43	16.065 RUBBER; GASKET,TANK	8-97349-906-0	01	1	0306-	●	●	●	●
44	16.065 GASKET; MOTOR TO TANK 10.154	8-94352-050-0	01	1	0306-	●	●	●	●
95	16.065 NUT; WASHER TANK 07.833 M6 W/DISHED WASHER	8-94170-192-0	03	1	0306-0610	●	●	●	●
95	16.065 NUT; WASHER TANK M6 W/DISHED WASHER	8-98049-368-0	03	1	0611-	●	●	●	●
129	16.065 CLIP; JOINT HOSE 16.800 L=19 BLACK	8-94363-776-0	01	1	0306-	●	●	●	●
