Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#77644) — 228 parça

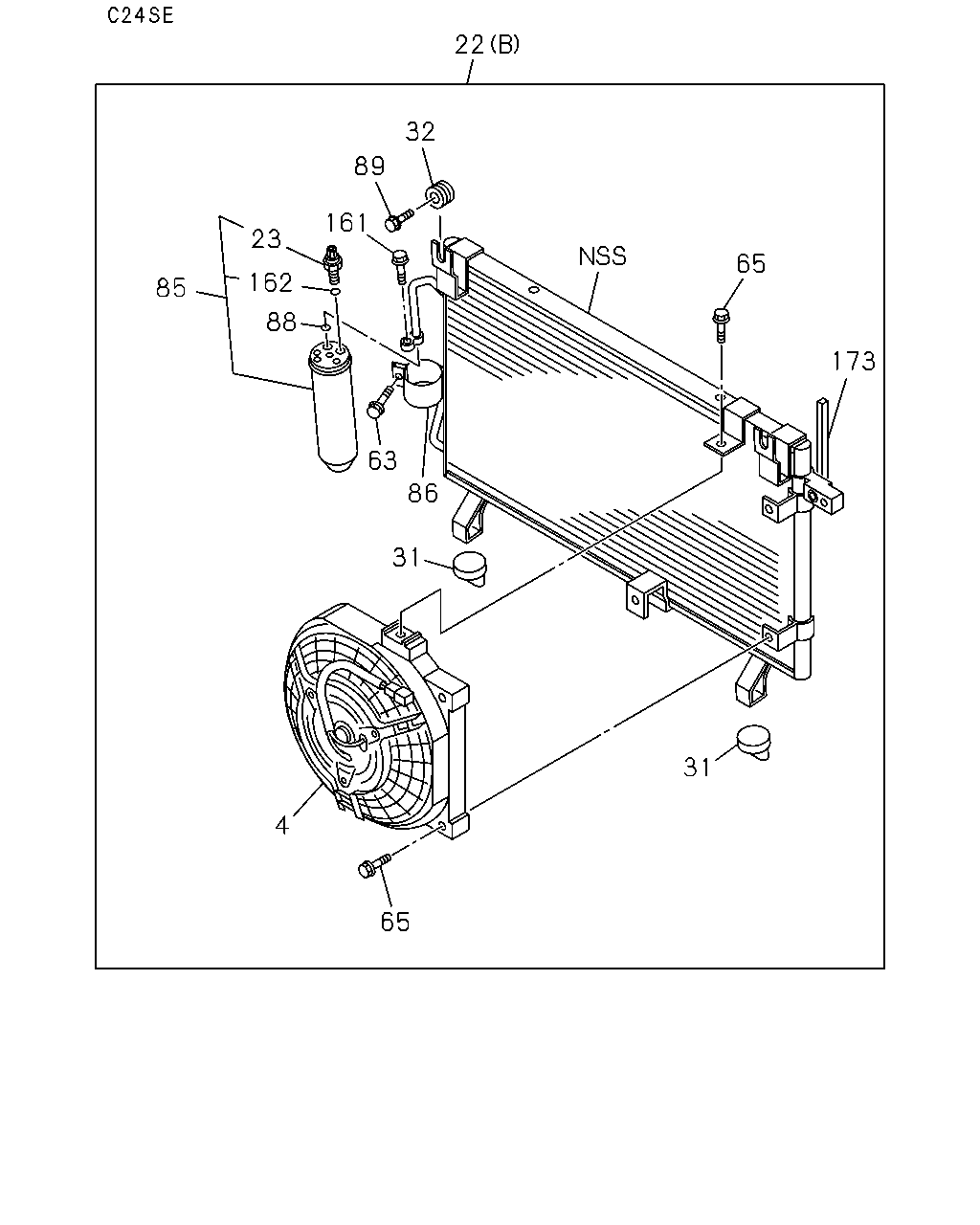

22 32 89 161 23 65 162 85 88 173 63 86 31 31 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	0306-0609	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	0610-1003	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-	●	●
4	09.216 MOTOR ASM; FAN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-			●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98008-961-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98039-425-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98000-111-0	01	1	0610-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-120-0	01	1	0704-1201	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98176-437-0	01	1	1202-	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-963-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-417-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-515-0	01	1	0509-0608	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-415-0	01	1	0609-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-953-0	01	1	0306-0508	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (B)	8-98000-110-0	01	1	0509-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98000-110-0	01	1	0610-0611	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98039-424-0	01	1	0612-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98071-123-0	01	1	0704-	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97363-952-0	01	1	0306-0508	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-108-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-413-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98039-413-0	01	1	0610-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	0704-1003	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	1004-	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	1004-			●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-449-0	01	1	0610-0703	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-449-0	01	1	0509-0606	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-449-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0306-0508	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0509-0606	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97381-465-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97381-465-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0609-0609	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0610-0703	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0704-1003	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-			●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	0306-0609	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	0610-1003	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-			●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	0306-0609	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	0610-1003	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-	●	●
32	09.190 GROMMET; CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-			●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	0704-1003	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-	●	●
63	09.175 BOLT; RECEIVER TANK 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-			●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-97356-647-0	04	1	0306-0609	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0703	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-1003	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-	●	●	●	●
65	09.216 BOLT; SHROUD 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-	●	●
65	09.216 BOLT; SHROUD 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-			●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-448-2	01	1	0509-0606	●	●	●	●
85	09.172 DRYER; RECEIVER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-448-2	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-448-2	01	1	0610-1201	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0306-0508	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0509-0606	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97381-576-0	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97381-576-0	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0610-1003	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201			●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-			●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	0509-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	0610-1003	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-			●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-98049-150-0	01	1	0607-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0306-0508	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0509-0606	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97333-318-0	01	1	0607-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0610-0611	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98049-150-0	01	1	0612-0703	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98071-269-0	01	1	0704-	●	●	●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	0306-0609	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	0610-1003	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-	●	●
88	09.190 GASKET; PRESSURE SW 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-			●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-97333-317-0	02	1	0306-0609	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-97333-317-0	02	1	0610-0703	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	0704-1003	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-			●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0704-1003	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●	●	●
161	02.559 BOLT; PIPE 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●
161	02.559 BOLT; PIPE 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-			●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	0306-0609	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	0610-1003	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-	●	●
162	09.195 GASKET; PIPE TO DRYER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-			●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0704-1003	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-			●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0509-0606	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-98034-693-0	02	1	0607-0609	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0610-0611	●	●	●	●

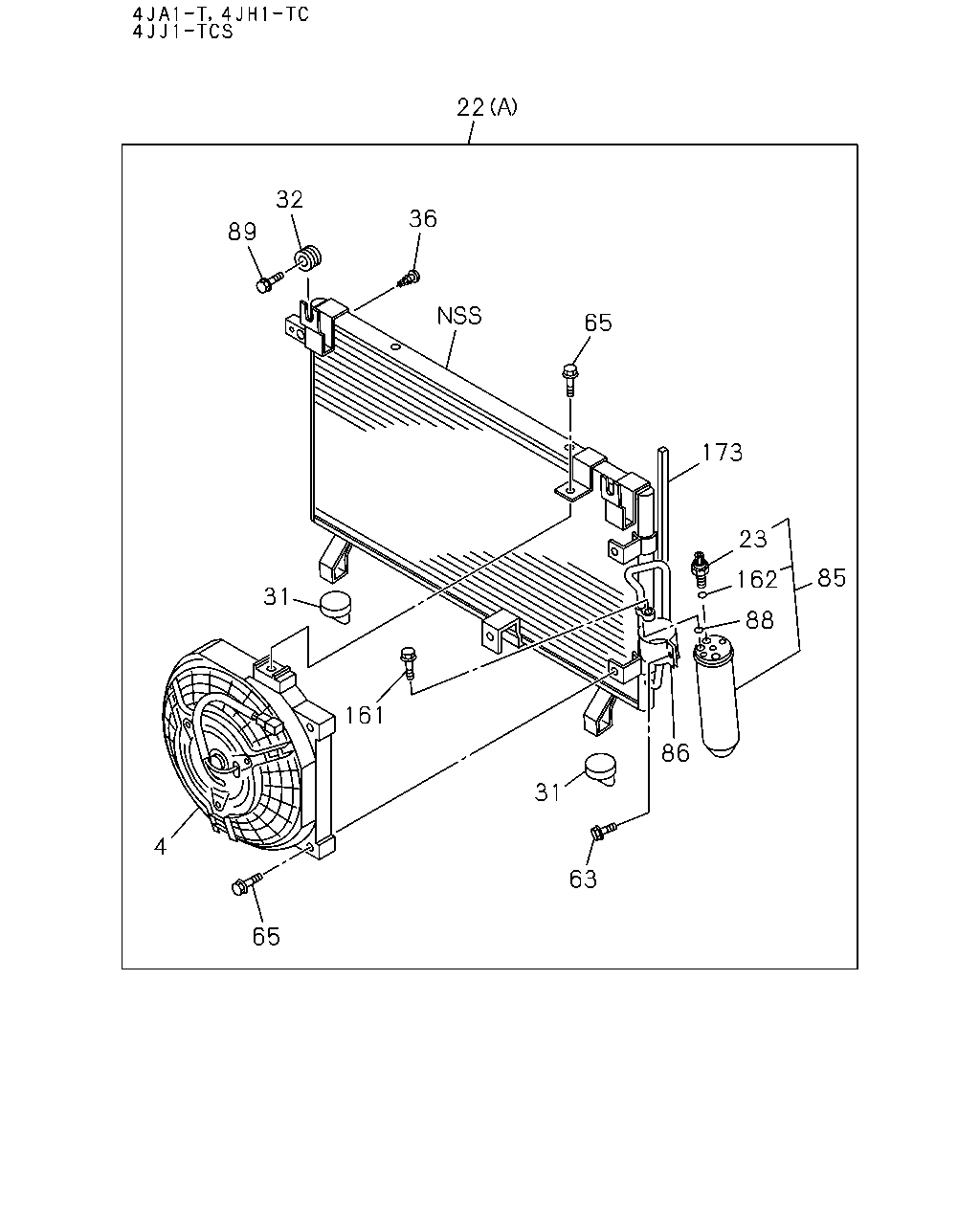

22 32 36 89 65 173 23 85 162 31 88 161 86 31 4 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	0306-0609	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	0610-1003	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-	●	●
4	09.216 MOTOR ASM; FAN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97356-646-0	01	1	1004-			●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98008-961-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (B)	8-98039-425-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98000-111-0	01	1	0610-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-120-0	01	1	0704-1201	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98176-437-0	01	1	1202-	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-963-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-417-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98008-515-0	01	1	0509-0608	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> (A)	8-98039-415-0	01	1	0609-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-953-0	01	1	0306-0508	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (B)	8-98000-110-0	01	1	0509-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98000-110-0	01	1	0610-0611	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98039-424-0	01	1	0612-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98071-123-0	01	1	0704-	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97363-952-0	01	1	0306-0508	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98000-108-0	01	1	0509-0606	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> (A)	8-98039-413-0	01	1	0607-0609	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98039-413-0	01	1	0610-0703	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	0704-1003	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	1004-	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98071-128-0	01	1	1004-			●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-449-0	01	1	0610-0703	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-449-0	01	1	0509-0606	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-449-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0306-0508	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0509-0606	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97381-465-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97381-465-0	01	1	0607-0608	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0609-0609	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0610-0703	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	0704-1003	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-465-0	01	1	1004-			●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	0306-0609	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	0610-1003	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-319-0	02	1	1004-			●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	0306-0609	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	0610-1003	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-	●	●
32	09.190 GROMMET; CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-320-0	02	1	1004-			●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M4X25	8-98071-148-0	09	1	0704-1003	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-			●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	0704-1003	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-	●	●
63	09.175 BOLT; RECEIVER TANK 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-98071-146-0	03	1	1004-			●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-97356-647-0	04	1	0306-0609	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X16	8-97356-647-0	04	1	0610-0703	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	0704-1003	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-	●	●	●	●
65	09.216 BOLT; SHROUD 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-	●	●
65	09.216 BOLT; SHROUD 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-			●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-448-2	01	1	0509-0606	●	●	●	●
85	09.172 DRYER; RECEIVER 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97380-448-2	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-448-2	01	1	0610-1201	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0306-0508	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0509-0606	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97381-576-0	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-97381-576-0	01	1	0607-0609	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	0610-1003	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1004-1201			●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97381-576-0	01	1	1202-			●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	0509-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	0610-1003	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97380-437-0	01	1	1004-			●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7>	8-98049-150-0	01	1	0607-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0306-0508	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0509-0606	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-97333-318-0	01	1	0607-0609	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-318-0	01	1	0610-0611	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98049-150-0	01	1	0612-0703	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98071-269-0	01	1	0704-	●	●	●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	0306-0609	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	0610-1003	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-	●	●
88	09.190 GASKET; PRESSURE SW 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97333-321-0	01	1	1004-			●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-97333-317-0	02	1	0306-0609	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-97333-317-0	02	1	0610-0703	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	0704-1003	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M6X35	8-98071-149-0	02	1	1004-			●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0704-1003	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●	●	●
161	02.559 BOLT; PIPE 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●
161	02.559 BOLT; PIPE 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1004-			●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	0306-0609	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	0610-1003	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-	●	●
162	09.195 GASKET; PIPE TO DRYER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.190	8-97333-321-0	01	1	1004-			●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0704-1003	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	1004-			●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0509-0606	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7>	8-98034-693-0	02	1	0607-0609	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98034-693-0	02	1	0610-0611	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
