Sayfa 8-74 - Isuzu EPC

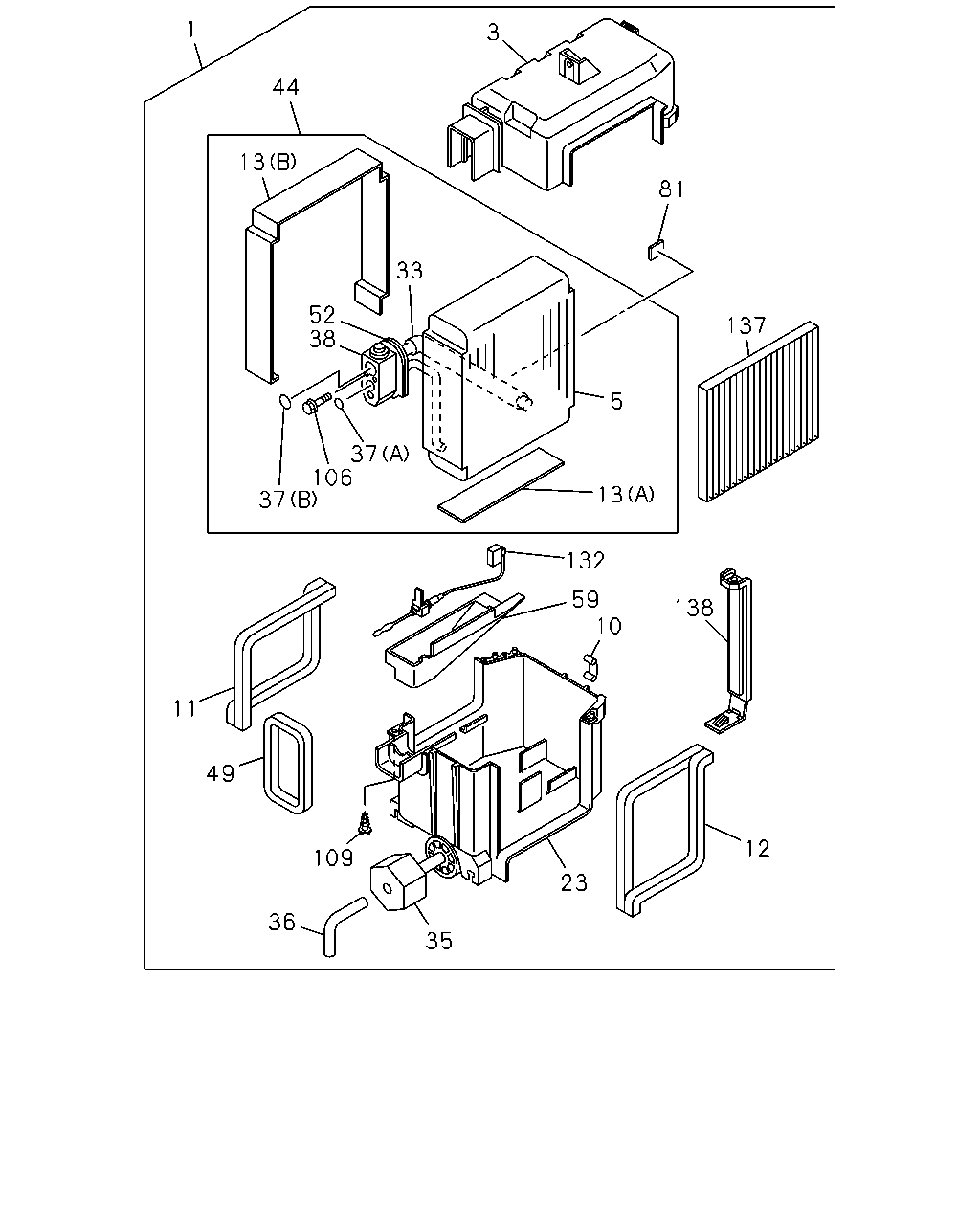

8-74 — EVAPORATOR (#77643) — 141 parça

1 3 44 13 81 33 52 38 137 5 37 106 37 13 132 59 10 138 11 49 12 109 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-782-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-329-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-727-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-984-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-509-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-175-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-784-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-330-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-728-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-985-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-507-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-173-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-783-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-331-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-729-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-986-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-508-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-174-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-785-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-332-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-730-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-988-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-506-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-172-0	01	1	0710-	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 08.845	8-98055-334-0	01	1	0610-	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-415-0	01	1	0306-0609	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-335-0	01	1	0610-	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-421-0	01	1	0306-0409	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-787-0	01	1	0410-0609	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-688-0	01	1	0610-	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-166-0	01	1	0306-0709	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.262	8-98088-089-0	01	1	0710-	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-159-0	01	1	0306-	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-160-0	01	1	0306-0609	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-684-0	01	1	0610-	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-151-0	01	1	0306-0609	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98055-346-0	01	1	0610-	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97365-422-0	01	1	0306-0609	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 08.845	8-98055-338-0	01	1	0610-	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-416-0	01	1	0306-0409	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.845	8-98002-788-0	01	1	0410-0609	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-339-0	01	1	0610-	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97368-626-0	01	1	0306-0609	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-157-0	01	1	0306-	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-377-0	01	1	0306-0512	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-093-0	01	1	0601-0609	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-713-0	01	1	0610-	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-154-0	01	1	0306-	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-155-0	01	1	0306-	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-353-0	01	1	0306-0609	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-690-0	01	1	0610-	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-375-0	01	1	0306-0409	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-786-0	01	1	0410-0609	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-686-0	01	1	0610-0709	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98090-227-0	01	1	0710-	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-158-1	01	1	0306-	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-152-0	01	1	0306-	●	●	●	●
59	09.211 LINING; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-418-0	01	1	0306-	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-161-0	01	1	0306-	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-153-0	02	1	0306-0609	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98072-395-0	02	1	0610-	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-165-0	05	1	0306-0404	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-165-0	04	1	0405-0609	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.786	8-98071-323-0	04	1	0610-	●	●	●	●
132	09.210 AMPLIFIER; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97333-325-0	01	1	0306-	●	●	●	●
132	09.210 AMPLIFIER; EVAP COOLER WO/HEATER(C65)	8-97321-163-0	01	1	0306-	●	●	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97356-127-0	01	1	0306-0409	●	●	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98008-442-0	01	1	0410-	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-156-0	01	1	0306-0609	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-694-0	01	1	0610-	●	●	●	●

1 3 44 81 48 137 52 38 13 5 37 106 37 132 59 10 138 11 49 12 109 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-782-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-329-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-727-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-984-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-509-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-175-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-784-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-330-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-728-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-985-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-507-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-173-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-783-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-331-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-729-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-986-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-508-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-174-0	01	1	0710-	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-785-0	01	1	0306-0404	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-332-0	01	1	0405-0409	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-730-0	01	1	0410-0512	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98027-988-0	01	1	0601-0609	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-506-0	01	1	0610-0709	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-172-0	01	1	0710-	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 08.845	8-98055-334-0	01	1	0610-	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-415-0	01	1	0306-0609	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-335-0	01	1	0610-	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-421-0	01	1	0306-0409	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-787-0	01	1	0410-0609	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-688-0	01	1	0610-	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-166-0	01	1	0306-0709	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.262	8-98088-089-0	01	1	0710-	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-159-0	01	1	0306-	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-160-0	01	1	0306-0609	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-684-0	01	1	0610-	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-151-0	01	1	0306-0609	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98055-346-0	01	1	0610-	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97365-422-0	01	1	0306-0609	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 08.845	8-98055-338-0	01	1	0610-	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-416-0	01	1	0306-0409	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.845	8-98002-788-0	01	1	0410-0609	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-339-0	01	1	0610-	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-157-0	01	1	0306-	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-377-0	01	1	0306-0512	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-093-0	01	1	0601-0609	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-713-0	01	1	0610-	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-154-0	01	1	0306-	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-155-0	01	1	0306-	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-353-0	01	1	0306-0609	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-690-0	01	1	0610-	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97370-375-0	01	1	0306-0409	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98002-786-0	01	1	0410-0609	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98063-686-0	01	1	0610-0709	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98090-227-0	01	1	0710-	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98055-347-0	01	1	0610-0709	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98090-228-0	01	1	0710-	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-158-1	01	1	0306-	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-152-0	01	1	0306-	●	●	●	●
59	09.211 LINING; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97365-418-0	01	1	0306-	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-161-0	01	1	0306-	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-153-0	02	1	0306-0609	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98072-395-0	02	1	0610-	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-165-0	05	1	0306-0404	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-165-0	04	1	0405-0609	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.786	8-98071-323-0	04	1	0610-	●	●	●	●
132	09.210 AMPLIFIER; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97333-325-0	01	1	0306-	●	●	●	●
132	09.210 AMPLIFIER; EVAP COOLER WO/HEATER(C65)	8-97321-163-0	01	1	0306-	●	●	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97356-127-0	01	1	0306-0409	●	●	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98008-442-0	01	1	0410-	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97321-156-0	01	1	0306-0609	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-694-0	01	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
