8-73 — BLOWER UNIT (#77642) — 44 parça

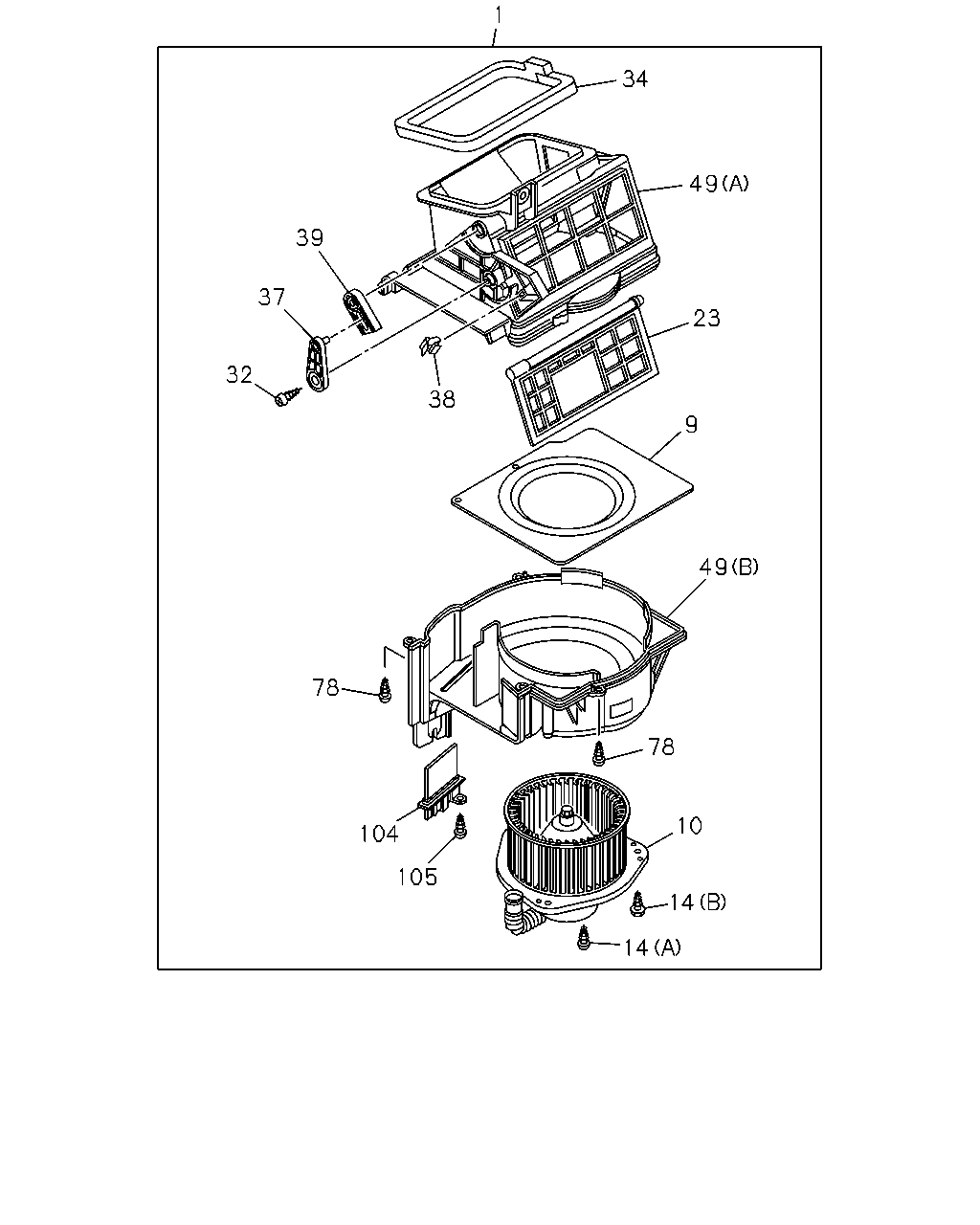

çizim 160693
1 34 49 39 37 23 32 38 9 49 78 78 10 104 105 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.855 BLOWER ASM 8-97234-550-0 01 1 0306-0308 ● ● ● ●
1 08.855 BLOWER ASM 8-97369-323-1 01 1 0309-0412 ● ● ● ●
1 08.855 BLOWER ASM 8-98000-786-0 01 1 0501-0609 ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98034-544-0 01 1 0610-0703 ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98070-133-0 01 1 0704- ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR 8-97364-976-0 01 1 0306-0609 ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-976-0 01 1 0610-0703 ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98072-804-0 01 1 0704- ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97364-979-0 01 1 0306-0412 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98008-894-0 01 1 0501-0609 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98008-894-0 01 1 0610- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
09.211 (A) 		8-97321-165-0 01 1 0306-0609 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 (A) 		8-97321-165-0 01 1 0610-0703 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98070-134-0 03 1 0704- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) 		8-97321-275-0 03 1 0306-0609 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97321-275-0 03 1 0610-0703 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98070-135-0 01 1 0704- ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97321-266-0 01 1 0306-0404 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97383-680-0 01 1 0405-0412 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-98049-763-0 01 1 0501-0609 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98049-763-0 01 1 0610- ● ● ● ●
32 08.856 SCREW; LEVER 8-97321-276-0 01 1 0306-0609 ● ● ● ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97321-276-0 01 1 0610-0703 ● ● ● ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98070-136-0 01 1 0704- ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97321-269-0 01 1 0306-0609 ● ● ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97321-269-0 01 1 0610- ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97364-978-0 01 1 0306-0609 ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-978-0 01 1 0610- ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-97321-274-0 01 1 0306-0609 ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97321-274-0 01 1 0610- ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97364-977-0 01 1 0306-0609 ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-977-0 01 1 0610- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97364-974-0 01 1 0306-0609 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97364-974-0 01 1 0610- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97364-975-0 01 1 0306-0609 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97364-975-0 01 1 0610- ● ● ● ●
78 08.857 SCREW; CASE TO CASE
09.211 		8-97321-165-0 05 1 0306-0609 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 05 1 0610-0703 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98070-135-0 05 1 0704- ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-97321-273-0 01 1 0306-0609 ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98049-394-0 01 1 0610- ● ● ● ●
105 08.855 SCREW; RESISTOR
09.211 		8-97321-165-0 02 1 0306-0609 ● ● ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 02 1 0610-0703 ● ● ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 		8-98070-135-0 02 1 0704- ● ● ● ●
