8-65 — CONTROL LEVER; HEATER AND AIR CON (#77640) — 340 parça

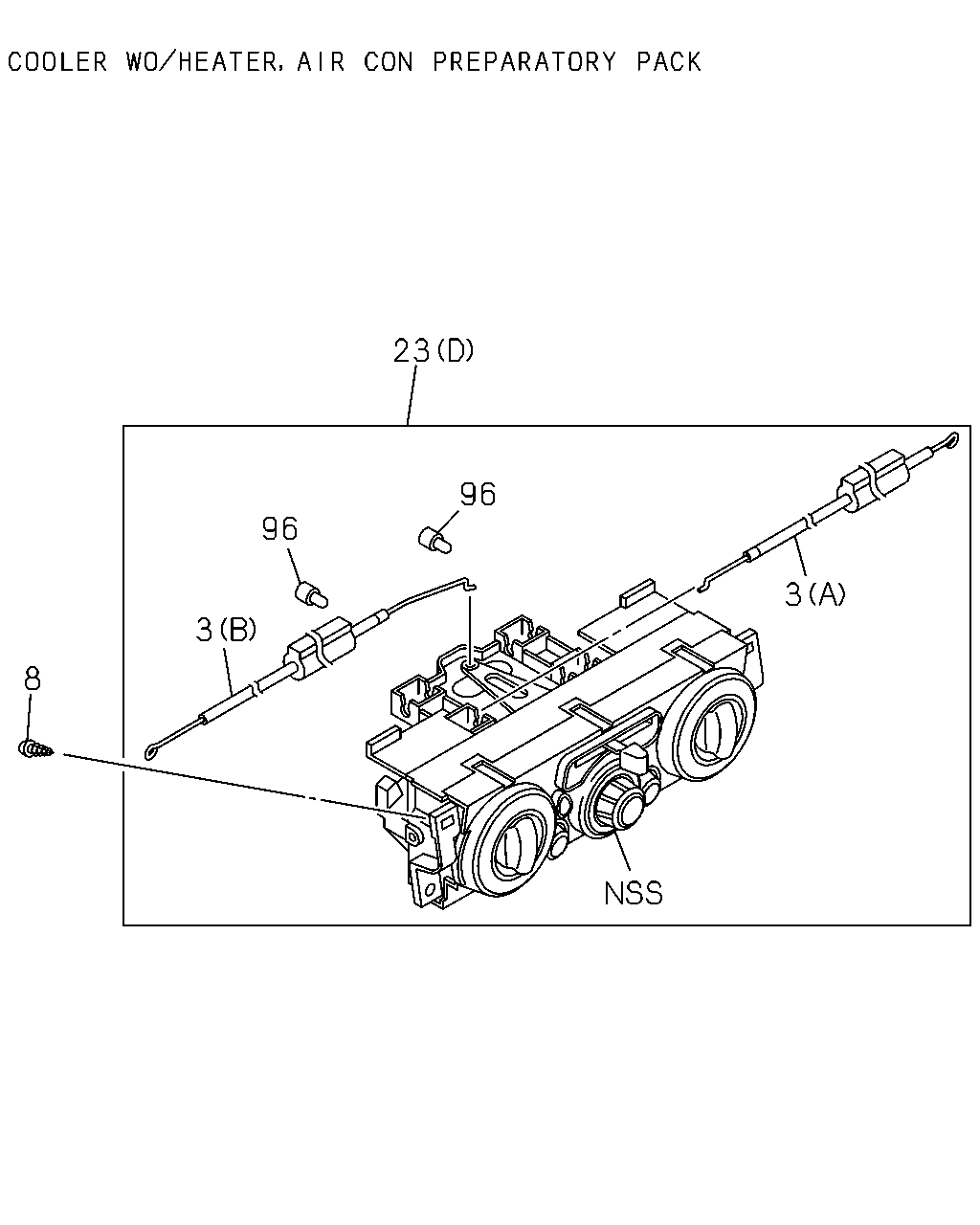

çizim 160668
23 96 96 3 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 0610-1003 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1008- ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-160-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-162-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-122-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-121-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-125-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-125-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-579-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-365-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-575-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-361-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-577-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-363-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-119-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-117-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-581-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-183-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-367-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-578-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-364-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98038-133-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98162-212-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-574-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-360-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-135-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-214-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-576-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-362-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-580-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-182-0 01 1 0502-0508 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-366-0 01 1 0509-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98038-139-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98162-216-0 01 1 1004- ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0306-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98159-721-0 02 1 1004- ● ● ● ●

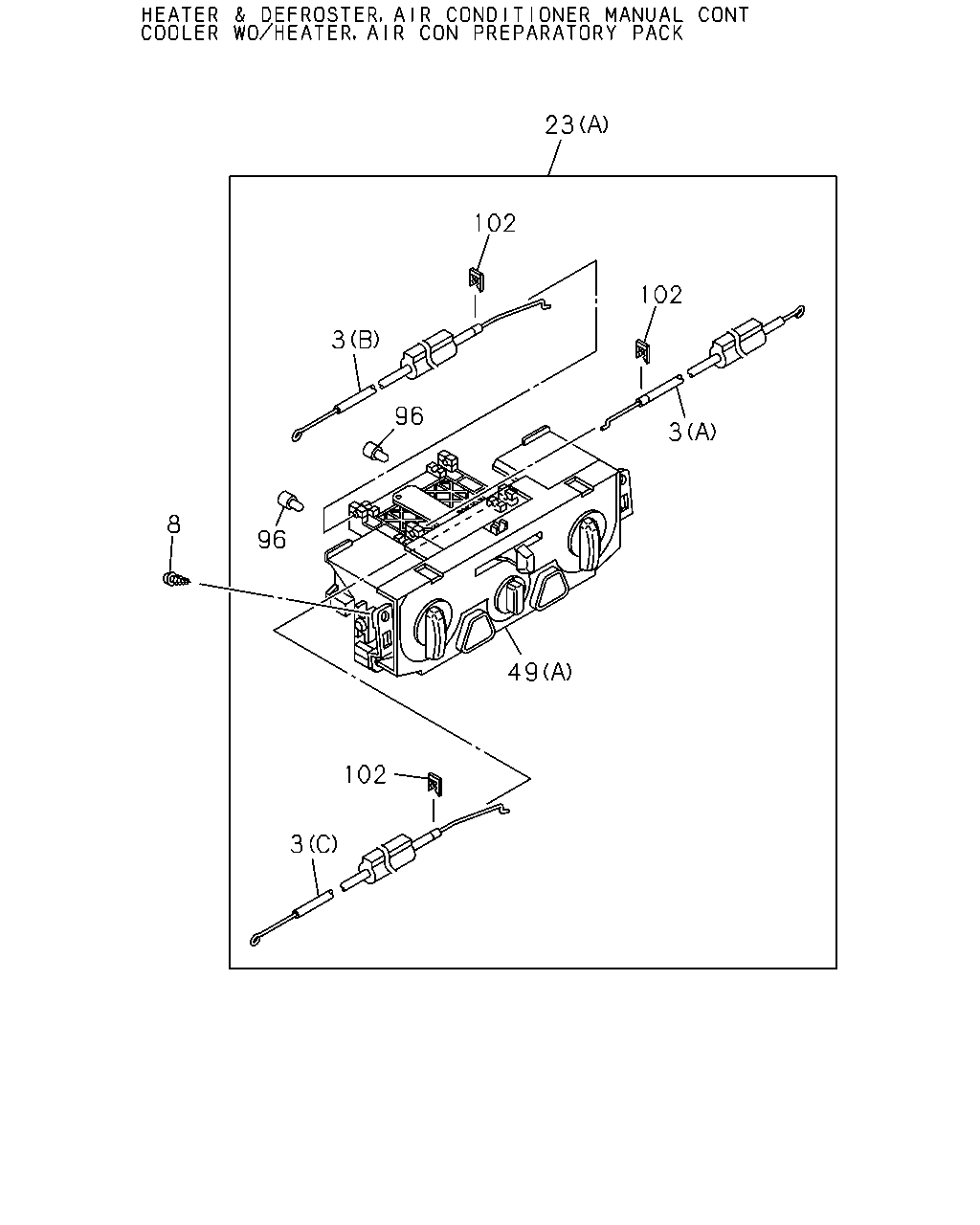

çizim 160699
23 102 102 3 96 3 8 96 49 102 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 0610-1003 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1008- ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-160-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-162-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-122-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-121-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-125-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-125-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-579-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-365-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-575-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-361-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-577-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-363-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-119-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-117-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-581-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-183-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-367-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-578-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-364-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98038-133-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98162-212-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-574-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-360-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-135-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-214-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-576-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-362-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-580-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-182-0 01 1 0502-0508 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-366-0 01 1 0509-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98038-139-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98162-216-0 01 1 1004- ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97365-432-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98013-448-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97365-428-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98013-444-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97365-430-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98013-446-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97365-434-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-450-0 01 1 0502-0508 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-453-0 01 1 0509-0609 ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97365-431-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98013-447-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97365-427-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98013-443-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97365-429-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98013-445-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97365-433-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-449-0 01 1 0502-0508 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-452-0 01 1 0509-0609 ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0306-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98159-721-0 02 1 1004- ● ● ● ●
102 08.852 RING; SNAP,CABLE
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97321-480-0 02 1 0306-0609 ● ● ● ●
102 08.852 RING; SNAP,CABLE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97321-480-0 03 1 0306-0609 ● ● ● ●
çizim 160727
23 102 102 3 96 3 8 96 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 0610-1003 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1008- ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-160-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-162-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-122-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-121-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-125-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-125-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-579-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-365-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-575-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-361-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-577-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-363-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-119-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-117-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-581-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-183-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-367-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-578-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-364-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98038-133-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98162-212-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-574-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-360-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-135-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-214-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-576-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-362-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-580-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-182-0 01 1 0502-0508 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-366-0 01 1 0509-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98038-139-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98162-216-0 01 1 1004- ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97365-432-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98013-448-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97365-428-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98013-444-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97365-430-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98013-446-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97365-434-0 01 1 0306-0501 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-450-0 01 1 0502-0508 ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-453-0 01 1 0509-0609 ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97365-431-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98013-447-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97365-427-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98013-443-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97365-429-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98013-445-0 01 1 0502-0609 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97365-433-0 01 1 0306-0501 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-449-0 01 1 0502-0508 ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-452-0 01 1 0509-0609 ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0306-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98159-721-0 02 1 1004- ● ● ● ●
102 08.852 RING; SNAP,CABLE
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97321-480-0 02 1 0306-0609 ● ● ● ●
102 08.852 RING; SNAP,CABLE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97321-480-0 03 1 0306-0609 ● ● ● ●

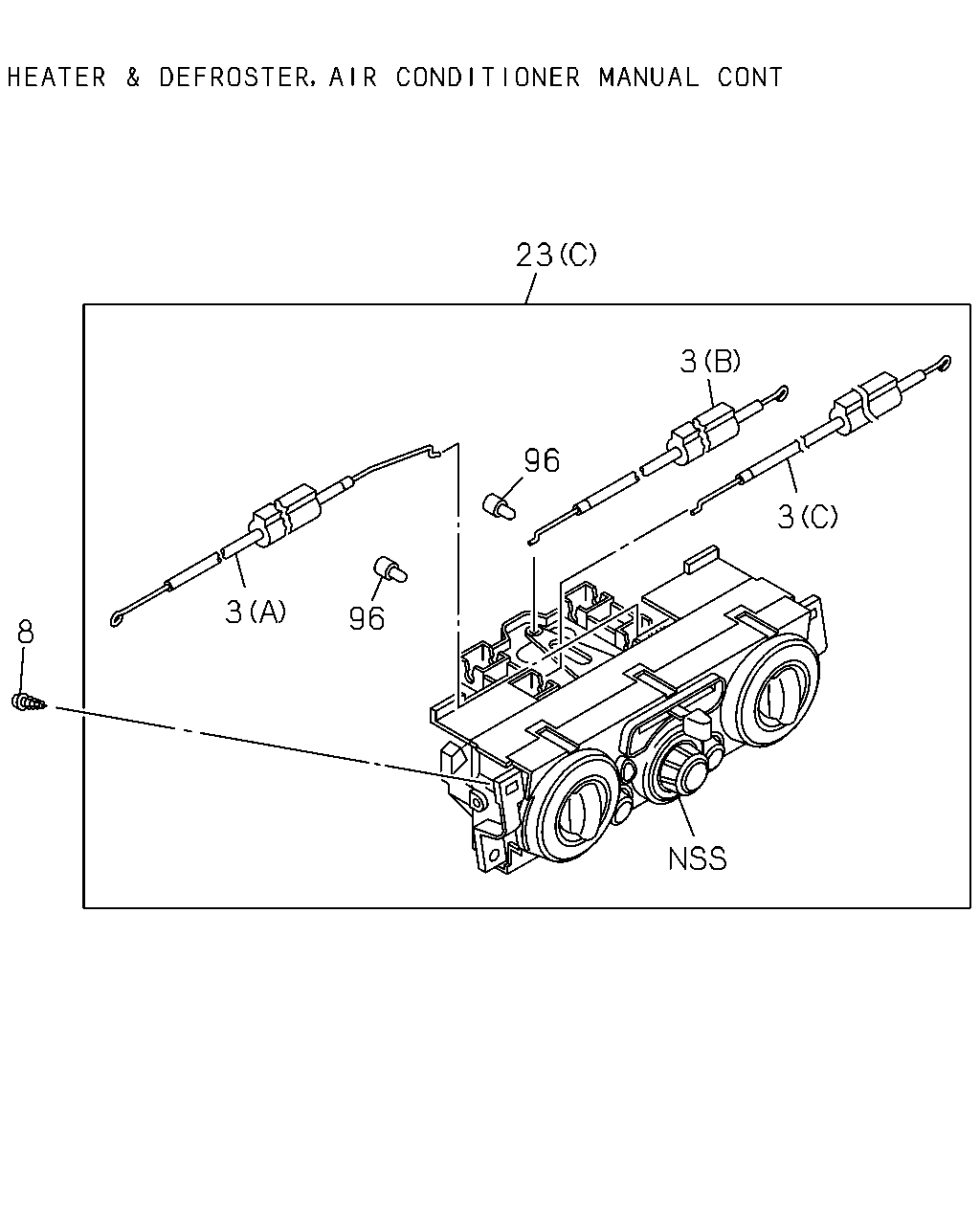

çizim 160729
23 3 96 3 3 96 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 0610-1003 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) TEMP 		8-98029-161-0 01 1 1004-1007 ● ●
3 09.787 CABLE; HTR CONT LVR
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-161-0 01 1 1008- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) TEMP 		8-98029-161-0 01 1 1008- ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-160-0 01 1 0610- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0306-0609 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-162-0 01 1 0610- ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0702 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-124-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-120-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98038-126-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (D) 		8-98154-124-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-122-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-121-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-125-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98154-125-1 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-579-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-365-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98038-134-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (C) 		8-98162-211-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-575-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-361-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98038-138-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (C) 		8-98162-213-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-577-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-363-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-119-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-117-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-581-0 01 1 0306-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-183-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-367-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98038-121-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) 		8-98154-116-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-578-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-364-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98038-133-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (C) 		8-98162-212-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-574-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-360-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98038-135-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98162-214-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-576-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-362-0 01 1 0502-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98038-140-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (D) 		8-98162-215-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-580-0 01 1 0306-0501 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-182-0 01 1 0502-0508 ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-366-0 01 1 0509-0609 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98038-139-0 01 1 0610-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (D) 		8-98162-216-0 01 1 1004- ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0306-0501 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610-1003 ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98159-721-0 02 1 1004- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
