◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#7764) — 485 parça

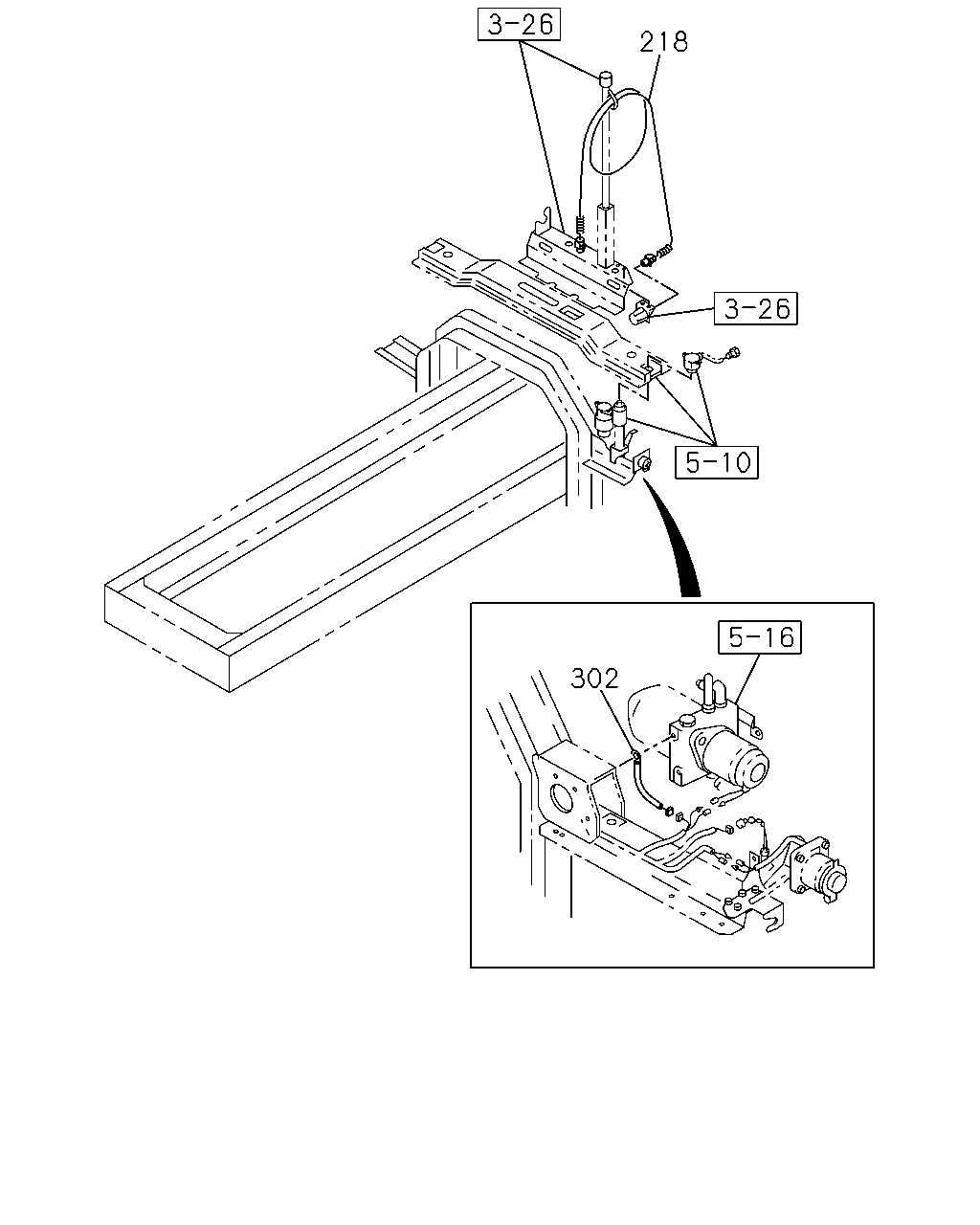

çizim 6896
218 302
BalonParca AdiParca NoAdetTipApplied Date A B
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-1 01 1 9905- ●
302 HARNESS; POWER CAB TILT
CAB UP +110MM<TGG> 		1-82639-938-0 01 1 9902-0003 ●
302 HARNESS; POWER CAB TILT
CAB UP +110MM<TGG> 		1-82639-938-0 01 1 0004- ●
302 HARNESS; POWER CAB TILT 1-82639-938-0 01 1 0004- ●
302 HARNESS; POWER CAB TILT
EXC. CAB UP +110MM<TGG> 		1-82639-273-0 01 1 9902- ●

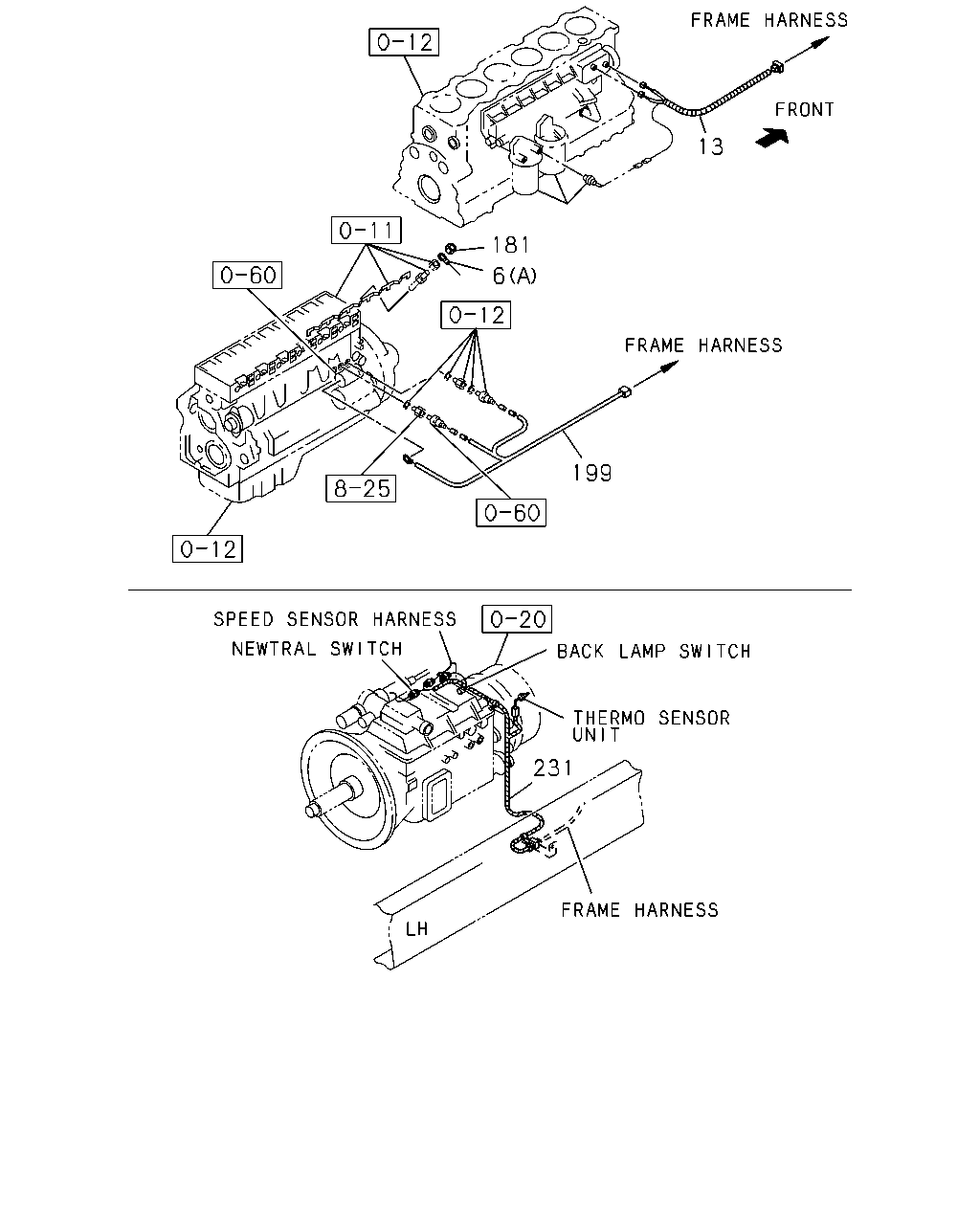

çizim 6897
13 181 6 199 231
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-660-2 01 1 9902- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-659-2 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-324-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-326-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-323-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-325-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-650-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-652-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-649-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-651-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-316-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-317-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-318-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-319-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-320-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-321-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-315-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-322-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-654-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-656-5 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-133-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-133-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-135-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-135-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-235-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-237-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-234-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-236-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-653-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-655-5 01 1 9902- ●
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-688-2 01 1 0004- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-687-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> (A) 		1-82673-460-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. FULL FLOATING CAB<W16> (A) 		1-82673-459-2 01 1 0004- ●
13 HARNESS; ENG 1-82640-553-4 01 1 9902-0003 ●
13 HARNESS; ENG 1-82640-553-4 01 1 0004- ● ●
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE 		5-09440-007-0 01 1 9902- ●
199 HARNESS; STARTER 1-82640-734-0 01 1 9902-0003 ●
199 HARNESS; STARTER 1-82640-734-0 01 1 0004- ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82671-661-1 01 1 9902- ●

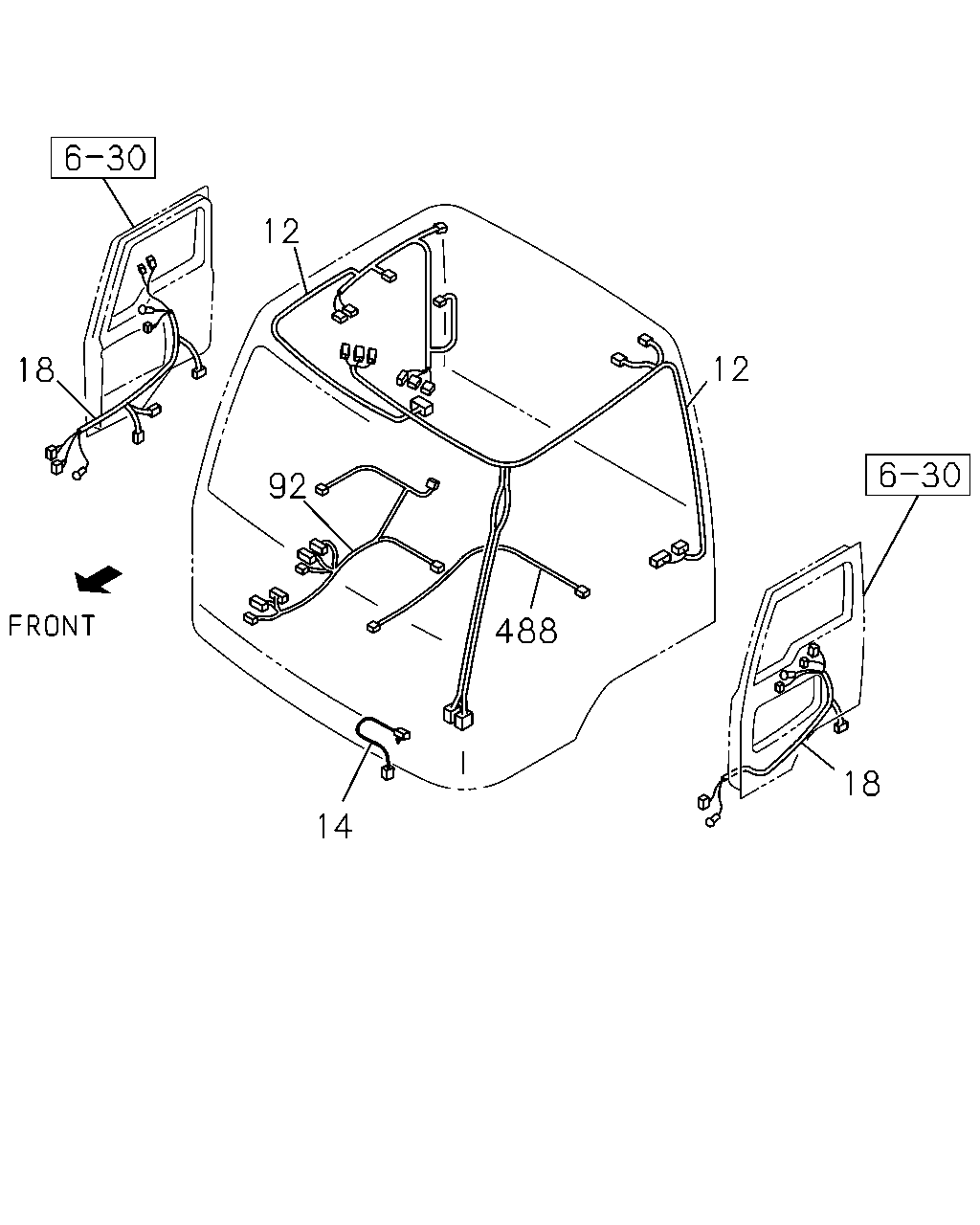

çizim 8557
12 12 18 92 488 18 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-106-0 01 1 9902- ●
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82628-098-1 01 1 9902- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-102-2 01 1 9902- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-104-2 01 1 9902-0003 ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-104-2 01 1 0004- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-104-2 01 1 0004- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 9902- ●
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-100-1 01 1 9902-0003 ●
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-100-1 01 1 0004- ●
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-100-1 01 1 0004- ●
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-099-2 01 1 9902- ●
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-107-0 01 1 9902-0003 ●
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-107-0 01 1 0004- ● ●
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-105-0 01 1 0004- ●
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82628-097-3 01 1 0004- ●
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-101-3 01 1 0004- ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		1-82671-664-2 02 1 9902- ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		1-82670-022-1 02 1 9902-0003 ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		1-82670-022-2 02 1 0004- ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-2 02 1 0004- ●
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 9905- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-788-0 01 1 9902-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 9905- ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-786-0 01 1 9902-9904 ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 9905-0003 ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0004- ●
18 HARNESS; DOOR 1-82628-582-0 01 1 0004- ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82626-785-0 02 1 9902-9904 ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 02 1 9905- ●
18 HARNESS; DOOR 1-82628-588-0 01 1 0004- ●
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82628-119-1 01 1 9902- ●
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82628-115-0 01 1 9902- ●
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82628-116-0 01 1 9902- ●
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82628-120-1 01 1 9902- ●
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82629-330-0 01 1 0004- ●
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82629-328-0 01 1 0004- ●
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82629-329-0 01 1 0004- ●
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82629-331-0 01 1 0004- ●
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009- ●

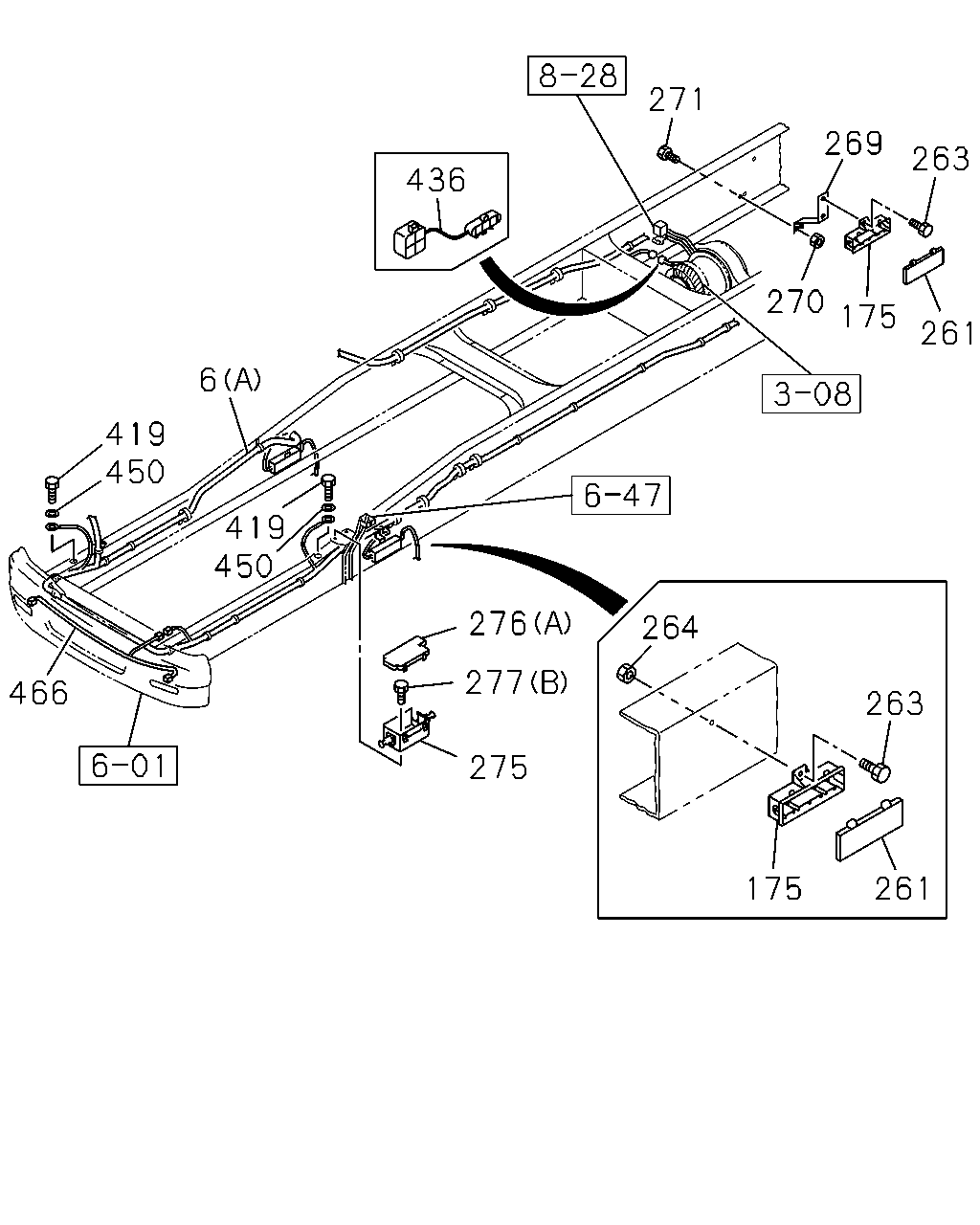

çizim 42778
271 269 263 436 270 175 261 6 419 450 419 450 276 264 277 466 263 275 175 261
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-660-2 01 1 9902- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-659-2 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-324-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-326-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-323-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-325-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-650-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-652-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-649-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-651-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-316-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-317-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-318-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-319-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-320-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-321-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-315-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-322-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-654-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-656-5 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-133-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-133-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-135-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-135-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-235-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-237-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-234-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-236-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-653-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-655-5 01 1 9902- ●
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-688-2 01 1 0004- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-687-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> (A) 		1-82673-460-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. FULL FLOATING CAB<W16> (A) 		1-82673-459-2 01 1 0004- ●
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 03 1 9905- ●
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 03 1 9905- ●
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 9905- ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9902-0003 ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0004- ● ●
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 03 1 9905- ●
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 06 1 9905- ●
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 06 1 9905- ●
275 BOX ASM; FRAME HARNESS 1-82699-474-0 01 1 9902-0003 ●
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0004- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-475-1 01 1 9902-0003 ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-475-2 01 1 0004- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-892-1 01 1 9902- ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-585-2 01 1 0004- ●
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 9902-0007 ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0008- ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9902-0003 ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9902-0003 ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0004- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0004- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9902-0003 ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0004- ● ●
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-82671-549-2 01 1 9902-0003 ●
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-82671-549-2 01 1 0004- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 9902-0003 ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0004- ● ●
466 HARNESS; BUMPER 1-82639-281-0 01 1 9902-0003 ●
466 HARNESS; BUMPER 1-82639-281-0 01 1 0004- ● ●

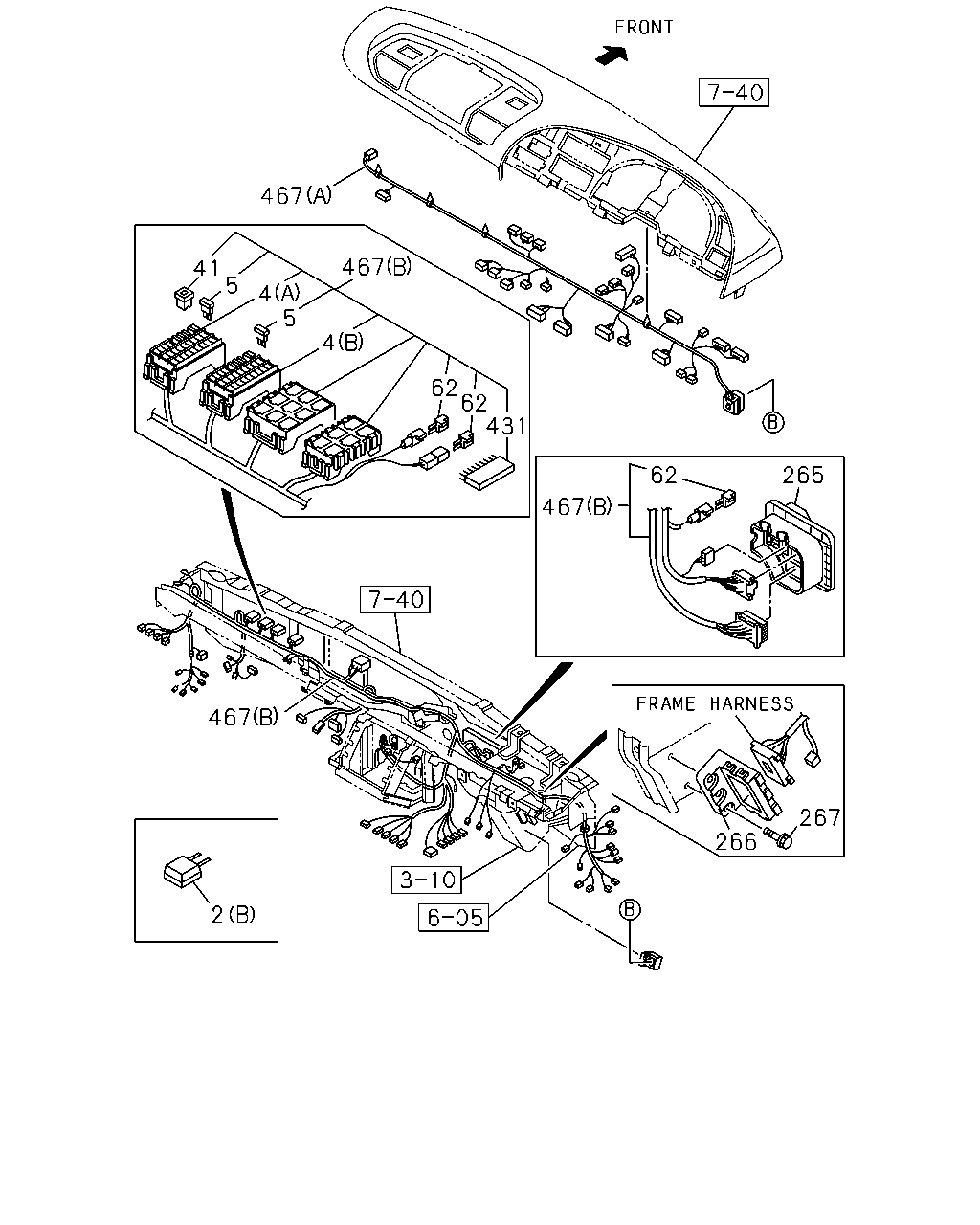

çizim 43595
467 467 41 5 4 5 4 62 62 431 265 62 467 467 267 266 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-0003 ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0004- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9905-0003 ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 7.5AX21 10AX2 		1-82510-533-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (A) 15AX22 25AX2 		1-82510-527-0 01 1 9905-9910 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 7.5AX21 		1-82510-420-0 01 1 9902-0003 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 7.5AX21 		1-82510-420-0 01 1 0004- ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (B) 7.5AX21 		1-82510-420-0 01 1 0004- ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) (B) 7.5AX22 10AX2 		1-82510-544-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (B) 7.5AX22 10AX2 		1-82510-544-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9903-9904 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9905-9910 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9911- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5) (B) 7.5AX20 10AX2 		1-82510-531-0 01 1 9905- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX22 20AX2 		1-82510-532-0 01 1 9905- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS> (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ARGENTINE EQUIPMENT(NBQ) (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (A) 15AX21 		1-82510-396-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (A) 15AX21 		1-82510-396-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (B) 7.5AX19 		1-82510-415-0 01 1 9902- ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (A) 15AX22 		1-82510-394-0 01 1 0004- ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9902-0003 ●
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9902-0003 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0004- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0004- ● ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ●
41 PULLER; FUSE
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 9903-0003 ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 9903-0003 ●
41 PULLER; FUSE
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
41 PULLER; FUSE
DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 3P-1.5A 		8-94416-438-1 01 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) BLACK 3P-1.5A 		8-94416-438-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) BLACK 3P-1.5A 		8-94416-438-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 3P-1.5A 		8-94416-438-1 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BLACK 2P-1.5A 		8-94422-639-1 02 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) BLACK 2P-1.5A 		8-94422-639-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ●
62 DIODE; HARNESS
DELUXE CAB(W14) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 03 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 03 1 9903-9910 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 02 1 9911- ●
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 9902-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 9902-0003 ●
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 0004- ●
62 DIODE; HARNESS
DELUXE CAB(W14) BLACK 10P 		1-82699-703-0 02 1 0004- ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9902- ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0004- ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9902-0003 ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0004- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9902-0003 ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0004- ● ●
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-0003 ●
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-0003 ●
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 0004- ●
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 0004- ●
431 CONNECTOR; JOINT
DELUXE CAB(W14) 10P BROWN 		1-82699-601-0 02 1 0004- ●
467 HARNESS; FACIA
(A) 		1-82628-112-4 01 1 9902- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-82628-042-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-054-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS> (B) 		1-82628-055-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-056-5 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 		1-82628-044-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82628-045-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-480-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-481-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-482-3 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5) (B) 		1-82628-043-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-051-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-052-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-050-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-038-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-039-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-040-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-049-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-053-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (B) 		1-82628-036-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-048-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK) (B) 		1-82628-037-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-041-2 01 1 9902- ●
467 HARNESS; FACIA
(A) 		1-82629-327-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0004- ●

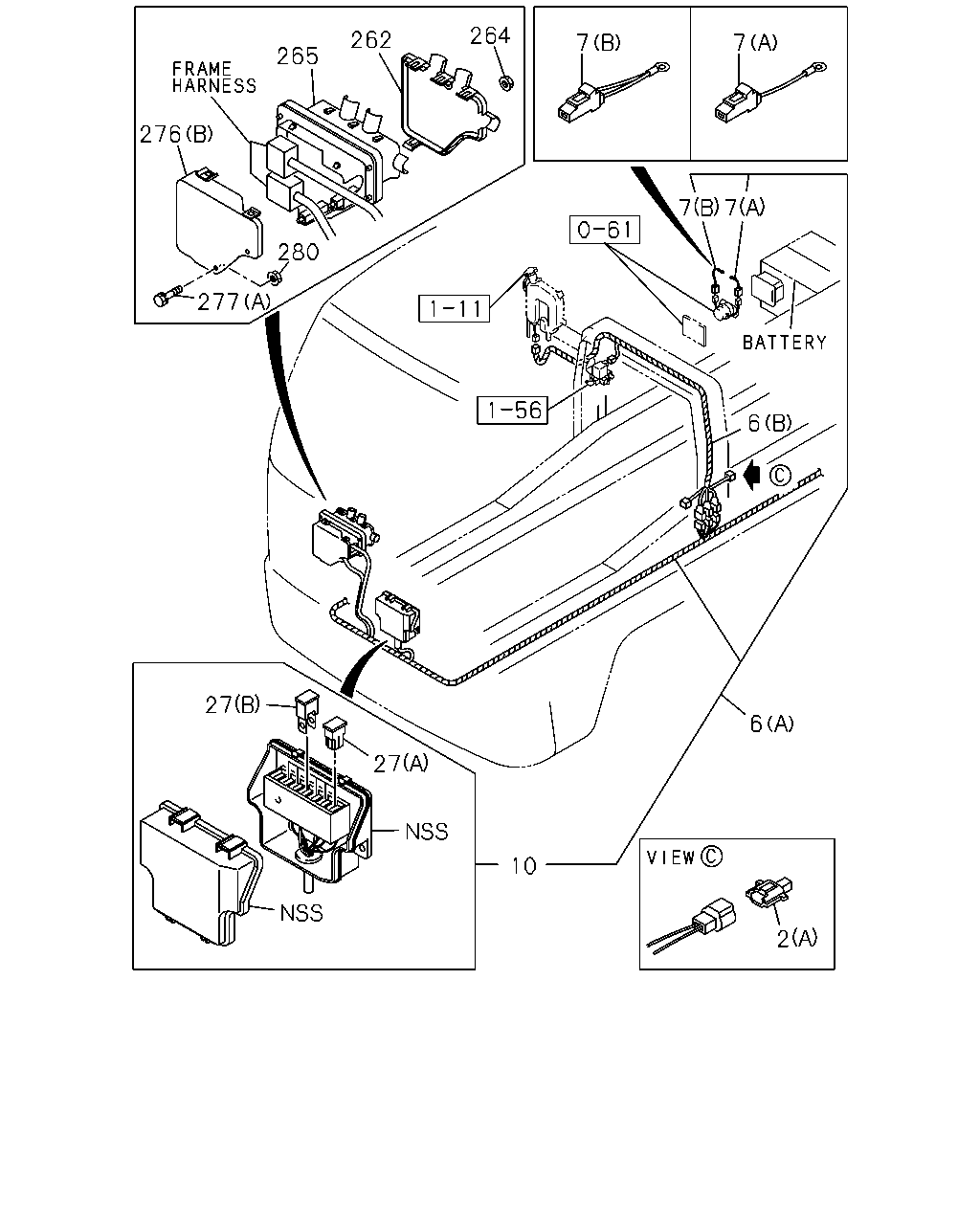

çizim 44378
264 262 7 7 265 276 280 277 6 27 6 27 10 2 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-0003 ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0004- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9905-0003 ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ● ●
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-660-2 01 1 9902- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-659-2 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-324-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-326-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-323-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-325-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-650-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-652-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-649-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-651-5 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-316-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-317-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82672-318-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-319-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-320-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-321-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82672-315-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-322-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-645-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-646-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB<W16> (A) 		1-82671-647-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-82671-648-4 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-654-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82671-656-5 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-132-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> (A) 		1-82672-133-2 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-133-2 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB<W16> (A) 		1-82672-134-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> (A) 		1-82672-135-3 01 1 9902-9904 ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82672-135-3 01 1 9905- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-235-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB<W16> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (A) 		1-82672-237-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-234-3 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULL FLOATING CAB<W16> (A) 		1-82672-236-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-653-4 01 1 9902- ●
6 HARNESS; FRAME
WHEEL BASE 3500MM(35W) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB<W16> (A) 		1-82671-655-5 01 1 9902- ●
6 HARNESS; FRAME
FULL FLOATING CAB<W16> (B) 		1-82671-688-2 01 1 0004- ●
6 HARNESS; FRAME
EXC. FULL FLOATING CAB<W16> (B) 		1-82671-687-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) FULL FLOATING CAB<W16> (A) 		1-82673-460-2 01 1 0004- ●
6 HARNESS; FRAME
WHEEL BASE 3200MM(32W) EXC. FULL FLOATING CAB<W16> (A) 		1-82673-459-2 01 1 0004- ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-085-0 01 1 9902-0003 ●
7 LINK ASM; FUSIBLE
(A) 		1-82659-085-0 01 1 0004- ● ●
7 LINK ASM; FUSIBLE
(B) 60A BLUE 		1-82659-119-0 01 1 9902-0003 ●
7 LINK ASM; FUSIBLE
(B) 60A BLUE 		1-82659-119-0 01 1 0004- ● ●
10 BOX; FUSE,HARNESS 1-82510-466-0 01 1 9902- ●
10 BOX; FUSE,HARNESS 1-82510-467-0 01 1 0004- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 9902-0003 ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 0004- ● ●
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 9902-0003 ●
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 0004- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9902- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0004- ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9902-0003 ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0004- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9902- ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0004- ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-475-1 01 1 9902-0003 ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-475-2 01 1 0004- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-892-1 01 1 9902- ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-585-2 01 1 0004- ●
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 9902-0007 ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0008- ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9902-0003 ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9902-0003 ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0004- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0004- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0004- ●

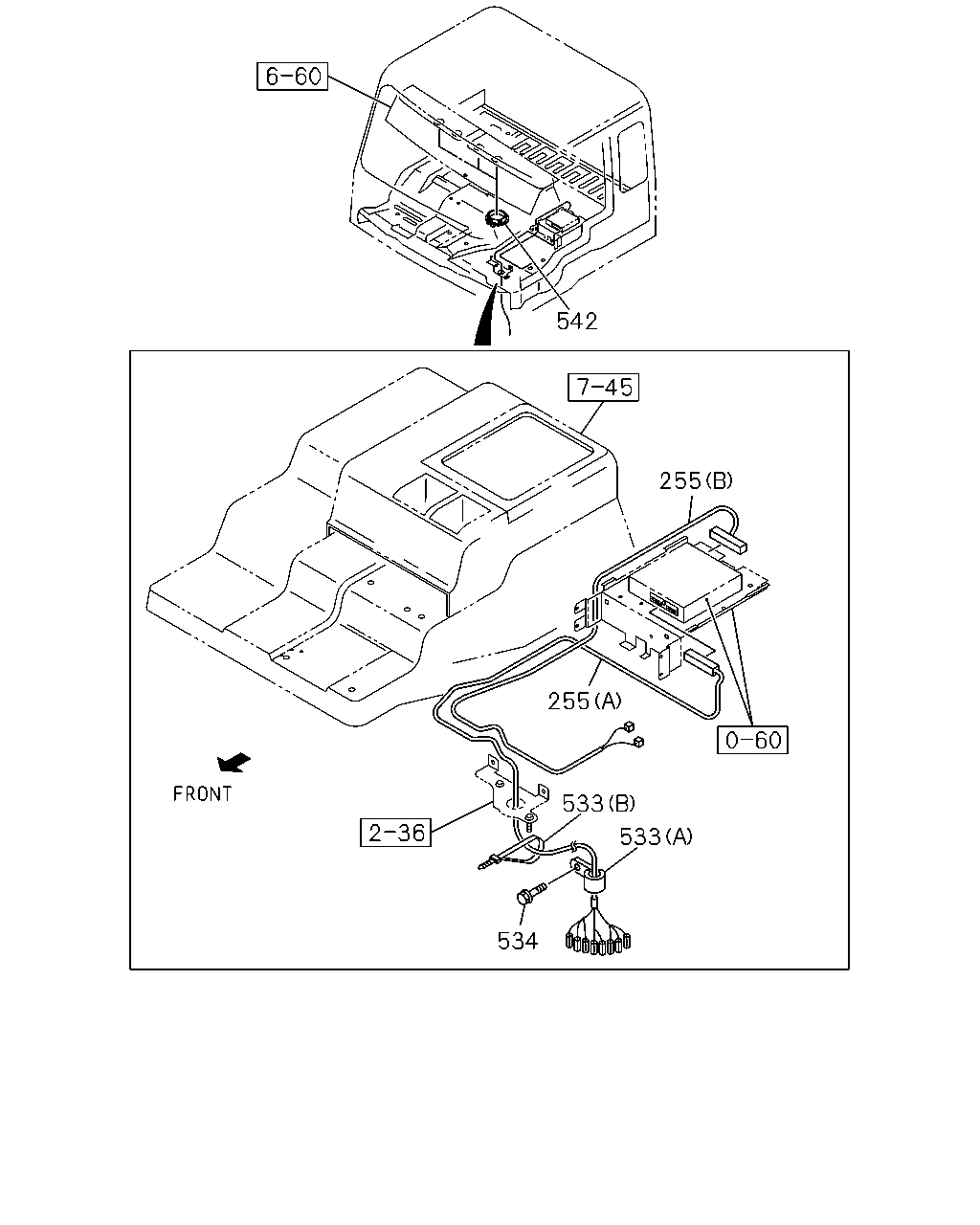

çizim 44786
542 255 255 533 533 534
BalonParca AdiParca NoAdetTipApplied Date A B
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) (A) 		1-82628-549-0 01 1 9905- ●
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) DUMP TRUCK<RA1> (B) 		1-82628-555-0 01 1 9905- ●
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) EXC. DUMP TRUCK<RA1> (B) 		1-82628-554-0 01 1 9905- ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (A) 		1-82628-069-1 01 1 9902-9904 ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82628-069-1 01 1 9905- ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82628-096-1 01 1 9905- ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. DUMP TRUCK<RA1> (B) 		1-82628-095-1 01 1 9902-9904 ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> (B) 		1-82628-095-1 01 1 9905- ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82628-547-1 01 1 9905- ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-551-0 01 1 9905- ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82628-067-2 01 1 9902-9904 ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (A) 		1-82628-067-2 01 1 9905- ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-094-1 01 1 9902-9904 ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (B) 		1-82628-094-1 01 1 9905- ●
255 HARNESS; ELEC GOV
(A) 		1-82628-065-2 01 1 0004- ●
255 HARNESS; ELEC GOV
(B) 		1-82628-091-2 01 1 0004- ●
533 CLIP
(A) ID=19 L=32 		1-09701-235-0 02 1 9902-0003 ●
533 CLIP
(A) ID=19 L=32 		1-09701-235-0 02 1 0004- ● ●
533 CLIP
(A) ID=19 L=32 		1-09701-235-0 01 1 0004- ●
533 CLIP
(B) L=250 		5-09707-030-1 03 1 0004- ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9902-0003 ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0004- ● ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 9902-0003 ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0004- ● ●

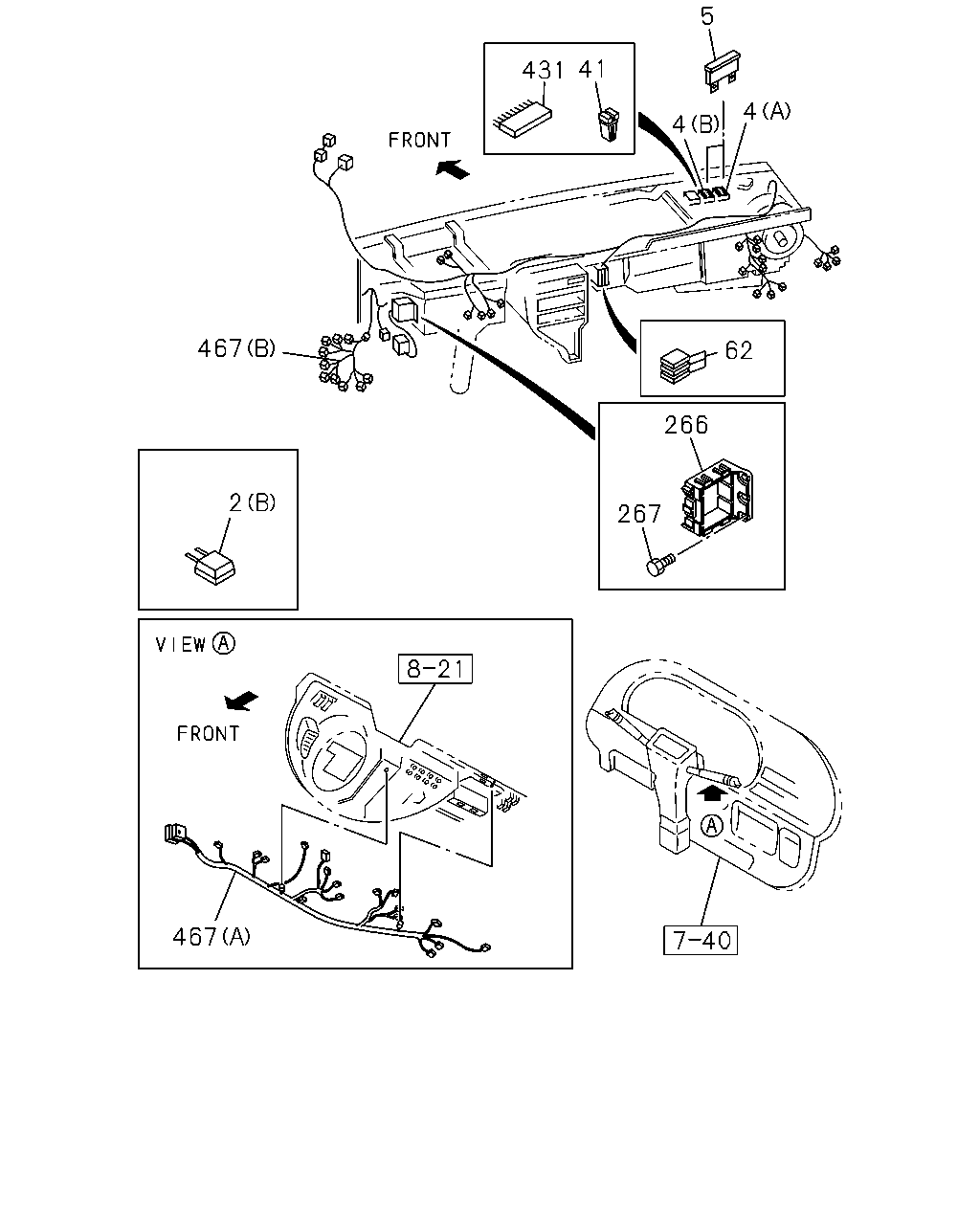

çizim 44787
5 41 431 4 4 467 62 266 2 267 467
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-0003 ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0004- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9905-0003 ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 7.5AX21 10AX2 		1-82510-533-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (A) 15AX22 25AX2 		1-82510-527-0 01 1 9905-9910 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 7.5AX21 		1-82510-420-0 01 1 9902-0003 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 7.5AX21 		1-82510-420-0 01 1 0004- ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (B) 7.5AX21 		1-82510-420-0 01 1 0004- ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) (B) 7.5AX22 10AX2 		1-82510-544-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (B) 7.5AX22 10AX2 		1-82510-544-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9903-9904 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9905-9910 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) (A) 15AAX22 25AX2 		1-82510-545-0 01 1 9911- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5) (B) 7.5AX20 10AX2 		1-82510-531-0 01 1 9905- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX22 20AX2 		1-82510-532-0 01 1 9905- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS> (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ARGENTINE EQUIPMENT(NBQ) (A) 15AX21 		1-82510-396-0 01 1 9902-9902 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (A) 15AX21 		1-82510-396-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (A) 15AX21 		1-82510-396-0 01 1 9903- ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (B) 7.5AX19 		1-82510-415-0 01 1 9902- ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (A) 15AX22 		1-82510-394-0 01 1 0004- ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9902-0003 ●
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9902- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9902-0003 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0004- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0004- ● ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ●
41 PULLER; FUSE
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 9903-0003 ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 9903-0003 ●
41 PULLER; FUSE
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
41 PULLER; FUSE
ELECTRONIC GOV RED3(KG5) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
41 PULLER; FUSE
DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 3P-1.5A 		8-94416-438-1 01 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) BLACK 3P-1.5A 		8-94416-438-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) BLACK 3P-1.5A 		8-94416-438-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 3P-1.5A 		8-94416-438-1 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BLACK 2P-1.5A 		8-94422-639-1 02 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) BLACK 2P-1.5A 		8-94422-639-1 01 1 9903-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) EXC. ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ●
62 DIODE; HARNESS
DELUXE CAB(W14) BLACK 2P-1.5A 		8-94422-639-1 01 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 03 1 9902-9902 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 03 1 9903-9910 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ) BLACK 2P-1.5A 		8-94422-639-1 02 1 9911- ●
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 9902-0003 ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 9902-0003 ●
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 0004- ●
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) BLACK 10P 		1-82699-703-0 02 1 0004- ●
62 DIODE; HARNESS
DELUXE CAB(W14) BLACK 10P 		1-82699-703-0 02 1 0004- ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9902-0003 ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0004- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9902-0003 ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0004- ● ●
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-0003 ●
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-0003 ●
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 0004- ●
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 0004- ●
431 CONNECTOR; JOINT
DELUXE CAB(W14) 10P BROWN 		1-82699-601-0 02 1 0004- ●
467 HARNESS; FACIA
(A) 		1-82628-112-4 01 1 9902- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-82628-042-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-054-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS> (B) 		1-82628-055-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-056-5 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 		1-82628-044-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82628-045-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-480-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-481-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-482-3 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5) (B) 		1-82628-043-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-051-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-052-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-050-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-038-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-039-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-040-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-049-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-053-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (B) 		1-82628-036-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-048-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK) (B) 		1-82628-037-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-041-2 01 1 9902- ●
467 HARNESS; FACIA
(A) 		1-82629-327-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0004- ●

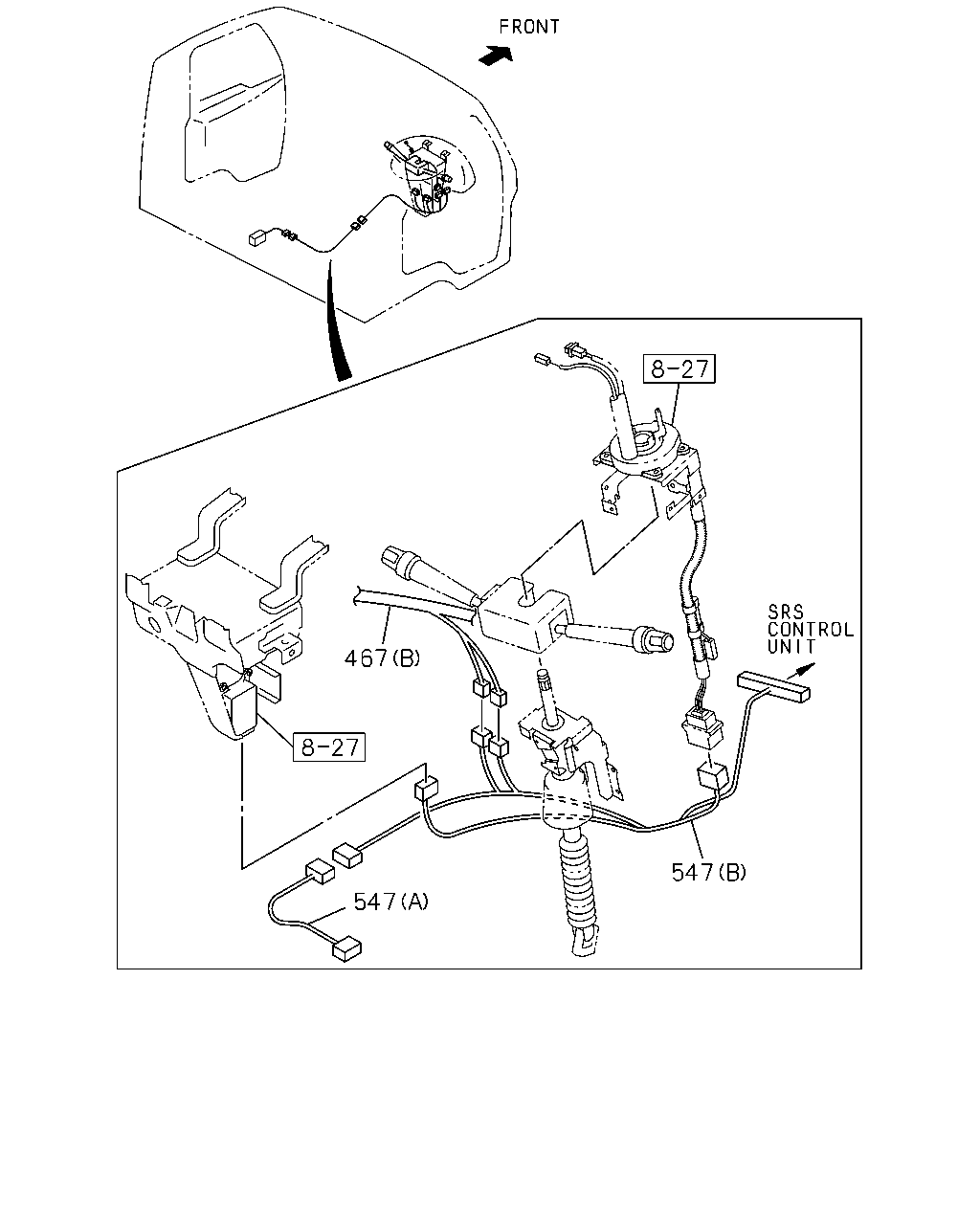

çizim 45941
467 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
467 HARNESS; FACIA
(A) 		1-82628-112-4 01 1 9902- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM RETARDER<RE2> EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-82628-042-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-054-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS> (B) 		1-82628-055-4 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNARINGLAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-056-5 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) (B) 		1-82628-044-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82628-045-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-480-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-481-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-482-3 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ARGENTINE EQUIPMENT(NBQ),CORNARING LAMP<TDS>, TAIWAN EQUIPMENT(WW5) (B) 		1-82628-043-2 01 1 9902- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, ARGENTINEEQUIPMENT(NBQ),CORNARING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-051-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-052-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-050-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-038-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK) (B) 		1-82628-039-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-040-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-049-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> BRAZIL EQUIPMENT(TKK) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-053-3 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),BRAZIL EQUIPMENT(TKK) (B) 		1-82628-036-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> BRAZIL EQUIPMENT(TKK) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-048-2 01 1 9905- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK) (B) 		1-82628-037-2 01 1 9902- ●
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, BRAZIL EQUIPMENT(TKK),DELUXE CAB(W14) (B) 		1-82628-041-2 01 1 9902- ●
467 HARNESS; FACIA
(A) 		1-82629-327-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 0004- ●
467 HARNESS; FACIA
6WG1 TC-N(71L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0004- ●
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) 		1-82626-429-5 01 1 9905- ●
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B) 		1-82628-251-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
