◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#77639) — 202 parça

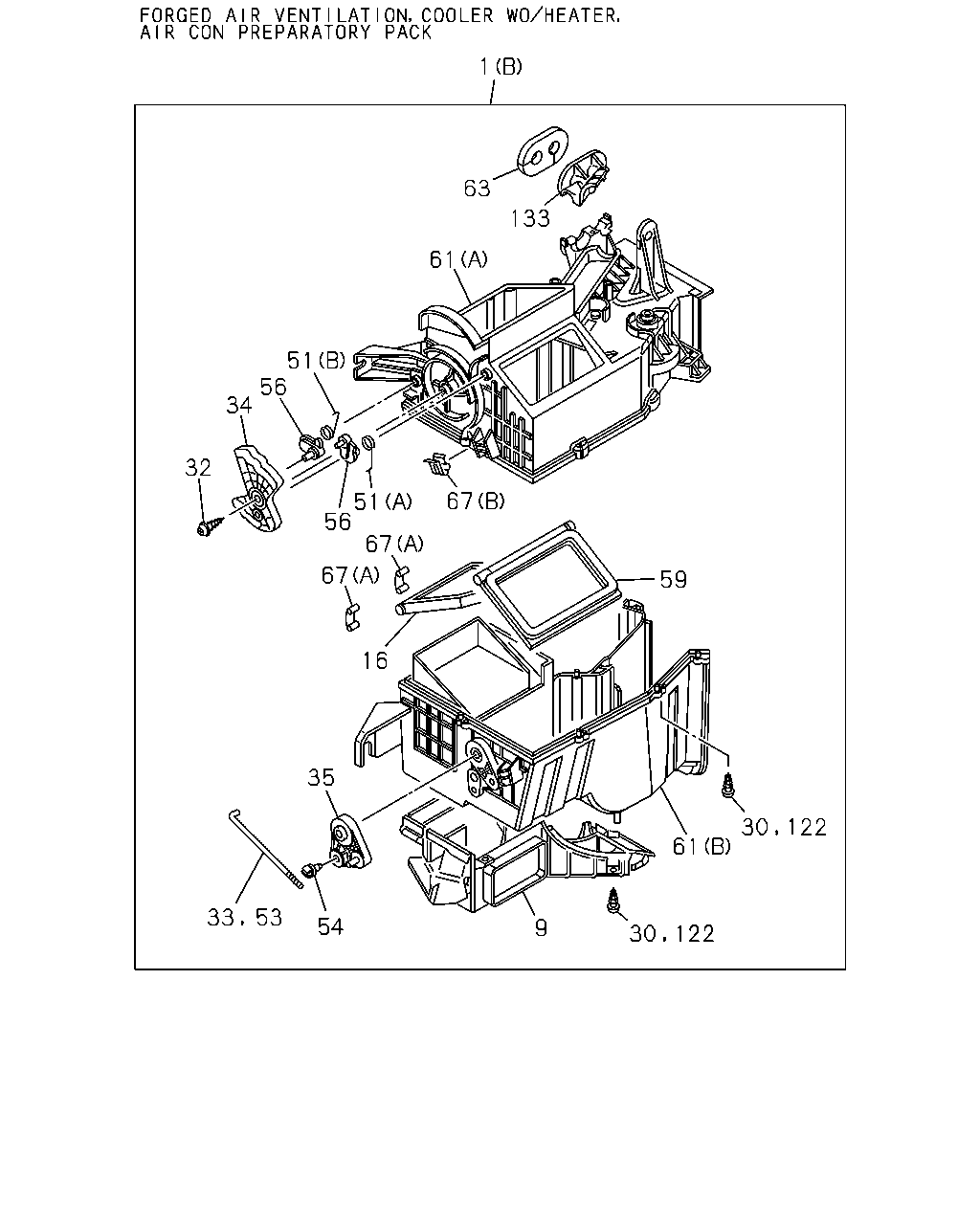

çizim 160671
1 63 133 61 51 56 34 32 67 51 56 67 67 59 16 35 61 33 53 54 9 30 122 30 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-97234-556-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-97369-319-0 01 1 0310-0510 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98027-413-0 01 1 0511-0609 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98027-413-0 01 1 0610-0703 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98071-343-0 01 1 0704-0709 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98086-160-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97316-028-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97369-320-0 01 1 0310-0510 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98027-414-0 01 1 0511-0609 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98027-414-0 01 1 0610-0703 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98071-344-0 01 1 0704-0709 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98086-161-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-97234-554-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-97369-316-0 01 1 0310-0612 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98071-338-0 01 1 0701-0709 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98086-157-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-97316-027-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-97369-318-0 01 1 0310-0612 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98071-341-0 01 1 0701-0709 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98086-159-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-97234-553-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-97369-315-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98071-337-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98086-156-0 01 1 0710- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97316-026-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97369-317-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98071-340-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-158-0 01 1 0710- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-97364-985-0 01 1 0306- ● ●
9 08.854 DUCT; HTR UNIT 8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-986-0 01 1 0511- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0511- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0306-0609 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-989-0 01 1 0610- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98071-324-0 09 1 0701-0703 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98071-324-0 09 1 0704- ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 08 1 0306-0309 ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 09 1 0310-0609 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 09 1 0610-0612 ● ● ● ●
30 08.845 SCREW; HTR UNIT
COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 09 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 01 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 01 1 0610-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 01 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0306-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 03 1 0701- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-009-0 01 1 0306-0309 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0306-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0610- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0306-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0610- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0306-0609 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0610- ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97364-998-0 01 1 0306- ● ● ● ●
51 08.846 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0306-0609 ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97364-994-0 01 1 0610- ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0306-0609 ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97364-995-0 01 1 0610- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0310-0609 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0610- ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0306-0609 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0610- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0306-0609 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97321-341-0 02 1 0610- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0306-0609 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-988-0 01 1 0610- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A) 		8-97364-981-0 01 1 0306-0609 ● ● ● ●
61 08.854 CASE; HTR UNIT
COOLER WO/HEATER(C65) (A) 		8-97364-981-0 01 1 0610- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) 		8-97364-983-0 01 1 0306-0609 ● ● ● ●
61 08.854 CASE; HTR UNIT
COOLER WO/HEATER(C65) (B) 		8-97364-983-0 01 1 0610- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97364-980-0 01 1 0306- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97364-982-0 01 1 0306- ● ● ● ●
63 08.856 LINING; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97321-370-1 01 1 0306-0609 ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER WO/HEATER(C65) 		8-97321-370-1 01 1 0610- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-996-0 01 1 0306-0309 ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97333-328-0 01 1 0310- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.787 (B) 		8-97321-274-0 01 1 0306-0609 ● ● ● ●
67 08.854 CLIP; HTR UNIT
COOLER WO/HEATER(C65) 09.787 (B) 		8-97321-274-0 01 1 0610- ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 09.787 (B) 		8-97321-274-0 02 1 0306- ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 02 1 0306-0309 ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 01 1 0310-0609 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 (A) 		8-97321-166-0 01 1 0610-0709 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.262 (A) 		8-98088-089-0 01 1 0710- ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 03 1 0306-0309 ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 02 1 0310-0510 ● ● ● ●
122 08.845 SCREW; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 09.211 		8-97321-165-0 02 1 0511-0612 ● ● ● ●
122 08.845 SCREW; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98071-324-0 02 1 0701- ● ● ● ●
133 08.845 CLIP; PIPE 8-97364-993-0 01 1 0306-0609 ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-993-0 01 1 0610- ● ● ● ●

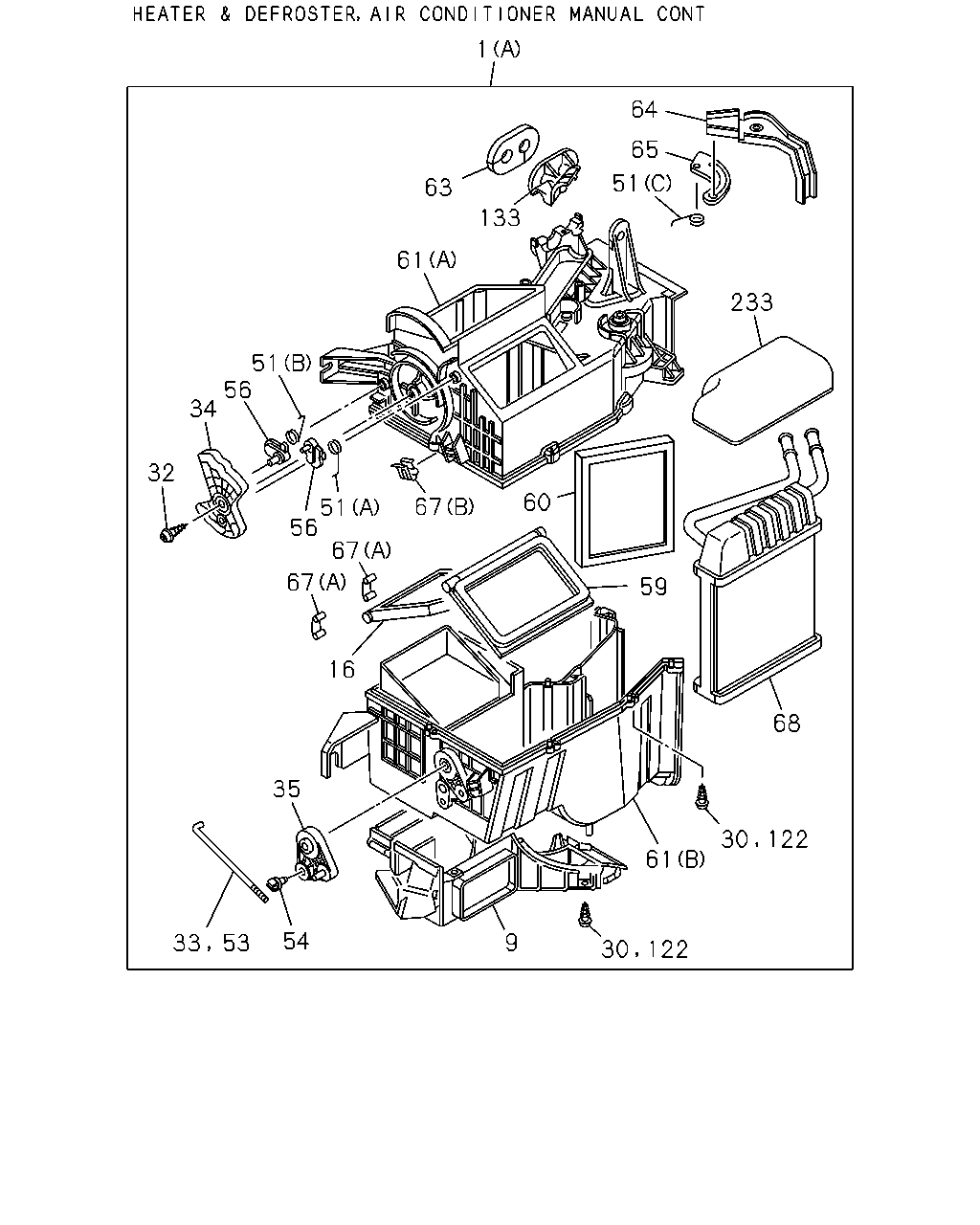

çizim 160711
1 64 65 51 63 133 61 233 51 56 34 32 60 67 51 56 67 67 59 16 68 35 61 54 9 33 53 30 122 30 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-97234-556-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-97369-319-0 01 1 0310-0510 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98027-413-0 01 1 0511-0609 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98027-413-0 01 1 0610-0703 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98071-343-0 01 1 0704-0709 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B) 		8-98086-160-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97316-028-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97369-320-0 01 1 0310-0510 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98027-414-0 01 1 0511-0609 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98027-414-0 01 1 0610-0703 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98071-344-0 01 1 0704-0709 ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-98086-161-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-97234-554-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-97369-316-0 01 1 0310-0612 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98071-338-0 01 1 0701-0709 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98086-157-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-97316-027-0 01 1 0306-0309 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-97369-318-0 01 1 0310-0612 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98071-341-0 01 1 0701-0709 ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98086-159-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-97234-553-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-97369-315-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98071-337-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98086-156-0 01 1 0710- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97316-026-0 01 1 0306-0309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97369-317-0 01 1 0310-0612 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98071-340-0 01 1 0701-0709 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-158-0 01 1 0710- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-97364-985-0 01 1 0306- ● ●
9 08.854 DUCT; HTR UNIT 8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97364-986-0 01 1 0306-0510 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-986-0 01 1 0511- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-97364-986-0 01 1 0511- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97364-989-0 01 1 0306-0609 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-989-0 01 1 0610- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98071-324-0 09 1 0701-0703 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98071-324-0 09 1 0704- ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 08 1 0306-0309 ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.211 		8-97321-165-0 09 1 0310-0609 ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 09 1 0610-0612 ● ● ● ●
30 08.845 SCREW; HTR UNIT
COOLER WO/HEATER(C65) 09.211 		8-97321-165-0 09 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 02 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 01 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 01 1 0610-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 01 1 0704- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0306-0609 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0610-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 02 1 0701-0703 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.856 		8-97321-276-0 03 1 0306-0612 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-98071-323-0 03 1 0701- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-009-0 01 1 0306-0309 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0306-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 		8-97364-992-0 01 1 0610- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0306-0609 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-007-0 01 1 0610- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0306-0609 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-008-0 01 1 0610- ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97364-998-0 01 1 0306- ● ● ● ●
51 08.846 SPRING; HTR UNIT
(A) 		8-97364-994-0 01 1 0306-0609 ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97364-994-0 01 1 0610- ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) 		8-97364-995-0 01 1 0306-0609 ● ● ● ●
51 08.846 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97364-995-0 01 1 0610- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0310-0609 ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 09.786 		8-97365-009-0 01 1 0610- ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0306-0609 ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 0610- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97321-341-0 02 1 0306-0609 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97321-341-0 02 1 0610- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97364-988-0 01 1 0306-0609 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-988-0 01 1 0610- ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97333-330-0 01 1 0306- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A) 		8-97364-981-0 01 1 0306-0609 ● ● ● ●
61 08.854 CASE; HTR UNIT
COOLER WO/HEATER(C65) (A) 		8-97364-981-0 01 1 0610- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (B) 		8-97364-983-0 01 1 0306-0609 ● ● ● ●
61 08.854 CASE; HTR UNIT
COOLER WO/HEATER(C65) (B) 		8-97364-983-0 01 1 0610- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97364-980-0 01 1 0306- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97364-982-0 01 1 0306- ● ● ● ●
63 08.856 LINING; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97321-370-1 01 1 0306-0609 ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER WO/HEATER(C65) 		8-97321-370-1 01 1 0610- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-996-0 01 1 0306-0309 ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97333-328-0 01 1 0310- ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-991-0 01 1 0306-0612 ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98071-383-0 01 1 0701- ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-990-0 01 1 0306- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.787 (B) 		8-97321-274-0 01 1 0306-0609 ● ● ● ●
67 08.854 CLIP; HTR UNIT
COOLER WO/HEATER(C65) 09.787 (B) 		8-97321-274-0 01 1 0610- ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 09.787 (B) 		8-97321-274-0 02 1 0306- ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 02 1 0306-0309 ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) 		8-97321-166-0 01 1 0310-0609 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 (A) 		8-97321-166-0 01 1 0610-0709 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.262 (A) 		8-98088-089-0 01 1 0710- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-984-0 01 1 0306- ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 03 1 0306-0309 ● ● ● ●
122 08.845 SCREW; DUCT
09.211 		8-97321-165-0 02 1 0310-0510 ● ● ● ●
122 08.845 SCREW; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 09.211 		8-97321-165-0 02 1 0511-0612 ● ● ● ●
122 08.845 SCREW; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98071-324-0 02 1 0701- ● ● ● ●
133 08.845 CLIP; PIPE 8-97364-993-0 01 1 0306-0609 ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97364-993-0 01 1 0610- ● ● ● ●
233 08.845 COVER; CORE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-97364-997-0 01 1 0306-0309 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
