Sayfa 8-52 - Isuzu EPC

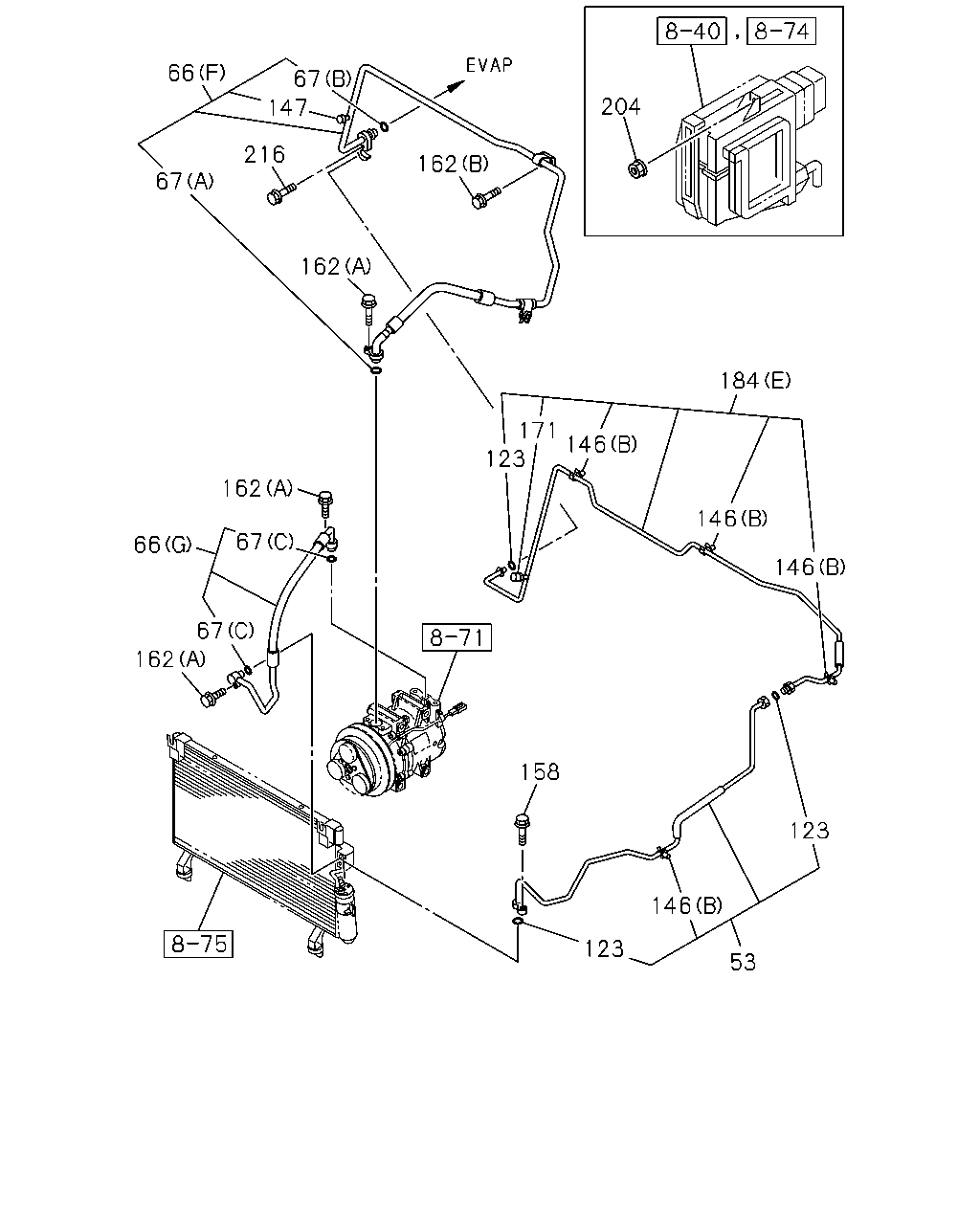

8-52 — PIPING; AIR CONDITIONING (#77638) — 198 parça

66 67 204 147 216 162 67 162 184 171 123 146 162 146 67 66 146 67 162 158 123 146 123 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97378-434-0	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97383-574-2	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98002-536-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-98002-527-0	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97363-903-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0610-	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97376-622-0	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0709	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●

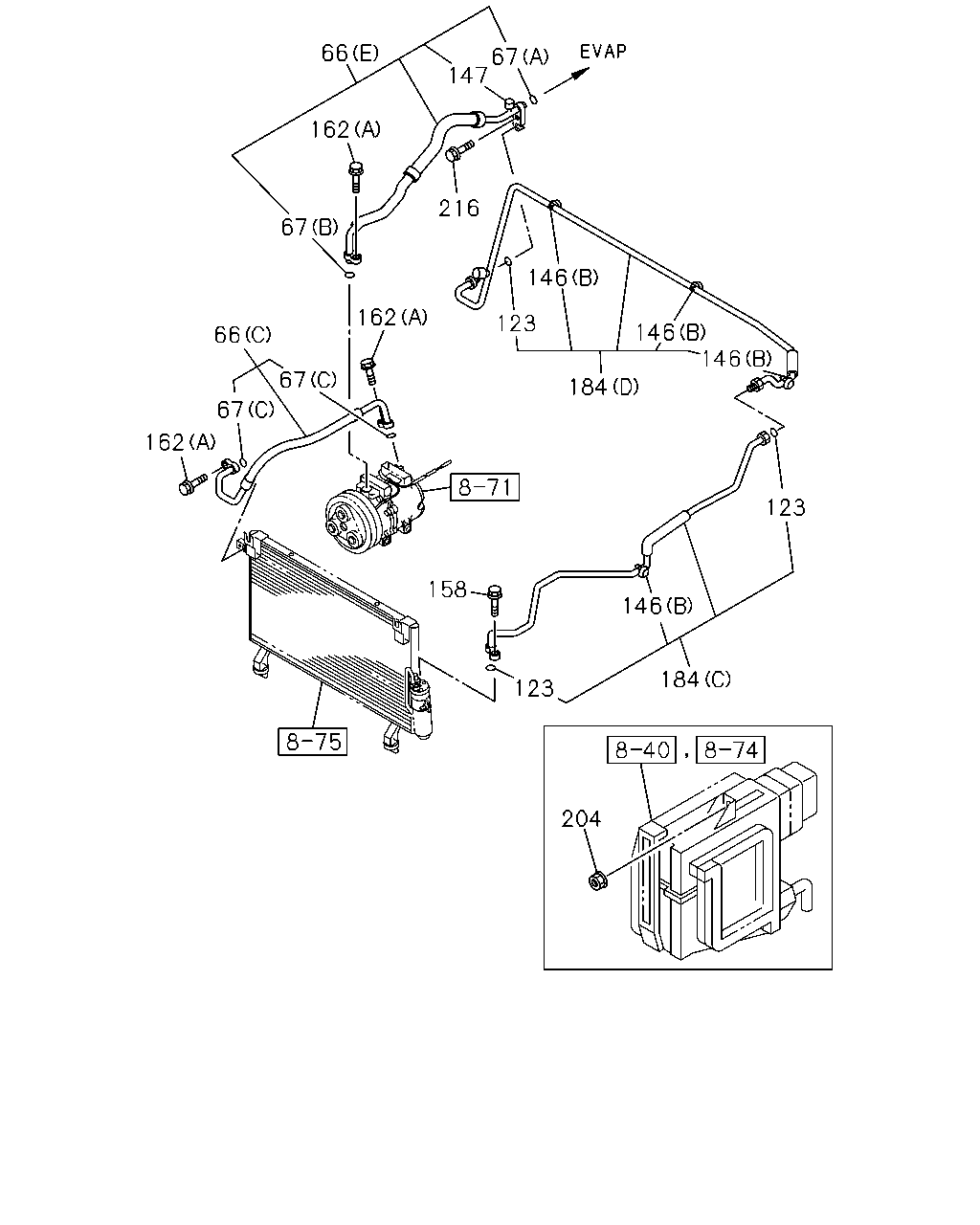

66 67 147 162 216 67 146 162 123 146 146 66 67 184 67 162 123 158 146 184 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97383-574-2	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98002-536-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-98002-527-0	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97363-903-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0610-	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0709	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●

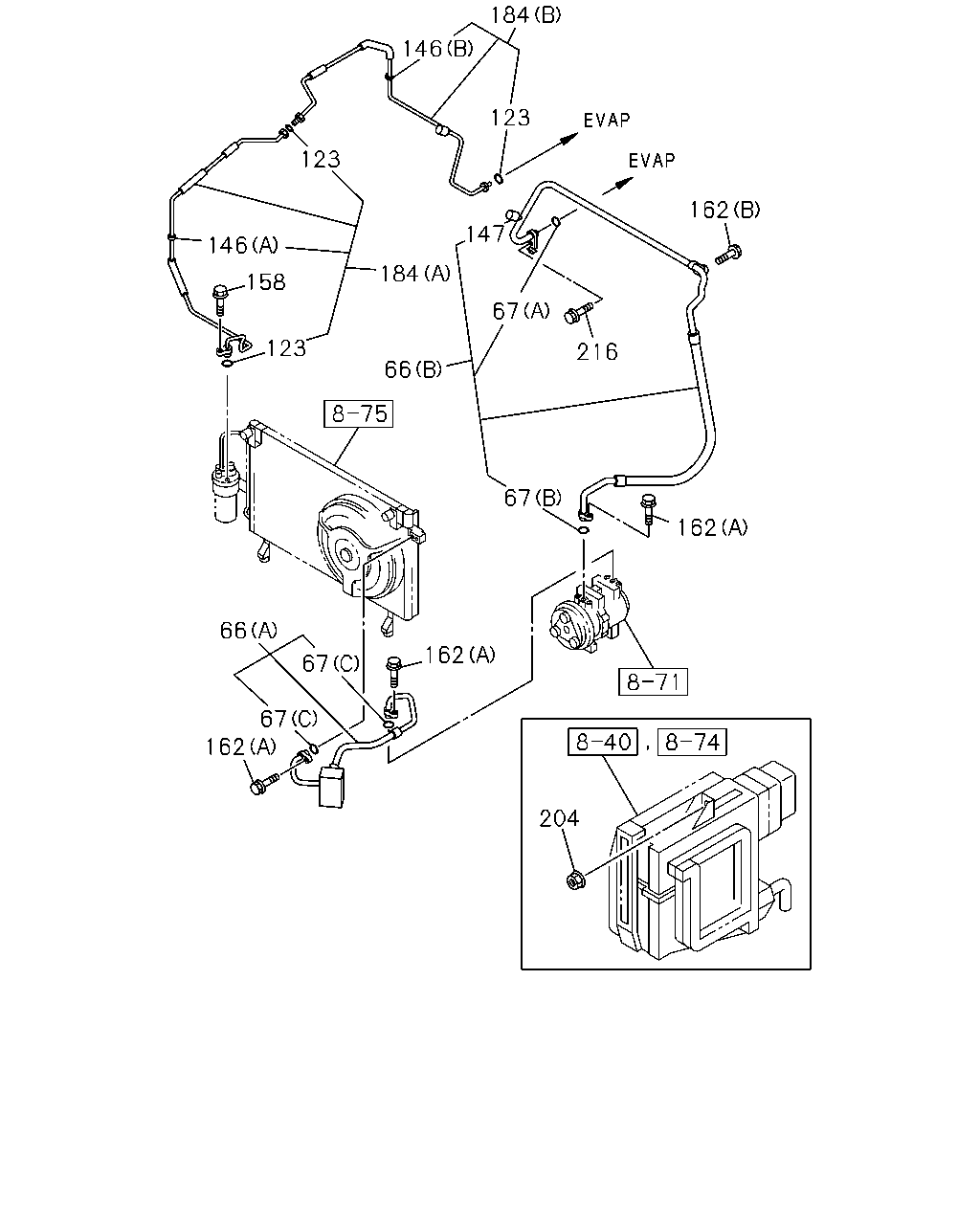

66 67 147 162 216 67 146 66 162 123 146 146 67 67 184 162 123 158 146 184 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97383-574-2	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98002-536-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-98002-527-0	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97363-903-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0610-	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0709	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●

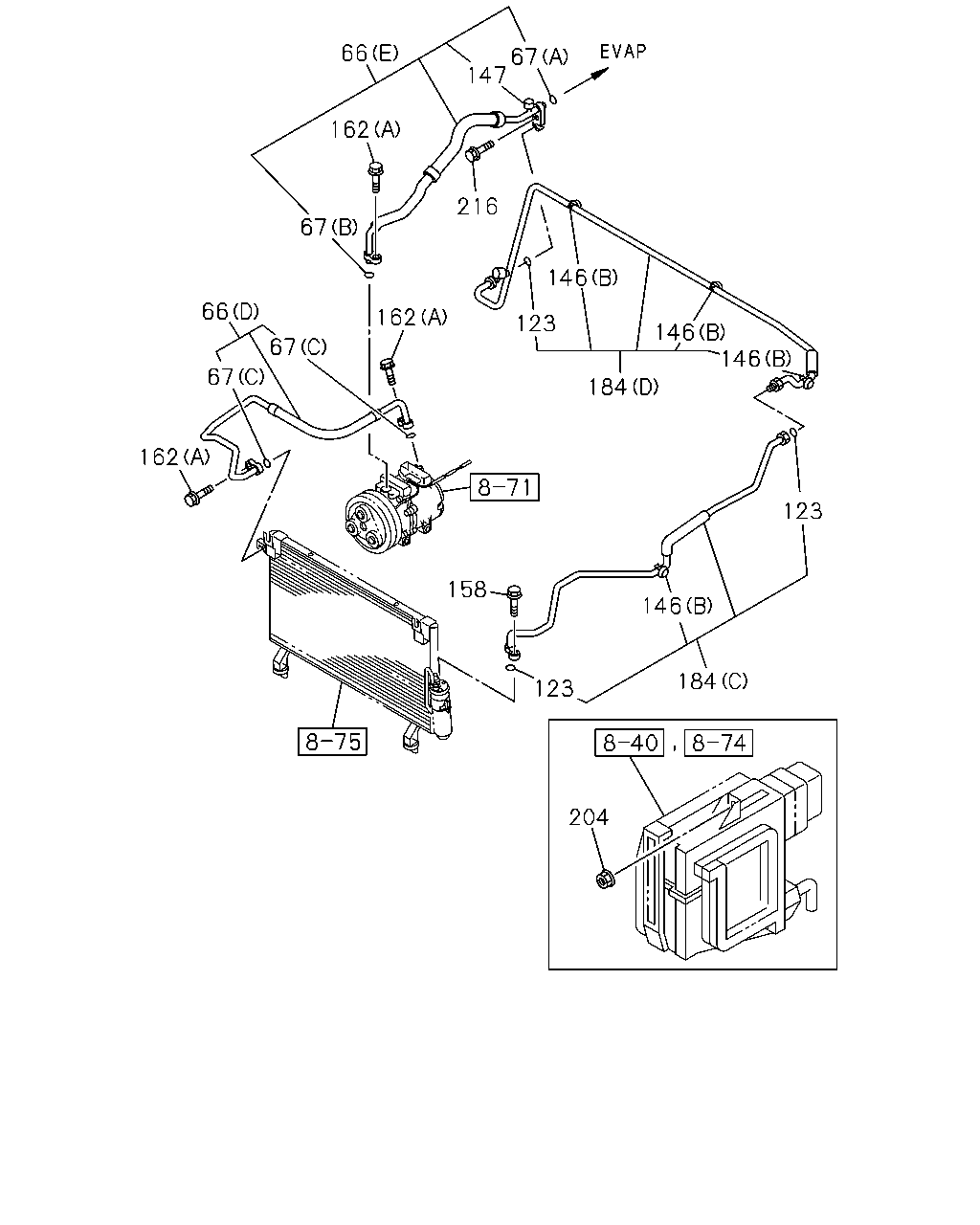

184 146 123 123 162 147 146 184 158 67 123 216 66 67 162 66 162 67 67 162 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97383-574-2	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-779-1	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98002-535-0	01	1	0501-1011	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98185-645-0	01	1	1012-	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97363-310-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-98002-532-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97234-781-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-98002-536-0	01	1	0501-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97364-084-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-98002-527-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-98002-527-0	01	1	0610-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (F)	8-97363-724-0	01	1	0306-0412	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-98002-537-0	01	1	0501-0609	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (G)	8-97363-903-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97321-351-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97321-352-0	01	1	0610-	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0306-0609	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97321-353-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	01	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	02	1	0610-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0306-0609	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) SCAL	8-97919-270-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	01	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	03	1	0610-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97355-792-0	01	1	0306-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0306-0609	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97354-058-0	04	1	0610-	●	●	●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0501-0609	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-97386-623-0	01	1	0610-	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0306-	●	●	●	●
162	09.173 BOLT; FLEX HOSE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0306-0609	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E)	8-97383-575-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-97234-594-2	01	1	0306-0709	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A)	8-98089-489-0	01	1	0710-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B)	8-97362-296-0	01	1	0306-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C)	8-97234-597-1	01	1	0610-	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0306-0609	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (D)	8-97316-031-1	01	1	0610-	●	●	●	●
204	09.216 NUT 07.833 M6 FLANGE	8-97063-399-0	02	1	0306-0609	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0610-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0306-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
