◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#77637) — 103 parça

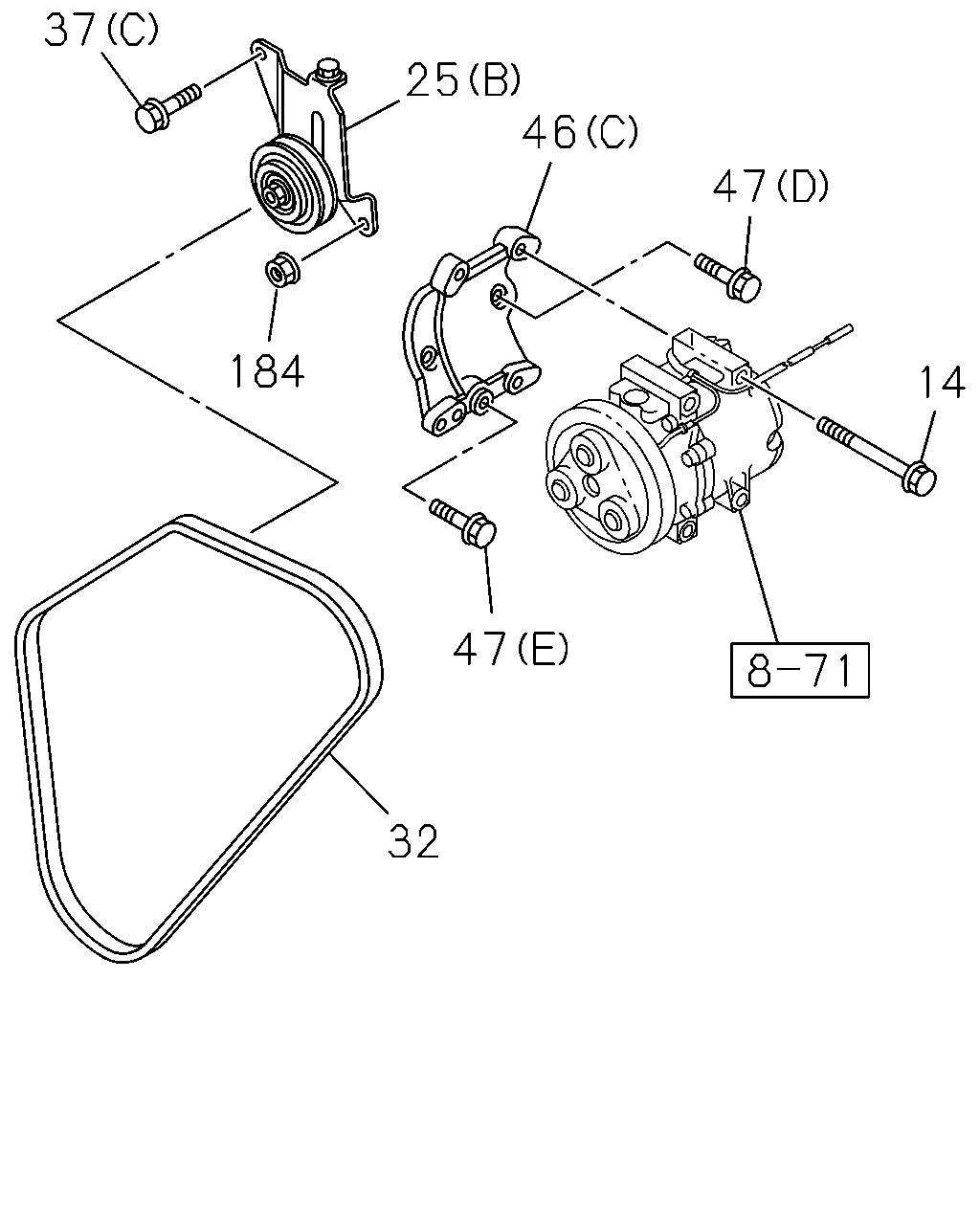

çizim 160645
37 25 46 47 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28181-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0602-0609 ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) 1-GROOVE 		8-98051-011-0 01 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-92066-142-0 01 1 0306- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0306-0609 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0610- ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=918 		8-92063-696-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) BANDO 		8-97944-138-0 01 1 0610- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0306-0609 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) MITSUBOSHI 		8-97944-104-0 01 1 0610-0711 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0712- ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0306-0609 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0306-0609 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0610- ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-563-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-564-0 01 1 0306-0609 ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-97371-258-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (A) M10X45 FLANGE 		0-28051-045-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E) M8X35 FLANGE 		8-98049-562-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0610- ● ● ● ●

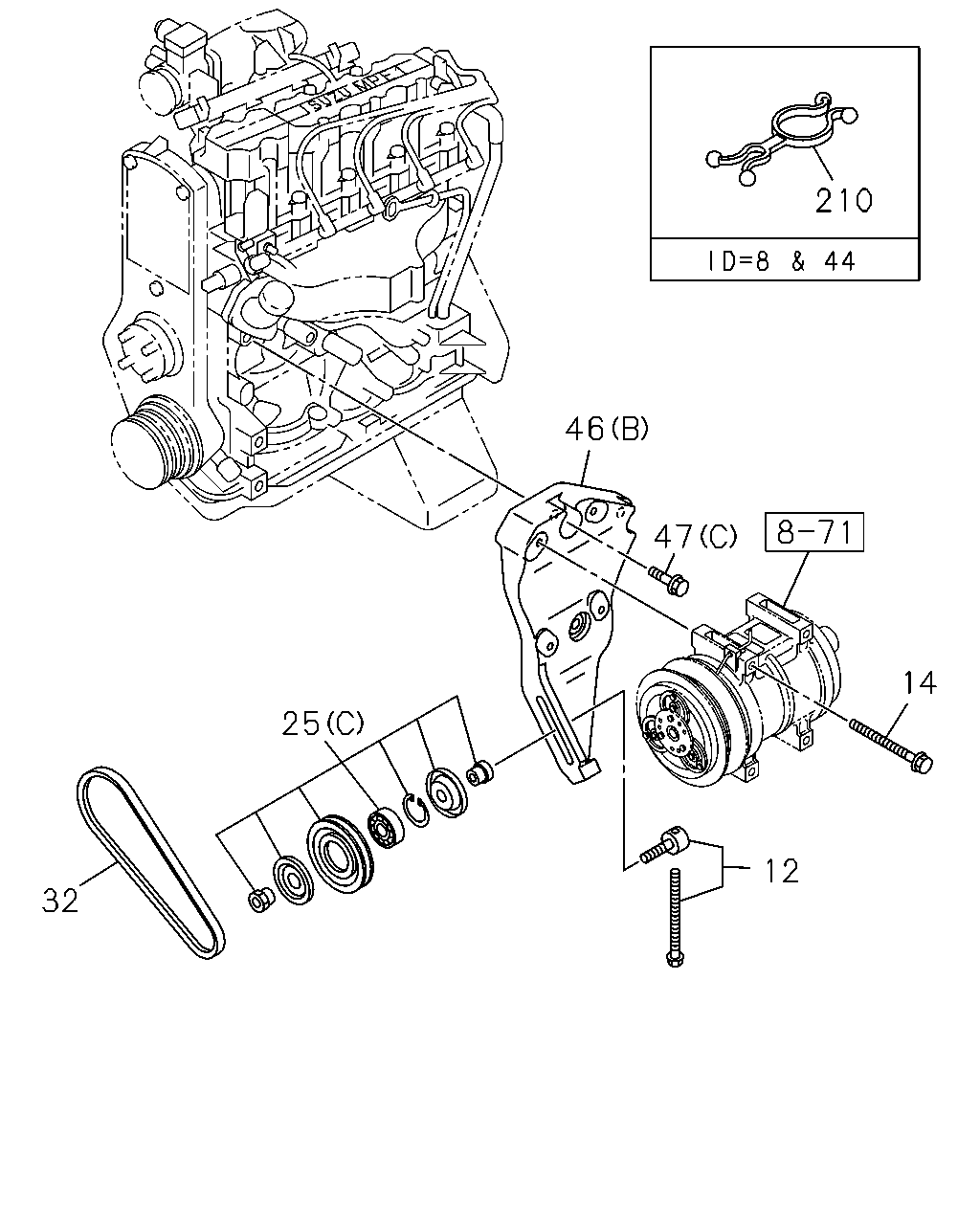

çizim 160667
210 46 47 14 25 12 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 09.181 BOLT; ADJ,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 		8-92066-139-0 01 1 0306- ● ● ● ●
14 09.171 BOLT; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28181-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0602-0609 ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) 1-GROOVE 		8-98051-011-0 01 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-92066-142-0 01 1 0306- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0306-0609 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0610- ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=918 		8-92063-696-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) BANDO 		8-97944-138-0 01 1 0610- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0306-0609 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) MITSUBOSHI 		8-97944-104-0 01 1 0610-0711 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0712- ● ● ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-563-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-564-0 01 1 0306-0609 ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-97371-258-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (A) M10X45 FLANGE 		0-28051-045-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E) M8X35 FLANGE 		8-98049-562-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ● ● ● ●
210 09.242 CLIP; HARNESS
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.559 		8-94109-862-0 01 1 0306- ● ● ● ●

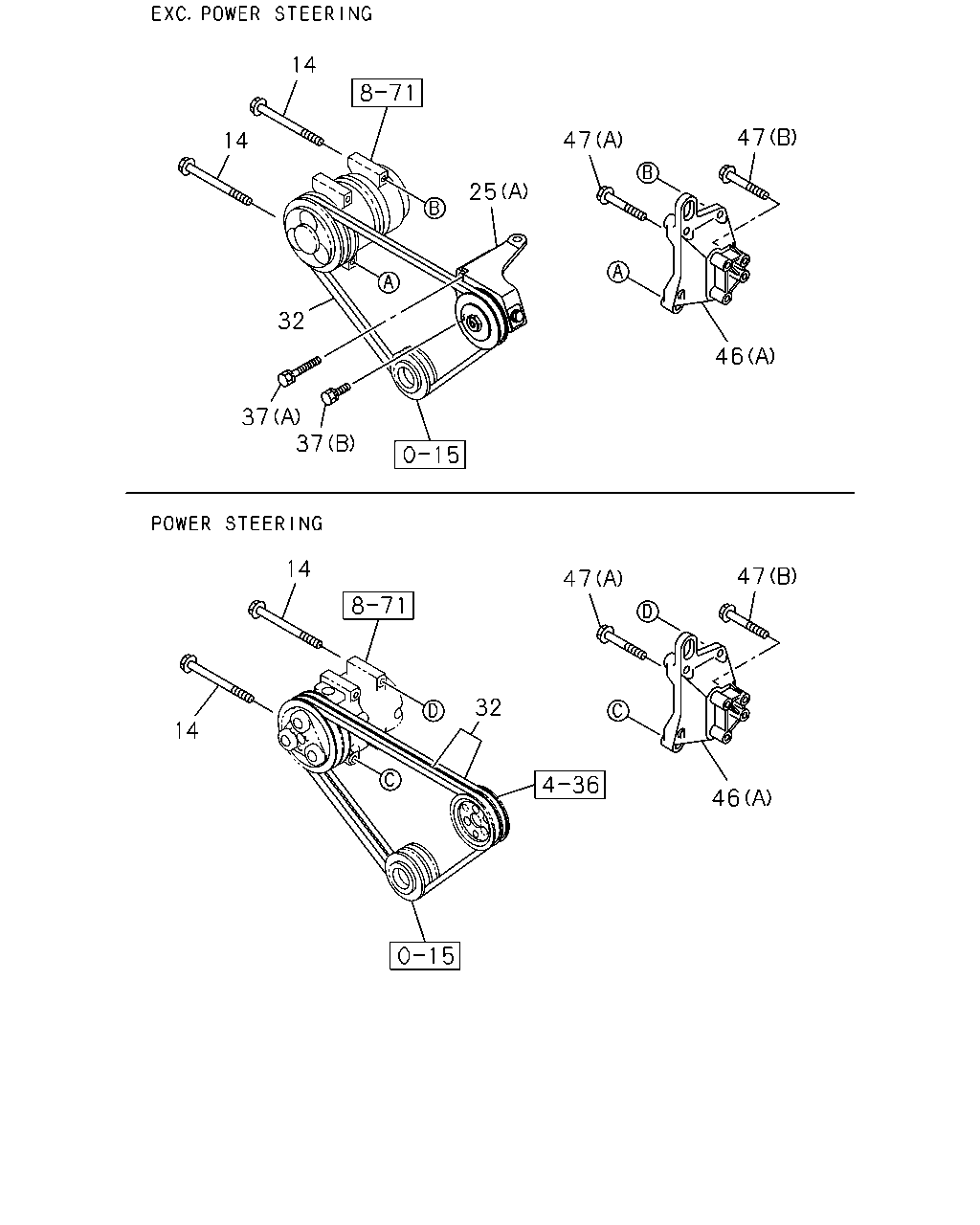

çizim 160732
14 47 47 14 25 32 46 37 37 14 47 47 32 14 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28181-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0306-0601 ● ● ● ●
14 09.171 BOLT; CMPR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0602-0609 ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) 1-GROOVE 		8-98051-011-0 01 1 0610- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-92066-142-0 01 1 0306- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0306-0609 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) 		8-97943-806-0 01 1 0610- ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=918 		8-92063-696-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0306- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0306- ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE BANDO 		8-97942-725-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) BANDO 		8-97944-138-0 01 1 0610- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) POWER STEERING<N40> L=1537 1 SET=2 PIECE(8979427240) MITSUBOSHI 		8-97942-729-0 01 1 0306-0609 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0306-0609 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) MITSUBOSHI 		8-97944-104-0 01 1 0610-0711 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0712- ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0306-0609 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0306-0609 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0610- ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-563-0 01 1 0306- ● ● ● ●
46 09.171 BRACKET; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) 		8-97358-564-0 01 1 0306-0609 ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) 		8-97371-258-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 00.685 (A) M10X45 FLANGE 		0-28051-045-0 02 1 0306- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (B) M8X45 FLANGE 		0-28050-845-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (E) M8X35 FLANGE 		8-98049-562-0 01 1 0610- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (A) M10X50 FLANGE 		0-28051-050-0 02 1 0306-0609 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ● ● ● ●
