Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#77636) — 223 parça

13 27 13 13 25 13 27 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (B) ID=23	8-94382-402-0	01	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98007-113-2	01	1	0610-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-97363-629-0	01	1	0306-0412	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98002-550-0	01	1	0501-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98007-111-2	01	1	0610-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-97236-496-1	01	1	0306-0412	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98002-543-0	01	1	0501-	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0610-	●	●	●	●

13 9 13 26 26 13 13 13 18 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98011-492-1	01	1	0610-0611	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98011-492-1	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98011-513-1	01	1	0610-0611	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98011-513-1	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97365-292-0	01	1	0306-0609	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97365-292-0	01	1	0610-0703	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98065-378-0	01	1	0704-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (B) ID=23	8-94382-402-0	01	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0306-0609	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-98011-630-0	01	1	0610-0611	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-98011-630-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-97369-664-0	01	1	0306-0609	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-97369-664-0	01	1	0610-	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) INLET	8-97369-665-0	01	1	0306-0609	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) INLET	8-97369-665-0	01	1	0610-	●	●	●	●

13 25 13 27 13 13 13 17 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (B) ID=23	8-94382-402-0	01	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0610-0709	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0610-0709	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0610-0709				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	0710-0809	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0710-0809	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	0710-0809				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0810-1109	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0810-1109	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0810-1109				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	1110-	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	1110-	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	1110-				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0709	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-848-0	01	1	0710-0809	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1109	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-848-0	01	1	1110-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) POWER STEERING<N40> (B)	8-98036-953-0	01	1	0610-0709	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0610-0709				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (B)	8-98036-953-0	01	1	0710-0809	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-953-0	01	1	0710-0809				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) POWER STEERING<N40> (B)	8-98036-953-0	01	1	0810-1109	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0810-1109				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (B)	8-98036-953-0	01	1	1110-	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-953-0	01	1	1110-				●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0306-0609	●	●	●	●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0610-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98007-113-2	01	1	0610-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-97363-629-0	01	1	0306-0412	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98002-550-0	01	1	0501-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98007-111-2	01	1	0610-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-97236-496-1	01	1	0306-0412	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98002-543-0	01	1	0501-	●	●	●	●

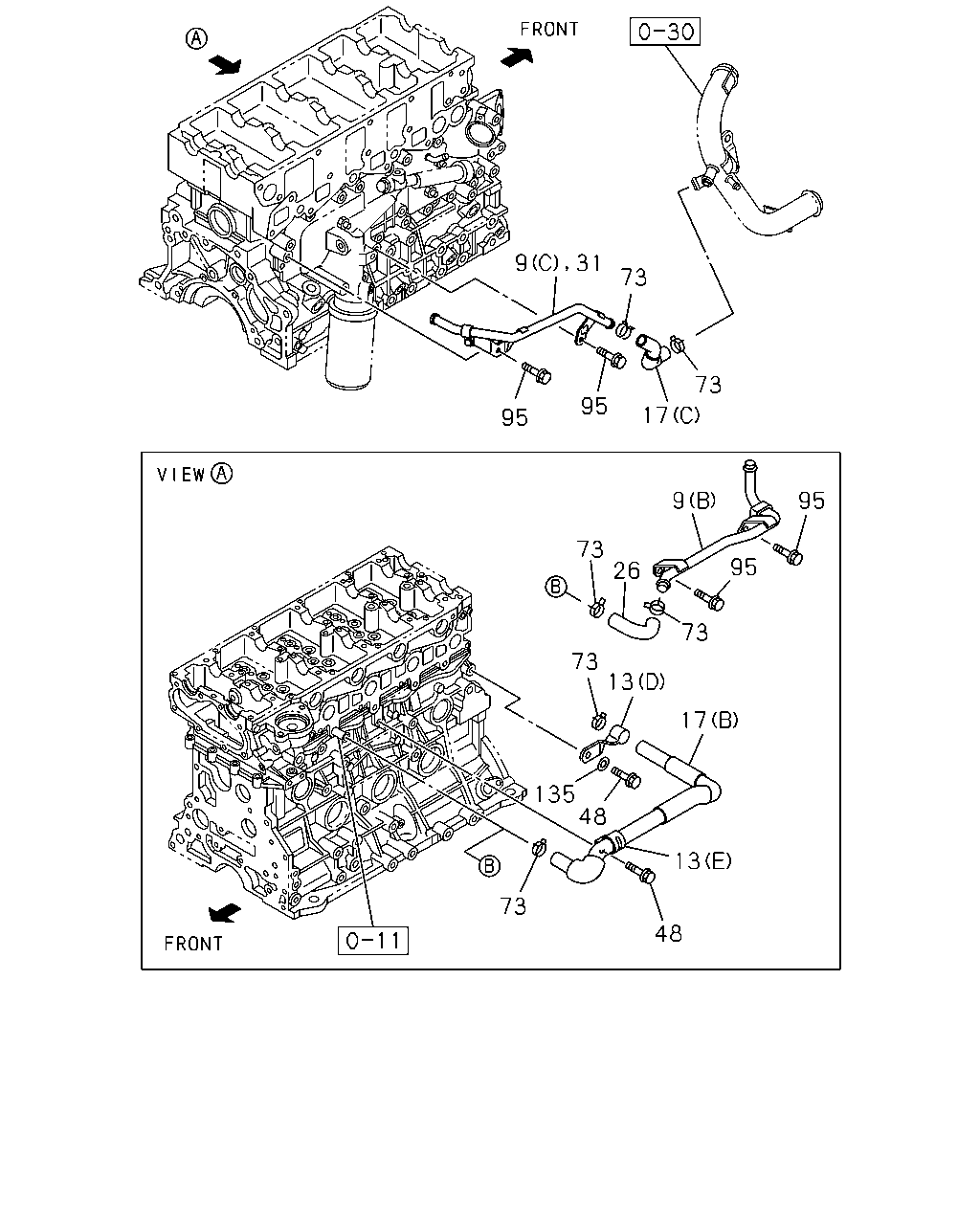

73 73 95 17 95 9 95 73 26 95 73 73 13 17 135 48 13 73 48 9 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98011-492-1	01	1	0610-0611	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C)	8-98011-492-1	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98011-513-1	01	1	0610-0611	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98011-513-1	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97365-292-0	01	1	0306-0609	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97365-292-0	01	1	0610-0703	●	●	●	●
9	08.846 PIPE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98065-378-0	01	1	0704-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) (B) ID=23	8-94382-402-0	01	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=23	8-94382-402-0	01	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0306-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	0610-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0306-0508	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0509-0609	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0610-1004	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0610-0709	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0610-0709	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0610-0709				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	0710-0809	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0710-0809	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	0710-0809				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0810-1109	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	0810-1109	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.163 (C)	8-98031-860-0	01	1	0810-1109				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	1110-	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.163 (C)	8-98031-860-0	01	1	1110-	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.163 (C)	8-98031-860-0	01	1	1110-				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0610-0709	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-848-0	01	1	0710-0809	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1109	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-848-0	01	1	1110-	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) POWER STEERING<N40> (B)	8-98036-953-0	01	1	0610-0709	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0610-0709				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (B)	8-98036-953-0	01	1	0710-0809	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-953-0	01	1	0710-0809				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) POWER STEERING<N40> (B)	8-98036-953-0	01	1	0810-1109	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0810-1109				●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (B)	8-98036-953-0	01	1	1110-	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (B)	8-98036-953-0	01	1	1110-				●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0306-0609	●	●	●	●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (A)	8-97181-424-0	01	1	0610-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-98011-630-0	01	1	0610-0611	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-98011-630-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-97369-664-0	01	1	0306-0609	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) OUTLET	8-97369-664-0	01	1	0610-	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) INLET	8-97369-665-0	01	1	0306-0609	●	●	●	●
26	08.846 HOSE; HTR 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) INLET	8-97369-665-0	01	1	0610-	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	0610-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-0709	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-0709	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-0709				●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-0809	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-0809	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-0809				●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-1109	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-1109	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-1109				●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1110-	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1110-	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1110-				●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ID=20.8	8-97944-127-0	04	1	0610-0709	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> ID=20.8	8-97944-127-0	04	1	0610-0709	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ID=20.8	8-97944-127-0	04	1	0610-0709				●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> ID=20.8	8-97944-127-0	04	1	0710-0809	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> ID=20.8	8-97944-127-0	04	1	0710-0809	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> ID=20.8	8-97944-127-0	04	1	0710-0809				●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ID=20.8	8-97944-127-0	04	1	0810-1109	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> ID=20.8	8-97944-127-0	04	1	0810-1109	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ID=20.8	8-97944-127-0	04	1	0810-1109				●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> ID=20.8	8-97944-127-0	04	1	1110-	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> ID=20.8	8-97944-127-0	04	1	1110-	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> ID=20.8	8-97944-127-0	04	1	1110-				●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709				●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-0809	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-0809	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-0809				●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-1109	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-1109	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-1109				●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1110-	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1110-	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1110-				●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
