◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#77633) — 102 parça
çizim 160646
25 25 25 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0509-1109 ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ●
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0609 ● ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0610-1109 ● ● ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ●
çizim 160647
25 25 25 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0509-1109 ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ●
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0609 ● ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0610-1109 ● ● ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ●

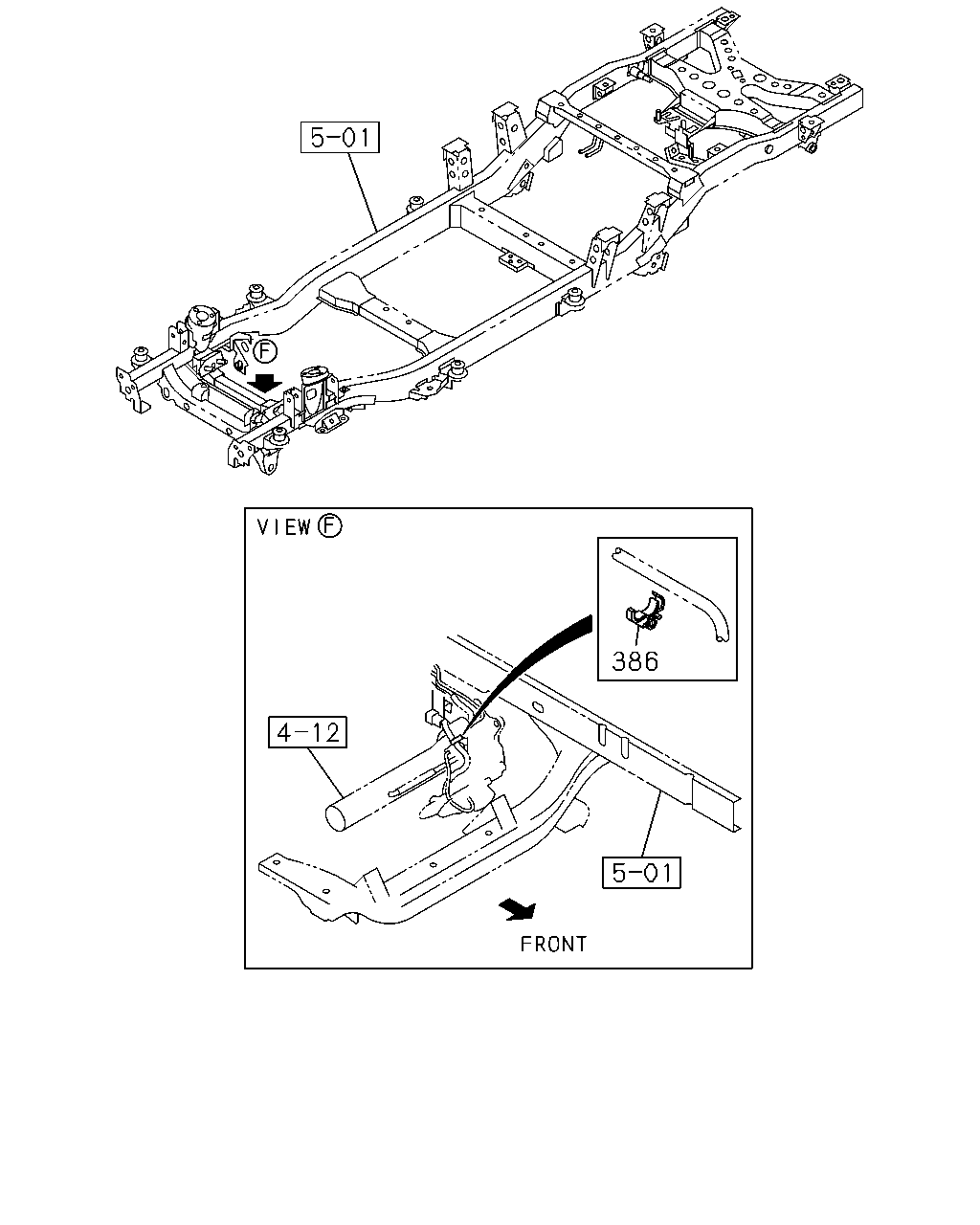

çizim 160658
386
BalonParca AdiParca NoAdetTipApplied Date A B C D
386 02.559 CLIP; HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0306-0402 ● ●
386 02.559 CLIP; HARNESS
SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0403-0508 ● ●
386 02.559 CLIP; HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0509-0609 ● ●
386 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0610- ● ●

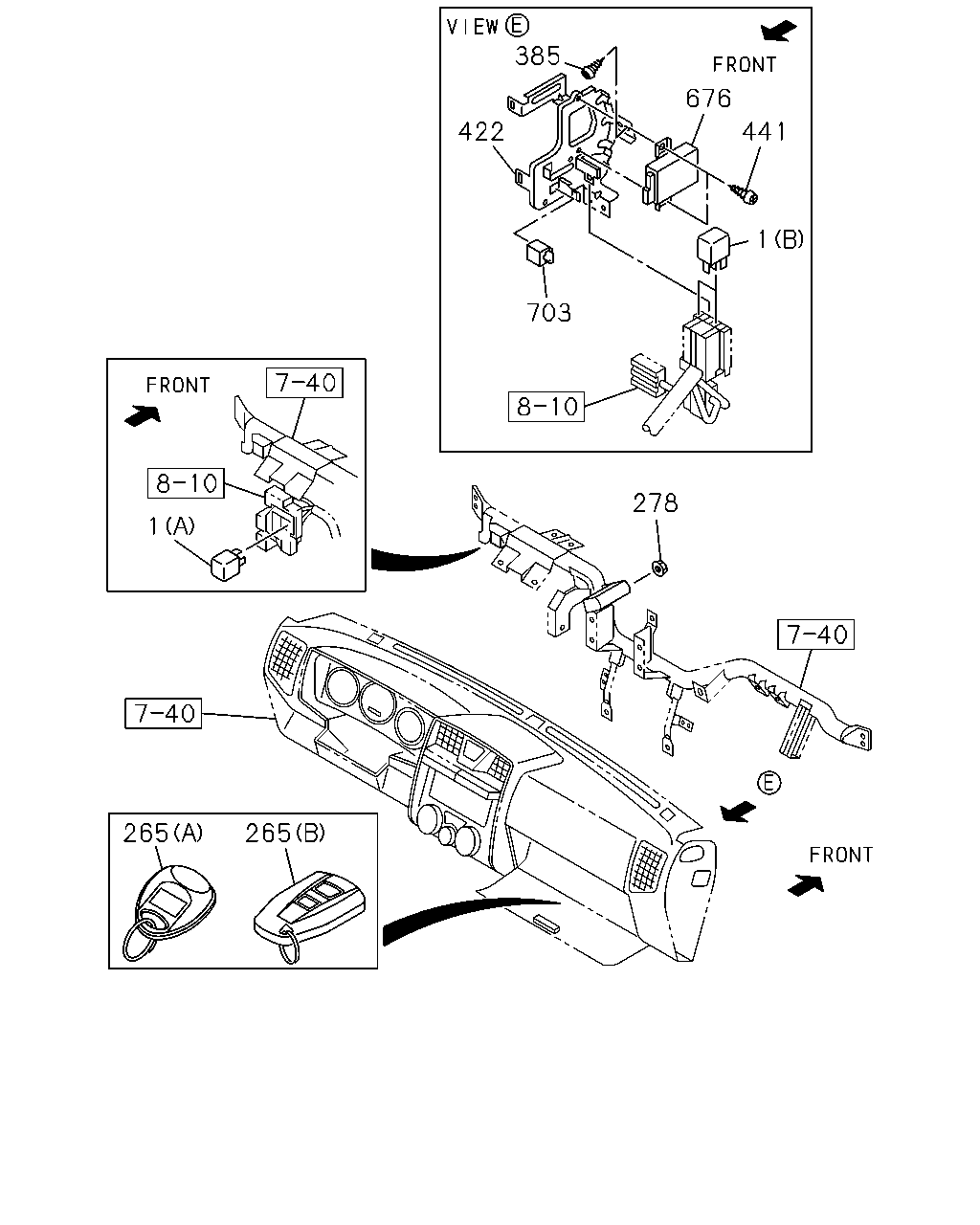

çizim 160670
385 676 422 441 1 703 278 1 265 265
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0306-0502 ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 09.778 (B) 12V YAZAKI 		8-97309-293-0 02 1 0306-0502 ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 12V OMRON 		8-98005-407-0 02 1 0503-0508 ● ● ● ●
1 02.575 UNIT; FLASHER
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 12V OMRON 		8-98005-407-0 02 1 0503-0508 ● ● ● ●
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-97912-779-0 01 1 0306-0510 ● ● ● ●
1 02.575 UNIT; FLASHER
(A) 12V DENSO 		8-98032-675-0 01 1 0511-1404 ● ● ● ●
1 02.575 UNIT; FLASHER
(A) DENSO 		8-97202-225-1 01 1 1405- ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> (B) 		8-98000-035-0 01 1 0710- ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-90508-961-2 02 1 0306-0402 ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-90508-961-2 01 1 0403-0412 ● ● ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> (A) 		8-97378-442-0 01 1 0501-0508 ● ● ● ●
278 03.415 NUT; CONT UNIT
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710- ● ● ● ●
385 03.670 BOLT; CONT UNIT
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0612 ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97318-954-1 01 1 0306-0404 ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97381-411-0 01 1 0405- ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0710-1003 ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0306-0508 ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<AP5> 		8-98000-034-0 01 1 0710- ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-97361-705-0 01 1 0306-0508 ● ● ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0306- ● ●

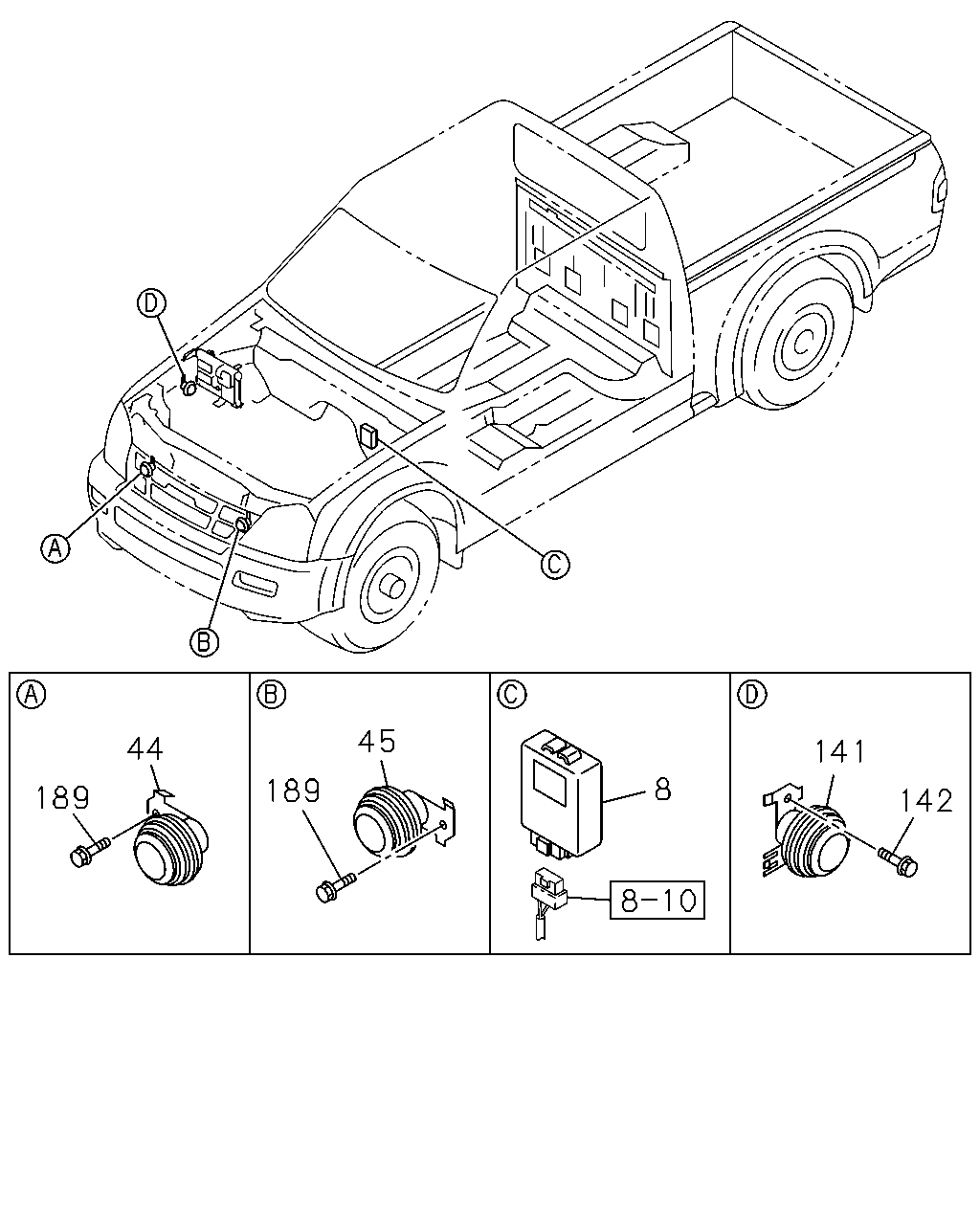

çizim 160682
45 44 141 8 189 189 142
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 12V 		8-97302-100-0 01 1 0306- ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97237-046-0 01 1 0306- ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97237-047-0 01 1 0306- ● ● ● ●
141 02.810 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97237-044-0 01 1 0306-0508 ● ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306-0508 ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0306- ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306- ● ● ● ●

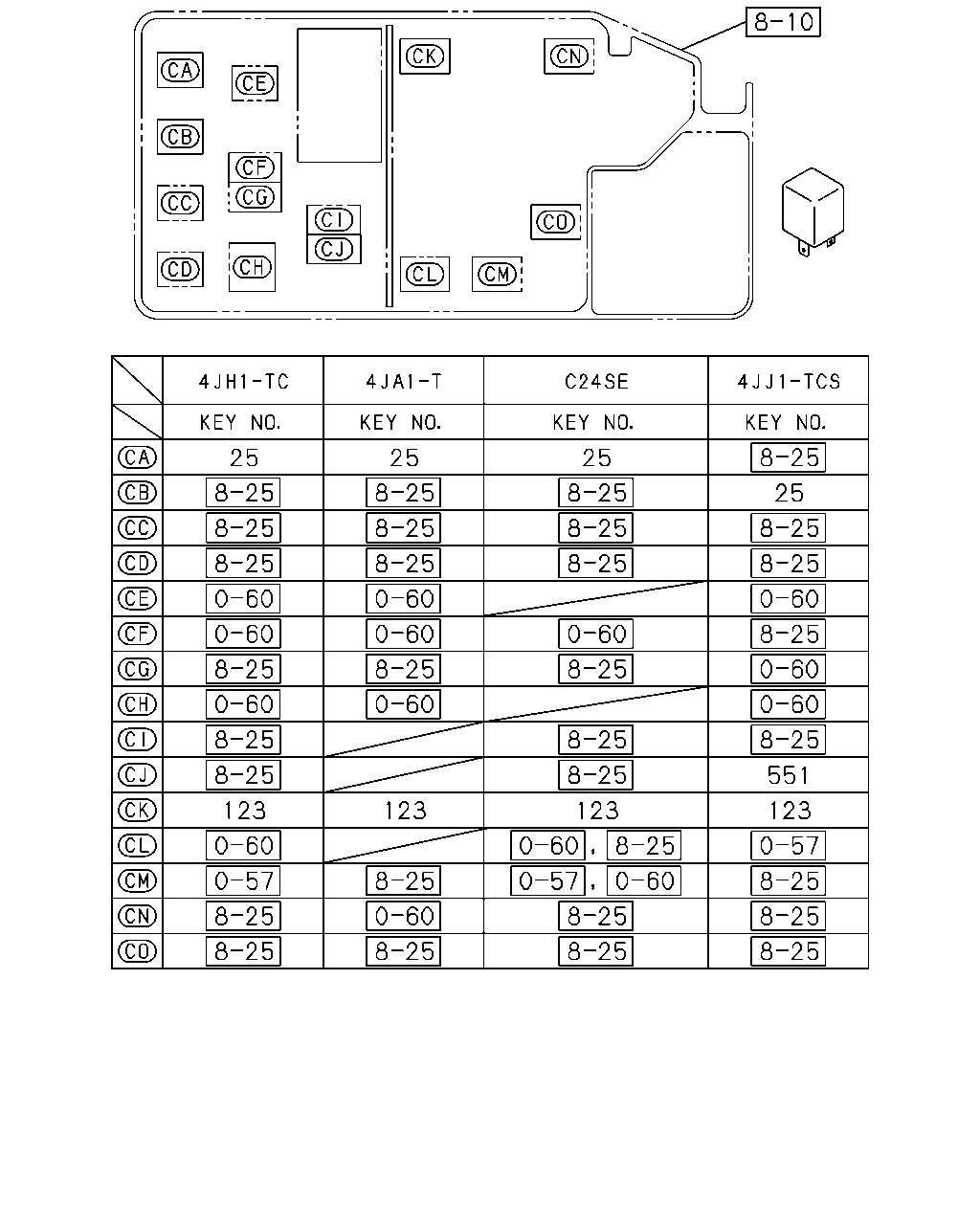

çizim 160733
25 25 25 25 551 123 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0509-1109 ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ● ●
25 02.100 RELAY; TAIL LAMP
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON 		8-98005-407-0 01 1 1110- ●
25 02.100 RELAY; TAIL LAMP
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0509-0609 ● ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0610-1109 ● ● ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ● ●
123 02.270 RELAY; HTR
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0609 ● ● ● ●
551 02.510 RELAY; TRANSMISSION
09.778 12V YAZAKI 		8-97309-293-0 01 1 0710- ● ● ● ●
551 02.510 RELAY; TRANSMISSION
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ● ● ● ●
