Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#77630) — 408 parça

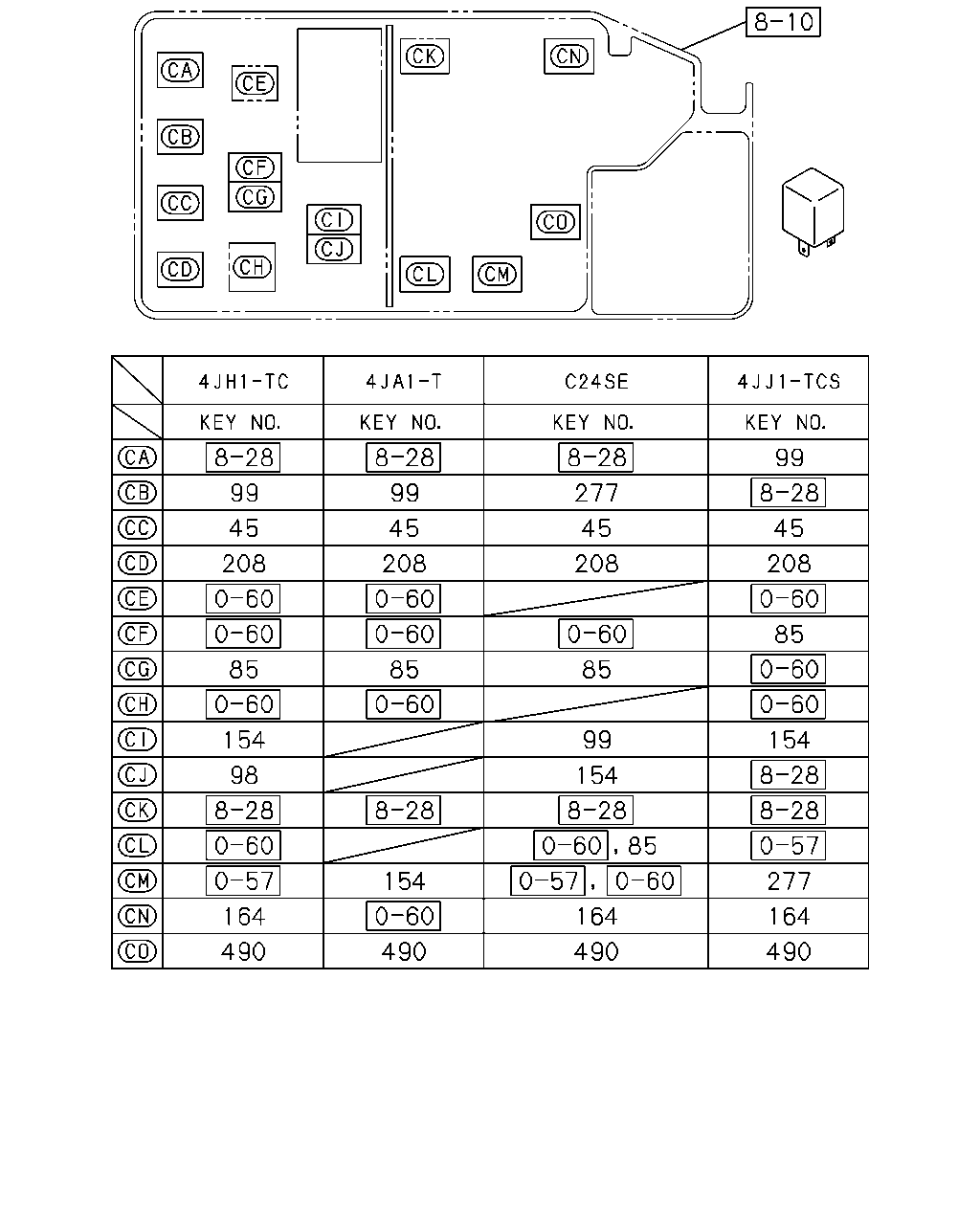

99 99 277 45 45 45 208 208 208 99 154 98 154 99 85 85 85 154 164 164 490 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0306-0508	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0306-1109	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●		●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●

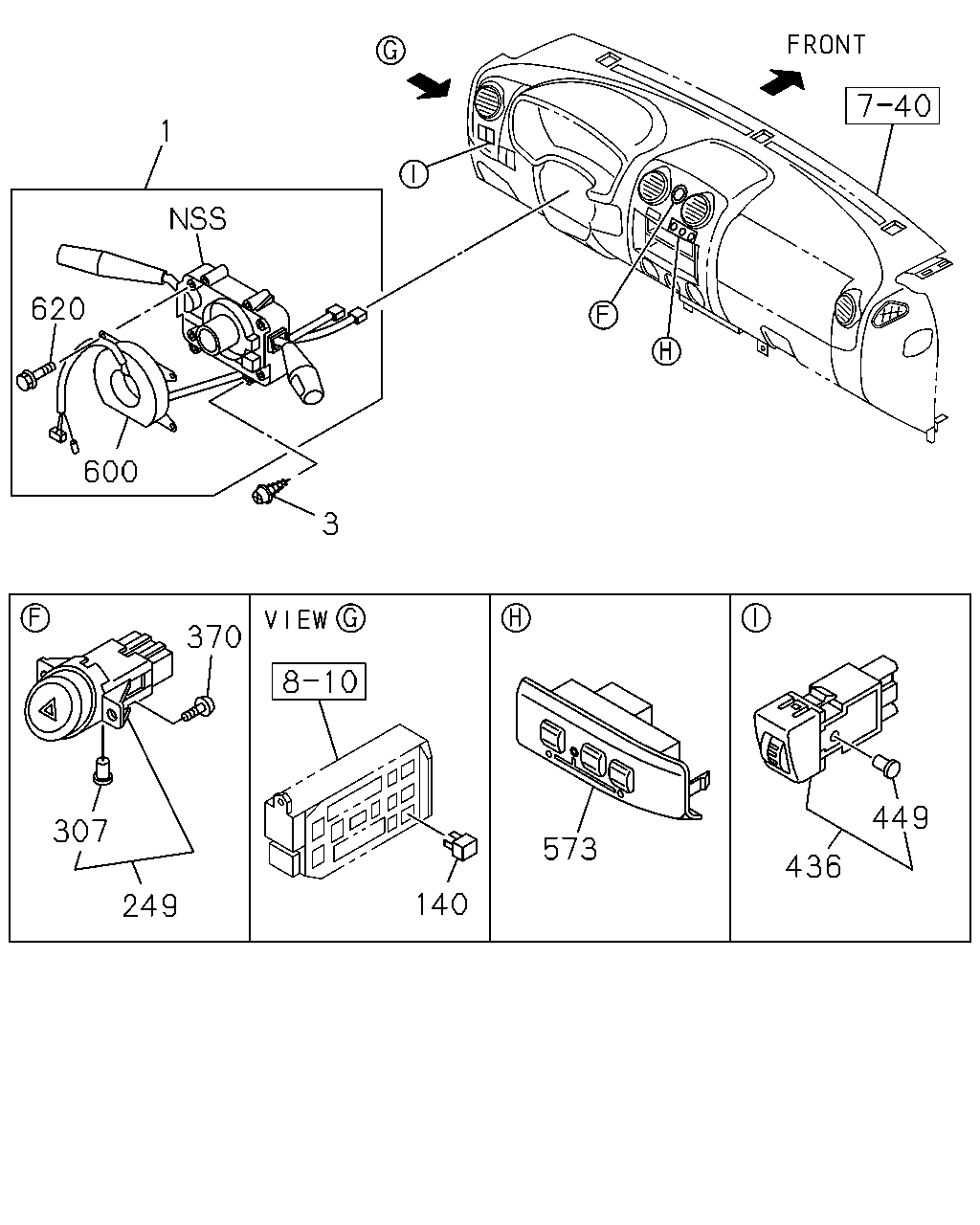

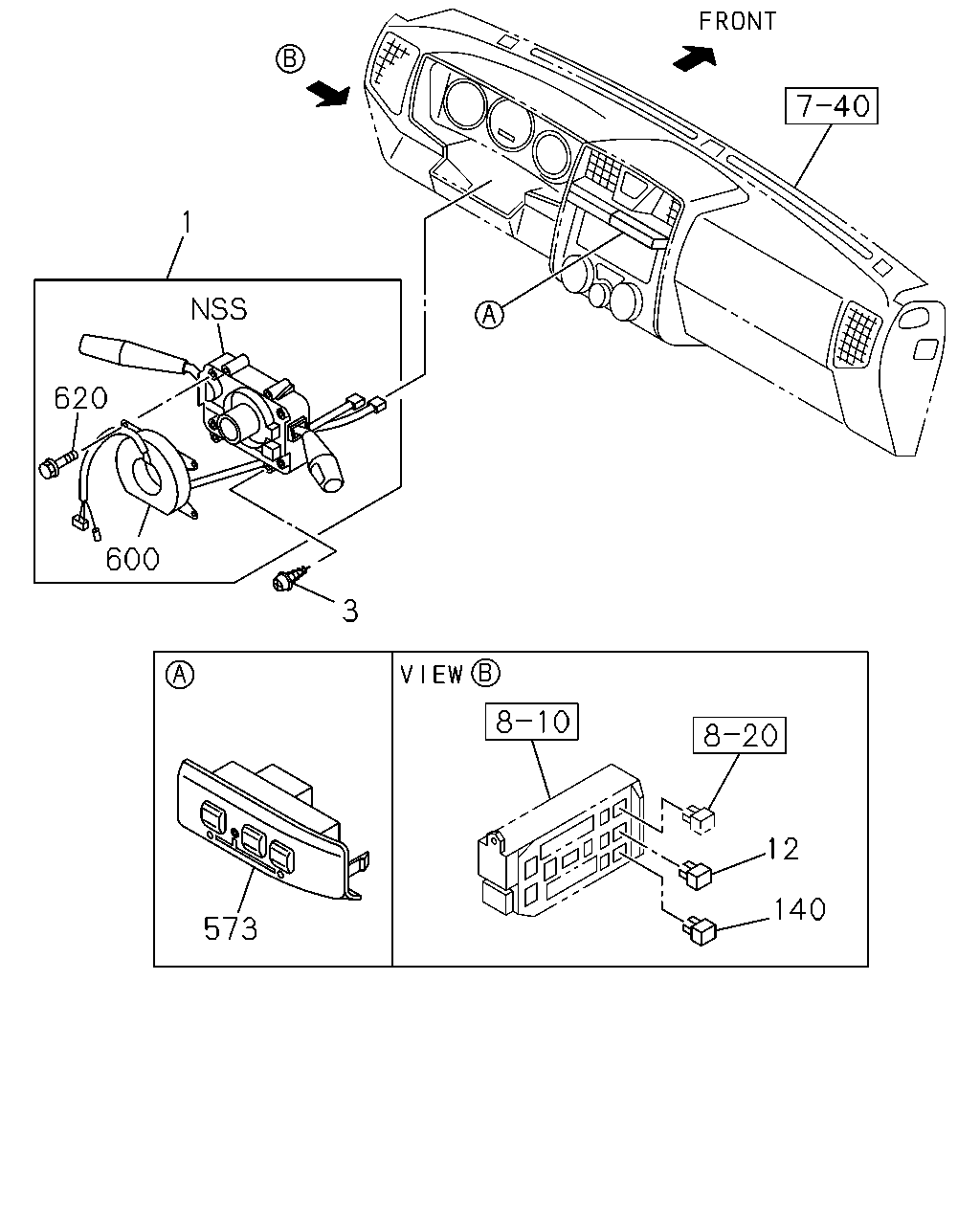

1 620 600 3 12 140 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-702-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-702-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-98007-728-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-695-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-695-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-98007-721-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-701-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-701-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-98007-727-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-696-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-696-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-98007-722-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-698-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-98007-724-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-692-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-98007-718-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-697-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-98007-723-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-691-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-98007-717-0	01	1	0610-	●	●	●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0306-0606	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0410-0609			●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-1003			●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-			●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0306-0409			●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0410-0609			●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-1003			●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-			●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0306-0508	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0509-0609	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98014-766-0	01	1	0610-	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0306-0508	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0509-	●	●	●	●

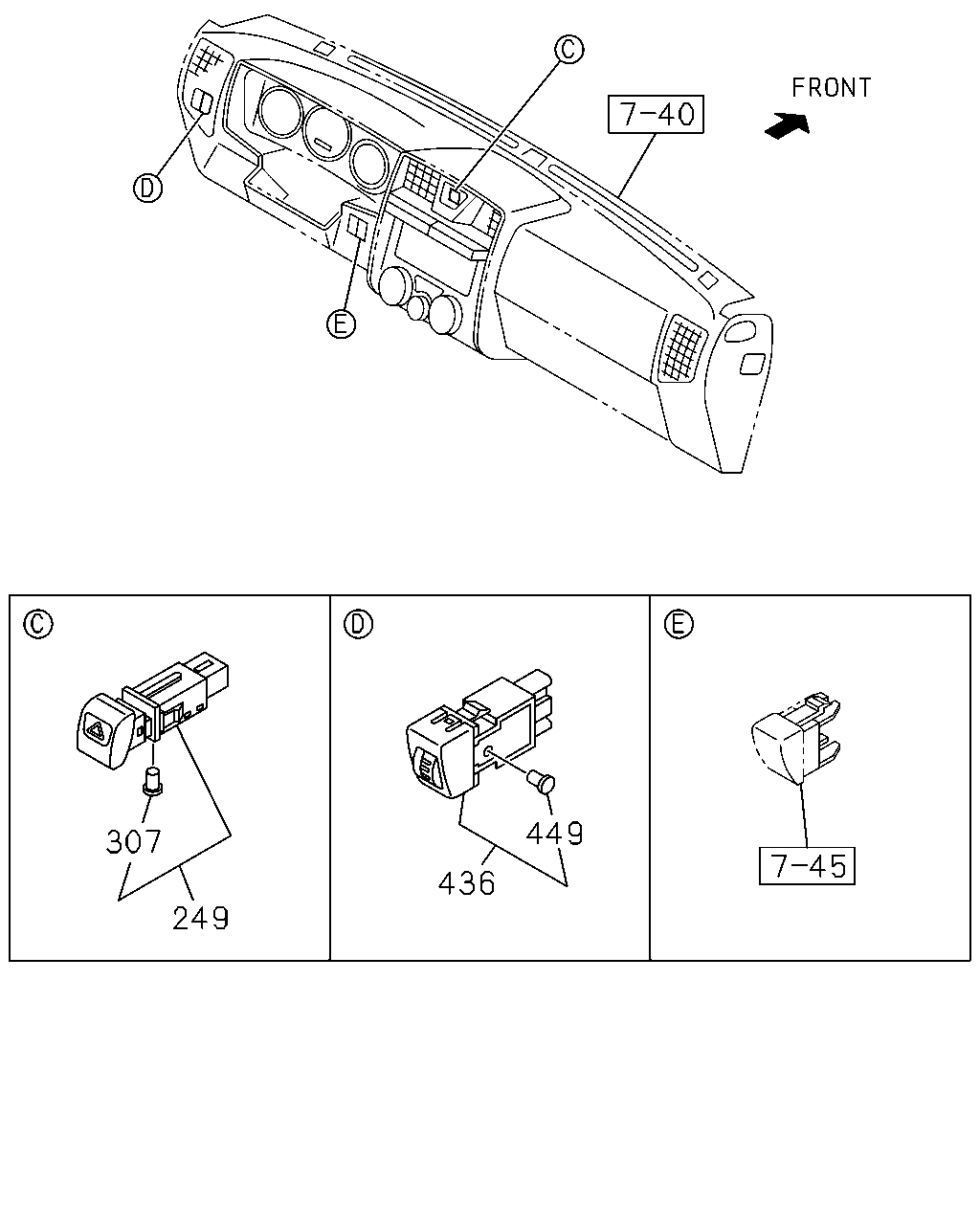

449 307 436 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0306-0609	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW 14V 0.91W	8-97327-526-0	01	1	0306-0609	●	●	●	●
307	08.991 BULB ASM; SW	8-98057-959-0	01	1	0610-	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0306-0609	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0306-1003	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●

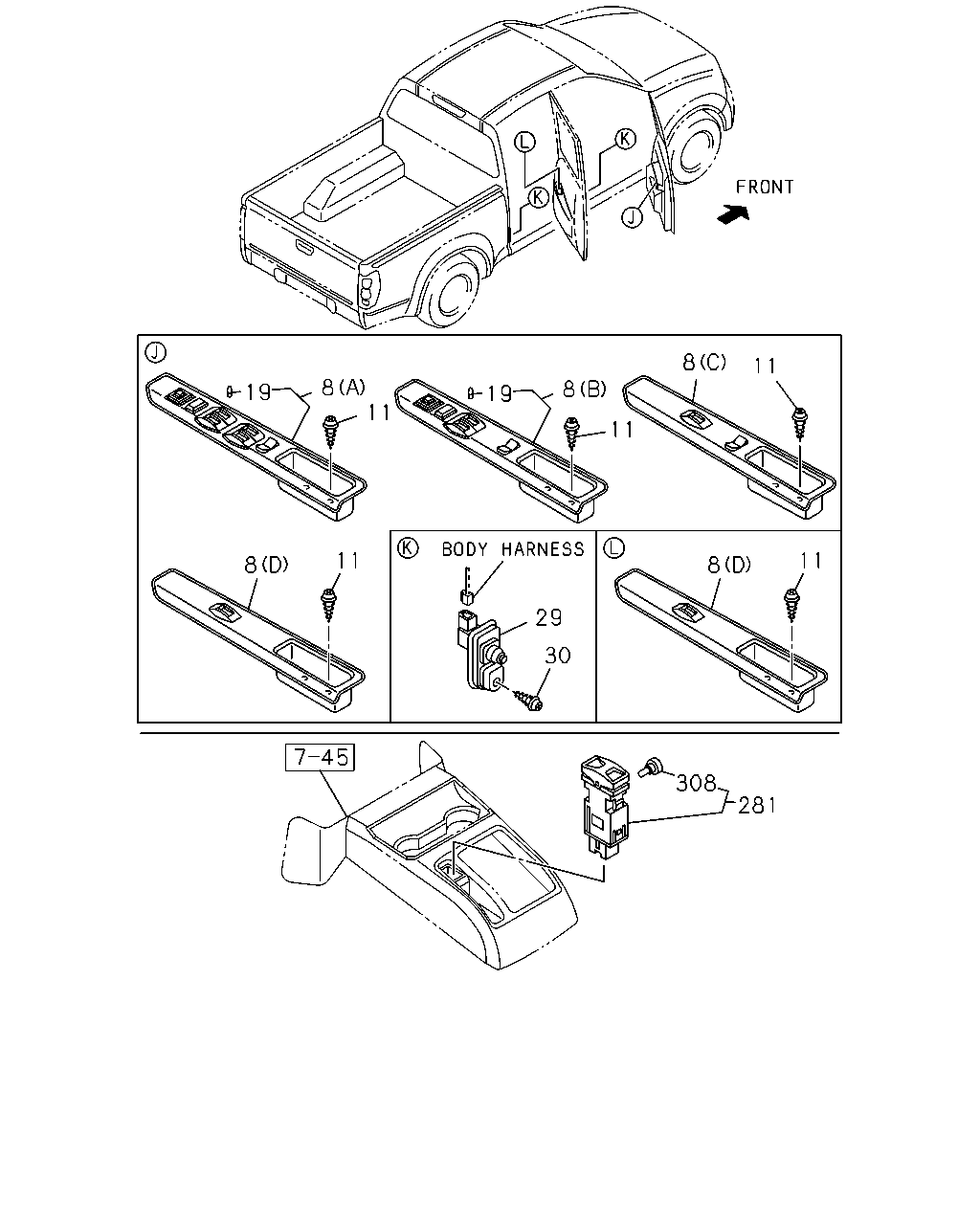

8 11 8 11 8 19 19 11 11 11 8 8 29 30 308 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY	8-97400-388-0	01	1	0410-0508	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) PASSENGER LIGHT GRAY	8-97400-389-0	01	1	0509-0609	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) PASSENGER LIGHT GRAY	8-97403-895-0	01	1	0610-1003	●	●	●	●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) PASSENGER LIGHT GRAY	8-97403-895-0	01	1	1004-	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) DRIVER LIGHT GRAY	8-97400-382-0	01	1	0410-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) DRIVER LIGHT GRAY	8-97400-748-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (B) DRIVER LIGHT GRAY	8-97403-692-0	01	1	0610-0709	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) DRIVER LIGHT GRAY	8-97408-586-0	01	1	0710-1003	●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) DRIVER LIGHT GRAY	8-97418-585-0	01	1	1004-	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) DRIVER LIGHT GRAY	8-97400-381-0	01	1	0410-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER LIGHT GRAY	8-97400-381-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0610-0709	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> (B) DRIVER LIGHT GRAY	8-97403-621-0	01	1	0710-1003	●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> (B) DRIVER LIGHT GRAY	8-97418-576-0	01	1	1004-	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-383-0	01	1	0410-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (A) DRIVER LIGHT GRAY	8-97400-751-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> (A) DRIVER LIGHT GRAY	8-97403-694-0	01	1	0610-0709		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) DRIVER LIGHT GRAY	8-97408-588-0	01	1	0710-1003		●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (D) DRIVER LIGHT GRAY	8-97418-590-0	01	1	1004-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY	8-97400-749-0	01	1	0410-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER LIGHT GRAY	8-97400-749-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0610-0709		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> (A) DRIVER LIGHT GRAY	8-97403-622-0	01	1	0710-1003		●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> (B) DRIVER LIGHT GRAY	8-97418-577-0	01	1	1004-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97298-473-0	01	1	0410-0502		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97400-392-0	01	1	0503-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97403-896-0	01	1	0610-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97298-474-0	01	1	0410-0502		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97400-394-0	01	1	0503-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) REAR LIGHT GRAY	8-97403-897-0	01	1	0610-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY	8-97396-114-0	01	1	0306-0409	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY	8-97396-114-0	01	1	0410-0508	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) PASSENGER DARK GRAY	8-97400-387-0	01	1	0509-0609	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> INTERIOR SILVER BEZEL<BY9> (D) PASSENGER DARK GRAY	8-97403-894-0	01	1	0610-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) DRIVER DARK GRAY	8-97396-537-0	01	1	0306-0409	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97396-537-0	01	1	0410-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97400-747-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97403-691-0	01	1	0610-0709	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97408-585-0	01	1	0710-1003	●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97418-584-0	01	1	1004-	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B) DRIVER DARK GRAY	8-97396-536-0	01	1	0306-0409	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> (B) DRIVER DARK GRAY	8-97396-536-0	01	1	0410-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIR ROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER DARK GRAY	8-97396-536-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIR ROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER DARK GRAY	8-97403-619-0	01	1	0610-0709	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) DRIVER DARK GRAY	8-97403-619-0	01	1	0710-1003	●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) DRIVER DARK GRAY	8-97418-574-0	01	1	1004-	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) REAR DARK GRAY	8-97392-410-0	01	1	0306-0409		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97392-410-0	01	1	0410-0502		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97400-390-0	01	1	0503-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97400-753-0	01	1	0610-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (D) REAR DARK GRAY	8-97392-411-0	01	1	0306-0409		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97392-411-0	01	1	0410-0502		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97400-391-0	01	1	0503-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9> (D) REAR DARK GRAY	8-97400-754-0	01	1	0610-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-539-0	01	1	0306-0409		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97396-539-0	01	1	0410-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97400-750-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,D OOR MIRROR ELECTRIC CONT BRIGHT<7HX>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SI GNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97403-693-0	01	1	0610-0709		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY	8-97408-587-0	01	1	0710-1003		●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY	8-97418-589-0	01	1	1004-		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-538-0	01	1	0306-0409		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> (A) DRIVER DARK GRAY	8-97396-538-0	01	1	0410-0508		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIR ROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER DARK GRAY	8-97396-538-0	01	1	0509-0609		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIR ROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER DARK GRAY	8-97403-620-0	01	1	0610-0709		●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) DRIVER DARK GRAY	8-97403-620-0	01	1	0710-1003		●		●
8	16.263 SWITCH; POWER WINDOW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) DRIVER DARK GRAY	8-97418-575-0	01	1	1004-		●		●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0306-	●	●	●	●
11	03.885 BOLT; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14	8-94152-495-0	04	1	0306-		●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0306-0508	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31>	8-97327-881-0	01	1	0509-1003	●	●	●	●
19	08.991 BULB; POWER WINDOW SW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) POWER WINDOW FRT&REAR DOOR<A31>	8-98152-589-0	01	1	1004-	●	●	●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0306-0508	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	04	1	0306-0307		●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0306-0307	●		●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-	●	●	●	●
29	16.263 SWITCH; DOOR	8-97313-208-0	02	1	0308-		●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	0306-0307		●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0306-0307	●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0308-		●		●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY	8-97300-364-0	01	1	0306-0609	●	●		●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO(RMK) DARK GRAY	8-97396-692-0	01	1	0610-1003	●	●		●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO(RMK) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY	8-97418-478-0	01	1	1004-	●	●		●
308	08.991 BULB; SELECT SW A/T 4 SPEED-JATCO(RMK) 14V 0.84W	8-97329-092-0	01	1	0306-1003	●	●		●
308	08.991 BULB; SELECT SW A/T 4 SPEED-JATCO(RMK) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 14V 0.84W	8-98152-591-0	01	1	1004-	●	●		●

99 99 99 277 45 45 45 45 208 208 208 208 85 85 85 85 154 99 154 98 154 154 277 164 164 164 490 490 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0306-0508	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0306-1109	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●		●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●

99 99 277 45 45 45 208 208 208 99 154 154 85 85 85 154 164 164 490 490 490 98 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	02.252 RELAY; HORN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
45	02.252 RELAY; HORN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
45	02.252 RELAY; HORN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
45	02.252 RELAY; HORN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-294-0	01	1	0306-0508	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI	8-97309-292-0	01	1	0509-	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●	●	●	●
98	02.485 RELAY; RR FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
99	02.485 RELAY; FOG LAMP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
99	02.485 RELAY; FOG LAMP 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
154	09.277 RELAY; CONDENSER FAN 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
154	09.277 RELAY; CONDENSER FAN 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
164	02.510 RELAY; A/C COMPRESSOR C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI	8-97309-292-0	01	1	0306-1109	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●		●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-	●	●
208	02.485 RELAY; DIMMER & PASSING 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●	●
208	02.485 RELAY; DIMMER & PASSING 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 12V YAZAKI	8-97309-292-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
277	03.900 RELAY; FUEL PUMP C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
277	03.900 RELAY; FUEL PUMP 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON	8-98005-407-0	01	1	0509-1109	●	●	●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●		●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-	●	●
490	09.277 RELAY; THERMO 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●	●
490	09.277 RELAY; THERMO 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 02.575 12V OMRON	8-98005-407-0	01	1	1110-			●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●

1 620 600 3 370 449 307 573 436 140 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-702-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-702-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-98007-728-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-695-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-695-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-98007-721-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-701-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-701-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-98007-727-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-696-0	01	1	0306-0508	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-696-0	01	1	0509-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-98007-722-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-97360-698-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96>	8-98007-724-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-97360-692-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>	8-98007-718-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-97360-697-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>	8-98007-723-0	01	1	0610-	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-97360-691-0	01	1	0306-0609	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>	8-98007-717-0	01	1	0610-	●	●	●	●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0306-0606	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER	0-36230-514-0	02	1	0607-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0710-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON	8-98005-407-0	01	1	0509-	●	●	●	●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	0306-0609	●	●	●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97238-511-0	01	1	0306-0609	●	●	●	●
249	02.485 SWITCH; HAZARD	8-98046-194-0	01	1	0610-	●	●	●	●
307	08.991 BULB ASM; SW 14V 0.91W	8-97327-526-0	01	1	0306-0609	●	●	●	●
307	08.991 BULB ASM; SW	8-98057-959-0	01	1	0610-	●	●	●	●
370	16.495 BOLT; SW 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1005-	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97288-784-0	01	1	0306-0609	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING DARK GRAY	8-97403-901-0	01	1	0610-1003	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY	8-97418-806-0	01	1	1004-	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW 14V 0.84W	8-97327-317-0	01	1	0306-1003	●	●	●	●
449	08.991 BULB ASM; HEADLAMP LEVELING SW INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 14V 0.84W	8-98152-588-0	01	1	1004-	●	●	●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97298-475-0	01	1	0410-0609			●	●
573	09.755 SWITCH; 4WD INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-362-0	01	1	0610-1003			●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97418-479-0	01	1	1004-			●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97298-476-0	01	1	0306-0409			●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97298-476-0	01	1	0410-0609			●	●
573	09.755 SWITCH; 4WD EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-364-0	01	1	0610-1003			●	●
573	09.755 SWITCH; 4WD INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97418-809-0	01	1	1004-			●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0306-0508	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-97308-028-1	01	1	0509-0609	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER(AK5)	8-98014-766-0	01	1	0610-	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0306-0508	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER(AK5)	8-97166-506-0	06	1	0509-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
