8-05 — INTERIOR LAMP (#7763) — 101 parça

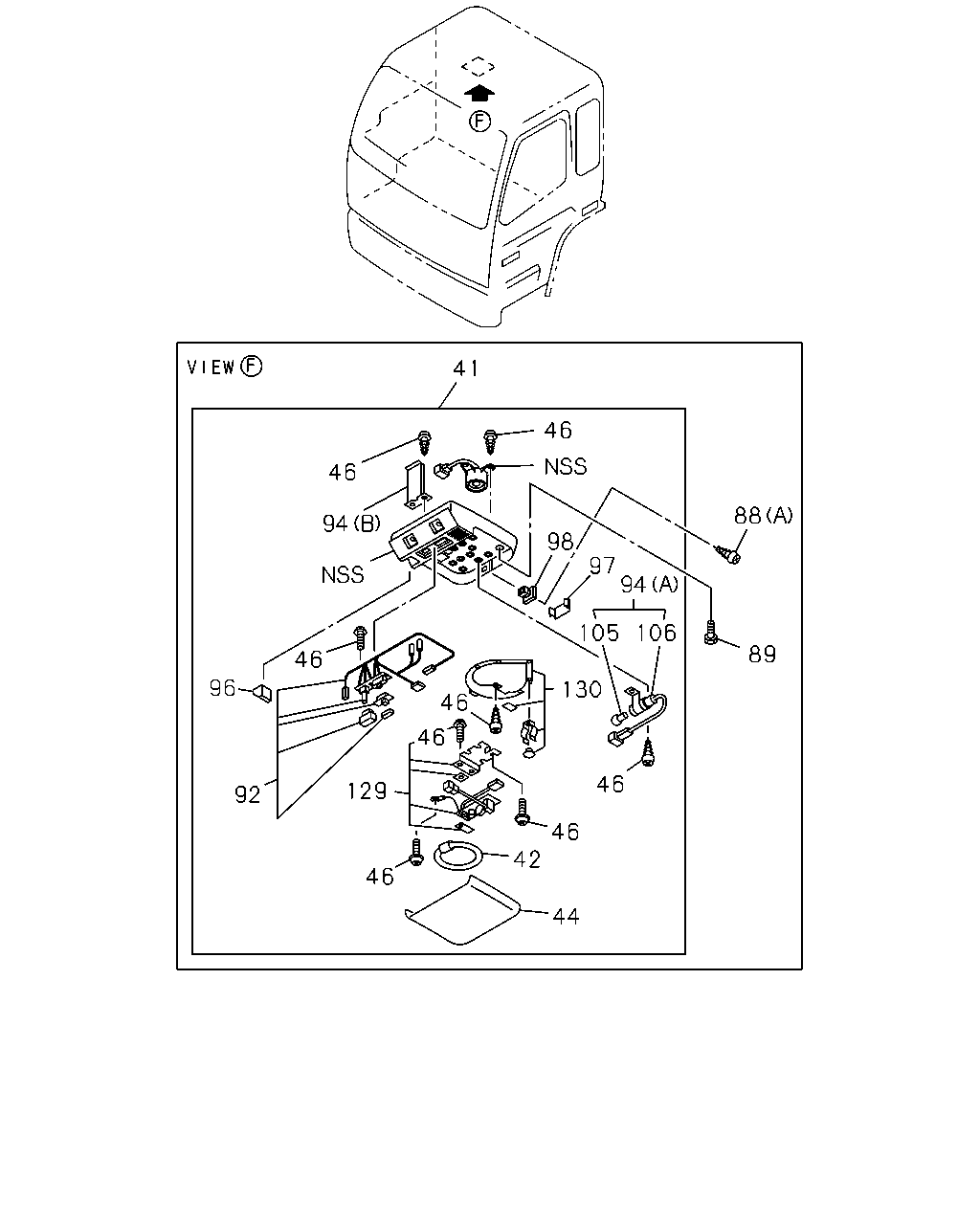

41 46 46 88 94 98 97 94 105 106 89 46 96 130 46 46 46 129 92 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-305-2	01	1	9902-9909	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-305-2	01	1	9910-0003	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-305-2	01	1	0004-	●
41	LAMP ASM; FLUORESCENT	1-86830-305-2	01	1	0004-		●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9902-9909	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-0003	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	0004-	●
42	LAMP; FLUORESCENT	1-86830-094-1	01	1	0004-		●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9902-9909	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-0003	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	0004-	●
44	LENS; FLUORESCENT LAMP	1-86830-092-0	01	1	0004-		●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	1-86830-095-0	08	1	9902-9909	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	1-86830-095-0	08	1	9910-0003	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	1-86830-095-0	08	1	0004-	●
46	SCREW; FLUORESCENT LAMP M5X10 TAPPING	1-86830-095-0	08	1	0004-		●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M4X12	1-86830-202-0	07	1	9902-9909	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M4X12	1-86830-202-0	07	1	9910-0003	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M4X12	1-86830-202-0	07	1	0004-	●
46	SCREW; FLUORESCENT LAMP M4X12	1-86830-202-0	07	1	0004-		●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M3X6 TAPPING	1-86830-336-0	01	1	9902-9909	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M3X6 TAPPING	1-86830-336-0	01	1	9910-0003	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M3X6 TAPPING	1-86830-336-0	01	1	0004-	●
46	SCREW; FLUORESCENT LAMP M3X6 TAPPING	1-86830-336-0	01	1	0004-		●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9902-9909	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0003	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0004-	●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0004-		●
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0004-		●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9902-9909	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-0003	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	0004-	●
89	SCREW; LENS,FLUORESCENT LAMP M5X10 TAPPING	9-07076-510-0	01	1	0004-		●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9902-9909	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-0003	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	0004-	●
92	SWITCH ASM; FLUORESCENT	1-86830-340-0	01	1	0004-		●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9902-9909	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-0003	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	0004-	●
94	KNOB; ROOM LAMP SW (B)	1-86830-099-0	01	1	0004-		●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9902-9909	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-0003	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	0004-	●
94	KNOB; ROOM LAMP SW (A)	1-86830-304-0	01	1	0004-		●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-282-0	01	1	9902-9909	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-282-0	01	1	9910-0003	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-282-0	01	1	0004-	●
96	CAP; SPOT LAMP	1-86830-282-0	01	1	0004-		●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9902-9909	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-0003	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	0004-	●
97	CAP; LENS FIX	1-86830-101-0	01	1	0004-		●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9902-9909	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-0003	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	0004-	●
98	GROMMET; SCREW,LENS FIX	1-86830-102-0	01	1	0004-		●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9902-9909	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-0003	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	0004-	●
105	BULB; FLUORESCENT LAMP 28V 20W	1-86830-200-0	01	1	0004-		●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9902-9909	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-0003	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	0004-	●
106	SOCKET; BULB	1-86830-201-0	01	1	0004-		●
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9902-9909	●
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	9910-0003	●
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	0004-	●
129	INVERTER ASM; FLUORESCENT LAMP	1-86830-338-0	01	1	0004-		●
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9902-9909	●
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	9910-0003	●
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	0004-	●
130	PLATE ASM; FLUORESCENT LAMP	1-86830-339-0	01	1	0004-		●

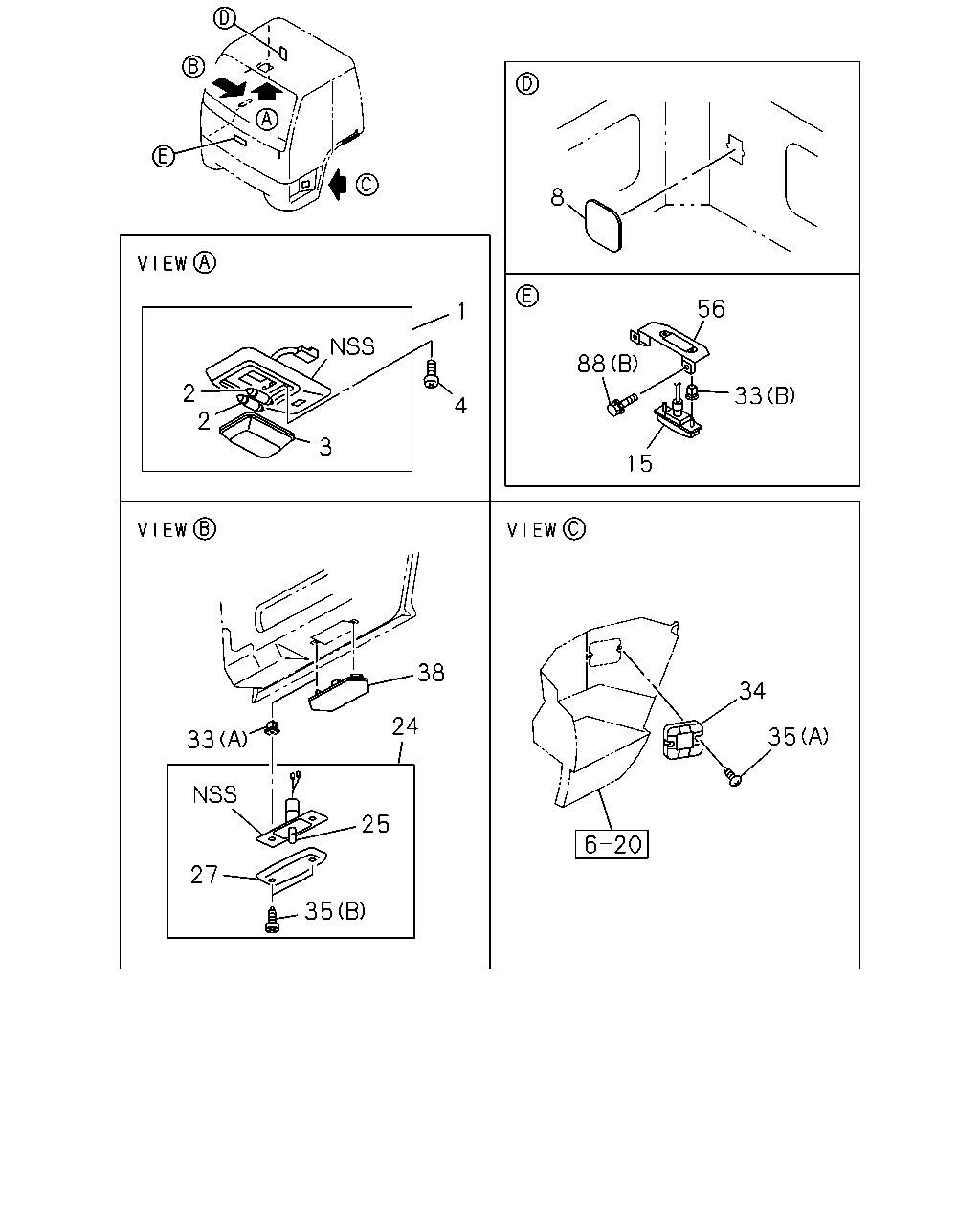

8 56 1 88 2 2 33 4 3 15 38 34 24 35 33 25 27 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9902-9909	●
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	9910-	●
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9902-9909	●
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	9910-	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9902-9909	●
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-	●
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X25	5-09981-093-0	03	1	9902-9909	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X25	5-09981-093-0	03	1	9910-9911	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	9912-	●
8	COVER; BED ROOM LAMP CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-73347-803-2	01	1	0004-		●
15	LAMP; INSPECTION DELUXE CAB(W14)	1-82140-052-1	01	1	0004-		●
24	LAMP; STEP	1-82140-052-1	01	1	0004-		●
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	0004-		●
27	LENS; STEP LAMP	1-82145-019-0	01	1	0004-		●
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	0004-		●
33	GROMMET; SCREW,LAMP DELUXE CAB(W14) (B)	1-09983-182-0	01	1	0004-		●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	01	1	9902-	●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	02	1	0004-		●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> (A) M4X20 TAPPING W/PL WASHER	0-74310-420-0	02	1	9902-	●
35	SCREW; STEP LAMP (B) M4X20	1-82149-006-0	02	1	0004-		●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> (A) M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0004-		●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9902-	●
56	BRACKET; LAMP DELUXE CAB(W14)	1-86830-302-1	01	1	0004-		●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9902-9909	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-0003	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0004-	●
88	BOLT; LAMP (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0004-		●
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0004-		●
