◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#77629) — 170 parça

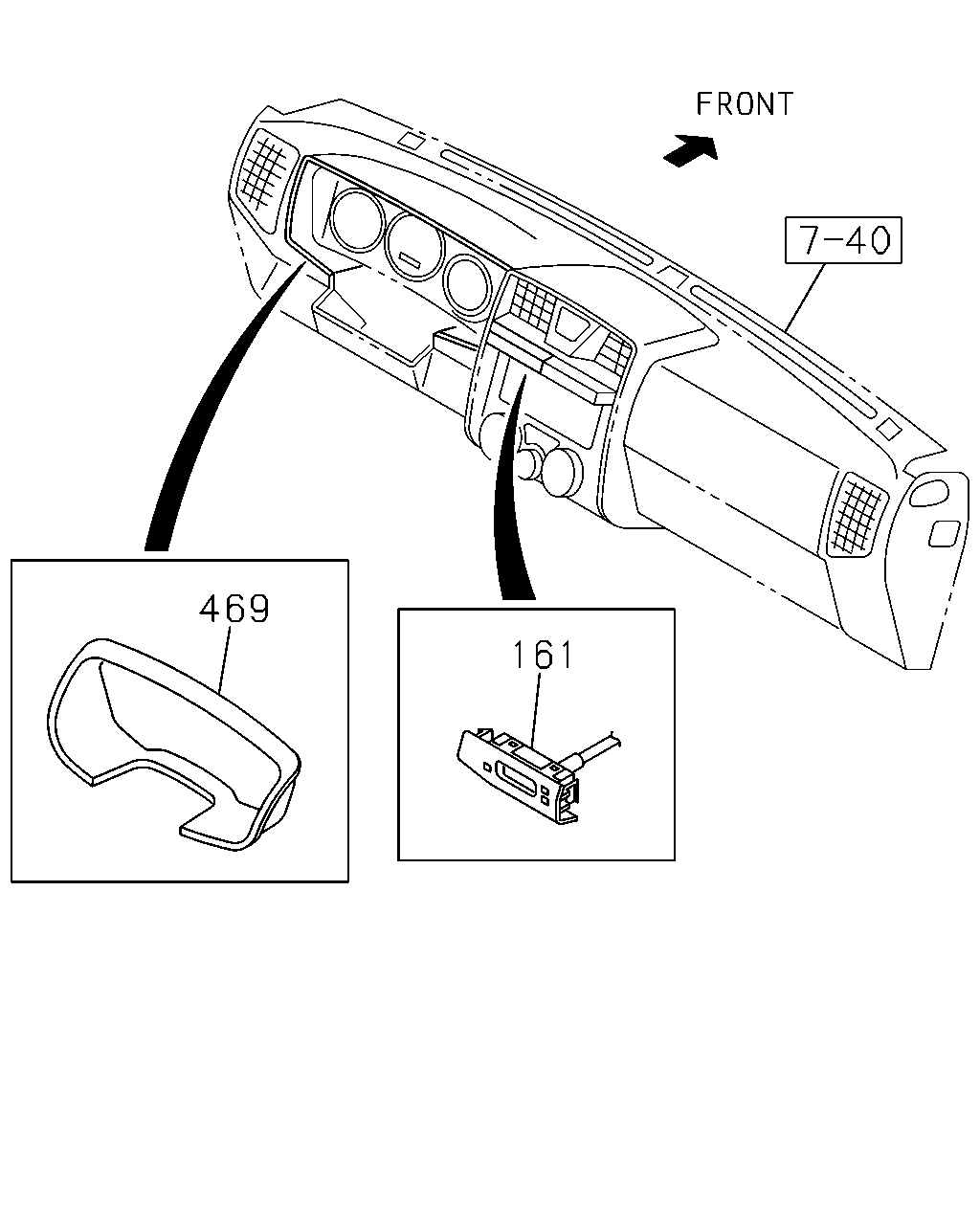

çizim 160624
469 161
BalonParca AdiParca NoAdetTipApplied Date A B C D
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97396-393-0 01 1 0410-0609 ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97407-360-0 01 1 0610-1003 ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97418-483-0 01 1 1004- ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97396-394-0 01 1 0306-0409 ● ●
161 09.772 CLOCK; CLUSTER METER
DARK GRAY 		8-97396-394-0 01 1 0306-0409 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97396-394-0 01 1 0410-0609 ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97396-394-0 01 1 0410-0609 ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0610-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0610-1003 ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97418-610-0 01 1 1004- ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. TILT STEERING<N33> DARK GRAY 		8-97421-861-0 01 1 1005- ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
16.081 DARK GRAY 		8-97294-069-0 01 1 0306-0508 ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97404-874-0 01 1 0509-0609 ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97404-875-0 01 1 0610-0612 ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97409-178-0 01 1 0701- ● ● ● ●

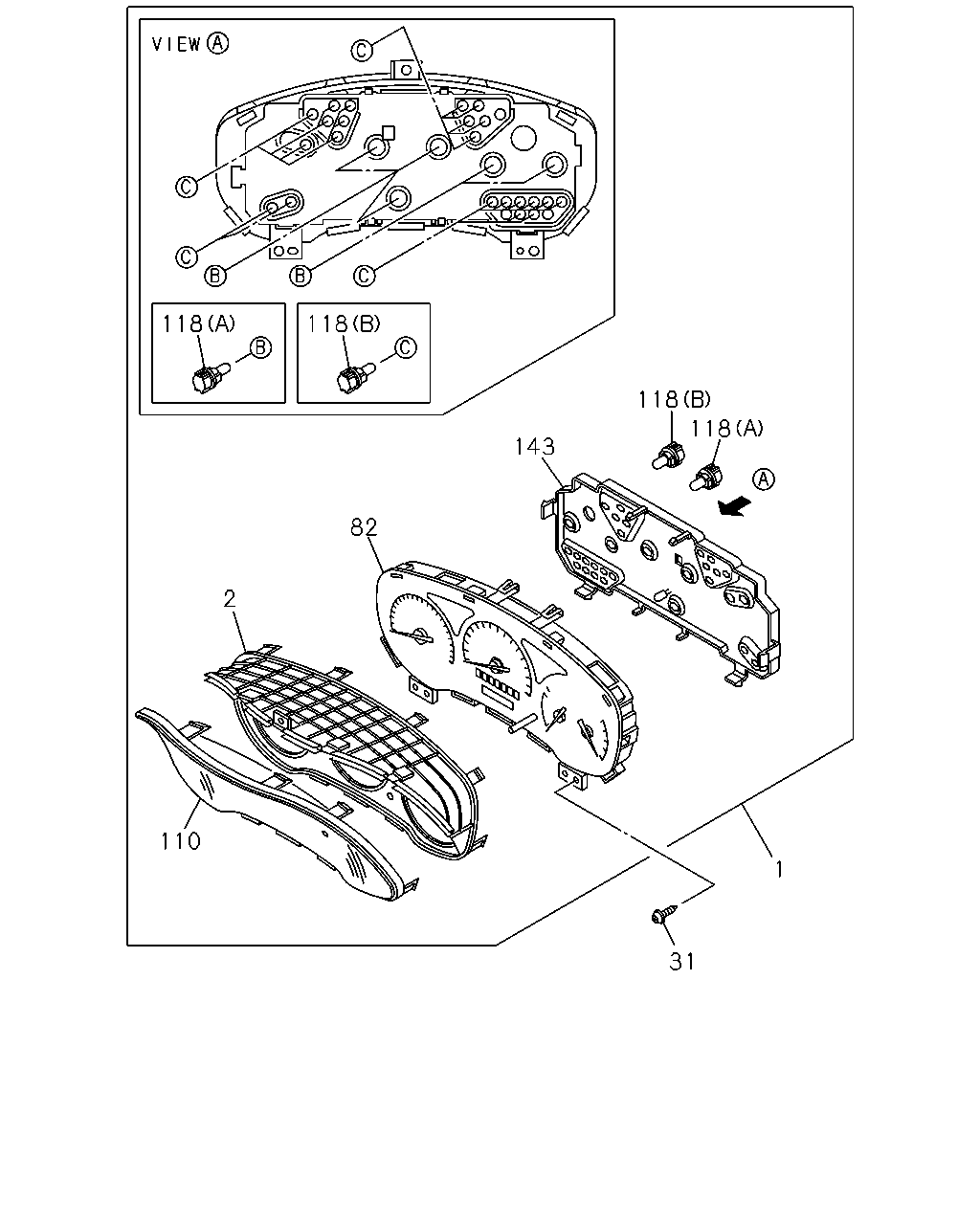

çizim 160654
118 118 118 118 143 82 2 110 1 31
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) TACHOMETER<U16> 		8-98046-316-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) TACHOMETER<U16> 		8-98154-525-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98041-122-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98046-278-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98154-496-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97363-753-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97386-670-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98046-254-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98154-478-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97363-751-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97386-668-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98046-268-0 01 1 0610-0709 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97363-754-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97386-671-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-276-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98154-495-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-752-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-669-0 01 1 0509-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-669-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98046-319-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98154-528-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97363-756-0 01 1 0306-0508 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97386-673-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-98041-124-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98046-261-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98154-483-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-755-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-672-0 01 1 0509-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98041-123-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98046-310-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98154-521-0 01 1 1004- ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-112-0 01 1 0610-1003 ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-112-0 01 1 0610-1003 ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98153-332-0 01 1 1004- ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98153-332-0 01 1 1004- ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0306-0609 ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-113-0 01 1 0610-0709 ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-113-0 01 1 0710- ● ● ●
2 09.735 PANEL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0306-0702 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98061-685-0 03 1 0703-1003 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1004- ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97358-276-0 01 1 0306-0508 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97389-975-0 01 1 0509-0609 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97358-263-0 01 1 0306-0508 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97389-963-0 01 1 0509-0609 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97358-277-0 01 1 0306-0508 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97389-976-0 01 1 0509-0609 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97358-264-0 01 1 0306-0508 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97389-964-0 01 1 0509-0609 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97358-279-0 01 1 0306-0508 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97389-978-0 01 1 0509-0609 ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97358-278-0 01 1 0306-0508 ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97389-977-0 01 1 0509-0609 ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-111-0 01 1 0610-0709 ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-111-0 01 1 0710- ● ● ●
110 09.748 GLASS; CLUSTER METER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0306-0609 ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-110-0 01 1 0610- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-110-0 01 1 0610- ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1) (B) 14V 1.12W 		8-97305-600-0 15 1 0306-0508 ● ● ● ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1) (B) 14V 1.12W 		8-98003-832-0 14 1 0509-0609 ● ● ● ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1) EXC. TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 05 1 0306-0508 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 05 1 0306-0508 ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 05 1 0306-0508 ● ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 05 1 0509-0609 ● ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1),4JA1-T ENG(LP0) TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 07 1 0306-0508 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 07 1 0306-0508 ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (A) 14V 2W 		8-97305-590-0 07 1 0306-0508 ●
118 08.991 BULB; CLUSTER METER
C24SE ENG(LG1),4JA1-T ENG(LP0) TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 07 1 0509-0609 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 07 1 0509-0609 ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (A) 14V 2W 		8-98003-831-0 07 1 0509-0609 ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 21 1 0306-0508 ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 21 1 0509-0609 ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0) TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 17 1 0306-0508 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 17 1 0306-0508 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 17 1 0306-0508 ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (B) 14V 1.12W 		8-97305-600-0 17 1 0306-0508 ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0) TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 17 1 0509-0609 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 17 1 0509-0609 ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 17 1 0509-0609 ● ●
118 08.991 BULB; CLUSTER METER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> (B) 14V 1.12W 		8-98003-832-0 17 1 0509-0609 ● ●
143 09.715 COVER; CLUSTER METER
EXC. TACHOMETER<U16> 		8-98047-115-0 01 1 0610- ● ● ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0306-0609 ● ● ● ●
143 09.715 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 0610- ● ● ● ●

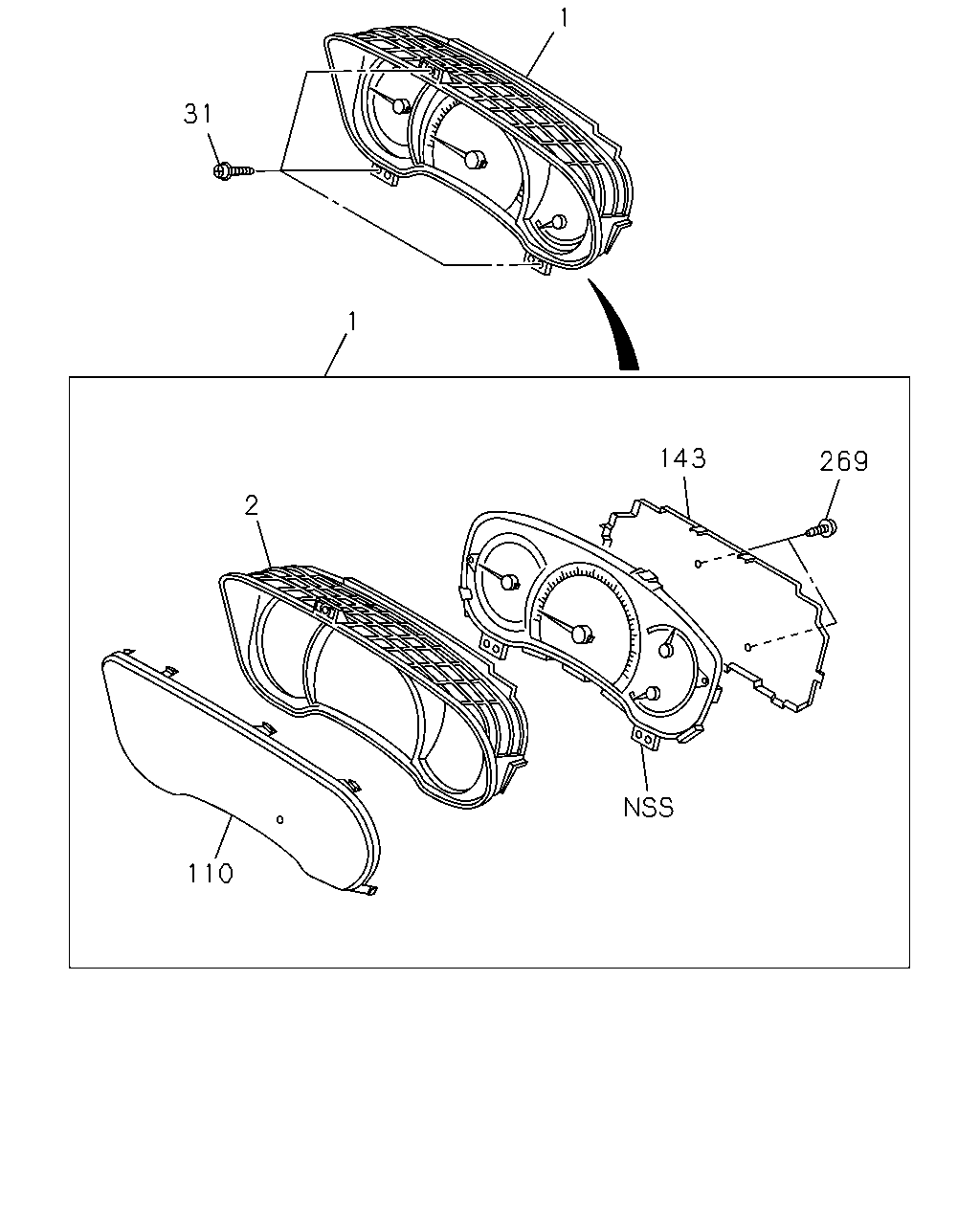

çizim 160715
1 31 1 143 269 2 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) TACHOMETER<U16> 		8-98046-316-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) TACHOMETER<U16> 		8-98154-525-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) MIDDLE EAST EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98041-122-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98046-278-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98154-496-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97363-753-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) TACHOMETER<U16> 		8-97386-670-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98046-254-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98154-478-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97363-751-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) EXC. TACHOMETER<U16> 		8-97386-668-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98046-268-0 01 1 0610-0709 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97363-754-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) TACHOMETER<U16> 		8-97386-671-0 01 1 0509-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98046-276-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98154-495-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97363-752-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-669-0 01 1 0509-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-97386-669-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98046-319-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98154-528-0 01 1 1004- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97363-756-0 01 1 0306-0508 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-97386-673-0 01 1 0509-0606 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> 		8-98041-124-0 01 1 0607-0609 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98046-261-0 01 1 0610-1003 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98154-483-0 01 1 1004- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97363-755-0 01 1 0306-0508 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-97386-672-0 01 1 0509-0606 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98041-123-0 01 1 0607-0609 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98046-310-0 01 1 0610-1003 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98154-521-0 01 1 1004- ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-112-0 01 1 0610-1003 ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-112-0 01 1 0610-1003 ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98153-332-0 01 1 1004- ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98153-332-0 01 1 1004- ●
2 09.735 PANEL; CLUSTER 8-97305-574-0 01 1 0306-0609 ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-113-0 01 1 0610-0709 ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ● ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-113-0 01 1 0710- ● ● ●
2 09.735 PANEL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
2 09.735 PANEL; CLUSTER
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-113-0 01 1 0710- ● ●
31 09.761 SCREW; METER,INST PANEL
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 0306-0702 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98061-685-0 03 1 0703-1003 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1004- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-111-0 01 1 0610-0709 ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98047-111-0 01 1 0710- ● ● ●
110 09.748 GLASS; CLUSTER METER
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EXC. TACHOMETER<U16> 		8-98047-111-0 01 1 0710- ● ●
110 09.748 GLASS; CLUSTER METER 8-97305-572-0 01 1 0306-0609 ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-110-0 01 1 0610- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> TACHOMETER<U16> 		8-98047-110-0 01 1 0610- ●
143 09.715 COVER; CLUSTER METER
EXC. TACHOMETER<U16> 		8-98047-115-0 01 1 0610- ● ● ● ●
143 09.715 COVER; CLUSTER METER 8-97305-577-0 01 1 0306-0609 ● ● ● ●
143 09.715 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 0610- ● ● ● ●
269 09.743 SCREW; METER CLUSTER 8-98047-116-0 03 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
