◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#77627) — 501 parça

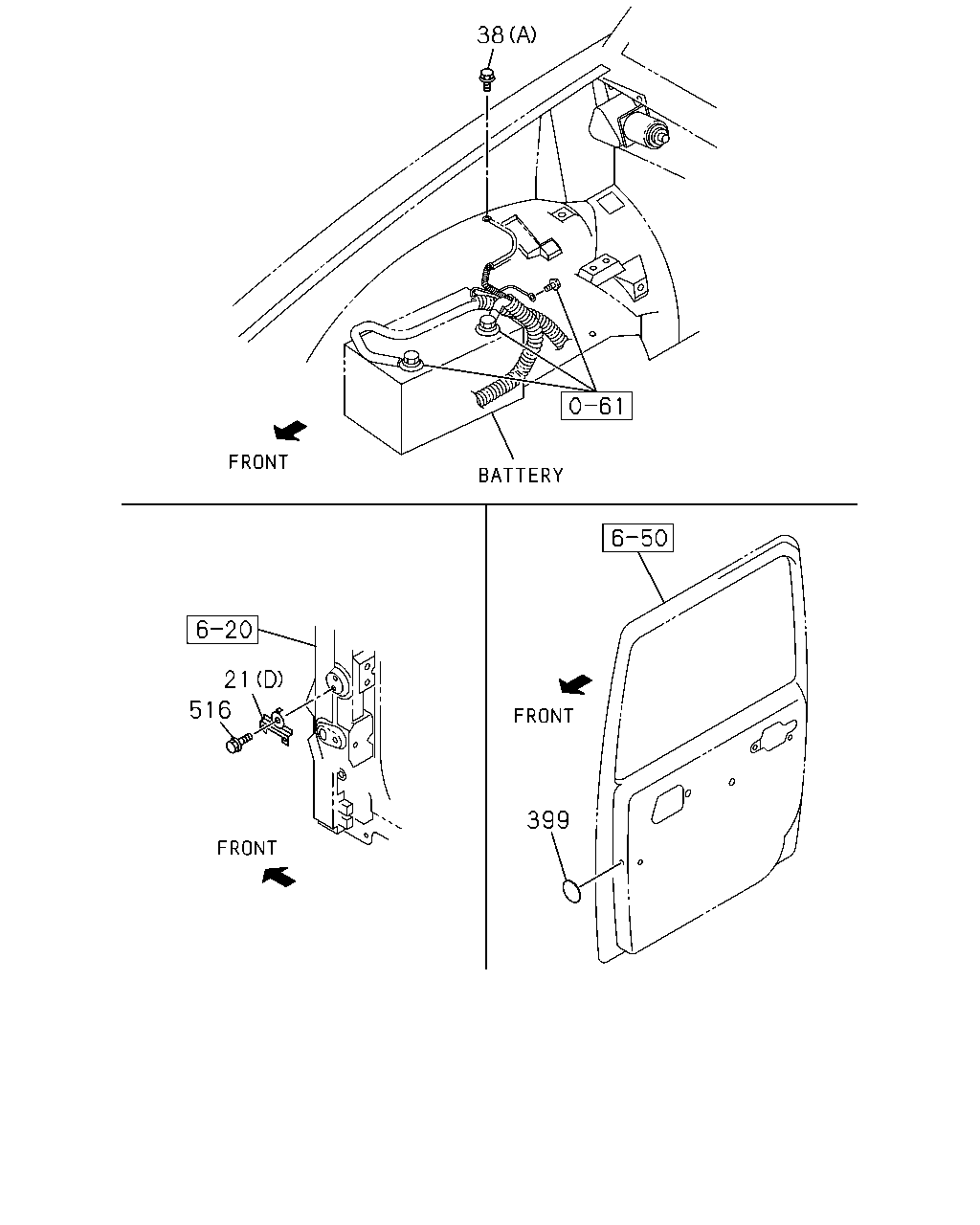

çizim 160623
38 21 516 399
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB) (D) 		8-97373-034-0 01 1 0710- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-98050-842-0 01 1 0609- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 1110- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 1110- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0306-0709 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0710- ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0710- ● ● ● ●

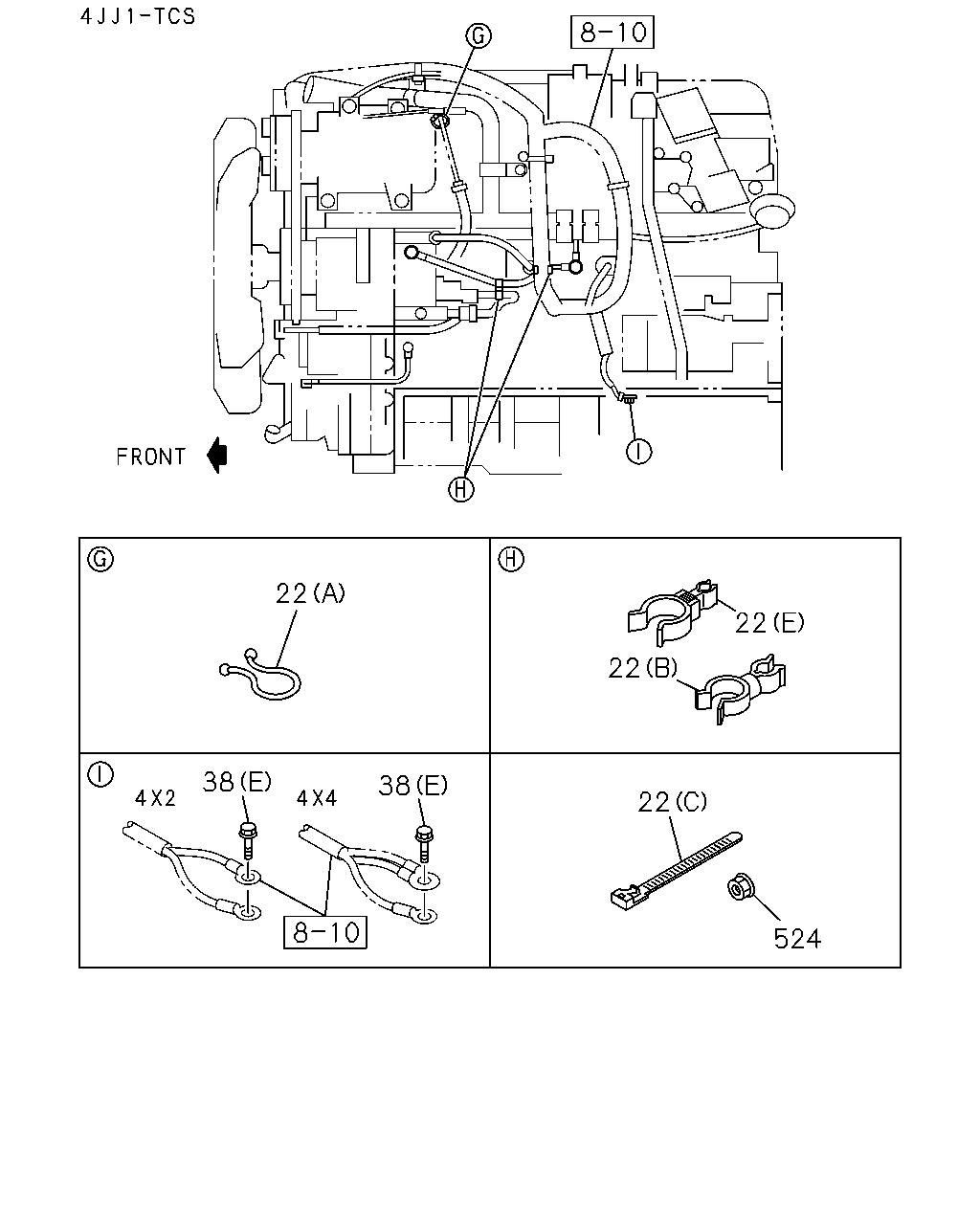

çizim 160625
22 22 22 38 38 22 524
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 01.540 (D) ID=30 		8-94315-423-0 01 1 0306- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0409-0609 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 1110- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0709 ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0709 ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0709 ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0809 ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0809 ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0809 ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-1109 ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-1109 ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-1109 ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1110- ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1110- ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1110- ●
çizim 160630
358
BalonParca AdiParca NoAdetTipApplied Date A B C D
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601-0609 ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0610-1109 ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0610-1109 ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1110- ● ● ● ●

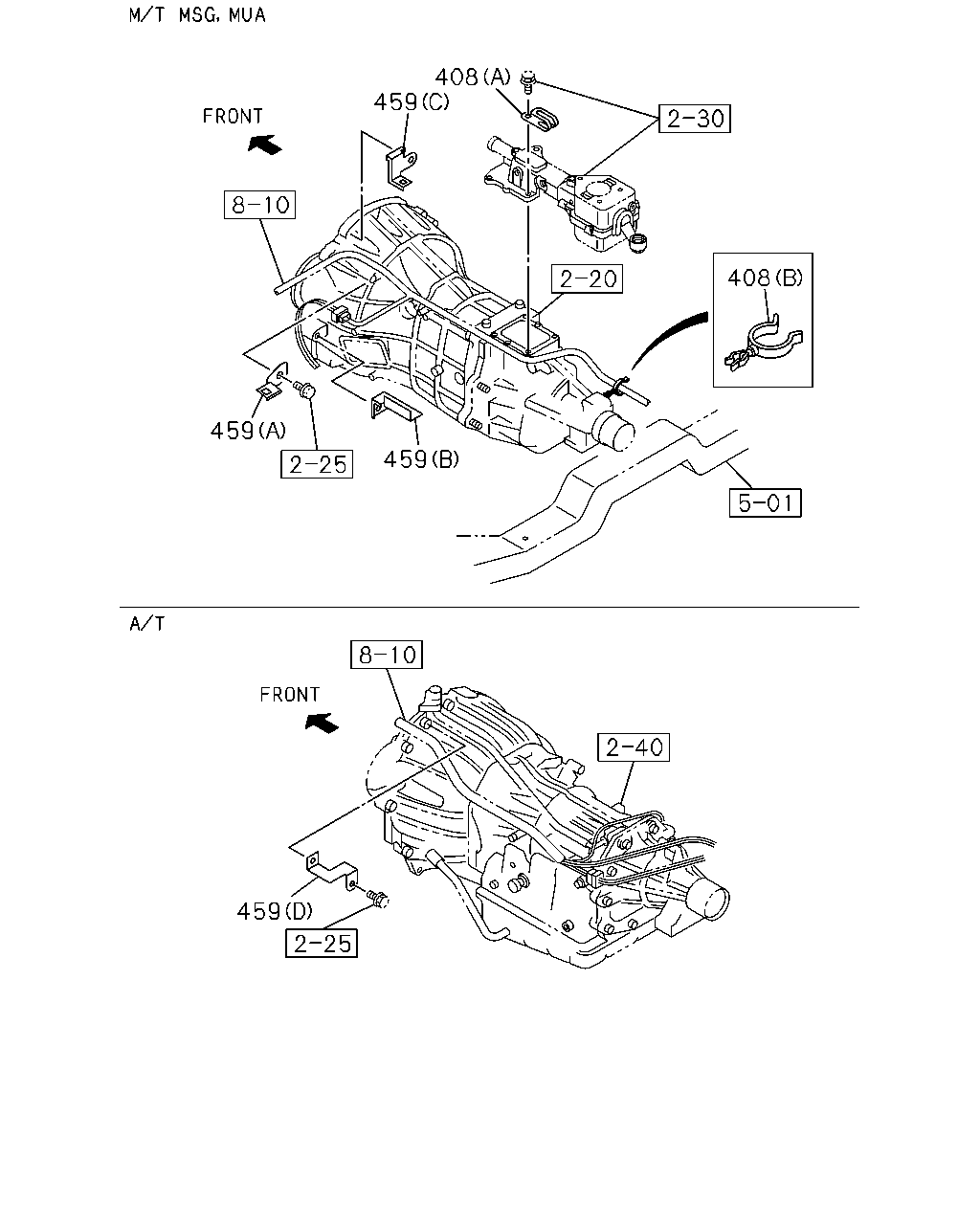

çizim 160631
408 459 408 459 459 459
BalonParca AdiParca NoAdetTipApplied Date A B C D
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0306- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0306-0604 ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0306-0604 ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0605-0609 ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0605-0609 ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0610-0709 ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0710- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (D) 		8-97307-524-1 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (B) 		8-97237-168-0 01 1 0306-0512 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> (B) 		8-97237-168-0 01 1 0601-0609 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EURO1 SPECIFICATION<NT1> (B) 		8-97237-168-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (C) 		8-97323-436-0 01 1 0306-0609 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (C) 		8-98050-883-0 01 1 0610- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0608 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0608 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0610- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) (A) 		8-98050-882-0 01 1 0610- ● ●
çizim 160642
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB) (D) 		8-97373-034-0 01 1 0710- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-98050-842-0 01 1 0609- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 1110- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ●

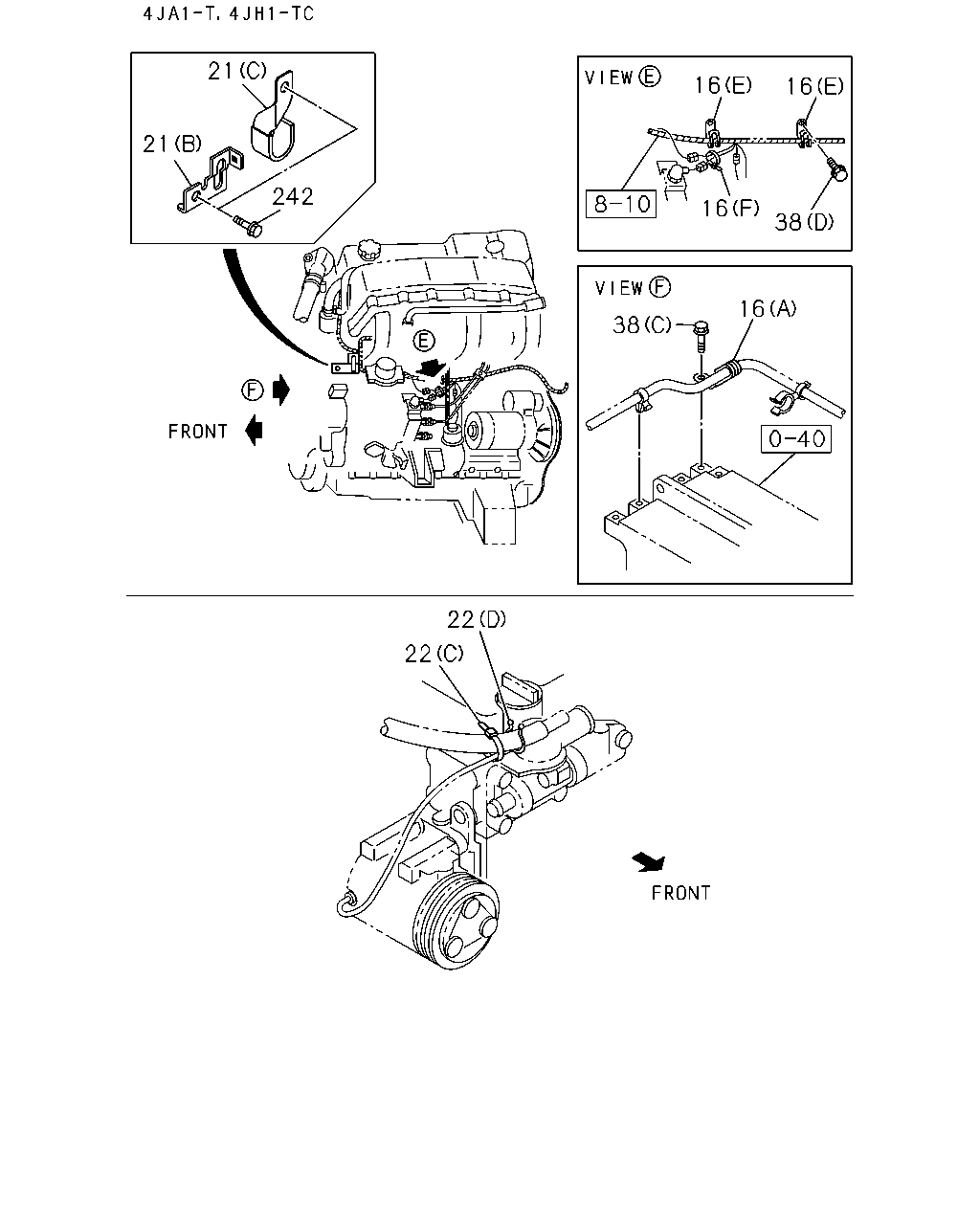

çizim 160649
21 16 16 21 242 16 38 16 38 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0506-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (F) L=140 		5-09707-031-1 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (F) L=140 		5-09707-031-1 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 1110- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-0 02 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 1110- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-0 03 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0508 ● ● ● ●

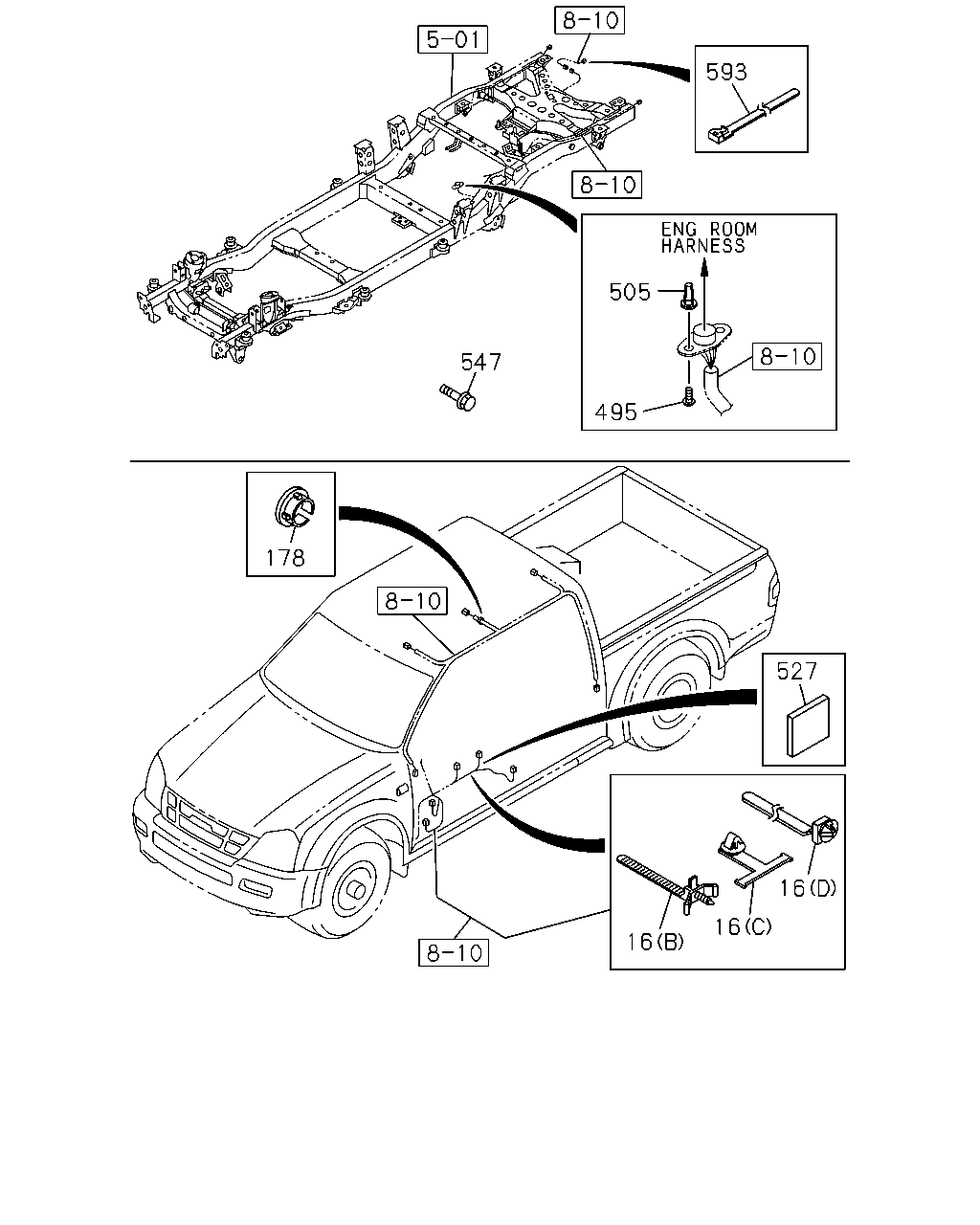

16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB) (D) 		8-97373-034-0 01 1 0710- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-97307-432-2 01 1 0306-0608 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) (A) 		8-98050-842-0 01 1 0609- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0306-0609 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97249-918-1 01 1 0610-1109 ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 1110- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1-TC ENG(RDM) (C) 		8-97943-788-0 01 1 0306-0609 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 09.663 (A) ID=15 		1-09709-003-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 03.483 (B) ID=6 & 10 		8-94154-844-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=10 & 11 		8-94438-996-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> (E) ID=10 & 11 		8-94438-996-0 01 1 1110- ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 01.540 (D) ID=30 		8-94315-423-0 01 1 0306- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0409-0609 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0610-0709 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 0710-0809 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1109 ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ●

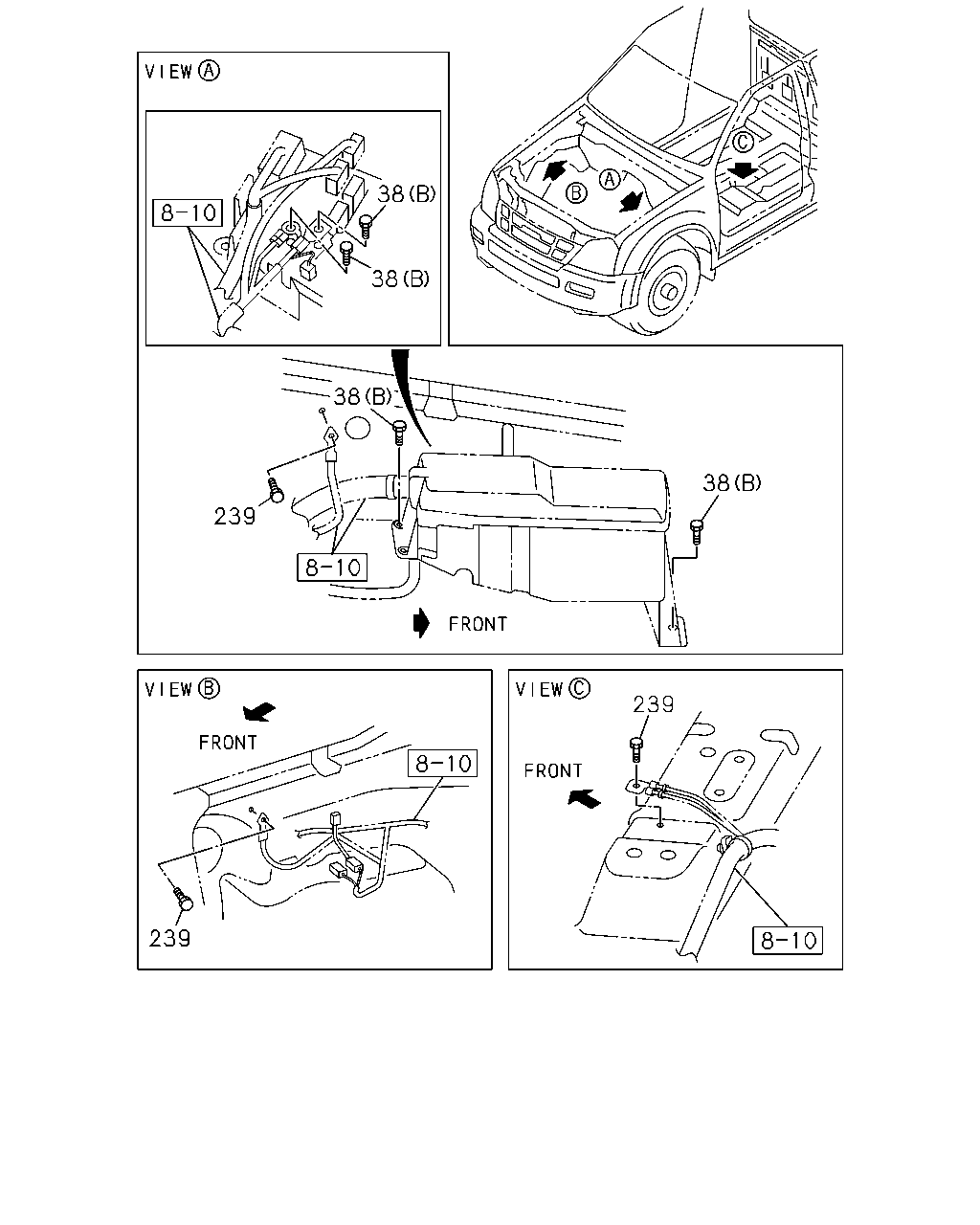

38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 1110- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0306-0512 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0306-0512 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610-1109 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610-1109 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ● ●
çizim 160691
593 505 547 495 178 527 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0506-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (F) L=140 		5-09707-031-1 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (F) L=140 		5-09707-031-1 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 1110- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-0 02 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 1110- ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0610-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> (A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (E) ID=18 L=44 		8-97367-985-0 03 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=135 		8-94473-399-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (D) L=155 		8-97173-307-0 03 1 0306-0508 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0509-0609 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0610 ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0611-0709 ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0306- ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0306- ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0306- ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45 		8-97304-372-0 01 1 0306-0508 ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 70X45 		8-97304-372-0 01 1 0509-0709 ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306-0508 ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0509- ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) L=250 		5-09707-030-1 01 1 0306- ● ●
çizim 160738
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (E) M8X16 FLANGE 		0-28050-816-0 02 1 1110- ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 1110- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0306-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 0610-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-0709 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0809 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1109 ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1110- ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0306- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
