◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#77626) — 712 parça

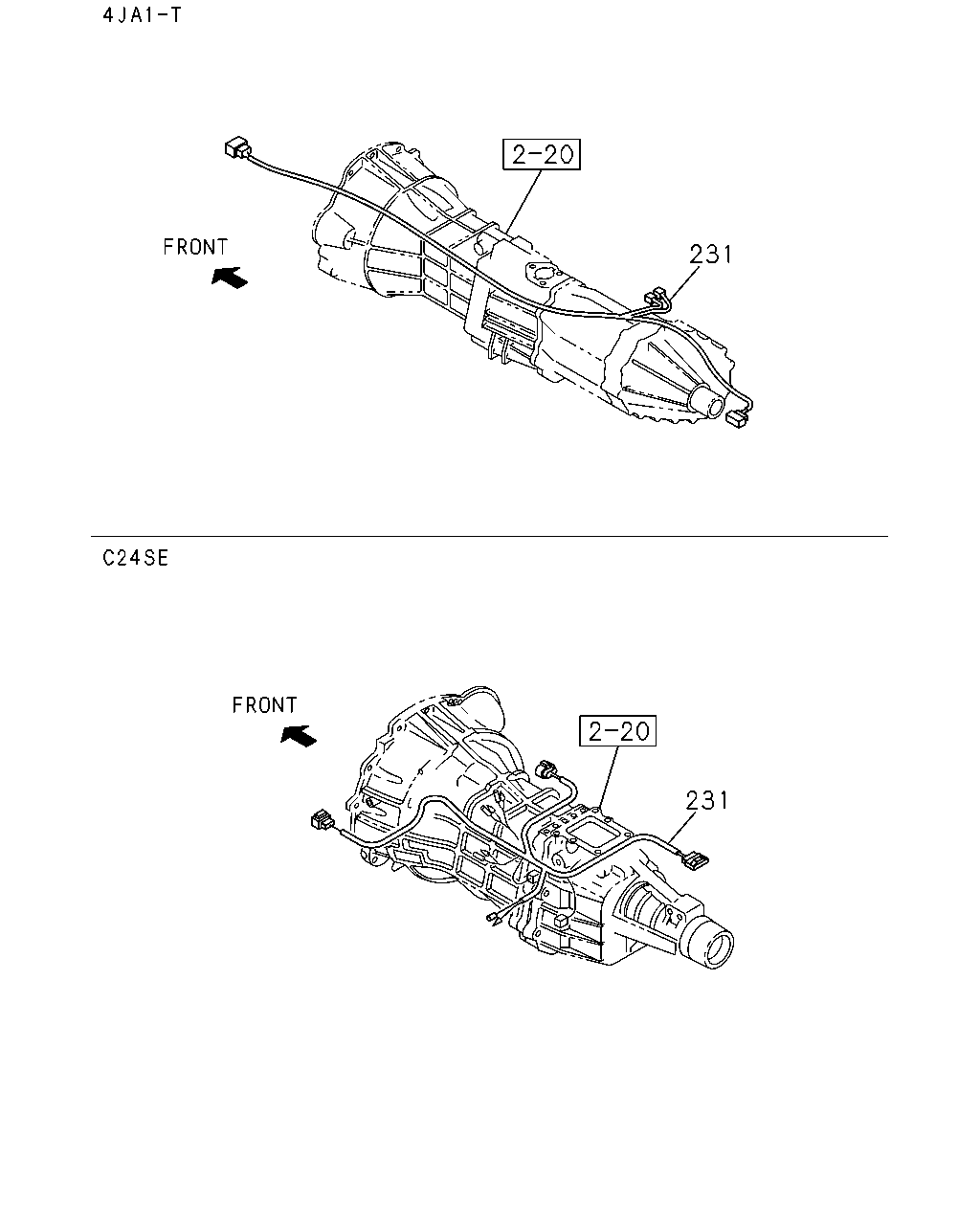

çizim 160610
231 231
BalonParca AdiParca NoAdetTipApplied Date A B C D
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97357-460-0 01 1 0306-0609 ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97357-460-0 01 1 0610- ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97357-459-0 01 1 0306-0609 ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97357-459-0 01 1 0610- ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97357-462-0 01 1 0306- ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97357-461-0 01 1 0306- ● ●
231 02.480 HARNESS; TRANS
4JA1-T ENG(LP0) 		8-97362-901-0 01 1 0306- ● ●

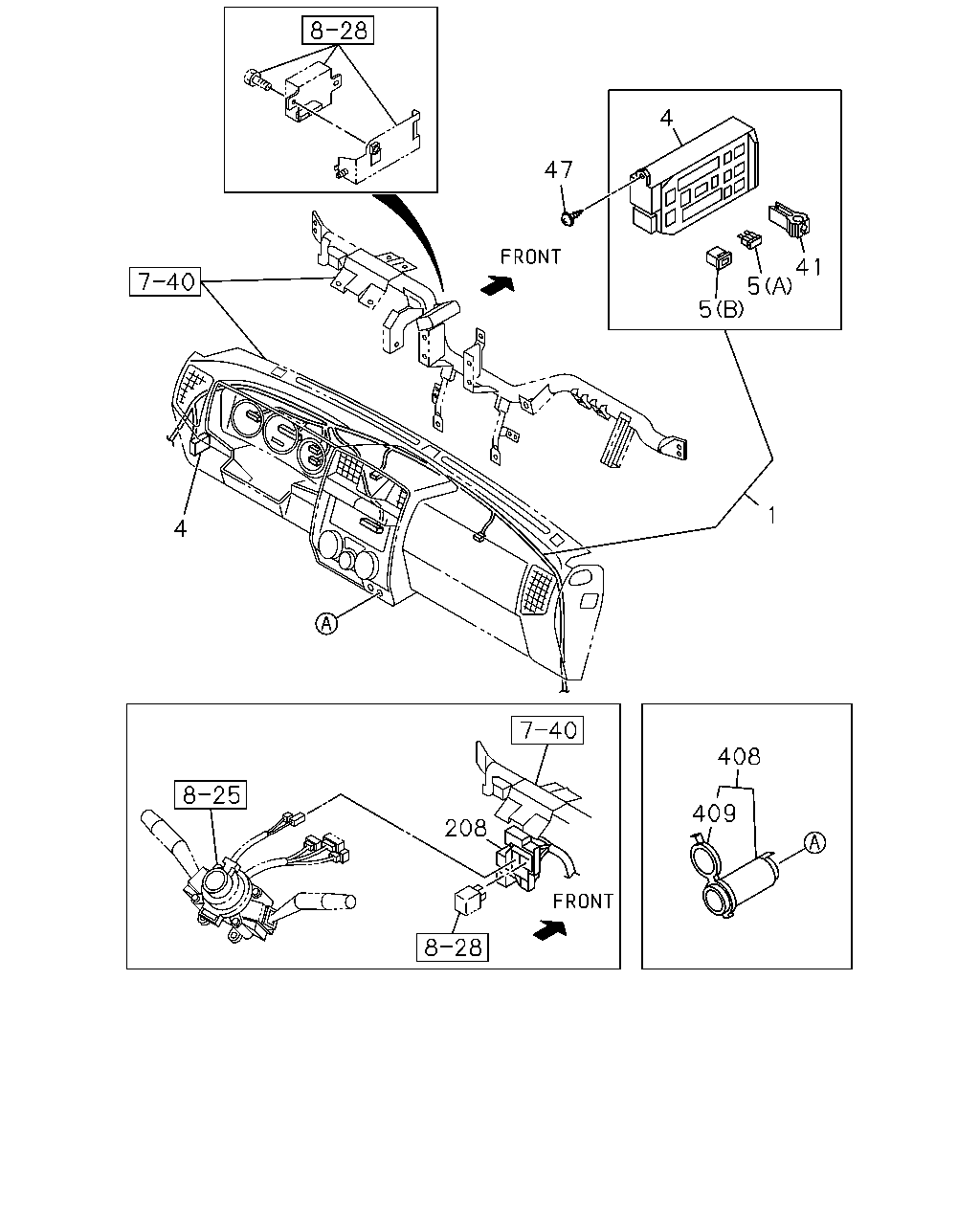

çizim 160620
4 47 41 5 5 1 4 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-275-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-251-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-267-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-267-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-271-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-271-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-259-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-263-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-279-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-254-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-781-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98105-175-0 01 1 0711-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-898-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-779-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98105-174-0 01 1 0711-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-896-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-780-1 01 1 0710-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-897-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-778-1 01 1 0710-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-895-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) 		8-98048-724-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-276-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) 		8-98048-728-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-280-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-742-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-742-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-743-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-743-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-741-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-741-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-744-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-744-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-745-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-745-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-755-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-755-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-756-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-756-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-757-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-757-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-758-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-758-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-759-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-759-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-815-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-815-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-718-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-718-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-269-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-269-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-760-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-760-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-816-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-816-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-719-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-719-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-270-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-270-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-761-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-761-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-762-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-762-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-818-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-818-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-722-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-722-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-273-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-273-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-763-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-763-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-819-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-819-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-723-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-723-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-274-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-274-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-746-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-747-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-748-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-749-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-750-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-809-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-710-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-261-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-751-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-810-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-711-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-262-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-752-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-753-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-812-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-714-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-265-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-754-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-813-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-715-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-266-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97368-739-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97384-802-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98048-700-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-277-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97368-740-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97384-804-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98048-703-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-278-2 01 1 0710- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-602-0 01 1 0306- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 10A MINI RED 		8-97062-022-0 AR 1 0306- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0306- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 15A MINI BLUE 		8-97062-023-0 AR 1 0306- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0306- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 AR 1 0306- ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0306- ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 0306-0612 ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98061-685-0 01 1 0701-1004 ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1005- ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0306- ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0306- ● ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0306- ● ● ● ●

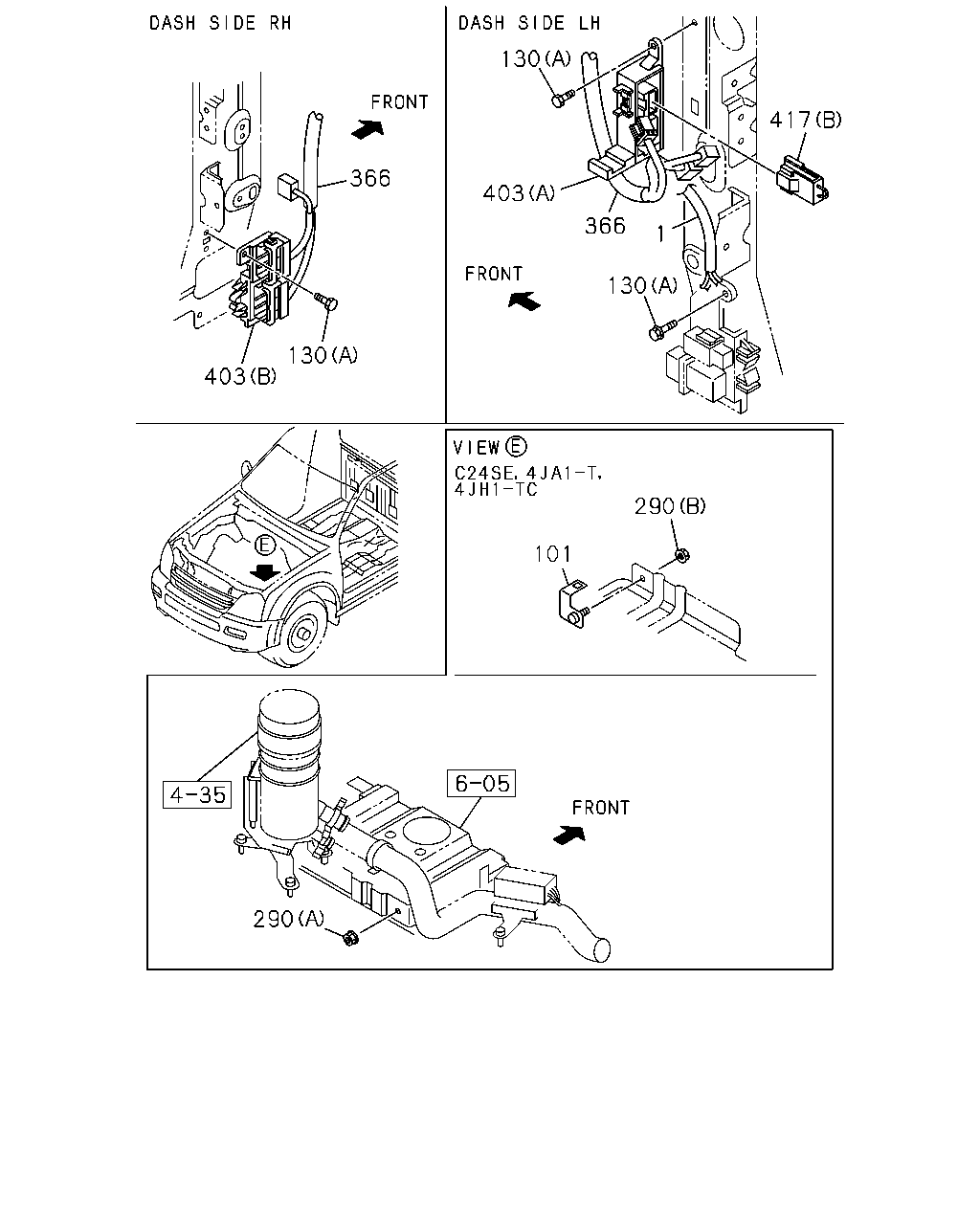

çizim 160626
130 417 366 403 366 1 130 130 403 290 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-275-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-251-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-267-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-267-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-271-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-271-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-259-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-263-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-279-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-254-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-781-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98105-175-0 01 1 0711-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-898-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-779-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98105-174-0 01 1 0711-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-896-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-780-1 01 1 0710-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-897-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-778-1 01 1 0710-0802 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. REMOTE CONT DOOR LOCK<AP5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98101-895-0 01 1 0803- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) 		8-98048-724-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-276-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) 		8-98048-728-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-280-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-742-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-742-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-743-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-743-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-741-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-741-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-744-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-744-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-745-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-745-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-755-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-755-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-756-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-756-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-757-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-757-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-758-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-758-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-759-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-759-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-815-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-815-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-718-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-718-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-269-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-269-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-760-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-760-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-816-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-816-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-719-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-719-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-270-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-270-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-761-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-761-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-762-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-762-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-818-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-818-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-722-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-722-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-273-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-273-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-763-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-763-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-819-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-819-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-723-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-723-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-274-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-274-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-746-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-747-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-748-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-749-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-750-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-809-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-710-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-261-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-751-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-810-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-711-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-262-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-97368-752-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-753-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-812-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-714-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-265-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-754-0 01 1 0306-0508 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-813-0 01 1 0509-0609 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-715-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-266-2 01 1 0710- ● ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97368-739-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97384-802-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98048-700-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-277-2 01 1 0710- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97368-740-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-97384-804-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98048-703-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> 		8-98053-278-2 01 1 0710- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-97250-352-1 01 1 0306-0508 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97250-352-1 01 1 0509-0605 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1) EURO1 SPECIFICATION<NT1> 		8-97250-352-1 01 1 0606-0606 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97250-352-1 01 1 0606-0606 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97250-352-1 01 1 0607-0609 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97250-352-1 01 1 0610- ● ● ● ●

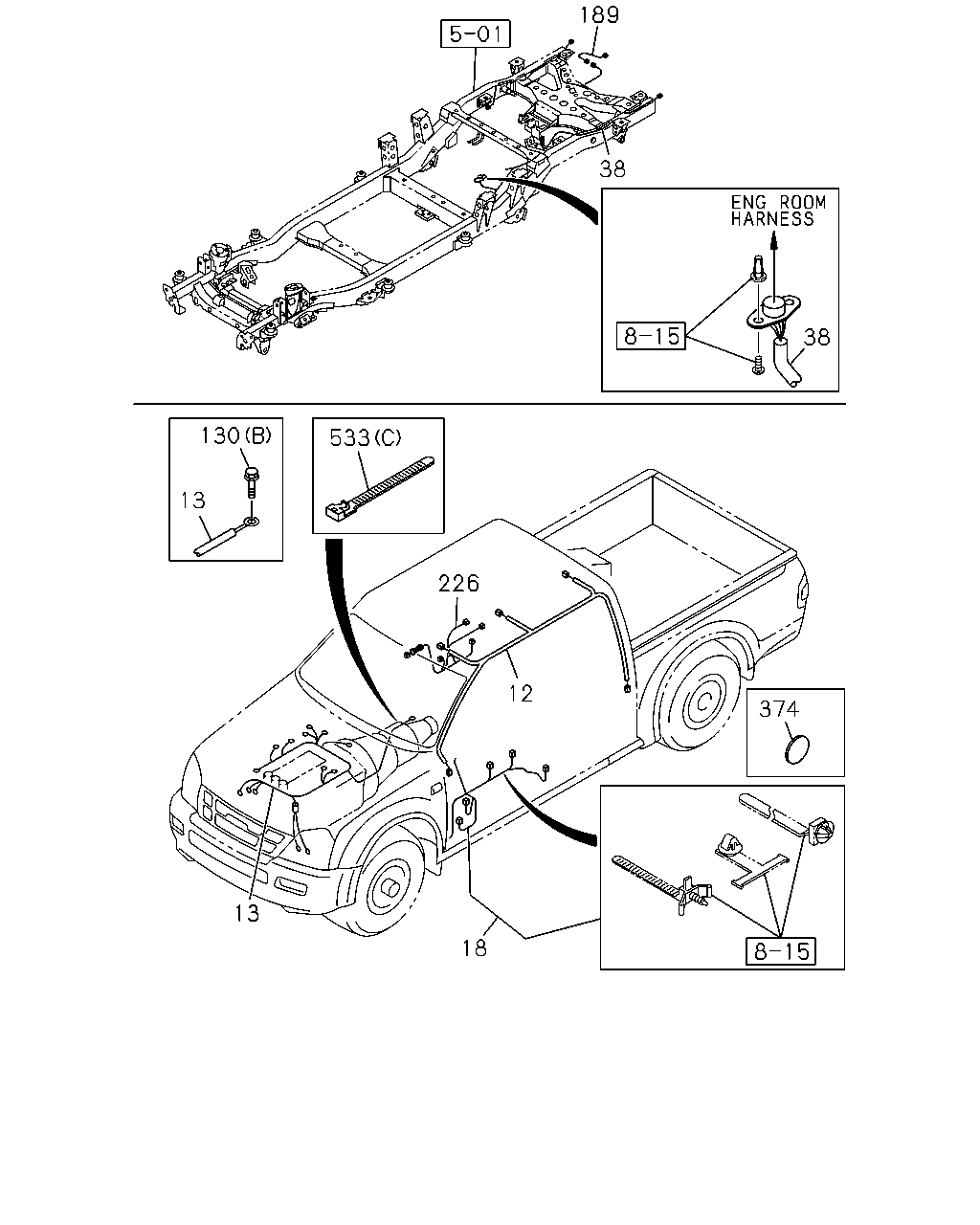

130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0601-0609 ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0601-0609 ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ●

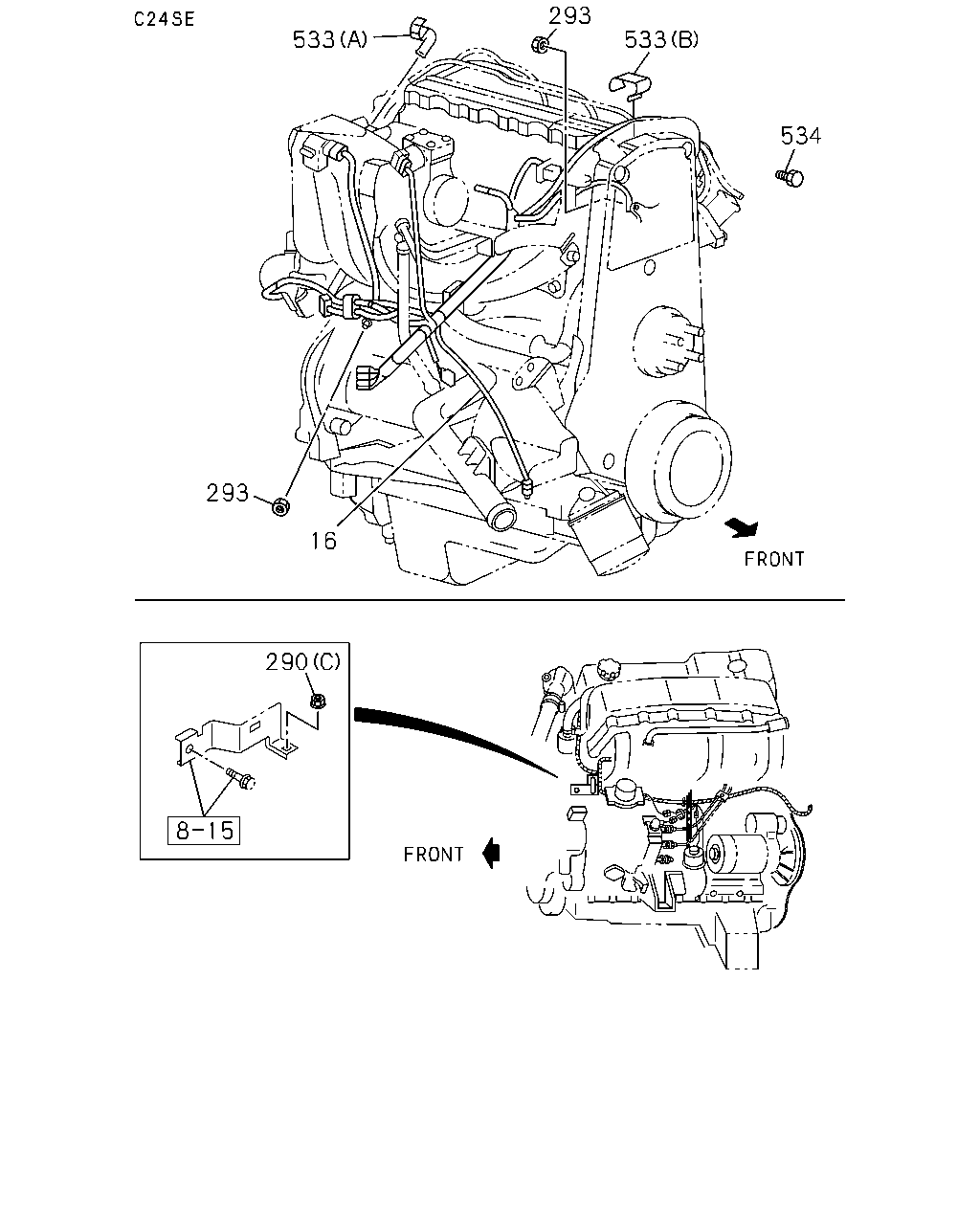

290 02.483 NUT; BRKT
C24SE ENG(LG1) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0306-0603 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0604- ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0605 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) EURO1 SPECIFICATION<NT1> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0606-0606 ● ● ● ●
290 02.483 NUT; BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0606-0606 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607-0609 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ● ●

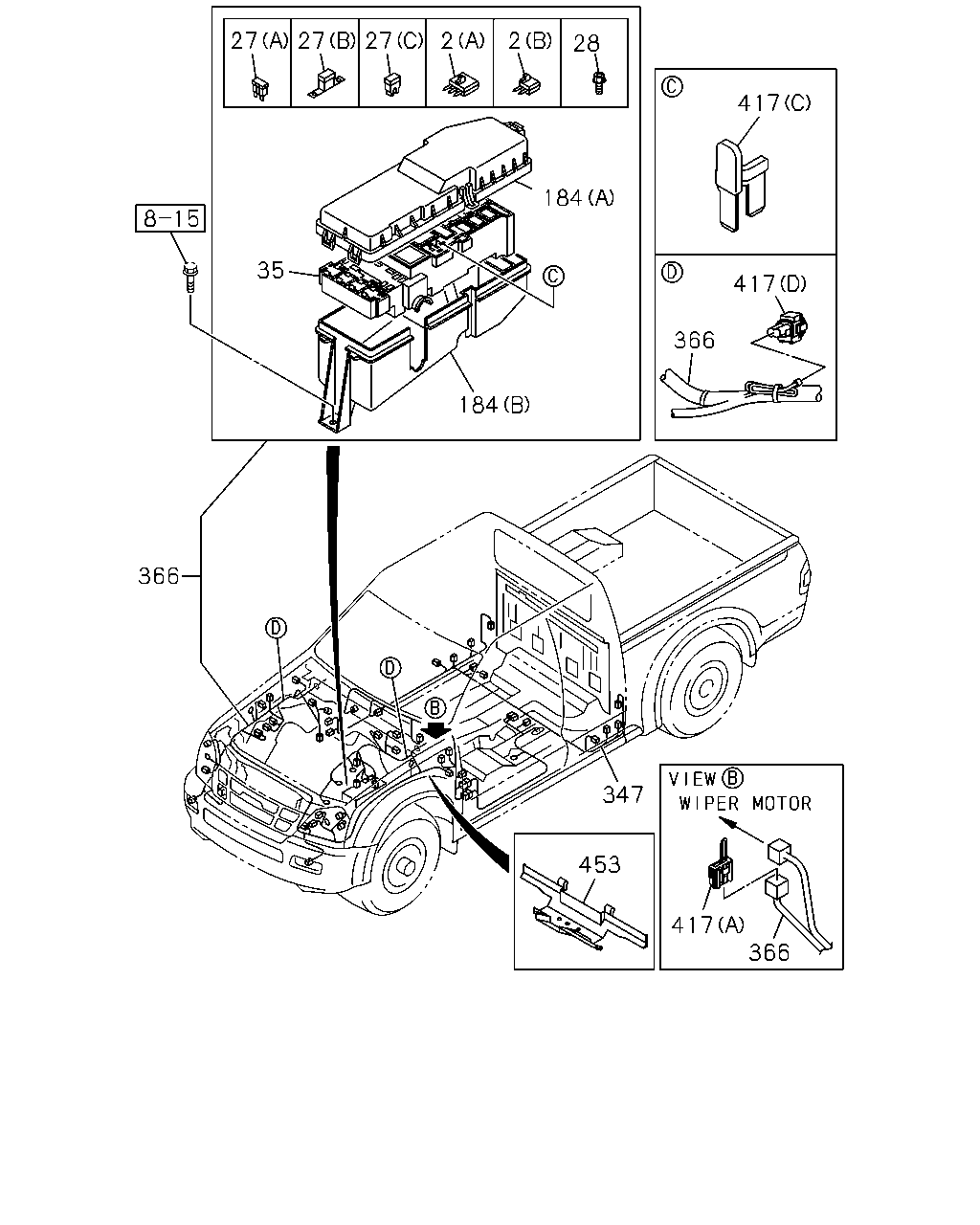

366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-011-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-439-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-114-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-314-0 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98059-314-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-444-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-435-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-110-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-310-0 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-846-0 01 1 1004-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98163-846-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97367-999-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97377-453-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97385-128-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98007-457-3 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-98007-457-3 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97364-466-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97377-457-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97385-132-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-98046-913-1 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-000-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-454-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-129-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-458-2 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98007-458-2 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-467-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-458-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-133-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-914-1 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-007-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-481-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-155-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-774-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-859-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-761-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-761-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-008-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-482-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-156-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-776-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-861-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-763-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-763-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-003-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-477-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-151-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-777-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-862-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-764-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-764-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-004-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-478-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-152-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-775-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-860-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-762-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-762-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-445-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-436-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-111-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-311-0 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-847-0 01 1 1004-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98163-847-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-012-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-440-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-115-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-315-0 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98059-315-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97368-001-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97377-455-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97385-130-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98007-460-3 01 1 0610-0612 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98074-212-0 01 1 0701-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-98074-212-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-002-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-456-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-131-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-461-2 01 1 0610-0612 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98074-213-0 01 1 0701-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98074-213-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-469-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-460-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-134-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-802-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-887-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-789-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-789-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-005-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-803-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-888-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-790-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-790-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-006-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-804-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-889-4 01 1 0710-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-791-0 01 1 0810-1109 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-791-0 01 1 1110- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-009-0 01 1 0306-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-483-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-157-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-805-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-890-4 01 1 0710-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-792-0 01 1 0810-1109 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-792-0 01 1 1110- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-010-0 01 1 0306-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-484-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-158-0 01 1 0509-0609 ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(B) 		8-97245-593-0 01 1 0306- ● ● ● ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(A) 		8-97323-847-0 01 1 0306- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) 		8-97385-263-0 02 1 0509-0709 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (D) 		8-97385-263-0 02 1 0710- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JH1-TC ENG(RDM) EURO1 SPECIFICATION<NT1> (C) 		8-97135-728-0 01 1 0509-0609 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER WO/HEATER(C65) (B) 		8-97362-918-0 01 1 0306- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0306-0609 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0610- ● ● ● ●

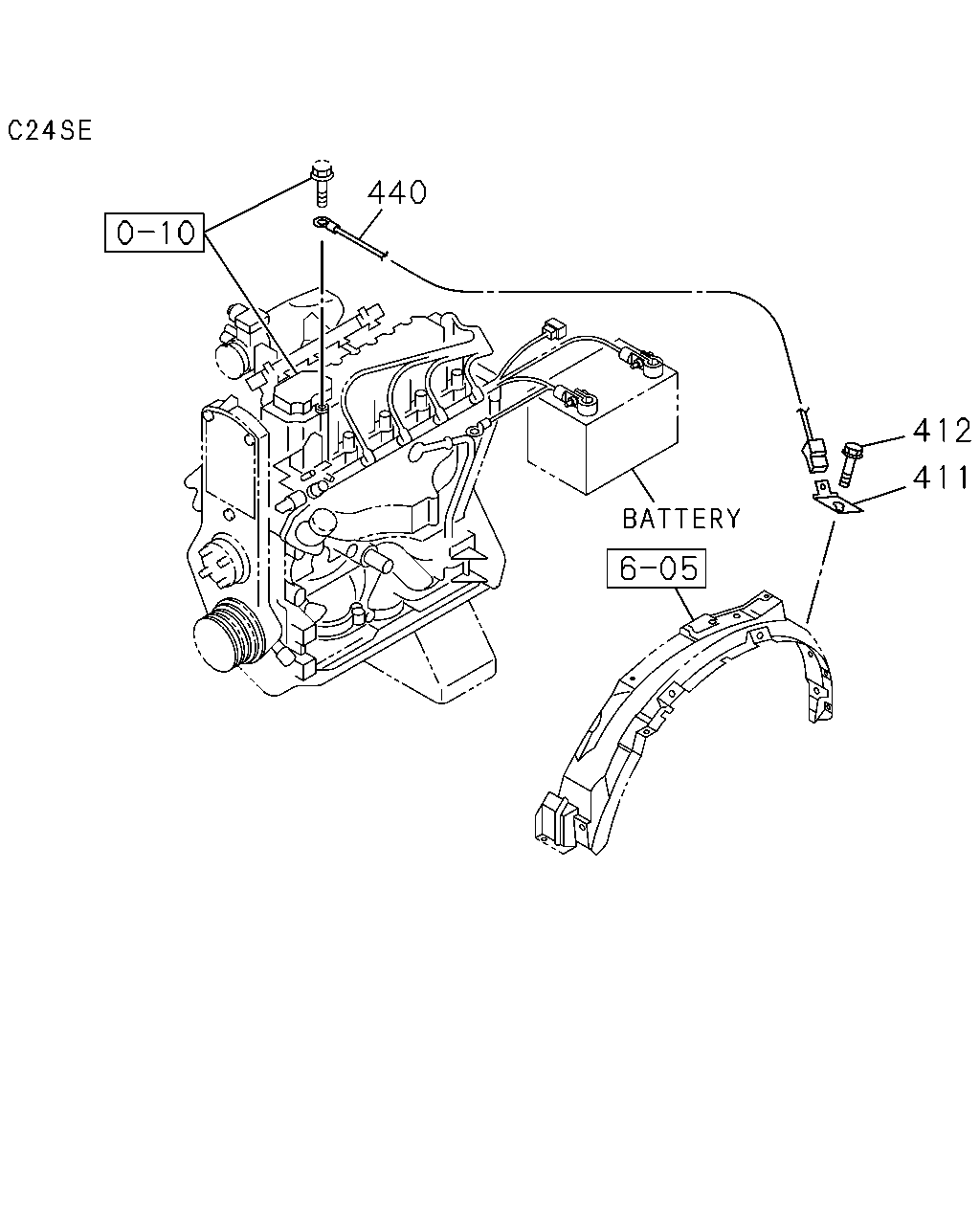

çizim 160635
440 412 411
BalonParca AdiParca NoAdetTipApplied Date A B C D
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
C24SE ENG(LG1) 02.530 		8-94102-644-0 01 1 0306-0608 ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
C24SE ENG(LG1) 		8-98050-904-0 01 1 0609- ● ● ● ●
412 02.559 BOLT; TERMINAL TO ENG,HANGER RR
C24SE ENG(LG1) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306- ● ● ● ●
440 02.480 CABLE; EARTH
C24SE ENG(LG1) 		8-97317-387-0 01 1 0306- ● ● ● ●
çizim 160664
189 38 38 130 533 13 226 12 374 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-97384-921-0 01 1 0509- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6> 		8-97384-922-0 01 1 0509-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-468-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-930-0 01 1 0509-0709 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>, HIGH MOUNT STOP LAMP<TS6> 		8-97384-928-0 01 1 0509-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-97384-929-0 01 1 0509-0608 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98047-409-0 01 1 0609-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6> 		8-97384-927-0 01 1 0509-0608 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6> 		8-98047-408-0 01 1 0609-0709 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>, ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-97353-916-0 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6> 		8-97385-699-0 01 1 0509- ● ●
12 02.480 HARNESS; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-97353-917-0 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97385-700-0 01 1 0509- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-97237-029-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6> 		8-97385-707-0 01 1 0509-0608 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6> 		8-98047-411-0 01 1 0609-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-97237-027-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97385-705-0 01 1 0509-0608 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-98047-410-0 01 1 0609-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98053-466-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-97237-030-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-708-0 01 1 0509-0709 ● ●
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOPLAMP<TS6> 		8-97237-028-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97385-706-0 01 1 0509-0709 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98053-444-1 01 1 0710- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-691-0 01 1 1104-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. TACHOMETER<U16> 		8-98180-691-0 01 1 1104-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20>, TACHOMETER<U16> 		8-98180-691-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20>, TACHOMETER<U16> 		8-98180-691-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97361-281-4 01 1 0306-0609 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98011-539-4 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-081-1 01 1 0710-0809 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98045-081-1 01 1 0810-1109 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-081-1 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-280-4 01 1 0306-0609 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 		8-98011-541-4 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 		8-98045-083-1 01 1 0710-0809 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) POWER STEERING<N40> 		8-98045-083-1 01 1 0810-1109 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> POWER STEERING<N40> 		8-98045-083-1 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-282-5 01 1 0306-0609 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98011-540-4 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-082-1 01 1 0710-0809 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98045-082-1 01 1 0810-1109 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-082-1 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97361-283-4 01 1 0306-0609 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98011-542-4 01 1 0610-0709 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-084-1 01 1 0710-0809 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98045-084-1 01 1 0810-1109 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ELECTRONIC CONTROL<K20> 		8-98045-084-1 01 1 1110- ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) EMISSION SYSTEM R15-04<K75> 		8-97362-903-2 01 1 0306-0609 ● ● ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97362-903-2 01 1 0610-0803 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97362-903-2 01 1 0610-0803 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-98115-520-0 01 1 0804-1103 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-98115-520-0 01 1 0804-1103 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-98115-520-0 01 1 1104-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> 		8-98115-520-0 01 1 1104-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> EXC. ELECTRONIC CONTROL<K20> 		8-98115-520-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> TACHOMETER<U16> EXC. ELECTRONIC CONTROL<K20> 		8-98115-520-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> 		8-97362-905-2 01 1 0306-0609 ● ● ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 		8-97362-905-2 01 1 0610-0803 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 		8-97362-905-2 01 1 0610-0803 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 		8-98115-522-0 01 1 0804-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 		8-98115-522-0 01 1 0804-1109 ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 		8-98115-522-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> EXC. ELECTRONIC CONTROL<K20> 		8-98115-522-0 01 1 1110- ● ●
18 02.480 HARNESS; DOOR
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-117-0 01 1 0611-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-473-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
GRADE DX(RBA) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-118-0 01 1 0611-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-474-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97362-344-0 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97362-344-0 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97384-894-0 01 1 0509-0511 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-98032-409-0 01 1 0512-0604 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-98032-410-0 01 1 0605-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98053-497-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97362-346-0 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97384-913-0 01 1 0509-0511 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-98032-417-0 01 1 0512-0604 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-98032-418-0 01 1 0605-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-98053-500-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97362-347-0 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING C HROME TURN SIGNAL<8JH> 		8-97384-896-0 01 1 0509-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98053-494-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97362-345-0 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLD ING CHROME TURN SIGNAL<8JH> 		8-97384-895-0 01 1 0509-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-98053-493-0 01 1 0710- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97237-042-2 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-897-0 01 1 0509-0610 ● ● ● ●
18 02.480 HARNESS; DOOR
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-897-0 01 1 0611-0709 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97254-855-2 01 1 0306-0508 ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-901-0 01 1 0509-0610 ● ● ● ●
18 02.480 HARNESS; DOOR
GRADE LT(RBD) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-901-0 01 1 0611-0709 ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-884-0 01 1 0610- ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-885-0 01 1 0610- ● ● ● ●
38 02.480 HARNESS; CHAS
C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-390-0 01 1 0306-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
C24SE ENG(LG1) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-592-2 01 1 0610- ● ● ● ●
38 02.480 HARNESS; CHAS
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-391-0 01 1 0306-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-593-2 01 1 0610- ● ● ● ●
38 02.480 HARNESS; CHAS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-392-0 01 1 0306-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-594-2 01 1 0610- ● ● ● ●
38 02.480 HARNESS; CHAS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-393-0 01 1 0306-0609 ● ● ● ●
38 02.480 HARNESS; CHAS
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-595-2 01 1 0610- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0609 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0512 ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0601-0609 ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0601-0609 ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97317-591-0 01 1 0306-0709 ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-270-0 01 1 0710- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97250-356-0 01 1 0306-0709 ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97250-356-0 01 1 0306-0709 ● ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 0710- ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 0710- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97323-417-2 02 1 0306-0709 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-410-1 02 1 0710-1007 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97363-990-0 02 1 0306-0508 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97302-156-2 02 1 0306-0508 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97302-156-2 02 1 0509-0709 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-408-1 02 1 0710- ● ●
226 02.480 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-97302-186-2 02 1 0306-0709 ● ●
226 02.480 HARNESS; RR DOOR
GRADE LT(RBD) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-409-1 02 1 0710- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0306-0709 ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0710- ● ●
533 02.559 CLIP
02.363 (C) L=140 		8-97920-656-0 01 1 0610- ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A) 		8-92065-418-0 02 1 0306-1009 ● ● ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A) 		8-92067-199-0 02 1 1010- ● ● ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (B) 		8-92065-422-0 01 1 0306-1009 ● ● ● ●
çizim 160669
27 2 2 28 417 184 35 417 366 184 366 347 453 417 366 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0306- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(B) 120A WHITE 		1-82516-028-1 AR 1 0610- ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-1 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(B) 100A BLUE 		8-94388-306-1 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0306- ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 AR 1 0306- ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0306-1109 ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ● ●
28 02.483 SCREW; FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ● ●
28 02.483 SCREW; FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-97249-192-0 02 1 1110- ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0306-1109 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ● ●
35 02.530 BOX; RELAY & FUSE
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-97251-395-0 01 1 1110- ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0306-1109 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> (A) 		8-97251-393-0 01 1 1110- ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0306-1109 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
C24SE ENG(LG1),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> (B) 		8-97251-394-0 01 1 1110- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-506-4 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98007-581-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97323-689-5 01 1 0306-0508 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97323-689-5 01 1 0509-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98044-564-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97317-508-3 01 1 0306-0508 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-97317-509-4 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98007-584-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-502-5 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97317-504-5 01 1 0306-0508 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97317-504-5 01 1 0509-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97323-690-3 01 1 0306-0508 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-97317-505-5 01 1 0306-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-011-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-439-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-114-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-314-0 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98059-314-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-444-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-435-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-110-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-310-0 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-846-0 01 1 1004-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98163-846-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97367-999-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97377-453-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97385-128-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98007-457-3 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-98007-457-3 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97364-466-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97377-457-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-97385-132-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO1 SPECIFICATION<NT1> 		8-98046-913-1 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-000-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-454-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-129-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-458-2 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98007-458-2 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-467-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-458-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-133-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-914-1 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-007-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-481-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-155-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-774-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-859-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-761-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-761-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-008-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-482-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-156-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-776-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-861-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-763-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-763-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-003-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-477-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-151-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-777-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-862-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-764-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-764-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-004-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-478-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-152-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-775-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-860-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-762-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-762-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-445-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-436-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-111-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-311-0 01 1 0610-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-847-0 01 1 1004-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98163-847-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-012-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-440-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-115-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-315-0 01 1 0610-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98059-315-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97368-001-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97377-455-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-97385-130-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98007-460-3 01 1 0610-0612 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> 		8-98074-212-0 01 1 0701-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC CONTROL<K20> 		8-98074-212-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-002-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-456-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-131-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-461-2 01 1 0610-0612 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98074-213-0 01 1 0701-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC CONTROL<K20> 		8-98074-213-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-469-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-460-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-134-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-802-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-887-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-789-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-789-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-005-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-803-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-888-4 01 1 0710-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-790-0 01 1 0810-1109 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-790-0 01 1 1110- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-006-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-804-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-889-4 01 1 0710-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-791-0 01 1 0810-1109 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98108-791-0 01 1 1110- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-009-0 01 1 0306-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-483-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-157-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-805-0 01 1 0610-0709 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-890-4 01 1 0710-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-792-0 01 1 0810-1109 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-792-0 01 1 1110- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-010-0 01 1 0306-0405 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-484-0 01 1 0406-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-158-0 01 1 0509-0609 ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) 		8-97385-263-0 02 1 0509-0709 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (D) 		8-97385-263-0 02 1 0710- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JH1-TC ENG(RDM) EURO1 SPECIFICATION<NT1> (C) 		8-97135-728-0 01 1 0509-0609 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER WO/HEATER(C65) (B) 		8-97362-918-0 01 1 0306- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0306-0609 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0610- ● ● ● ●
453 02.483 PROTECTOR; HARNESS 8-97327-532-0 01 1 0306-0609 ● ● ● ●
çizim 160692
293 533 533 534 293 16 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 02.525 HARNESS; ENG,ECGI
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 		8-92065-291-0 01 1 0306- ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0306-0603 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0604- ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0605 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) EURO1 SPECIFICATION<NT1> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0606-0606 ● ● ● ●
290 02.483 NUT; BRKT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0606-0606 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607-0609 ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JA1-T ENG(LP0) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ● ●
293 02.559 NUT
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 00.004 		8-11014-038-0 02 1 0306-1009 ● ● ● ●
533 02.559 CLIP
02.363 (C) L=140 		8-97920-656-0 01 1 0610- ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A) 		8-92065-418-0 02 1 0306-1009 ● ● ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (A) 		8-92067-199-0 02 1 1010- ● ● ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) (B) 		8-92065-422-0 01 1 0306-1009 ● ● ● ●
534 02.483 BOLT
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 		8-90412-680-0 01 1 0306-1009 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
