Isuzu WW
▶
PICKUP
▶
TFR
▶
51277 - TFR/TFS MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

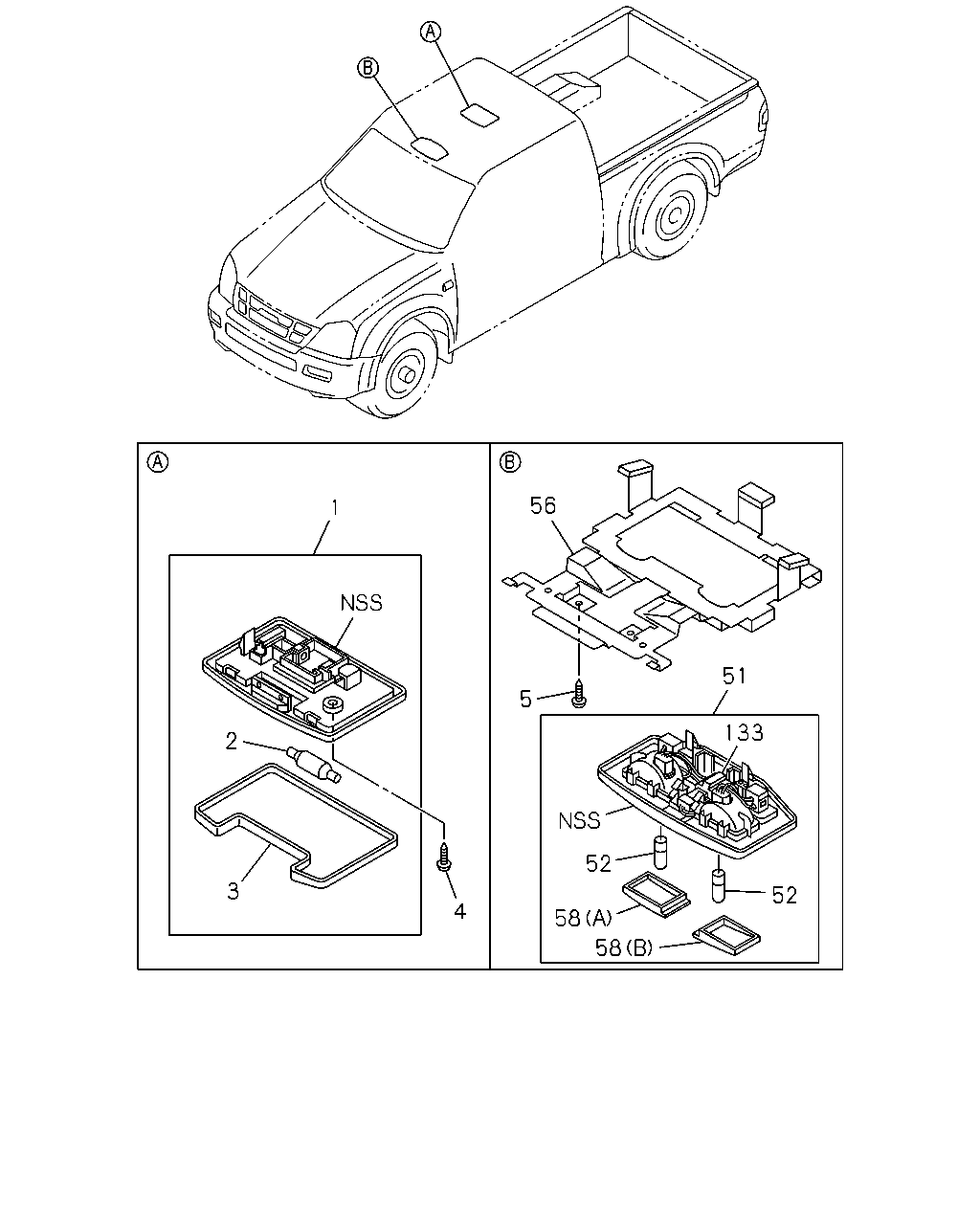

8-05 — INTERIOR LAMP
(#77625) — 26 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6SF
D - TFS6WF
◀
[805A] GLOVE BOX LAMP (2 parça)
[805A] ROOM LAMP (24 parça)
▶
14
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
13
02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27>
8-97363-727-0
01
1
0306-
●
●
●
●
14
08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W
8-97352-272-0
01
1
0306-
●
●
●
●
56
1
51
5
133
2
52
3
52
4
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.494 LAMP ASM; ROOM
INTERIOR COLOR BLACK(101) BLACK
8-97418-484-0
01
1
1004-
●
●
●
●
1
16.494 LAMP ASM; ROOM
LIGHT GRAY
8-97294-070-2
01
1
0306-0609
●
●
●
●
1
16.494 LAMP ASM; ROOM
LIGHT GRAY
8-97403-891-2
01
1
0610-0612
●
●
●
●
1
16.494 LAMP ASM; ROOM
LIGHT GRAY
8-97411-439-0
01
1
0701-1003
●
●
●
●
1
16.494 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY
8-97411-439-0
01
1
1004-
●
●
●
●
2
08.991 BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
0306-1003
●
●
●
●
2
08.991 BULB; ROOM LAMP
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 12V 10W
8-97128-771-0
01
1
1004-
●
●
●
●
3
16.495 LENS; ROOM LAMP
8-97333-429-0
01
1
0306-1003
●
●
●
●
3
16.495 LENS; ROOM LAMP
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)
8-97333-429-0
01
1
1004-
●
●
●
●
4
16.495 SCREW; ROOM LAMP
08.010 M5X12 TAPPING
9-07066-512-0
02
1
0306-0604
●
●
●
●
4
16.495 SCREW; ROOM LAMP
M5X12 TAPPING
0-71040-512-0
02
1
0605-
●
●
●
●
5
16.545 SCREW; SPOT LAMP
MAP LAMP<C74> 08.913 M5X12
8-94120-094-0
02
1
0306-
●
●
●
●
51
16.494 LAMP ASM; SPOT
INTERIOR COLOR BLACK(101) MAP LAMP<C74> BLACK
8-97418-611-0
01
1
1004-
●
●
●
●
51
16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY
8-97396-084-0
01
1
0306-0609
●
●
●
●
51
16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY
8-97403-890-0
01
1
0610-0612
●
●
●
●
51
16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY
8-97411-744-0
01
1
0701-1003
●
●
●
●
51
16.494 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> LIGHT GRAY
8-97411-744-0
01
1
1004-
●
●
●
●
52
08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W
8-94124-595-0
02
1
0306-
●
●
●
●
56
16.494 BRACKET; LAMP
MAP LAMP<C74>
8-97236-839-5
01
1
0306-0412
●
●
●
●
56
16.494 BRACKET; LAMP
MAP LAMP<C74>
8-97385-493-0
01
1
0501-0609
●
●
●
●
56
16.494 BRACKET; LAMP
MAP LAMP<C74>
8-98050-901-0
01
1
0610-
●
●
●
●
58
16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A)
8-97333-440-0
01
1
0306-
●
●
●
●
58
16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B)
8-97333-441-0
01
1
0306-
●
●
●
●
133
16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74>
8-97176-526-0
01
1
0306-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
