Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#77624) — 191 parça

1 31 298 7 5 98 5 300 5 287

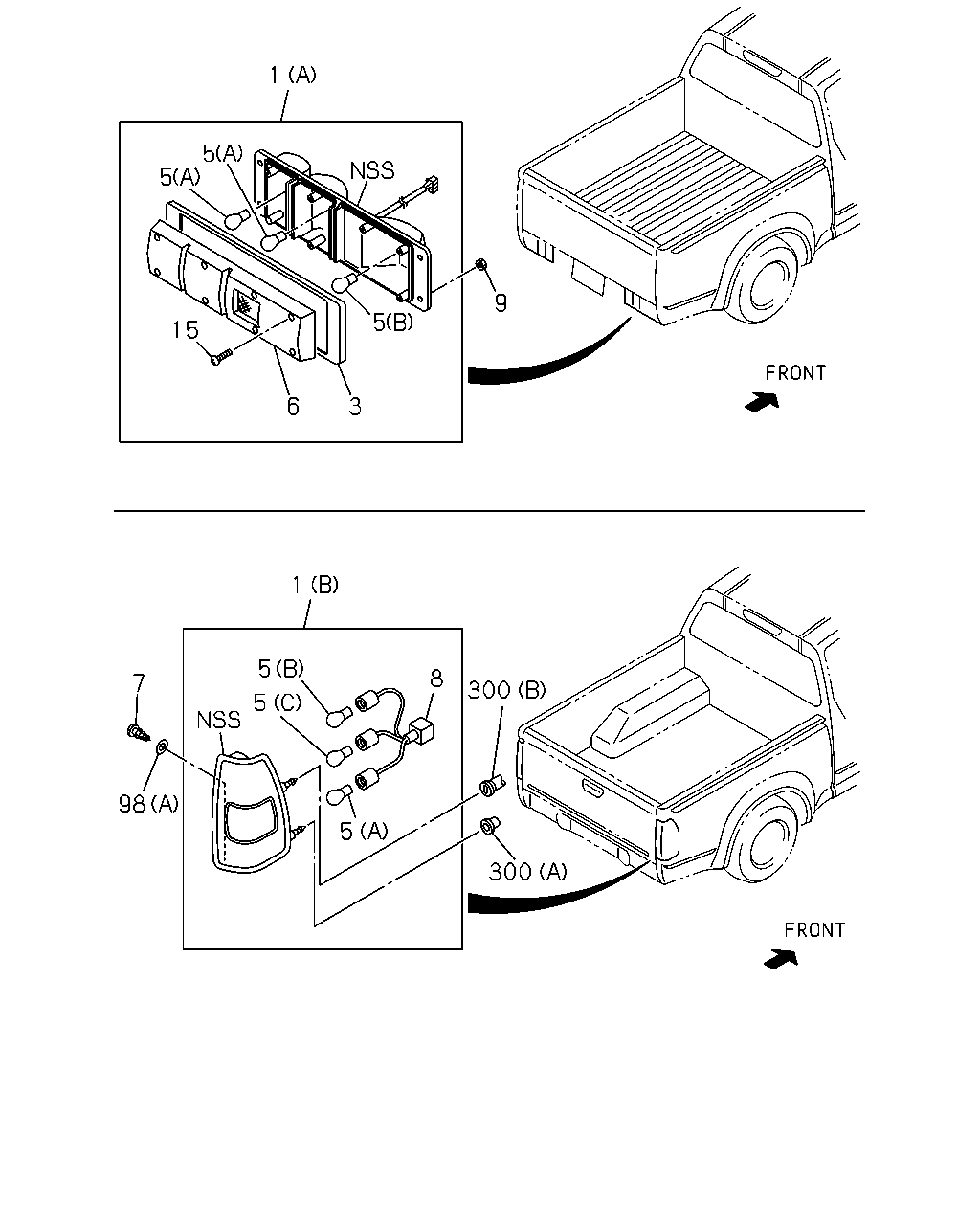

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98098-586-0	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) (C)	8-98098-586-0	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98098-587-0	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) (C)	8-98098-587-0	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	0610-1003	●
1	02.679 LAMP ASM; RR COMB (C)	8-97375-606-2	01	1	0610-1003		●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) (C)	8-97375-606-2	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	0610-1003	●
1	02.679 LAMP ASM; RR COMB (C)	8-97375-607-2	01	1	0610-1003		●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) (C)	8-97375-607-2	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A)	8-97137-731-0	01	1	0306-			●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (A)	8-97137-731-0	01	1	0306-	●
1	02.679 LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A)	8-97137-732-0	01	1	0306-			●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (A)	8-97137-732-0	01	1	0306-	●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97364-114-0	01	1	0306-0306	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97364-114-0	01	1	0306-0306		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-094-0	01	1	0307-0508	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97368-094-0	01	1	0307-0508		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	0509-0609	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-359-0	01	1	0509-0609		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	0610-			●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-359-0	01	1	0610-				●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97364-115-0	01	1	0306-0306	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97364-115-0	01	1	0306-0306		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-095-0	01	1	0307-0508	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97368-095-0	01	1	0307-0508		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	0509-0609	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-360-0	01	1	0509-0609		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	0610-			●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-360-0	01	1	0610-				●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W	8-94372-897-0	02	1	0610-	●
5	08.991 BULB; RR COMB LAMP (A) 12V 18W	8-94372-897-0	02	1	0610-		●
5	08.991 BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W	8-94124-074-0	04	1	0306-			●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (A) 12V 21W	8-94124-074-0	04	1	0306-	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W	8-94124-074-0	02	1	0306-0609	●		●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	0306-0609		●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W	8-94124-074-0	02	1	0610-			●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	0610-				●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W	8-97179-967-0	02	1	0306-	●		●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W	8-97179-967-0	02	1	0306-		●		●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	0306-0609		●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 12V 21/5W	8-94125-959-0	02	1	0306-0609	●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	0610-		●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (B) 12V 21/5W	8-94125-959-0	02	1	0610-	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W	8-94125-959-0	02	1	0610-	●
7	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0306-0606	●		●
7	02.664 SCREW; RR COMB LAMP 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0306-0606		●		●
7	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0607-	●		●
7	02.664 SCREW; RR COMB LAMP 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0607-		●		●
31	02.664 BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98012-764-0	01	1	0610-	●
31	02.664 BRACKET; RR COMB LAMP	8-98012-764-0	01	1	0610-		●
31	02.664 BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98012-765-0	01	1	0610-	●
31	02.664 BRACKET; RR COMB LAMP	8-98012-765-0	01	1	0610-		●
98	02.708 WASHER REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16	8-94427-941-0	04	1	0306-	●		●
98	02.708 WASHER 08.054 (A) D=16	8-94427-941-0	04	1	0306-		●		●

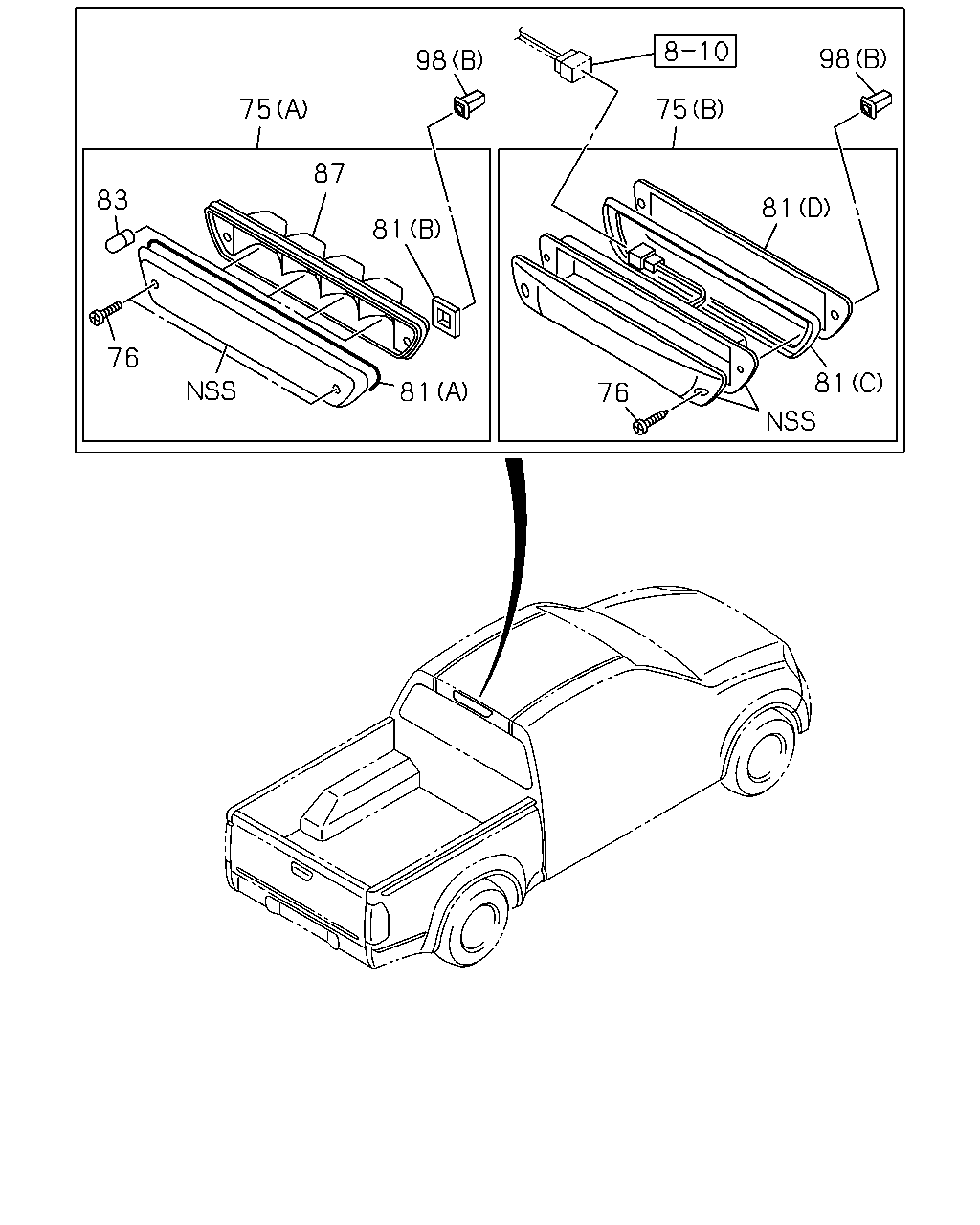

98	02.708 WASHER HIGH MOUNT STOP LAMP<TS6> 16.588 (B)	8-94279-039-0	02	1	0306-	●	●	●	●
287	02.679 LAMP UNIT; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63)	8-98012-757-0	01	1	1004-	●
287	02.679 LAMP UNIT; RR COMB GRADE LT(RBD)	8-98012-757-0	01	1	1004-		●
287	02.679 LAMP UNIT; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63)	8-98012-758-0	01	1	1004-	●
287	02.679 LAMP UNIT; RR COMB GRADE LT(RBD)	8-98012-758-0	01	1	1004-		●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98012-759-0	01	1	0610-1003	●
287	02.679 LAMP UNIT; RR COMB	8-98012-759-0	01	1	0610-1003		●
287	02.679 LAMP UNIT; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63)	8-98012-759-0	01	1	1004-	●
287	02.679 LAMP UNIT; RR COMB GRADE DX(RBA)	8-98012-759-0	01	1	1004-		●
287	02.679 LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98012-760-0	01	1	0610-1003	●
287	02.679 LAMP UNIT; RR COMB	8-98012-760-0	01	1	0610-1003		●
287	02.679 LAMP UNIT; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63)	8-98012-760-0	01	1	1004-	●
287	02.679 LAMP UNIT; RR COMB GRADE DX(RBA)	8-98012-760-0	01	1	1004-		●
298	02.727 CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	0610-	●
298	02.727 CAP; BREATHER,RR COMB LAMP	8-97289-148-0	02	1	0610-		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (C)	8-97372-854-0	02	1	0610-	●
300	16.494 HOLDER; LAMP (C)	8-97372-854-0	02	1	0610-		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	0306-0609	●		●
300	16.494 HOLDER; LAMP (A)	8-97305-675-0	02	1	0306-0609		●		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	0610-			●
300	16.494 HOLDER; LAMP (A)	8-97305-675-0	02	1	0610-				●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	0306-0609	●		●
300	16.494 HOLDER; LAMP (B)	8-97305-676-0	02	1	0306-0609		●		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	0610-			●
300	16.494 HOLDER; LAMP (B)	8-97305-676-0	02	1	0610-				●

1 5 5 9 5 15 6 3 1 5 8 7 300 5 98 5 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98098-586-0	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) (C)	8-98098-586-0	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98098-587-0	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE LT(RBD) (C)	8-98098-587-0	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	0610-1003	●
1	02.679 LAMP ASM; RR COMB (C)	8-97375-606-2	01	1	0610-1003		●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) (C)	8-97375-606-2	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	0610-1003	●
1	02.679 LAMP ASM; RR COMB (C)	8-97375-607-2	01	1	0610-1003		●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	1004-	●
1	02.679 LAMP ASM; RR COMB GRADE DX(RBA) (C)	8-97375-607-2	01	1	1004-		●
1	02.679 LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A)	8-97137-731-0	01	1	0306-			●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (A)	8-97137-731-0	01	1	0306-	●
1	02.679 LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A)	8-97137-732-0	01	1	0306-			●
1	02.679 LAMP ASM; RR COMB REAR BODY DELETE(8HH) (A)	8-97137-732-0	01	1	0306-	●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97364-114-0	01	1	0306-0306	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97364-114-0	01	1	0306-0306		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-094-0	01	1	0307-0508	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97368-094-0	01	1	0307-0508		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	0509-0609	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-359-0	01	1	0509-0609		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	0610-			●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-359-0	01	1	0610-				●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97364-115-0	01	1	0306-0306	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97364-115-0	01	1	0306-0306		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-095-0	01	1	0307-0508	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-97368-095-0	01	1	0307-0508		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	0509-0609	●		●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-360-0	01	1	0509-0609		●		●
1	02.679 LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	0610-			●
1	02.679 LAMP ASM; RR COMB (B)	8-98023-360-0	01	1	0610-				●
3	02.684 GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689	5-82236-001-0	01	1	0306-			●
3	02.684 GASKET; RR COMB LAMP REAR BODY DELETE(8HH) 02.689	5-82236-001-0	01	1	0306-	●
3	02.684 GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689	5-82236-002-0	01	1	0306-			●
3	02.684 GASKET; RR COMB LAMP REAR BODY DELETE(8HH) 02.689	5-82236-002-0	01	1	0306-	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W	8-94372-897-0	02	1	0610-	●
5	08.991 BULB; RR COMB LAMP (A) 12V 18W	8-94372-897-0	02	1	0610-		●
5	08.991 BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W	8-94124-074-0	04	1	0306-			●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (A) 12V 21W	8-94124-074-0	04	1	0306-	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W	8-94124-074-0	02	1	0306-0609	●		●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	0306-0609		●		●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W	8-94124-074-0	02	1	0610-			●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	0610-				●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W	8-97179-967-0	02	1	0306-	●		●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W	8-97179-967-0	02	1	0306-		●		●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	0306-0609		●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 12V 21/5W	8-94125-959-0	02	1	0306-0609	●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	0610-		●	●	●
5	08.991 BULB; RR COMB LAMP REAR BODY DELETE(8HH) (B) 12V 21/5W	8-94125-959-0	02	1	0610-	●
5	08.991 BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W	8-94125-959-0	02	1	0610-	●
6	02.682 LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82235-001-0	01	1	0306-			●
6	02.682 LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-001-0	01	1	0306-	●
6	02.682 LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82235-002-0	01	1	0306-			●
6	02.682 LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-002-0	01	1	0306-	●
7	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0306-0606	●		●
7	02.664 SCREW; RR COMB LAMP 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0306-0606		●		●
7	02.664 SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0607-	●		●
7	02.664 SCREW; RR COMB LAMP 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0607-		●		●
8	02.664 HARNESS; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97333-421-0	02	1	0306-0508	●		●
8	02.664 HARNESS; RR COMB LAMP	8-97333-421-0	02	1	0306-0508		●		●
8	02.664 HARNESS; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98023-361-0	02	1	0509-0609	●		●
8	02.664 HARNESS; RR COMB LAMP	8-98023-361-0	02	1	0509-0609		●		●
8	02.664 HARNESS; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98023-361-0	02	1	0610-			●
8	02.664 HARNESS; RR COMB LAMP	8-98023-361-0	02	1	0610-				●
9	02.689 NUT; LAMP,RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 09.744 M5 FLANGE	5-09440-003-0	08	1	0306-0610			●
9	02.689 NUT; LAMP,RR COMB REAR BODY DELETE(8HH) 09.744 M5 FLANGE	5-09440-003-0	08	1	0306-0610	●
9	02.689 NUT; LAMP,RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	0611-			●
9	02.689 NUT; LAMP,RR COMB REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	0611-	●
15	02.664 SCREW; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	0306-			●
15	02.664 SCREW; RR COMB LAMP REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	0306-	●
98	02.708 WASHER REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16	8-94427-941-0	04	1	0306-	●		●
98	02.708 WASHER 08.054 (A) D=16	8-94427-941-0	04	1	0306-		●		●
98	02.708 WASHER HIGH MOUNT STOP LAMP<TS6> 16.588 (B)	8-94279-039-0	02	1	0306-	●	●	●	●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (C)	8-97372-854-0	02	1	0610-	●
300	16.494 HOLDER; LAMP (C)	8-97372-854-0	02	1	0610-		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	0306-0609	●		●
300	16.494 HOLDER; LAMP (A)	8-97305-675-0	02	1	0306-0609		●		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	0610-			●
300	16.494 HOLDER; LAMP (A)	8-97305-675-0	02	1	0610-				●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	0306-0609	●		●
300	16.494 HOLDER; LAMP (B)	8-97305-676-0	02	1	0306-0609		●		●
300	16.494 HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	0610-			●
300	16.494 HOLDER; LAMP (B)	8-97305-676-0	02	1	0610-				●

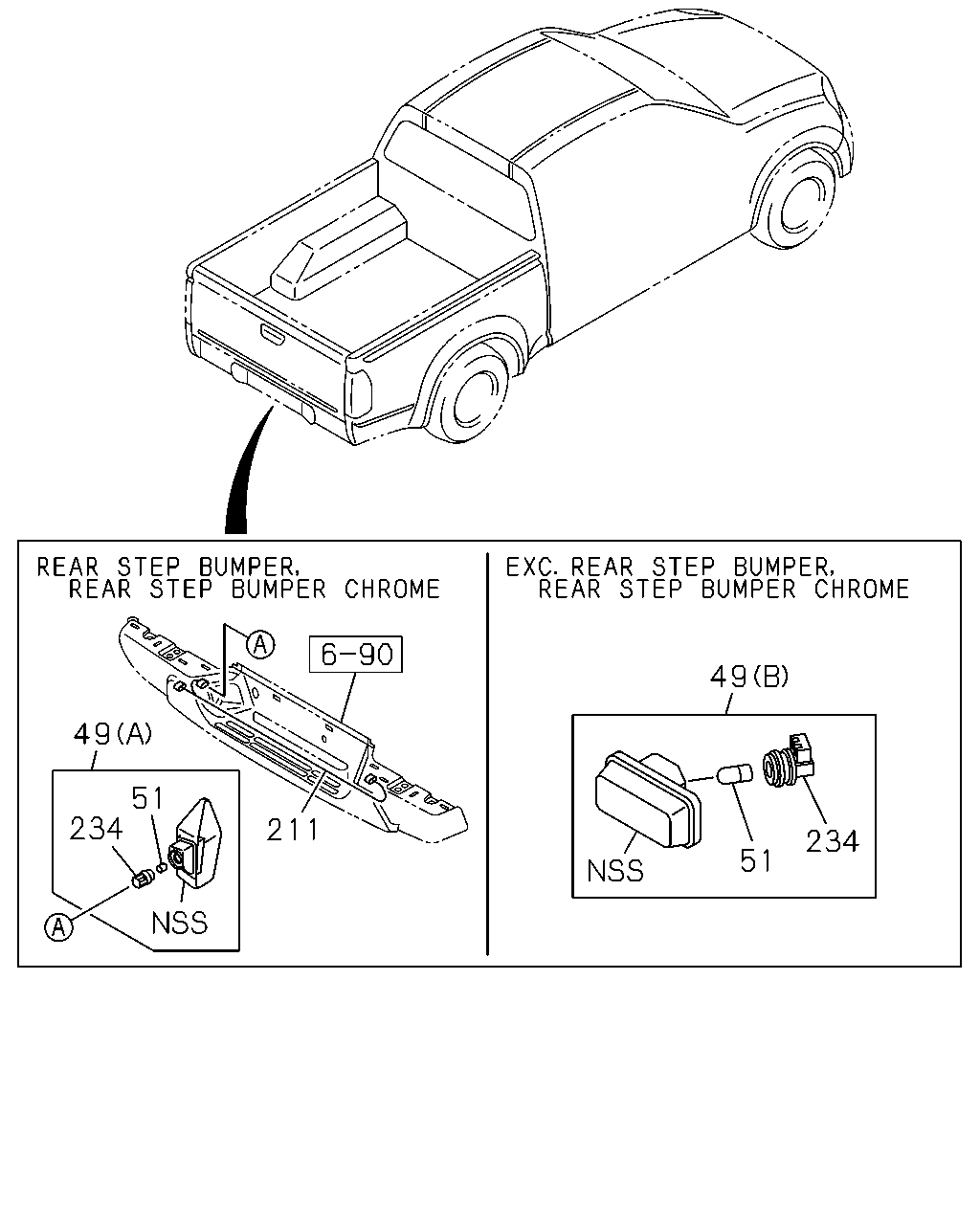

49 49 51 234 211 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	02.700 LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-97357-807-0	01	1	0306-0612	●	●	●	●
49	02.700 LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-866-0	01	1	0701-	●	●	●	●
49	02.700 LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-97357-808-0	01	1	0306-0612	●	●	●	●
49	02.700 LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-867-0	01	1	0701-	●	●	●	●
49	02.700 LAMP; LICENSE PLATE EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B)	8-97236-690-1	02	1	0306-1306	●	●	●	●
49	02.700 LAMP; LICENSE PLATE EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B)	8-98224-482-0	02	1	1307-	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP 12V 5W	8-94124-595-0	02	1	0306-	●	●	●	●
211	02.708 HARNESS; EXT REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-97253-465-2	01	1	0306-0609	●	●	●	●
211	02.708 HARNESS; EXT REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98025-099-0	01	1	0610-	●	●	●	●
234	02.596 SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-97184-970-0	02	1	0306-	●	●	●	●
234	02.596 SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	1-82119-148-0	02	1	0306-	●	●	●	●

98 98 75 75 87 83 81 81 76 81 81 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
75	02.679 LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> (A)	8-97305-674-1	01	1	0306-0405	●	●	●	●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> (A)	8-97381-629-0	01	1	0406-0709	●	●	●	●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> (B)	8-98052-867-2	01	1	0710-	●	●	●	●
76	02.688 SCREW; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6>	8-97333-426-0	02	1	0306-0709	●	●	●	●
76	02.688 SCREW; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6>	8-98095-145-0	02	1	0710-	●	●	●	●
81	02.694 GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (A)	8-97333-427-0	01	1	0306-0709	●	●	●	●
81	02.694 GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (C)	8-98095-143-0	01	1	0710-	●	●	●	●
81	02.694 GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (B)	8-97333-428-0	01	1	0306-0709	●	●	●	●
81	02.694 GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (D)	8-98095-144-0	01	1	0710-	●	●	●	●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> 12V 5W	8-97333-424-0	04	1	0306-0709	●	●	●	●
87	02.694 SOCKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6>	8-97333-425-0	01	1	0306-0709	●	●	●	●
98	02.708 WASHER REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16	8-94427-941-0	04	1	0306-	●		●
98	02.708 WASHER 08.054 (A) D=16	8-94427-941-0	04	1	0306-		●		●
98	02.708 WASHER HIGH MOUNT STOP LAMP<TS6> 16.588 (B)	8-94279-039-0	02	1	0306-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
