◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#77623) — 120 parça

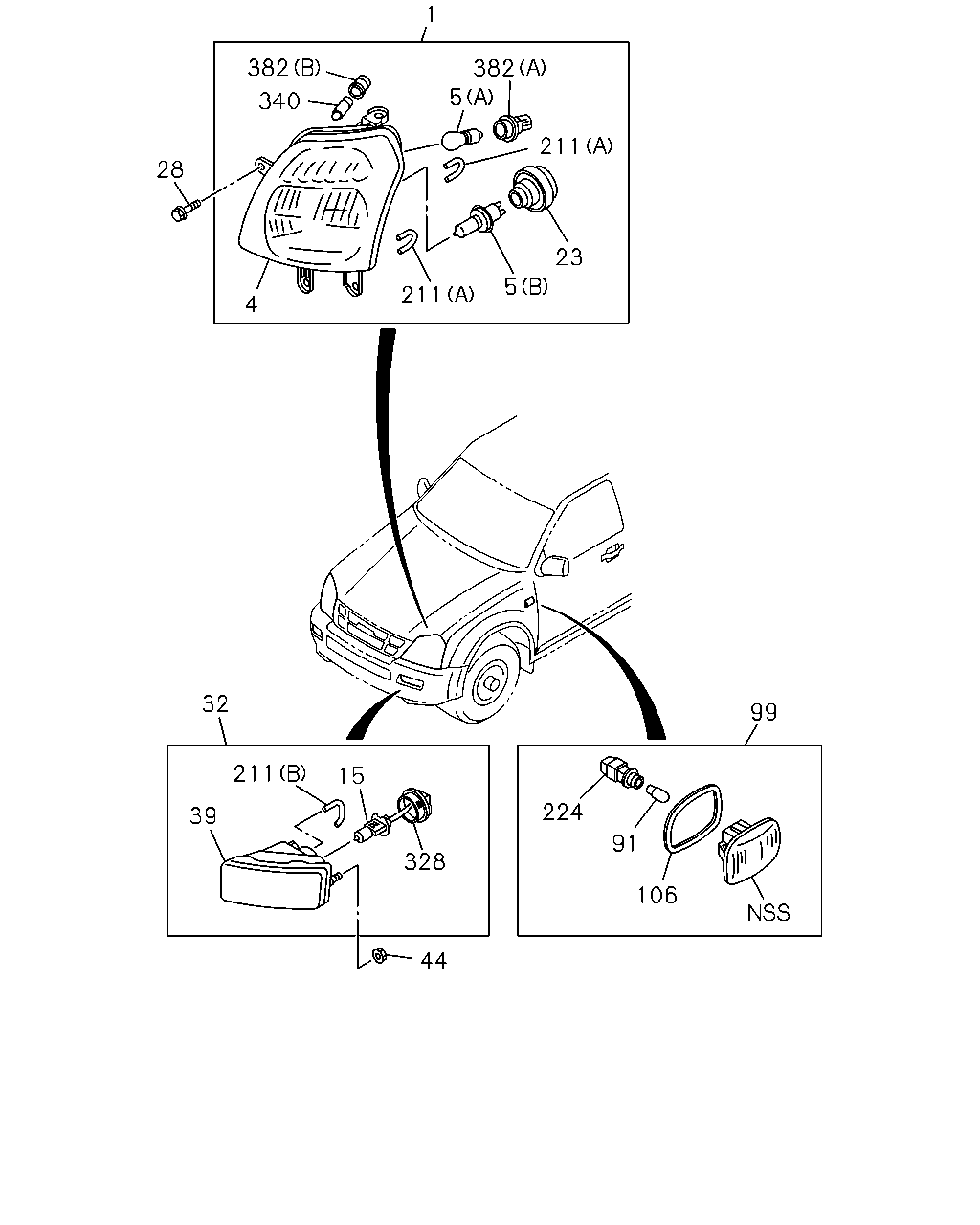

çizim 160602
1 382 382 5 340 211 28 23 5 211 4 32 99 211 15 224 39 91 328 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-97237-501-3 01 1 0306-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-729-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-313-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-835-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-650-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97357-326-0 01 1 0306-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-730-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-314-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-836-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-651-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0705- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0306-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-810-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0306-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-811-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0610- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0306- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0306-0609 ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0610- ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0306-0609 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 0306- ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0306-0611 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0306-0509 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0306-0509 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-414-0 01 1 0306-0609 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-415-0 01 1 0306-0609 ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0306-0609 ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0306-0508 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0509-0709 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 12V 5W 		8-97310-952-0 02 1 0710- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0306-0508 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0509-0709 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97237-378-1 02 1 0710- ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0306-0508 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0509-0709 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97333-420-0 02 1 0710- ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0306-0609 ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0306- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0306-0508 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0509-0709 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97310-953-0 02 1 0710- ● ● ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 0306-0609 ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0306- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0306- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0306- ● ● ● ●

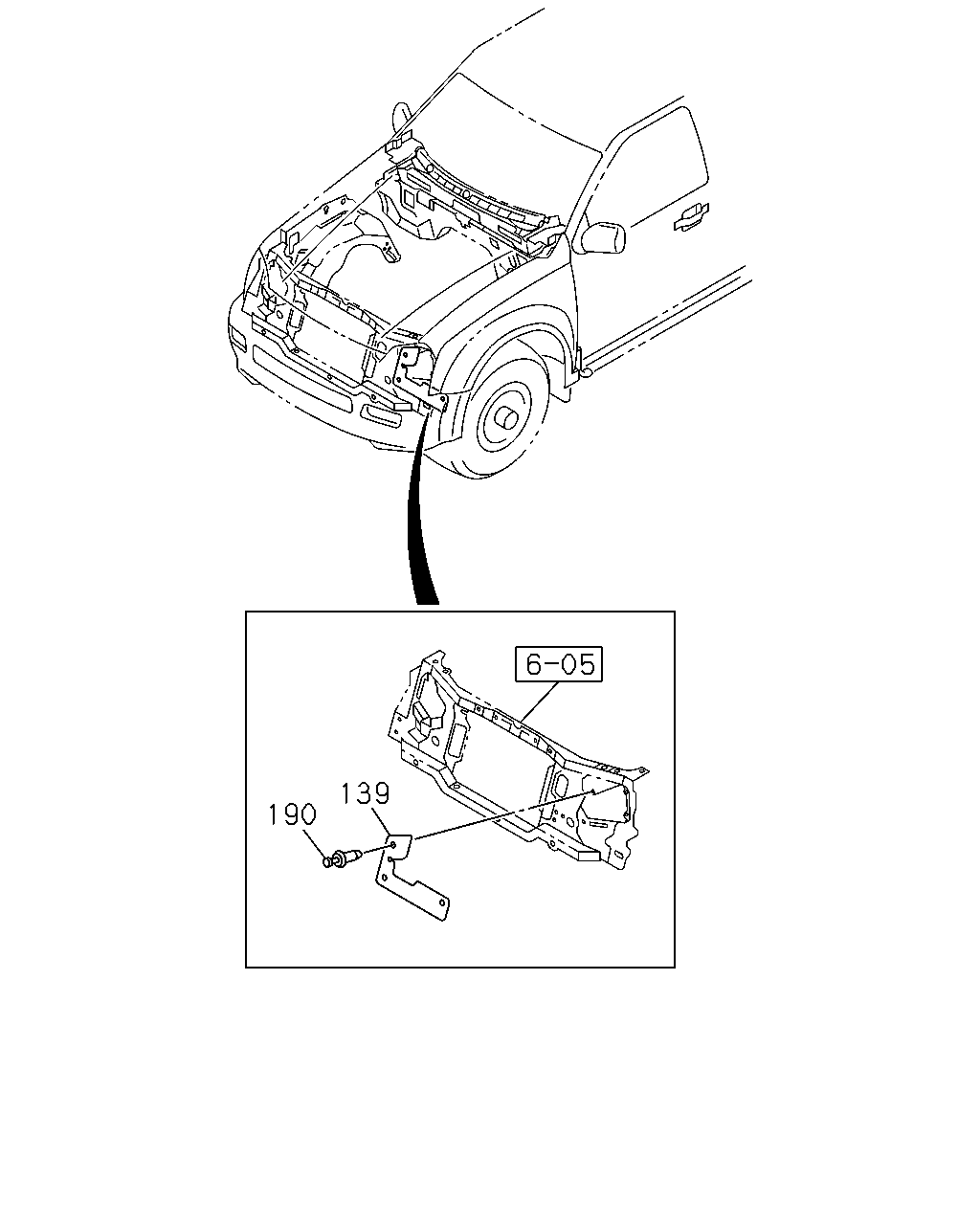

çizim 160607
139 190
BalonParca AdiParca NoAdetTipApplied Date A B C D
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 		8-97333-394-0 02 1 0306-0508 ● ● ● ●
139 02.726 COVER; HEADLAMP
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> 		8-97333-394-0 02 1 0509-0609 ● ● ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> 		8-97333-394-0 02 1 0509-0609 ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 16.150 		8-94279-954-0 06 1 0306-0508 ● ● ● ●
190 02.727 RETAINER; HEADLAMP
C24SE ENG(LG1),4JA1-T ENG(LP0),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) FACE LIFT MODEL<TX7> 16.150 		8-94279-954-0 06 1 0509-0609 ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. FACE LIFT MODEL<TX7> 16.150 		8-94279-954-0 06 1 0509-0609 ● ● ● ●

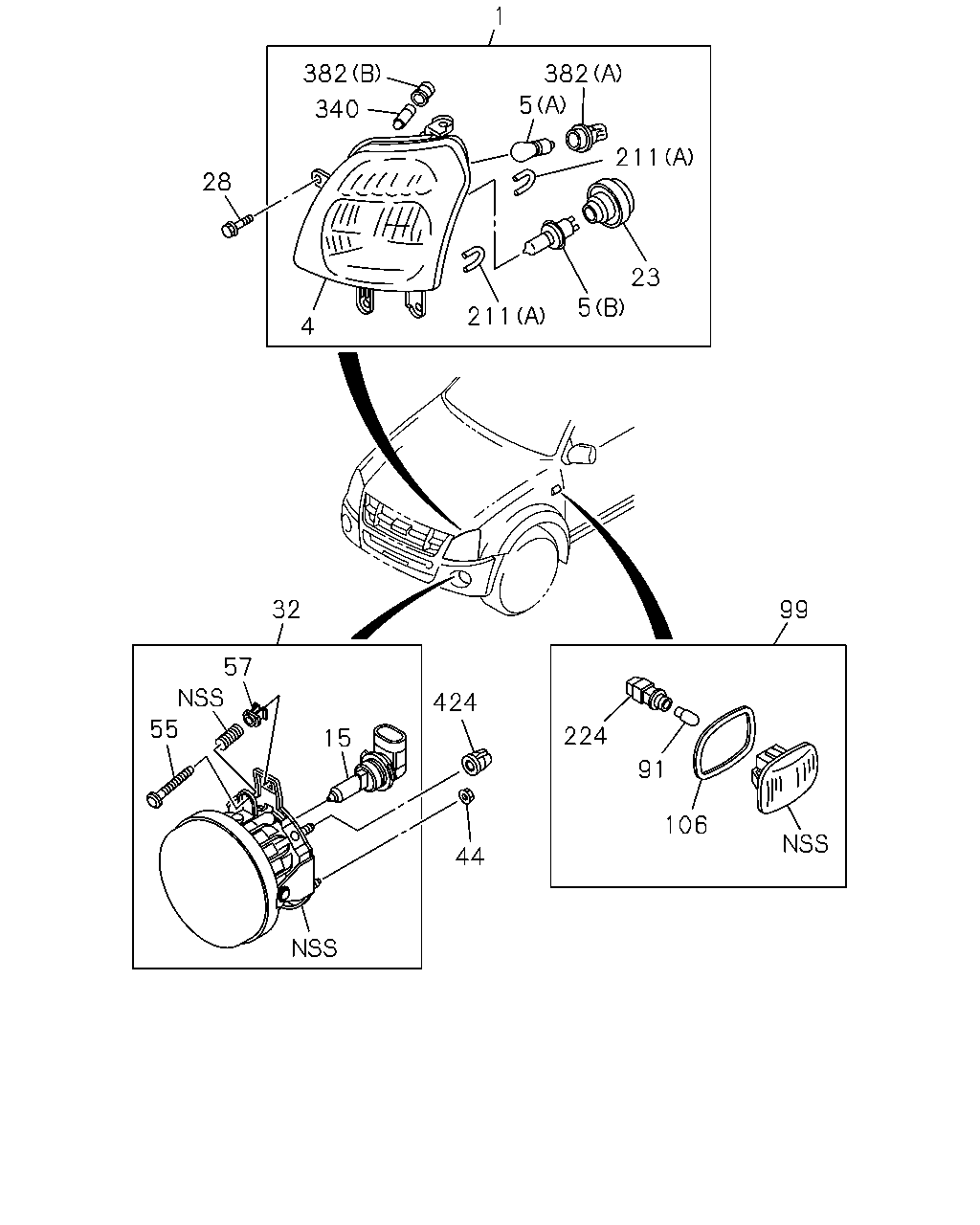

çizim 160619
1 382 382 5 340 211 28 23 5 211 4 32 99 57 424 55 224 15 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-97237-501-3 01 1 0306-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-729-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-313-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-835-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-650-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0705- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97357-326-0 01 1 0306-0307 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-730-0 01 1 0308-0312 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0401-0411 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-314-0 01 1 0412-0506 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-836-0 01 1 0507-0609 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-651-2 01 1 0610-0704 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0705- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0306-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-810-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0610- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0306-0411 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-811-0 01 1 0412-0609 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0610- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0306- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0306-0609 ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0610- ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0306-0609 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 0306- ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0306-0611 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0306-0509 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0306-0509 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0306-0609 ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0610- ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0610- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0306-0508 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0509-0709 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 12V 5W 		8-97310-952-0 02 1 0710- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0306-0508 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0509-0709 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97237-378-1 02 1 0710- ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0306-0508 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0509-0709 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97333-420-0 02 1 0710- ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0306-0609 ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0306- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0306-0508 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0509-0709 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN S IG,BRIGHT<DE3> 		8-97310-953-0 02 1 0710- ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0306- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0306- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0306- ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0610- ● ● ● ●
