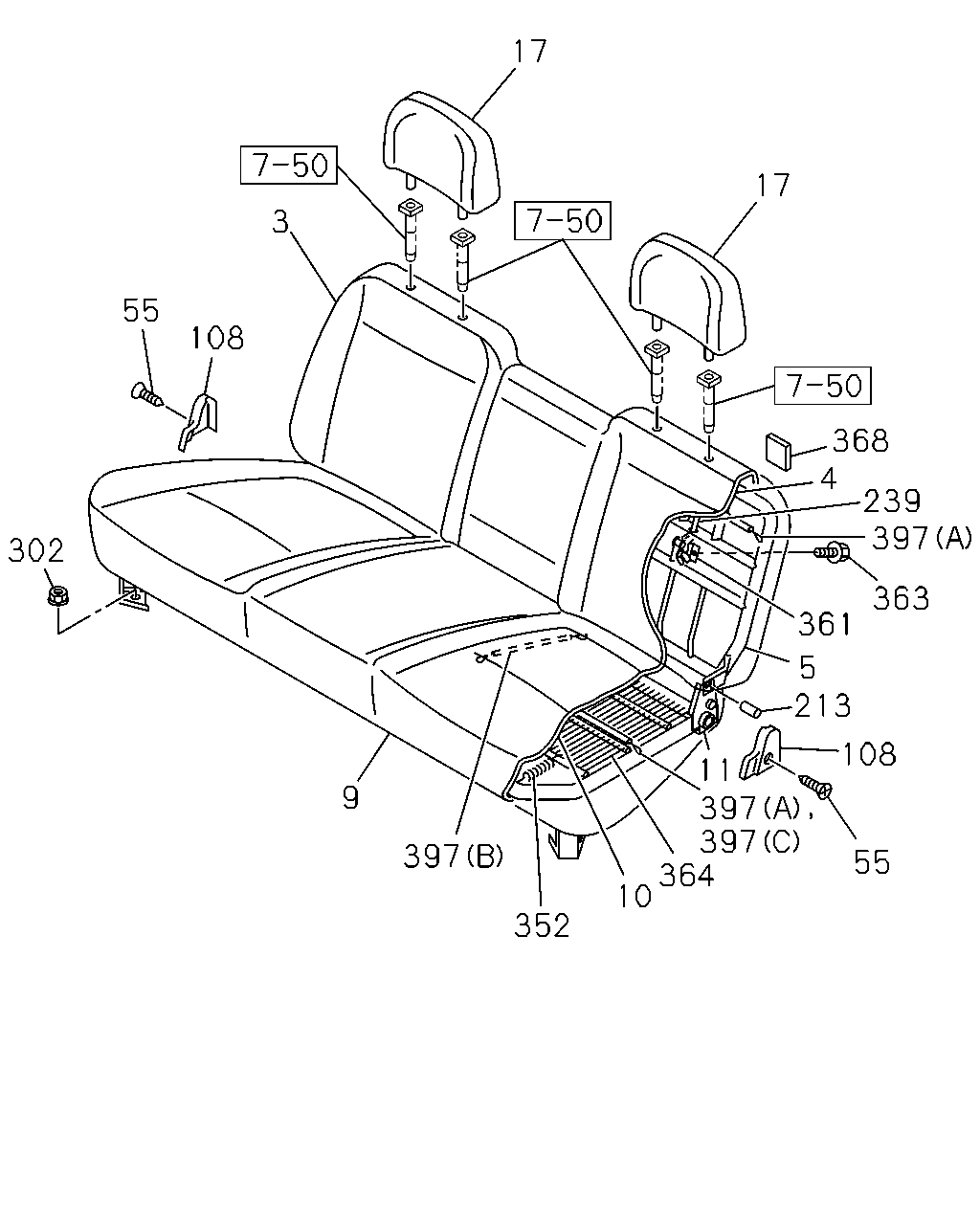

3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
SEAT COLOR RED<6SJ>
RED
|
8-97418-666-0 |
01 |
1 |
1004- |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
VINYL SEAT W/RECLINING<A83>
|
8-97332-796-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
VINYL SEAT W/RECLINING<A83>
GRAY
|
8-97402-767-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
VINYL TRIM<8LJ>
GRAY
|
8-97407-571-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
VINYL TRIM<8LJ>
GRAY
|
8-97407-571-0 |
01 |
1 |
1004- |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL>
|
8-97332-797-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL>
GRAY
|
8-97402-765-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 1<8LK>
GRAY
|
8-97407-569-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 1<8LK>
GRAY
|
8-97407-569-0 |
01 |
1 |
1004- |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP>
|
8-97332-798-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP>
GRAY
|
8-97402-766-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
DARK GRAY
|
8-97407-570-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
EXC. SEAT COLOR RED<6SJ>
DARK GRAY
|
8-97407-570-0 |
01 |
1 |
1004- |
● |
● |
| |
4 |
16.720 PAD; RR,SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-784-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
4 |
16.720 PAD; RR,SEAT BACK
|
8-98028-774-0 |
01 |
1 |
0610- |
● |
● |
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-834-1 |
01 |
1 |
0306-0609 |
● |
● |
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
|
8-98028-772-0 |
01 |
1 |
0610- |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
SEAT COLOR RED<6SJ>
RED
|
8-97418-665-0 |
01 |
1 |
1004- |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
VINYL SEAT W/RECLINING<A83>
|
8-97332-867-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
VINYL SEAT W/RECLINING<A83>
GRAY
|
8-97402-745-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
VINYL TRIM<8LJ>
GRAY
|
8-97407-558-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
VINYL TRIM<8LJ>
GRAY
|
8-97407-558-0 |
01 |
1 |
1004- |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL>
|
8-97332-868-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL>
GRAY
|
8-97402-746-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK>
GRAY
|
8-97407-559-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK>
GRAY
|
8-97407-559-0 |
01 |
1 |
1004- |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP>
|
8-97332-869-0 |
01 |
1 |
0306-0508 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP>
GRAY
|
8-97402-747-0 |
01 |
1 |
0509-0609 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
DARK GRAY
|
8-97407-560-0 |
01 |
1 |
0610-1003 |
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
EXC. SEAT COLOR RED<6SJ>
DARK GRAY
|
8-97407-560-0 |
01 |
1 |
1004- |
● |
● |
| |
10 |
16.716 PAD; CUSHION,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-862-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
10 |
16.716 PAD; CUSHION,RR SEAT
|
8-98028-694-0 |
01 |
1 |
0610- |
● |
● |
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-856-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
|
8-98028-686-0 |
01 |
1 |
0610- |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
SEAT COLOR RED<6SJ>
RED
|
8-97418-667-0 |
02 |
1 |
1004- |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
VINYL SEAT W/RECLINING<A83>
|
8-97332-840-0 |
02 |
1 |
0306-0508 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
VINYL SEAT W/RECLINING<A83>
GRAY
|
8-97402-756-0 |
02 |
1 |
0509-0609 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
VINYL TRIM<8LJ>
GRAY
|
8-97407-580-0 |
02 |
1 |
0610- |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
SEAT CLOTH<7FL>
|
8-97332-841-0 |
02 |
1 |
0306-0508 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
SEAT CLOTH<7FL>
GRAY
|
8-97402-754-0 |
02 |
1 |
0509-0609 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH TRIM STANDARD, VAR 1<8LK>
GRAY
|
8-97406-974-0 |
02 |
1 |
0610- |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP>
|
8-97332-842-0 |
02 |
1 |
0306-0508 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP>
GRAY
|
8-97402-755-0 |
02 |
1 |
0509-0609 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
DARK GRAY
|
8-97406-971-0 |
02 |
1 |
0610-1003 |
● |
● |
| |
17 |
16.718 REST; HD,RR SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>
EXC. SEAT COLOR RED<6SJ>
DARK GRAY
|
8-97406-971-0 |
02 |
1 |
1004- |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
CLOTH SEAT MOQUETTE<8EP>
16.682
|
8-97332-815-0 |
02 |
1 |
0601-0609 |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
16.682
|
8-97332-815-0 |
02 |
1 |
0610- |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
CLOTH SEAT MOQUETTE<8EP>
16.682
|
8-97332-815-0 |
02 |
1 |
0507-0508 |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-881-0 |
02 |
1 |
0306-0506 |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>
|
8-97332-881-0 |
02 |
1 |
0507-0508 |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-881-0 |
02 |
1 |
0509-0512 |
● |
● |
| |
55 |
16.716 BOLT; HINGE,RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>
|
8-97332-881-0 |
02 |
1 |
0601-0609 |
● |
● |
| |
108 |
16.714 COVER; HINGE BRKT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
DARK GRAY
|
8-97394-207-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
108 |
16.714 COVER; HINGE BRKT
DARK GRAY
|
8-97407-576-0 |
01 |
1 |
0610- |
● |
● |
| |
108 |
16.714 COVER; HINGE BRKT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
DARK GRAY
|
8-97394-208-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
108 |
16.714 COVER; HINGE BRKT
DARK GRAY
|
8-97407-577-0 |
01 |
1 |
0610- |
● |
● |
| |
213 |
16.716 BUSHING; RR SEAT HINGE
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97354-675-0 |
02 |
1 |
0306-0609 |
● |
● |
| |
213 |
16.716 BUSHING; RR SEAT HINGE
|
8-97354-675-0 |
02 |
1 |
0610- |
● |
● |
| |
239 |
16.682 CABLE; CONT,LEVER
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-828-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
239 |
16.682 CABLE; CONT,LEVER
|
8-97332-828-0 |
01 |
1 |
0610- |
● |
● |
| |
302 |
16.715 NUT; RR SEAT
07.243
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0306-0603 |
● |
● |
| |
302 |
16.715 NUT; RR SEAT
05.816
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0604- |
● |
● |
| |
352 |
16.717 SPRING; RR CUSHION
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-877-0 |
11 |
1 |
0306-0609 |
● |
● |
| |
361 |
16.682 LATCH; REAR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-811-0 |
02 |
1 |
0306-0609 |
● |
● |
| |
361 |
16.682 LATCH; REAR SEAT
|
8-98004-027-0 |
02 |
1 |
0610- |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
CLOTH SEAT MOQUETTE<8EP>
|
8-97332-815-0 |
08 |
1 |
0601-0609 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
CLOTH SEAT MOQUETTE<8EP>
|
8-97332-815-0 |
08 |
1 |
0507-0508 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-815-0 |
04 |
1 |
0306-0506 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>
|
8-97332-815-0 |
04 |
1 |
0507-0508 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-815-0 |
04 |
1 |
0509-0512 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>
|
8-97332-815-0 |
04 |
1 |
0601-0609 |
● |
● |
| |
363 |
16.682 BOLT; REAR SEAT LATCH
|
8-97332-815-0 |
08 |
1 |
0610- |
● |
● |
| |
364 |
16.682 MAT; SUSPENSION,REAR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97332-874-0 |
01 |
1 |
0306-0609 |
● |
● |
| |
368 |
16.720 PAD; BACK FORM
VINYL SEAT W/RECLINING<A83>,SEAT
CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>
|
8-97369-254-0 |
02 |
1 |
0306-0609 |
● |
● |
| |
368 |
16.720 PAD; BACK FORM
|
8-98028-775-0 |
02 |
1 |
0610- |
● |
● |
| |
397 |
16.686 CABLE; SEAT
(A)
|
8-98028-782-0 |
02 |
1 |
0610- |
● |
● |
| |
397 |
16.686 CABLE; SEAT
CLOTH SEAT MOQUETTE<8EP>
(A)
|
8-98020-331-0 |
04 |
1 |
0601-0609 |
● |
● |
| |
397 |
16.686 CABLE; SEAT
(B)
|
8-98028-780-0 |
04 |
1 |
0610- |
● |
● |
| |
397 |
16.686 CABLE; SEAT
CLOTH SEAT MOQUETTE<8EP>
(B)
|
8-98020-338-0 |
04 |
1 |
0601-0609 |
● |
● |
| |
397 |
16.686 CABLE; SEAT
(C)
|
8-98028-781-0 |
02 |
1 |
0610- |
● |
● |
| |
397 |
16.686 CABLE; SEAT
CLOTH SEAT MOQUETTE<8EP>
(A)
|
8-98020-331-0 |
04 |
1 |
0507-0508 |
● |
● |
| |
397 |
16.686 CABLE; SEAT
CLOTH SEAT MOQUETTE<8EP>
(B)
|
8-98020-338-0 |
04 |
1 |
0507-0508 |
● |
● |
