Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#77616) — 173 parça

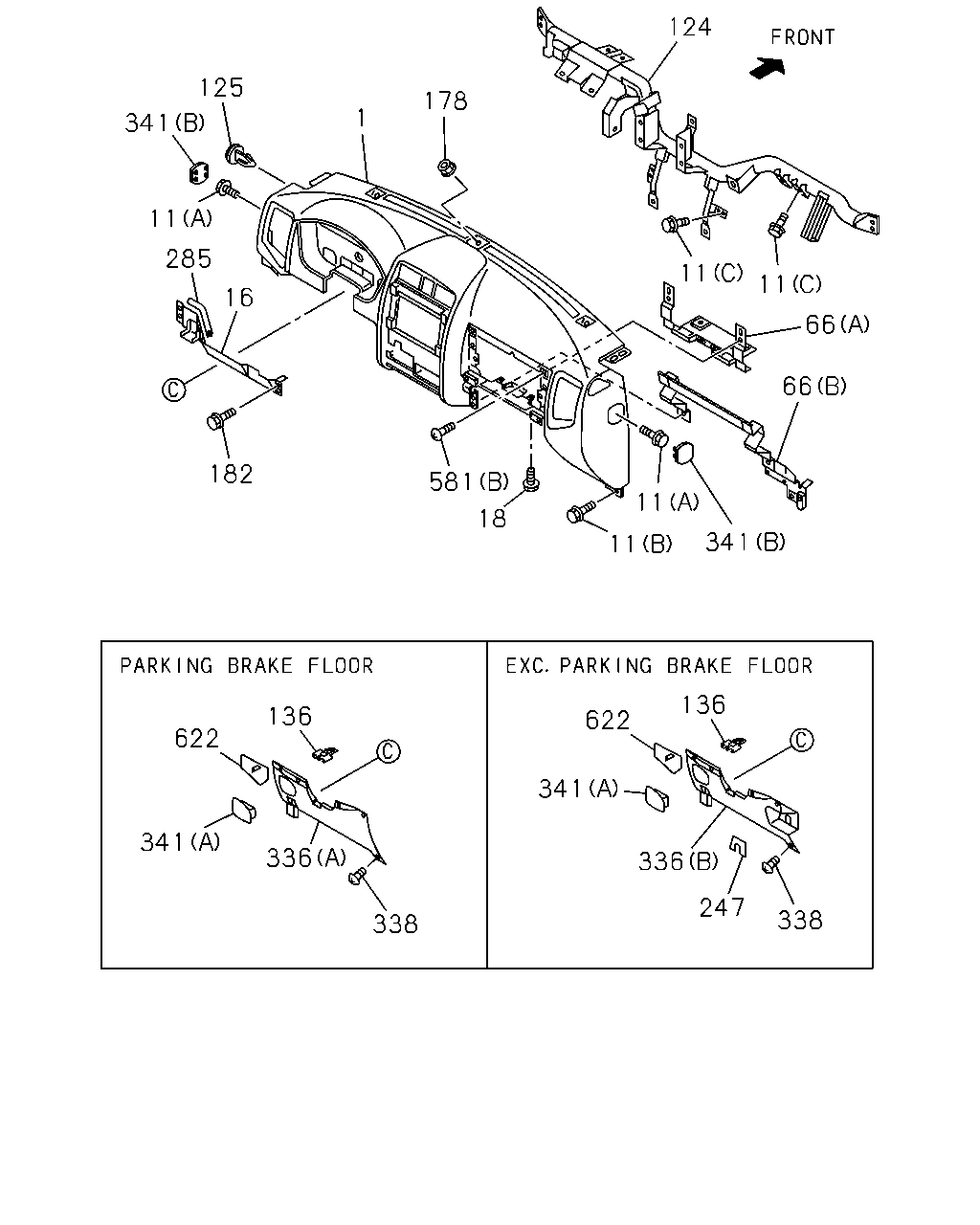

124 125 178 1 341 11 285 11 11 16 66 66 182 581 11 18 341 11 136 136 622 622 341 341 336 336 247 338 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.080 PANEL; INST RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY	8-97405-958-0	01	1	0610-0912	●	●	●	●
1	16.080 PANEL; INST RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY	8-97405-958-1	01	1	1001-	●	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97398-419-0	01	1	0306-0609	●	●	●	●
1	16.080 PANEL; INST RADIO AM/FM W/CD,W/MP3(ULA) DARK GRAY	8-97405-967-1	01	1	0610-	●	●	●	●
11	16.090 BOLT; INST PNL AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 08.015 (C) M6X20 W/WASHER	8-94112-987-1	04	1	0306-0508	●	●	●	●
11	16.090 BOLT; INST PNL AIR BAG DRIVER & PASSENGER DELETE(AK6) 08.015 (C) M6X20 W/WASHER	8-94112-987-1	04	1	0509-0611	●	●	●	●
11	16.090 BOLT; INST PNL AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (C) M6X20 W/WASHER	8-98056-282-0	04	1	0612-	●	●	●	●
11	16.090 BOLT; INST PNL AIR BAG DRIVER & PASSENGER(AK5) 08.015 (C) M6X20 W/WASHER	8-94112-987-1	06	1	0306-0611	●	●	●	●
11	16.090 BOLT; INST PNL AIR BAG DRIVER & PASSENGER(AK5) 09.744 (C) M6X20 W/WASHER	8-98056-282-0	06	1	0612-	●	●	●	●
11	16.090 BOLT; INST PNL 04.570 (A) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	0306-0609	●	●	●	●
11	16.090 BOLT; INST PNL (A) M8X30 W/LK&PL WASHER	8-98057-964-0	04	1	0610-0709	●	●	●	●
11	16.090 BOLT; INST PNL (A) M8X30 W/LK&PL WASHER	8-98057-964-0	04	1	0710-	●	●	●	●
11	16.090 BOLT; INST PNL 01.287 (B) M6X25 W/LK&PL WASHER	8-94416-136-0	04	1	0306-0609	●	●	●	●
11	16.090 BOLT; INST PNL (B) M6X30 W/LK&PL WASHER	8-98057-965-0	04	1	0610-0709	●	●	●	●
11	16.090 BOLT; INST PNL (B) M6X30 W/LK&PL WASHER	8-98057-965-0	04	1	0710-	●	●	●	●
16	16.085 BRACKET; INST PNL	8-97361-674-0	01	1	0306-0609	●	●	●	●
16	16.085 BRACKET; INST PNL	8-98043-127-0	01	1	0610-	●	●	●	●
18	16.085 BOLT; BRKT AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER	8-97353-832-0	02	1	0306-	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL AIR BAG DRIVER & PASSENGER(AK5) (A)	8-97308-641-0	01	1	0306-	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL (B)	8-97369-652-0	01	1	0306-	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW>	8-98023-073-0	01	1	0710-0809	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW>	8-98110-173-0	01	1	0810-	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR REMOTE CONT DOOR LOCK<AP5> EXC. PARKING BRAKE FLOOR<7XW>	8-98023-072-0	01	1	0710-0809	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR REMOTE CONT DOOR LOCK<AP5> EXC. PARKING BRAKE FLOOR<7XW>	8-98110-171-0	01	1	0810-	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR PARKING BRAKE FLOOR<7XW>	8-97362-202-0	01	1	0306-0402	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) PARKING BRAKE FLOOR<7XW>	8-97362-202-0	01	1	0403-0508	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) PARKING BRAKE FLOOR<7XW>	8-98023-075-0	01	1	0509-0609	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) ,RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) PARKING BRAKE FLOOR<7XW>	8-98023-075-0	01	1	0610-0709	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98023-075-0	01	1	0710-0809	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>	8-98110-175-0	01	1	0810-	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. PARKING BRAKE FLOOR<7XW>	8-97362-201-0	01	1	0306-0402	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. PARKING BRAKE FLOOR<7XW>	8-97362-201-0	01	1	0403-0508	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. PARKING BRAKE FLOOR<7XW>	8-98023-074-0	01	1	0509-0609	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6) ,RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW>	8-98023-074-0	01	1	0610-0709	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. REMOTE CONT DOOR LOCK<AP5>, PARKINGBRAKE FLOOR<7XW>	8-98023-074-0	01	1	0710-0809	●	●	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. REMOTE CONT DOOR LOCK<AP5>, PARKINGBRAKE FLOOR<7XW>	8-98110-174-0	01	1	0810-	●	●	●	●
125	16.085 CLIP; INST PANEL	8-97310-401-0	01	1	0306-	●	●	●	●
136	16.085 CLIP; INST COVER 16.100 T=0.5	8-97137-828-0	04	1	0306-0612	●	●	●	●
136	16.085 CLIP; INST COVER 09.744 T=0.5	8-98061-356-0	04	1	0701-	●	●	●	●
178	16.085 NUT; INST PANEL 07.833 M6 FLANGE	8-97063-399-0	03	1	0306-0609	●	●	●	●
178	16.085 NUT; INST PANEL 08.915 M6 FLANGE	8-98055-704-0	03	1	0610-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 08.015 M6X20 W/WASHER	8-94112-987-1	04	1	0306-0611	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 09.744 M6X20 W/WASHER	8-98056-282-0	04	1	0612-	●	●	●	●
247	16.080 COVER; HAND BRAKE LEVER,INST PAN EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97398-434-0	01	1	0306-0609	●	●	●	●
247	16.080 COVER; HAND BRAKE LEVER,INST PAN EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY	8-97403-951-0	01	1	0610-1104	●	●	●	●
247	16.080 COVER; HAND BRAKE LEVER,INST PAN EXC. PARKING BRAKE FLOOR<7XW> BLACK	8-97422-832-0	01	1	1105-	●	●	●	●
285	16.085 FINISHER; INST PANEL 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0306-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE PARKING BRAKE FLOOR<7XW> (A) DARK GRAY	8-97398-387-0	01	1	0306-0609	●	●	●	●
336	16.081 COVER; INST PANEL SIDE PARKING BRAKE FLOOR<7XW> (A) DARK GRAY	8-97403-943-0	01	1	0610-1104	●	●	●	●
336	16.081 COVER; INST PANEL SIDE PARKING BRAKE FLOOR<7XW> (A) BLACK	8-97422-823-0	01	1	1105-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY	8-97398-431-0	01	1	0306-0609	●	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY	8-97403-944-0	01	1	0610-1104	●	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK	8-97422-824-0	01	1	1105-	●	●	●	●
338	16.081 SCREW; COVER 16.115 M5X16	8-94279-312-0	01	1	0306-0612	●	●	●	●
338	16.081 SCREW; COVER 09.744 M5X16 TAPPING	8-98061-683-0	01	1	0701-1003	●	●	●	●
338	16.081 SCREW; COVER 16.100 M5X16 TAPPING	8-98167-214-0	01	1	1004-	●	●	●	●
341	16.110 LID; FUSE BOX (B) DARK GRAY	8-97396-876-0	01	1	0306-0609	●	●	●	●
341	16.110 LID; FUSE BOX (B) DARK GRAY	8-97408-048-1	01	1	0610-	●	●	●	●
341	16.110 LID; FUSE BOX (B) DARK GRAY	8-97396-877-0	01	1	0306-0609	●	●	●	●
341	16.110 LID; FUSE BOX (B) DARK GRAY	8-97408-049-1	01	1	0610-	●	●	●	●
341	16.110 LID; FUSE BOX (A) DARK GRAY	8-97398-432-0	01	1	0306-0609	●	●	●	●
341	16.110 LID; FUSE BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-TENG(LP0) (A) DARK GRAY	8-97403-946-0	01	1	0610-0709	●	●	●	●
341	16.110 LID; FUSE BOX (A) DARK GRAY	8-97403-946-0	01	1	0710-1104	●	●	●	●
341	16.110 LID; FUSE BOX (A) BLACK	8-97422-827-0	01	1	1105-	●	●	●	●
581	09.744 SCREW EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0306-0402	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0306-0402	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0403-0508	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0403-0508	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0509-0609	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0509-0609	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	0701-0912	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	0701-0912	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	1001-1003	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	1001-1003	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●
581	09.744 SCREW 08.015 (A) M6X20 W/WASHER	8-94112-987-1	03	1	0306-0609	●	●	●	●
581	09.744 SCREW (A) M6X20 W/WASHER	8-98056-282-0	03	1	0610-	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	17	1	0306-0411	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	15	1	0412-0508	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	15	1	0509-0609	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING	8-98061-683-0	15	1	0610-	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16	8-94279-312-0	13	1	0306-0411	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16	8-94279-312-0	11	1	0412-0609	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING	8-98061-683-0	11	1	0610-	●	●	●	●
622	16.100 BOX; IDLE CONT C24SE ENG(LG1),4JH1-TC ENG(RDM) DARK GRAY	8-97398-433-0	01	1	0306-0609	●	●	●	●
622	16.100 BOX; IDLE CONT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1) DARK GRAY	8-97403-949-0	01	1	0610-1104	●	●	●	●
622	16.100 BOX; IDLE CONT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1)	8-97422-829-0	01	1	1105-	●	●	●	●

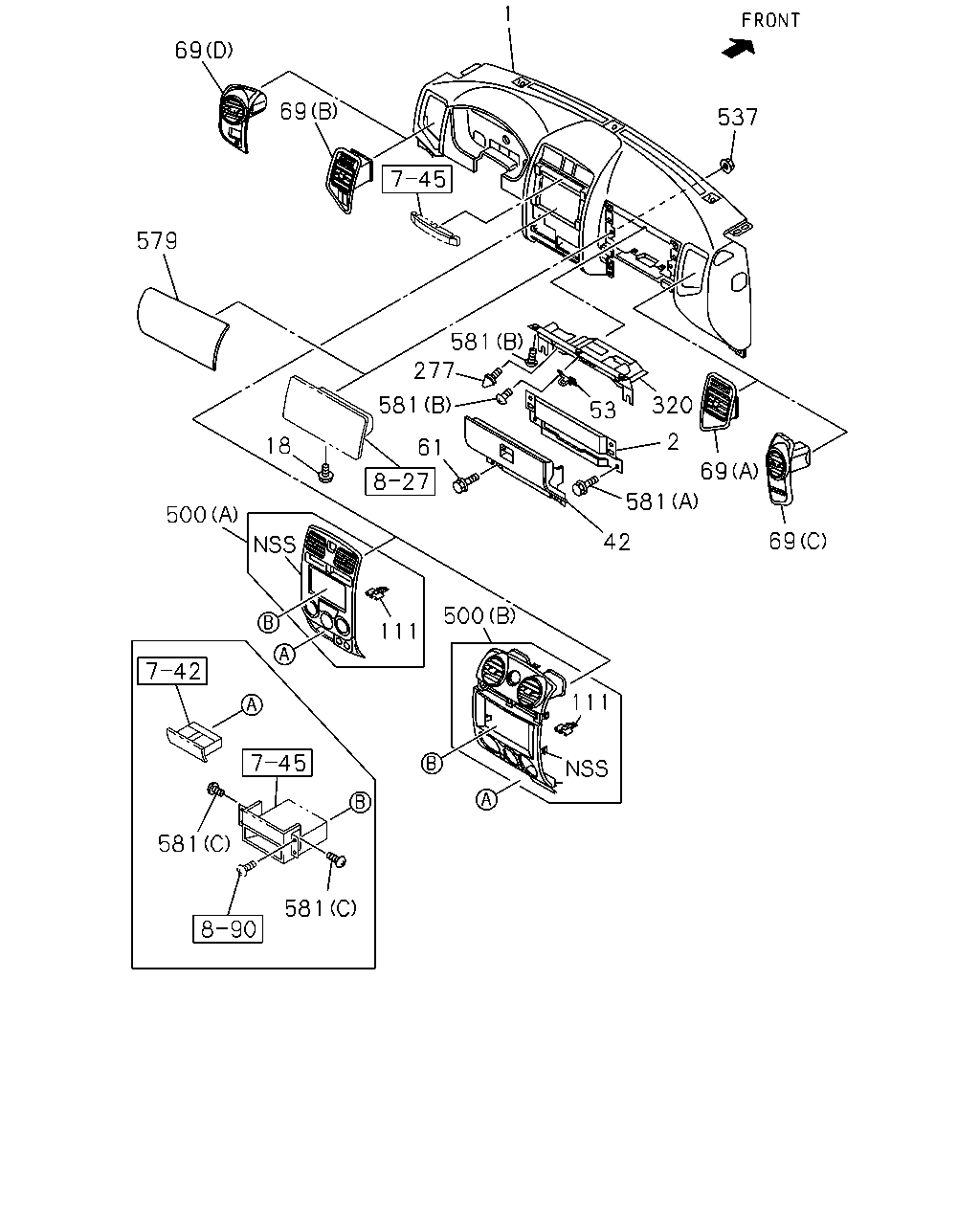

1 69 69 537 579 581 277 581 320 53 2 18 61 69 581 500 69 42 500 111 111 581 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.080 PANEL; INST RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY	8-97405-958-0	01	1	0610-0912	●	●	●	●
1	16.080 PANEL; INST RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY	8-97405-958-1	01	1	1001-	●	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97398-419-0	01	1	0306-0609	●	●	●	●
1	16.080 PANEL; INST RADIO AM/FM W/CD,W/MP3(ULA) DARK GRAY	8-97405-967-1	01	1	0610-	●	●	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR	8-97308-645-0	01	1	0306-	●	●	●	●
18	16.085 BOLT; BRKT AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER	8-97353-832-0	02	1	0306-	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97396-878-0	01	1	0306-0404	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97293-941-2	01	1	0405-0609	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97403-321-2	01	1	0610-0612	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97409-179-0	01	1	0701-0805	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97415-658-0	01	1	0806-1003	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL LOCK GLOVE BOX<A99> DARK GRAY	8-97415-658-0	01	1	1004-	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97396-879-0	01	1	0306-0404	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97294-638-2	01	1	0405-0609	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97403-323-2	01	1	0610-0612	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97409-181-0	01	1	0701-0805	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97415-660-0	01	1	0806-1003	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL EXC. LOCK GLOVE BOX<A99> DARK GRAY	8-97415-660-0	01	1	1004-	●	●	●	●
53	16.115 STRIKER; GLOVE BOX	8-97308-646-0	01	1	0306-	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.115 M5X16	8-94279-312-0	02	1	0306-0612	●	●	●	●
61	16.100 SCREW; GLOVE BOX 09.744 M5X16 TAPPING	8-98061-683-0	02	1	0701-1003	●	●	●	●
61	16.100 SCREW; GLOVE BOX M5X16 TAPPING	8-98167-214-0	02	1	1004-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY	8-97403-330-3	01	1	0610-1003	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR SILVER BEZEL<BY9> (D) BLACK	8-97419-443-3	01	1	1004-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY	8-97405-870-3	01	1	0610-1003	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY	8-97405-870-3	01	1	1004-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) DARK GRAY	8-97391-531-0	01	1	0306-0508	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A) DARK GRAY	8-97398-421-0	01	1	0509-0609	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY	8-97405-968-3	01	1	0610-1003	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR SILVER BEZEL<BY9> (C) BLACK	8-97419-447-3	01	1	1004-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A) DARK GRAY	8-97398-421-0	01	1	0306-0508	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) DARK GRAY	8-97392-790-0	01	1	0509-0609	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97405-959-3	01	1	0610-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) DARK GRAY	8-97392-790-0	01	1	0306-0508	●	●	●	●
111	09.744 CLIP; CLUSTER PANEL,GRILLE T=0.5	8-98061-356-0	06	1	0701-	●	●	●	●
277	16.081 RUBBER; STOPPER GLOVE LID	8-97308-650-0	03	1	0306-	●	●	●	●
320	16.081 COVER; GLOVE BOX DARK GRAY	8-97299-328-1	01	1	0306-0609	●	●	●	●
320	16.081 COVER; GLOVE BOX DARK GRAY	8-97405-960-2	01	1	0610-	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) (B) LIGHT GRAY	8-97403-316-4	01	1	0610-0612	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO,SEEK/SCA N,CD,CLOCK(U1C) (B) LIGHT GRAY	8-97409-174-0	01	1	0701-0912	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (B) LIGHT GRAY	8-97409-174-0	01	1	1001-1003	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (B) BLACK	8-97418-544-0	01	1	1004-	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/C ASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) LIGHT GRAY	8-97398-208-0	01	1	0410-0508	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE AUTOLOUDNESS 4 SPEAKERS(UU1) (A) LIGHT GRAY	8-97398-208-0	01	1	0509-0609	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (B) LIGHT GRAY	8-97403-319-4	01	1	0610-0612	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (B) LIGHT GRAY	8-97409-176-0	01	1	0701-1003	●	●	●	●
500	16.081 CLUSTER; INST CENTER INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) (B) BLACK	8-97418-545-0	01	1	1004-	●	●	●	●
500	16.081 CLUSTER; INST CENTER (A) DARK GRAY	8-97396-250-0	01	1	0306-0402	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) (A) DARK GRAY	8-97396-250-0	01	1	0403-0409	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97396-250-0	01	1	0410-0508	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97396-250-0	01	1	0509-0609	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97403-315-4	01	1	0610-0612	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97409-173-0	01	1	0701-0912	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97409-173-0	01	1	1001-1003	●	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97409-173-0	01	1	1004-	●	●	●	●
537	16.085 NUT; BRKT AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER	8-97018-399-1	02	1	0306-0612	●	●	●	●
537	16.085 NUT; BRKT AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER	8-98073-372-0	02	1	0701-	●	●	●	●
579	16.080 COVER; INST PNL AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY	8-97299-329-0	01	1	0306-0508	●	●	●	●
579	16.080 COVER; INST PNL AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY	8-97299-329-0	01	1	0509-0609	●	●	●	●
579	16.080 COVER; INST PNL AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY	8-97405-961-1	01	1	0610-	●	●	●	●
581	09.744 SCREW EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0306-0402	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0306-0402	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0403-0508	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC(UX5),AM/FM ASIA/OCEA NIA BAND W/CASSETTE SEMI LOGIC(7AU) EXC. MULTI CD PLAYER<U1S> 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0403-0508	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0509-0609	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS(UU1) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0509-0609	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 16.085 (C) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	0701-0912	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	0701-0912	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	1001-1003	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98061-685-0	02	1	1001-1003	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●
581	09.744 SCREW RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●
581	09.744 SCREW 08.015 (A) M6X20 W/WASHER	8-94112-987-1	03	1	0306-0609	●	●	●	●
581	09.744 SCREW (A) M6X20 W/WASHER	8-98056-282-0	03	1	0610-	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	17	1	0306-0411	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	15	1	0412-0508	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER DELETE(AK6) 16.115 (B) M5X16	8-94279-312-0	15	1	0509-0609	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING	8-98061-683-0	15	1	0610-	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16	8-94279-312-0	13	1	0306-0411	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) 16.115 (B) M5X16	8-94279-312-0	11	1	0412-0609	●	●	●	●
581	09.744 SCREW AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING	8-98061-683-0	11	1	0610-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
