◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#77613) — 47 parça

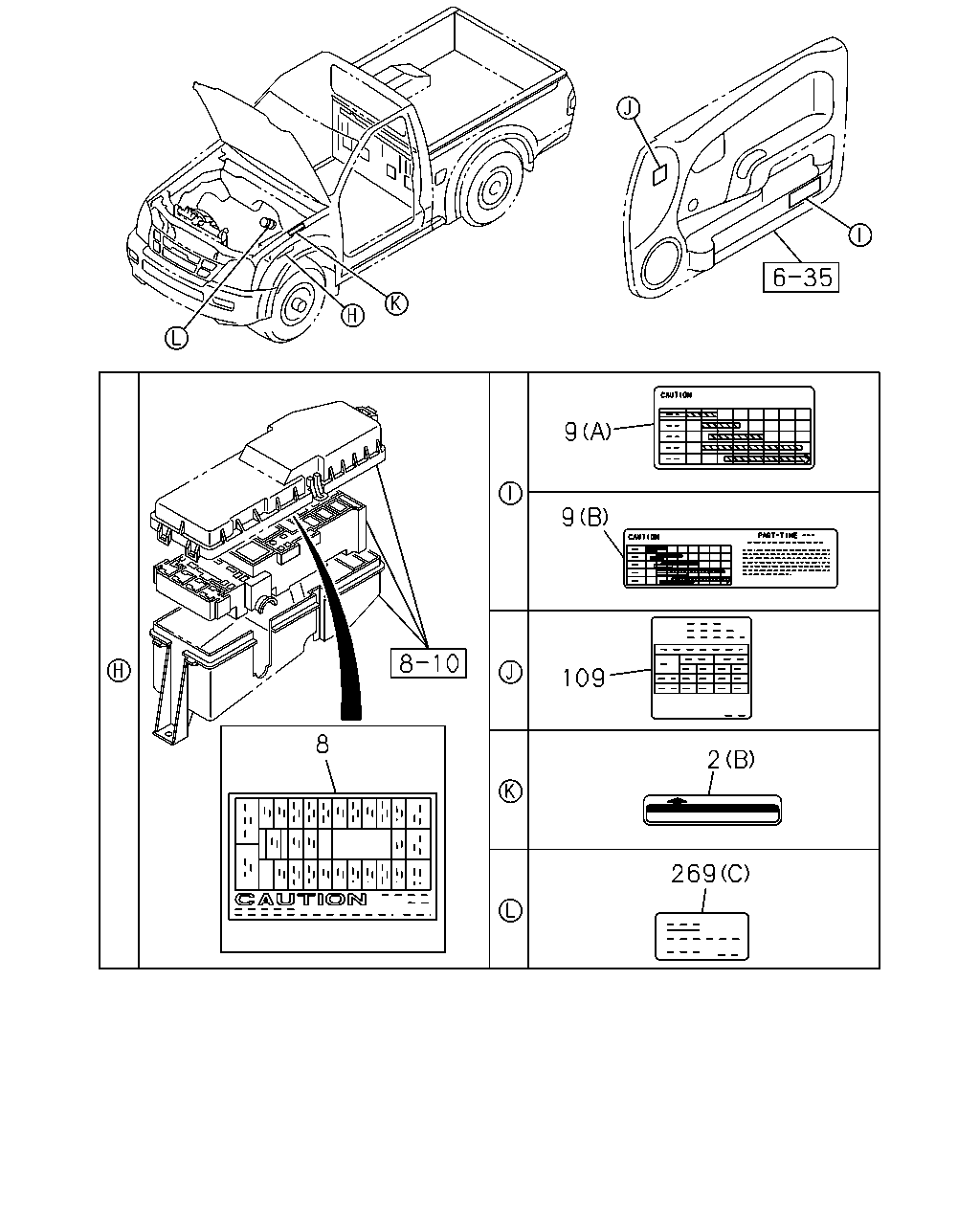

çizim 160632
9 9 109 8 2 269
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) (B) 		8-97945-778-0 01 1 0610- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0306-0609 ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0610- ● ● ● ●
8 03.680 LABEL; FUSE 8-97317-664-0 01 1 0306-0508 ● ● ● ●
8 03.680 LABEL; FUSE 8-98014-690-0 01 1 0509-0609 ● ● ● ●
8 03.680 LABEL; FUSE 8-98042-530-0 01 1 0610- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) LANGUAGE LABEL SPANISH<VA8> (A) 		8-97354-120-0 01 1 0306- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) EXC. LANGUAGE LABEL SPANISH<VA8> (A) 		8-97013-727-0 01 1 0306- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) LANGUAGE LABEL SPANISH<VA8> (B) 		8-94331-887-0 01 1 0306-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. LANGUAGE LABEL SPANISH<VA8> (A) 		8-94423-384-0 01 1 0306-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) LANGUAGE LABEL SPANISH<VA8> (B) 		8-97354-121-0 01 1 0306- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EXC. LANGUAGE LABEL SPANISH<VA8> (A) 		8-97013-728-0 01 1 0306- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) LANGUAGE LABEL SPANISH<VA8> (B) 		8-94331-889-0 01 1 0306-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. LANGUAGE LABEL SPANISH<VA8> (B) 		8-94331-888-0 01 1 0306-0609 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
LANGUAGE LABEL SPANISH<VA8> HIGH RIDE SUSPENSION(7YC) 		8-97332-647-0 01 1 0306- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
LANGUAGE LABEL SPANISH<VA8> 		8-97332-647-0 01 1 0306- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
LANGUAGE LABEL SPANISH<VA8> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97332-966-0 01 1 0306-0809 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
LANGUAGE LABEL SPANISH<VA8> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98107-868-0 01 1 0810- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) EXC. LANGUAGE LABEL SPANISH<VA8> 		8-97332-646-0 01 1 0306- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. LANGUAGE LABEL SPANISH<VA8> 		8-97332-646-0 01 1 0306- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. LANGUAGE LABEL SPANISH<VA8>,HIGH RIDE SUSPENSION(7YC) 		8-97332-965-0 01 1 0306-0809 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. LANGUAGE LABEL SPANISH<VA8>,HIGH RIDE SUSPENSION(7YC) 		8-98107-867-0 01 1 0810- ● ●
269 08.808 LABEL; CAUTION,EGR
4JJ1-TCS ENG(LFB) EXC. LANGUAGE LABEL SPANISH<VA8> (C) 		8-97383-056-0 01 1 0610- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> (A) 		8-97943-094-0 01 1 0306- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JH1-TC ENG(RDM) EURO1 SPECIFICATION<NT1> (B) 		8-97943-105-0 01 1 0306-0609 ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JJ1-TCS ENG(LFB) LANGUAGE LABEL SPANISH<VA8> (C) 		8-98030-166-0 01 1 0610- ● ● ● ●

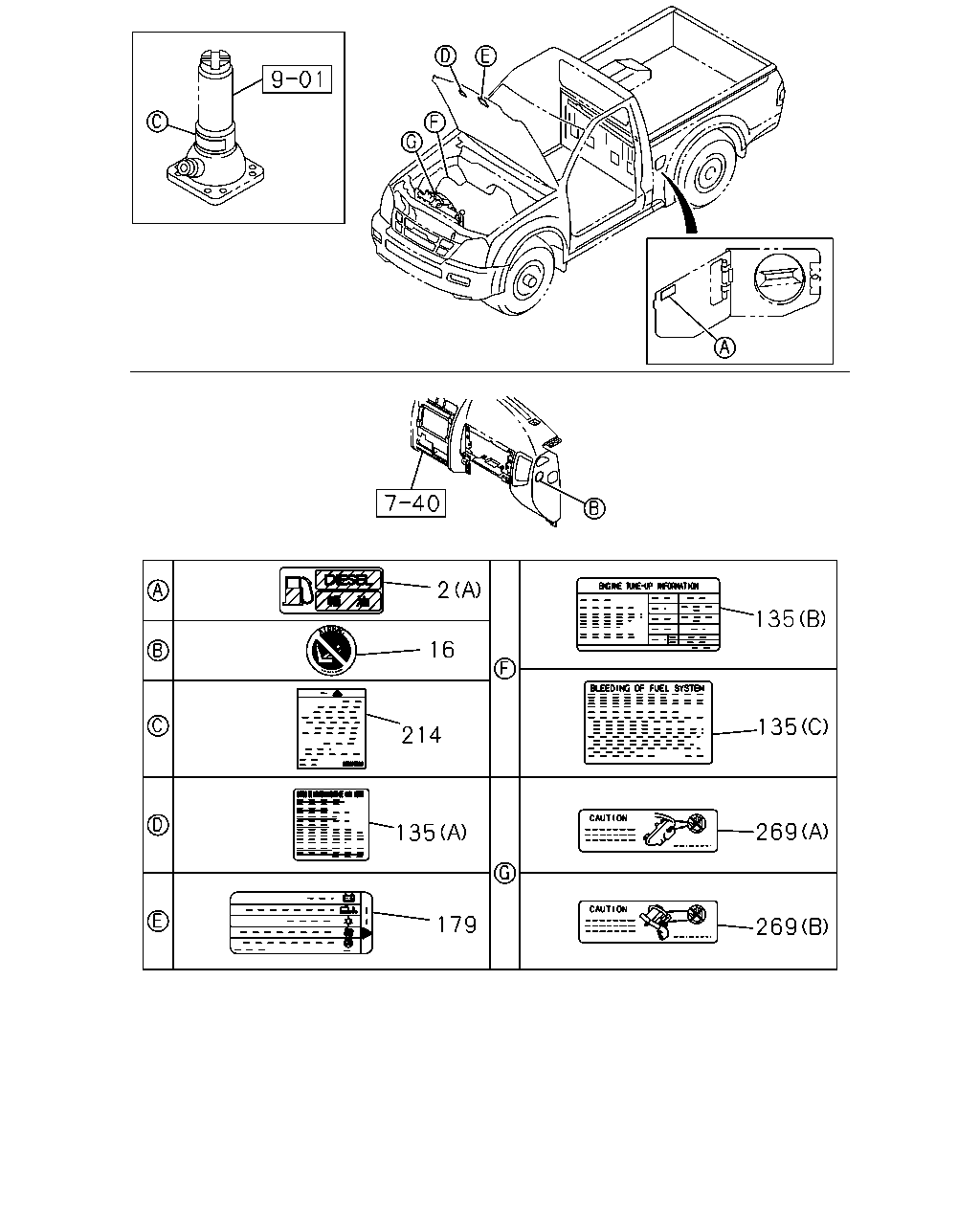

çizim 160643
2 135 16 135 214 269 135 179 269
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) (B) 		8-97945-778-0 01 1 0610- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0306-0609 ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0610- ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97357-163-0 01 1 0306-0402 ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 0403- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
C24SE ENG(LG1) LANGUAGE LABEL SPANISH<VA8> 03.680 (B) 		8-97181-537-0 01 1 0306- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
C24SE ENG(LG1) EXC. LANGUAGE LABEL SPANISH<VA8> 03.680 (B) 		8-97181-536-0 01 1 0306- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) LANGUAGE LABEL SPANISH<VA8> (A) 		8-97352-652-1 01 1 0306- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) EXC. LANGUAGE LABEL SPANISH<VA8> (A) 		8-97332-377-1 01 1 0306- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) LANGUAGE LABEL SPANISH<VA8> (A) 		8-97332-376-0 01 1 0306-0609 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) LANGUAGE LABEL SPANISH<VA8> (C) 		8-97353-504-0 01 1 0306-0609 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) EXC. LANGUAGE LABEL SPANISH<VA8> (A) 		8-97943-010-0 01 1 0306-0609 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB) ISUZU BRAND<7WL> (A) 		8-98042-938-0 01 1 0610-0610 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB) (A) 		8-98042-938-0 01 1 0611- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) EXC. LANGUAGE LABEL SPANISH<VA8> (C) 		8-97943-097-0 01 1 0306-0609 ● ● ● ●
179 08.808 PLATE; CAUTION,SERVICE 8-97356-568-0 01 1 0306- ● ● ● ●
214 08.808 LABEL; JACK 8-97943-121-0 01 1 0306- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JJ1-TCS ENG(LFB) EXC. LANGUAGE LABEL SPANISH<VA8> (C) 		8-97383-056-0 01 1 0610- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1> (A) 		8-97943-094-0 01 1 0306- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JH1-TC ENG(RDM) EURO1 SPECIFICATION<NT1> (B) 		8-97943-105-0 01 1 0306-0609 ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JJ1-TCS ENG(LFB) LANGUAGE LABEL SPANISH<VA8> (C) 		8-98030-166-0 01 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
