Sayfa 7-01 - Isuzu EPC

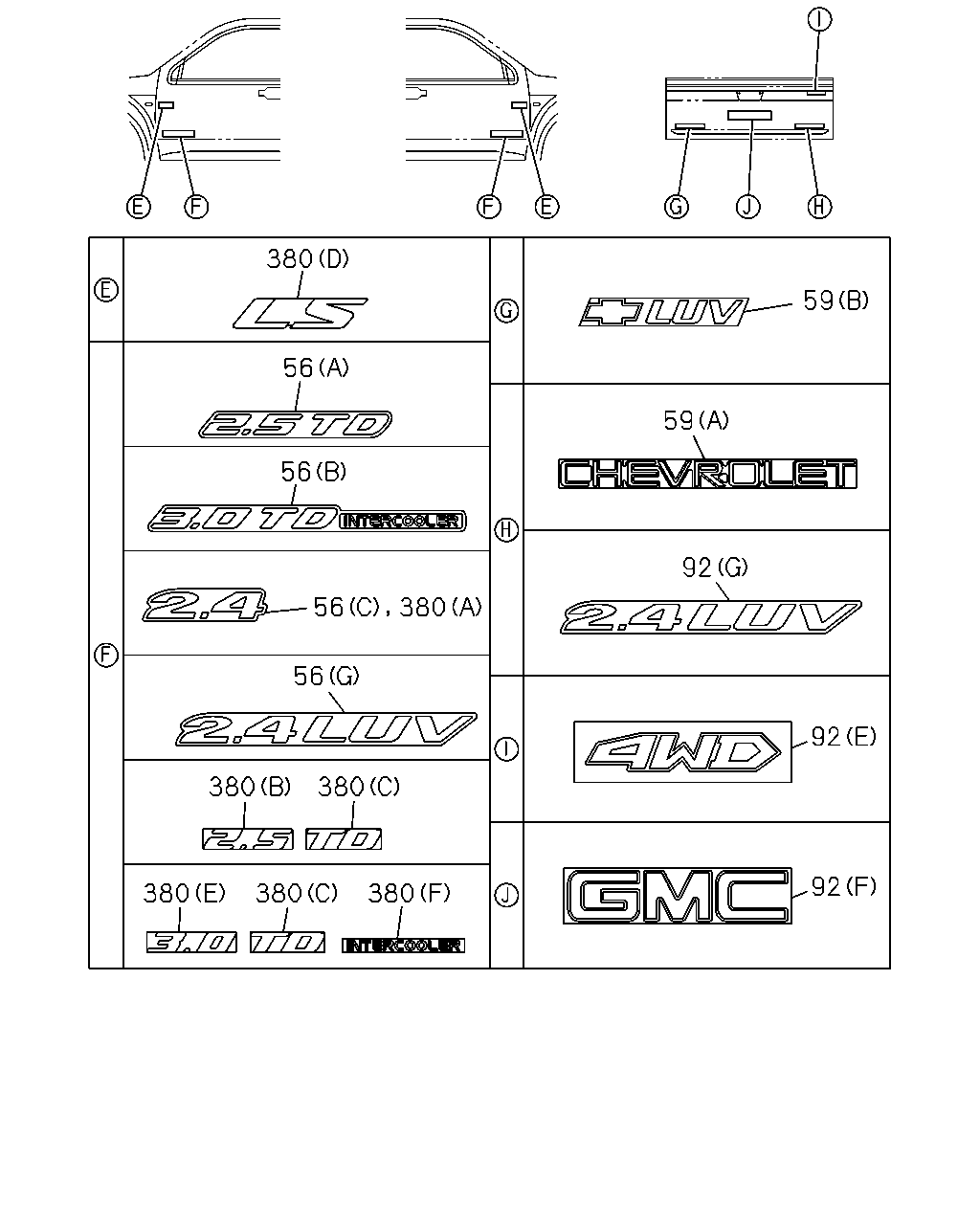

7-01 — EMBLEM AND NAME PLATE (#77612) — 145 parça

380 59 56 59 56 92 56 92 380 380 92 380 380 380 56 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	08.147 DECAL; BODY SIDE C24SE ENG(LG1) GRADE DX(RBA) CHEVROLET BRAND<RWE> (C)	8-97368-021-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> ISUZU BRAND<7WL> (E)	8-98009-342-0	02	1	0502-0609	●	●
56	08.147 DECAL; BODY SIDE DECAL RODEO<Y4I> ISUZU BRAND<7WL> (E)	8-98009-342-0	02	1	0502-0609			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> (E)	8-98009-342-0	02	1	0610-	●	●
56	08.147 DECAL; BODY SIDE DECAL RODEO<Y4I> (E)	8-98009-342-0	02	1	0610-			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0506-0508	●	●
56	08.147 DECAL; BODY SIDE GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0506-0508			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0509-0610	●	●	●	●
56	08.147 DECAL; BODY SIDE GMC BRAND<RWT> (G)	8-98013-676-0	02	1	0506-0610	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0309-0404	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0309-0404			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0405-0609	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0405-0609			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-			●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (A)	8-97352-488-0	01	1	0405-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (B)	8-97352-489-0	01	1	0405-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> ISUZU BRAND<7WL> (C)	8-97352-487-0	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (C)	8-97352-487-0	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97324-673-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97324-673-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97301-857-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (F)	8-97352-836-0	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> ISUZU BRAND<7WL> (I)	8-97301-853-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97301-853-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (I)	8-97301-853-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (I)	8-97301-853-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (H)	8-97301-855-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (G)	8-97361-279-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-675-0	01	1	0506-0610	●	●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (G)	8-98013-676-0	01	1	0506-0609	●	●	●	●
92	08.147 DECAL; RR END GMC BRAND<RWT> (G)	8-98013-676-0	01	1	0610-0610	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-021-0	01	1	0306-0610	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97368-021-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-97368-022-0	01	1	0306-0610	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-022-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END 4JH1-TC ENG(RDM) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0306-0609	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0610-0610	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97368-024-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END (E)	8-97301-860-0	01	1	0306-0404			●	●
92	08.147 DECAL; RR END CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (E)	8-97301-860-0	01	1	0405-0501			●	●
92	08.147 DECAL; RR END (E)	8-97301-860-0	01	1	0502-0609			●	●
92	08.147 DECAL; RR END ISUZU BRAND<7WL> (E)	8-98032-796-0	01	1	0610-0610			●	●
92	08.147 DECAL; RR END (E)	8-98032-796-0	01	1	0611-			●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97301-854-2	01	1	0306-0402	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0403-0610	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0611-	●	●	●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0405-0508	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0405-0508	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0509-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) 01.303 (D)	8-97301-844-1	02	1	0306-0404	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> 01.303 (D)	8-97301-844-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) ISUZU BRAND<7WL> (D)	8-98027-490-0	02	1	0610-0610	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) (D)	8-98027-490-0	02	1	0611-	●	●	●	●

56 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	08.147 DECAL; BODY SIDE C24SE ENG(LG1) GRADE DX(RBA) CHEVROLET BRAND<RWE> (C)	8-97368-021-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JA1-T ENG(LP0) GRADE DX(RBA) CHEVROLET BRAND<RWE> (A)	8-97368-022-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE 4JH1-TC ENG(RDM) GRADE DX(RBA) CHEVROLET BRAND<RWE> (B)	8-97368-024-0	02	1	0405-0609	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> ISUZU BRAND<7WL> (E)	8-98009-342-0	02	1	0502-0609	●	●
56	08.147 DECAL; BODY SIDE DECAL RODEO<Y4I> ISUZU BRAND<7WL> (E)	8-98009-342-0	02	1	0502-0609			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL RODEO<Y4I> (E)	8-98009-342-0	02	1	0610-	●	●
56	08.147 DECAL; BODY SIDE DECAL RODEO<Y4I> (E)	8-98009-342-0	02	1	0610-			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0506-0508	●	●
56	08.147 DECAL; BODY SIDE GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0506-0508			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-674-0	02	1	0509-0610	●	●	●	●
56	08.147 DECAL; BODY SIDE GMC BRAND<RWT> (G)	8-98013-676-0	02	1	0506-0610	●	●	●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0309-0404	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0309-0404			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0405-0609	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> ISUZU BRAND<7WL> (D)	8-97372-869-0	02	1	0405-0609			●	●
56	08.147 DECAL; BODY SIDE REAR BODY DBL WALL CTR PULL(E63) DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-	●	●
56	08.147 DECAL; BODY SIDE DECAL ISUZU D-MAX<V2K> (D)	8-97372-869-0	02	1	0610-			●	●

380 92 59 59 92 92 92 59 59 59 59 59 59 59 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (A)	8-97352-488-0	01	1	0405-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (B)	8-97352-489-0	01	1	0405-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> ISUZU BRAND<7WL> (C)	8-97352-487-0	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (C)	8-97352-487-0	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97324-673-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE C24SE ENG(LG1) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97324-673-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (E)	8-97301-857-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-97301-857-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (F)	8-97352-836-0	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (F)	8-97352-836-0	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> ISUZU BRAND<7WL> (I)	8-97301-853-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (I)	8-97301-853-1	01	1	0306-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) NAME PLATE ISUZU KB<6PU> (I)	8-97301-853-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (I)	8-97301-853-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (H)	8-97301-855-1	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (H)	8-97301-855-1	01	1	0611-	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JH1-TC ENG(RDM) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0306-0609	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (G)	8-97361-279-0	01	1	0610-0610	●	●	●	●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (G)	8-97361-279-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (F)	8-98013-675-0	01	1	0506-0610	●	●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) GMC BRAND<RWT> (G)	8-98013-676-0	01	1	0506-0609	●	●	●	●
92	08.147 DECAL; RR END GMC BRAND<RWT> (G)	8-98013-676-0	01	1	0610-0610	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (D)	8-97368-021-0	01	1	0306-0610	●	●	●	●
92	08.147 DECAL; RR END C24SE ENG(LG1) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (D)	8-97368-021-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-97368-022-0	01	1	0306-0610	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97368-022-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END 4JH1-TC ENG(RDM) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0306-0609	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (C)	8-97368-024-0	01	1	0610-0610	●	●	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97368-024-0	01	1	0611-	●	●	●	●
92	08.147 DECAL; RR END (E)	8-97301-860-0	01	1	0306-0404			●	●
92	08.147 DECAL; RR END CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> (E)	8-97301-860-0	01	1	0405-0501			●	●
92	08.147 DECAL; RR END (E)	8-97301-860-0	01	1	0502-0609			●	●
92	08.147 DECAL; RR END ISUZU BRAND<7WL> (E)	8-98032-796-0	01	1	0610-0610			●	●
92	08.147 DECAL; RR END (E)	8-98032-796-0	01	1	0611-			●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97301-854-2	01	1	0306-0402	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0403-0610	●	●	●	●
92	08.147 DECAL; RR END GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) EXC. NAME PLATE ISUZU KB<6PU> (A)	8-97378-485-0	01	1	0611-	●	●	●	●
380	17.215 PLATE; SIDE C24SE ENG(LG1) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (A)	8-97324-673-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0405-0508	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0405-0508	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (B)	8-97301-857-1	02	1	0509-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (C)	8-97352-836-0	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (E)	8-97301-855-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE 4JH1-TC ENG(RDM) GRADE LT(RBD) CHEVROLET BRAND<RWE> 01.303 (F)	8-97361-279-0	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) 01.303 (D)	8-97301-844-1	02	1	0306-0404	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) CHEVROLET BRAND<RWE>,ISUZU BRAND<7WL> 01.303 (D)	8-97301-844-1	02	1	0405-0609	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) ISUZU BRAND<7WL> (D)	8-98027-490-0	02	1	0610-0610	●	●	●	●
380	17.215 PLATE; SIDE GRADE LT(RBD) (D)	8-98027-490-0	02	1	0611-	●	●	●	●

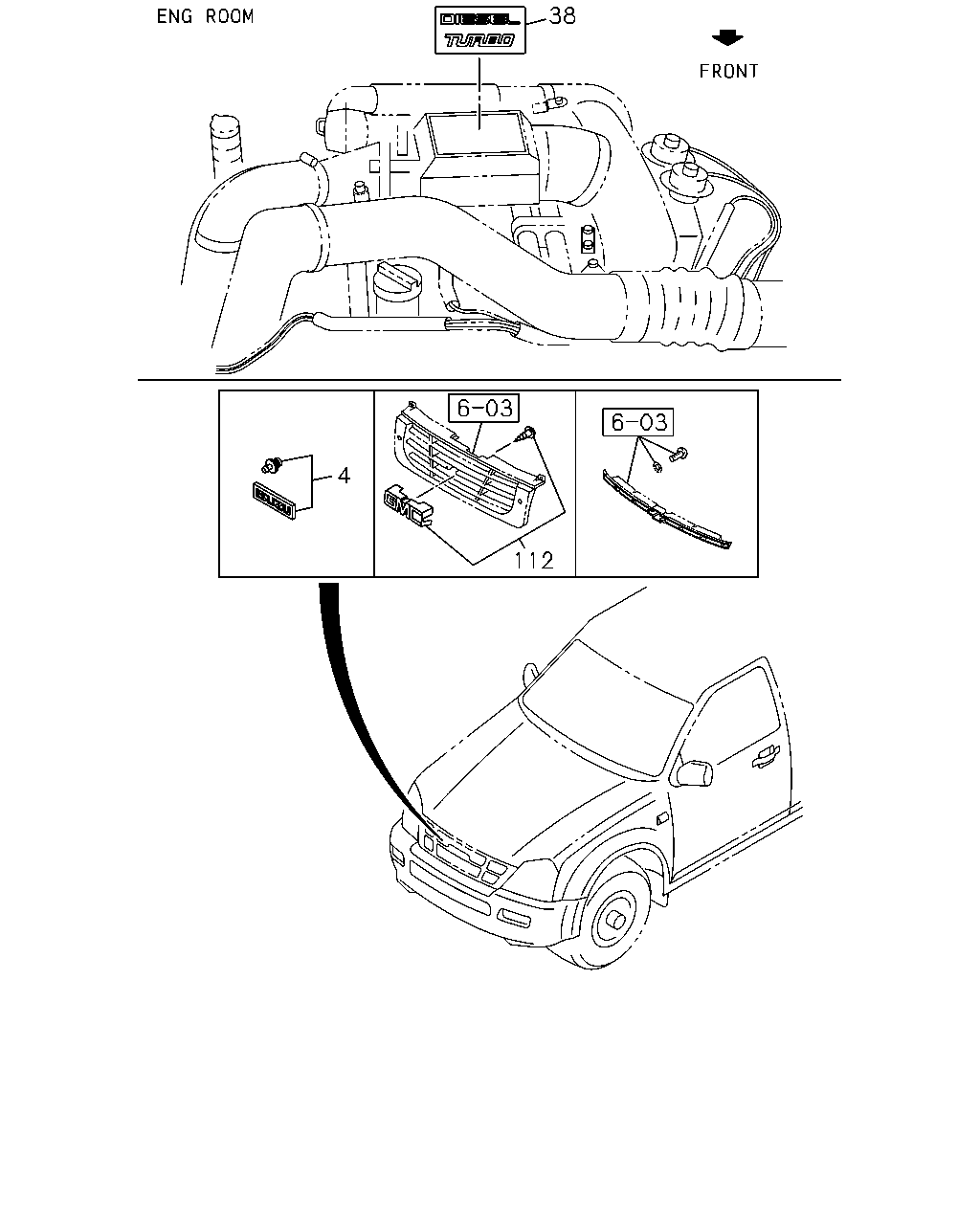

38 4 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	01.303 EMBLEM; RAD GRILLE BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE IRON GRAY MET<7LA>	8-97331-459-0	01	1	0306-0404	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE ISUZU BRAND<7WL>	8-97331-459-0	01	1	0405-0609	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-97331-459-0	01	1	0610-0610	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22>	8-97331-459-0	01	1	0611-0912	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE	8-97331-459-0	01	1	1001-	●	●	●	●
38	01.303 PLATE; NAME 4JA1-T ENG(LP0)	8-97115-470-0	01	1	0306-0609	●	●	●	●
38	01.303 PLATE; NAME 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97115-470-0	01	1	0610-1109	●	●
38	01.303 PLATE; NAME 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97115-470-0	01	1	0610-1109			●	●
38	01.303 PLATE; NAME 4JA1-T ENG(LP0)	8-97115-470-0	01	1	1110-	●	●	●	●
112	01.303 EMBLEM; "GMC" GMC BRAND<RWT> RADIATOR GRILLE IRON GRAY MET<7LA>	8-98009-912-0	01	1	0506-0609	●	●	●	●
112	01.303 EMBLEM; "GMC" GMC BRAND<RWT> BASE VEHICLE GRILLE<VWX> 01.267	8-98012-671-0	01	1	0610-0610	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
