6-90 — REAR BUMPER (#77611) — 113 parça

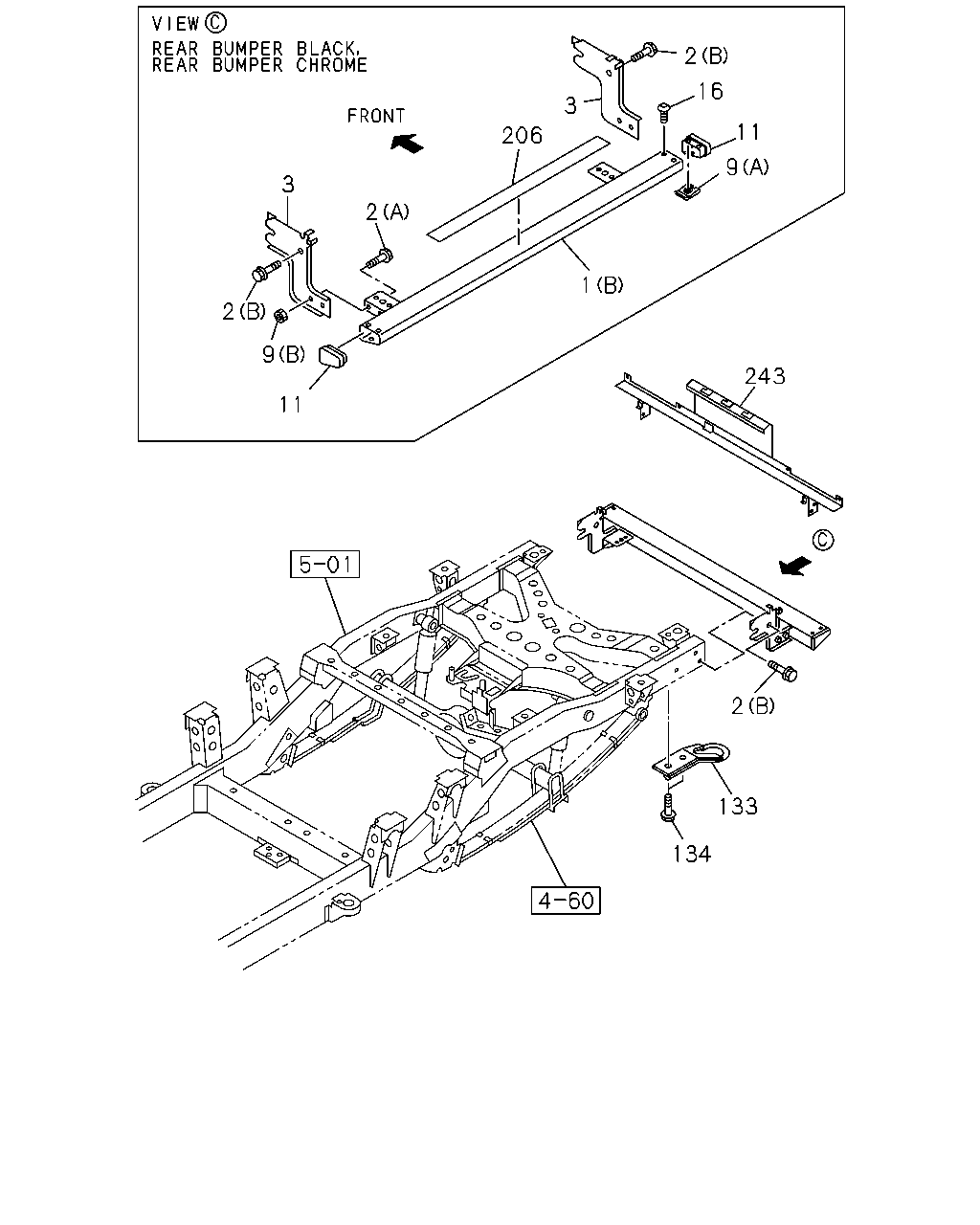

çizim 160608
2 3 11 9 2 206 1 3 16 2 11 9 243 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-98030-185-3 01 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0306-0610 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0306-0609 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-551-1 01 1 0306- ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-552-1 01 1 0306- ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0306-0610 ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-98062-088-0 04 1 0611- ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0306-0610 ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-089-0 06 1 0611- ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-554-0 01 1 0306- ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-555-0 01 1 0306- ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97368-927-0 06 1 0306-0610 ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-98062-091-0 06 1 0611- ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0306- ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0306- ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97364-097-0 01 1 0306- ● ● ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-97373-668-1 01 1 1309- ● ● ● ●

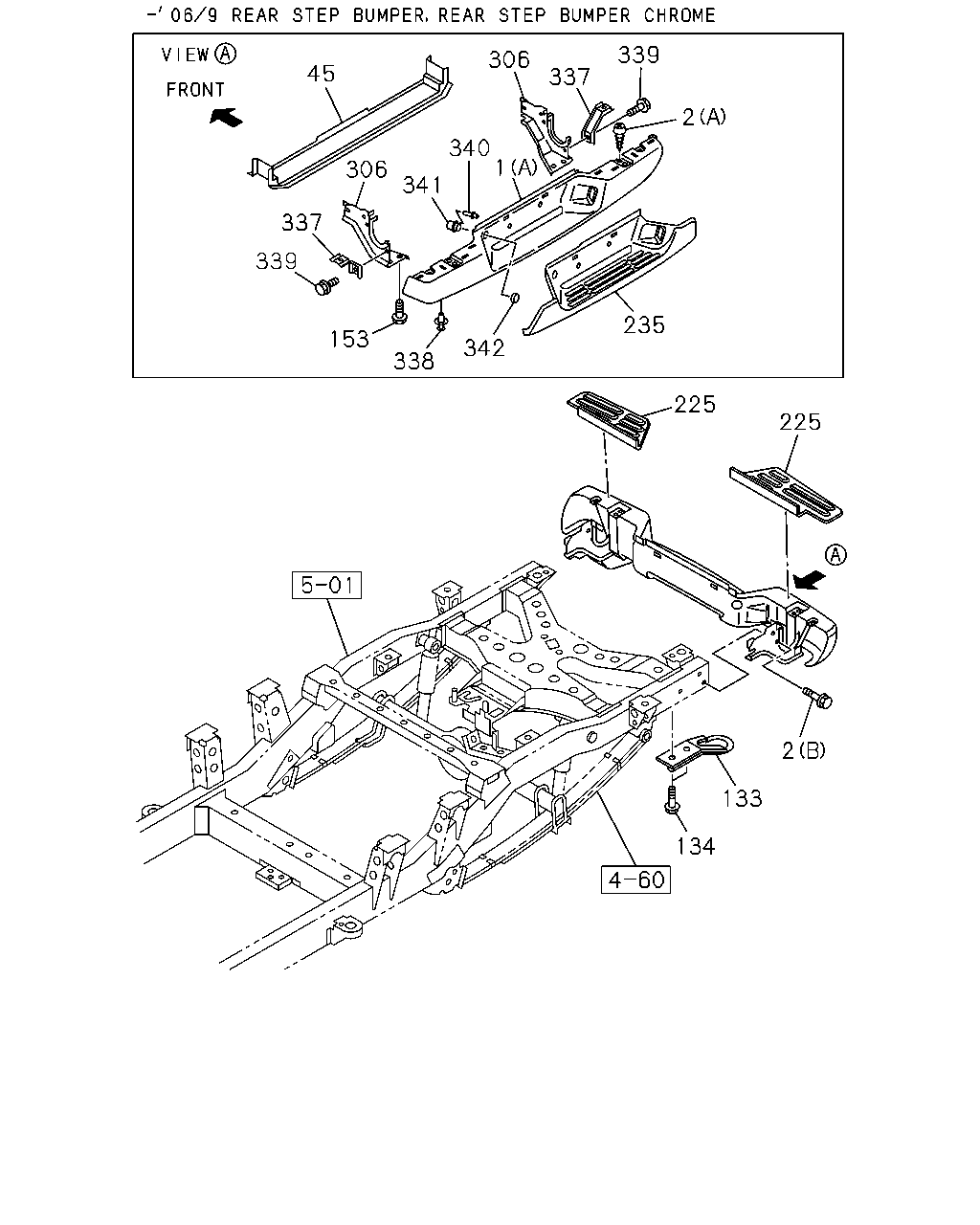

çizim 160661
339 306 45 337 2 340 1 306 341 337 339 235 153 342 338 225 225 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-98030-185-3 01 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0306-0610 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0306-0609 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97244-951-1 01 1 0306-0603 ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98023-415-0 01 1 0604-0609 ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0610- ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0306- ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0306- ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0306- ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-924-0 01 1 0306-0609 ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0610- ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-925-0 01 1 0306-0609 ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0610- ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-604-1 01 1 0306-0609 ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0610- ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-602-1 01 1 0306-0609 ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0610- ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-603-1 01 1 0306-0609 ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0610- ● ● ● ●
337 07.875 BRACE; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-583-0 02 1 0306-0609 ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0306-1007 ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1008- ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 04 1 0306-0609 ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0610- ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 03 1 0306-0609 ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0610- ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0306- ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-585-2 01 1 0306-0609 ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0610- ● ● ● ●

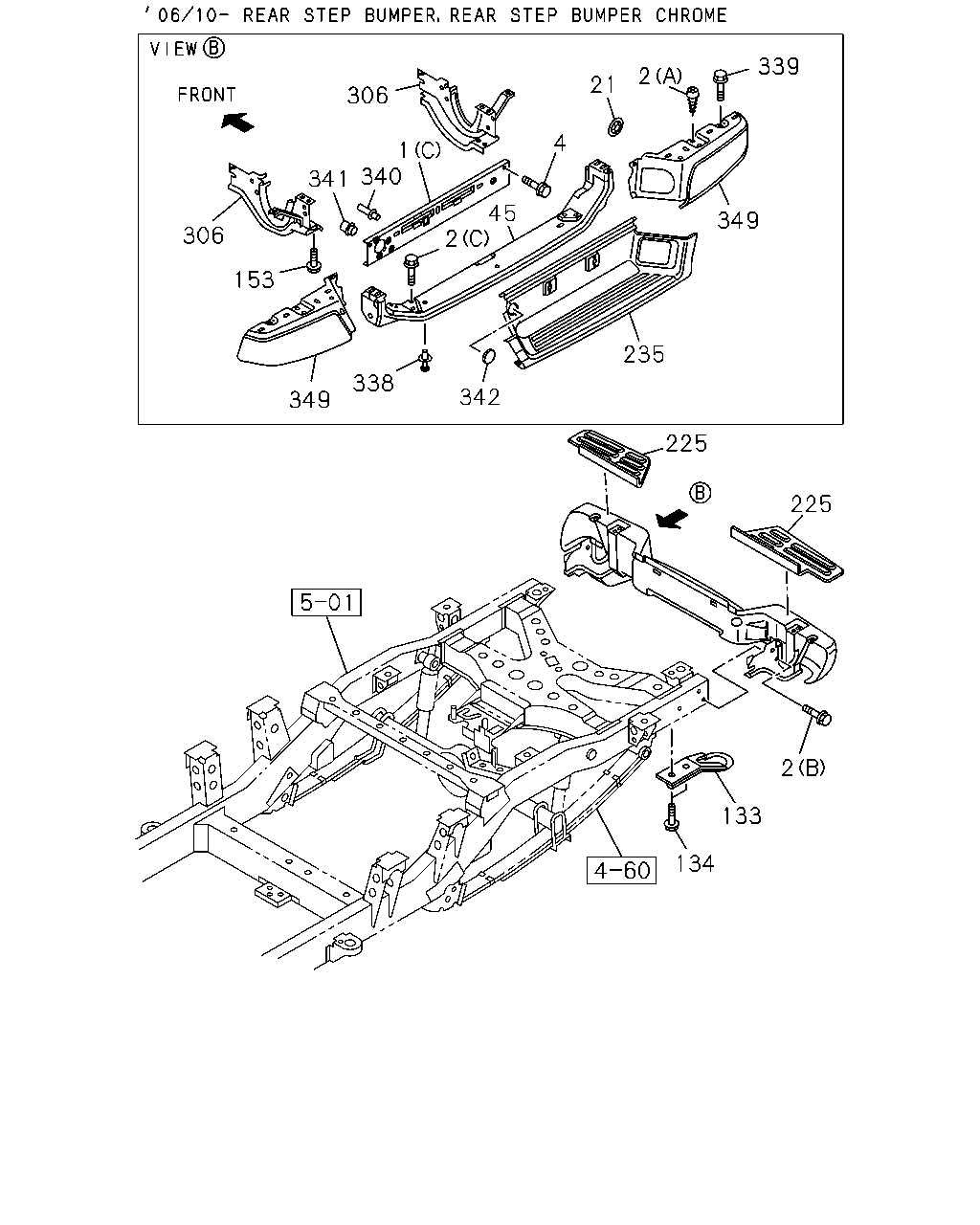

çizim 160684
306 341 340 1 2 21 339 349 4 45 2 153 306 349 338 342 235 225 225 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (B) 		8-97351-556-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (B) 		8-97351-557-2 01 1 0306- ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (A) 		8-97352-582-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) (A) 		8-97352-581-0 01 1 0306-0609 ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) 		8-98030-185-3 01 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0306-0610 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0306-0611 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0306-0609 ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 01.269 		8-97182-223-0 02 1 0610- ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97244-951-1 01 1 0306-0603 ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98023-415-0 01 1 0604-0609 ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0610- ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0306- ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0306- ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0306- ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-924-0 01 1 0306-0609 ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0610- ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97357-925-0 01 1 0306-0609 ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0610- ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-604-1 01 1 0306-0609 ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0610- ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-602-1 01 1 0306-0609 ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0610- ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97240-603-1 01 1 0306-0609 ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0610- ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0306-1007 ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1008- ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 04 1 0306-0609 ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0610- ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 03 1 0306-0609 ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0610- ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0306- ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-585-2 01 1 0306-0609 ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0610- ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-168-1 01 1 0610- ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-182-1 01 1 0610- ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-167-1 01 1 0610- ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-181-1 01 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
