Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#7761) — 281 parça

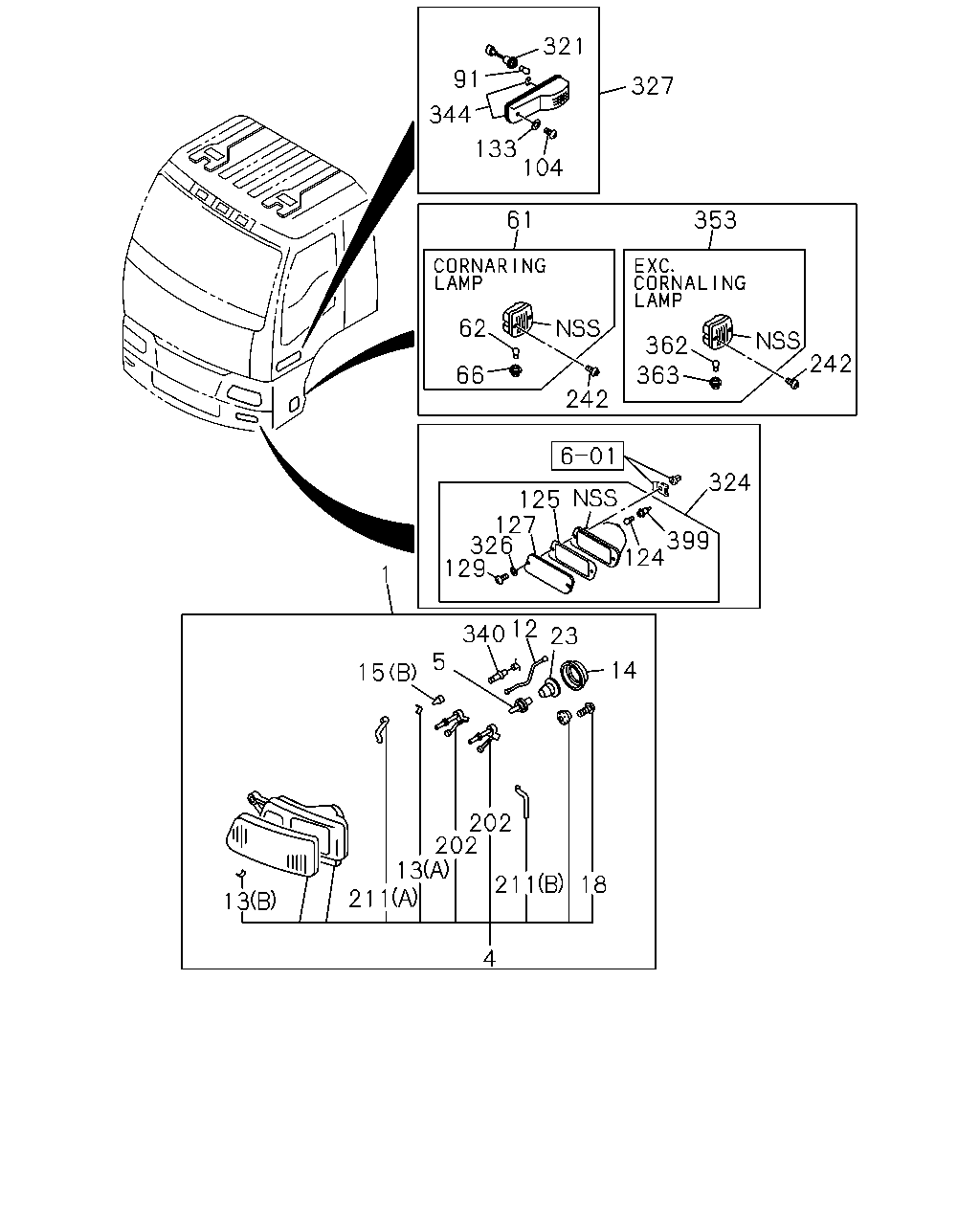

321 91 327 344 133 104 61 353 62 242 362 66 363 242 324 125 127 326 129 399 124 1 12 340 23 5 14 15 202 202 13 211 18 211 13 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-394-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-393-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-396-2	01	1	0004-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-395-2	01	1	0004-		●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82119-176-0	01	1	9902-	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82119-175-0	01	1	9902-	●
4	HEADLAMP UNIT EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82119-133-0	01	1	9902-	●
4	HEADLAMP UNIT EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82119-132-0	01	1	9902-	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> 24V 75/70W	1-82119-129-0	01	1	0004-		●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> 24V 75/70W	1-82119-128-0	01	1	0004-		●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	8-94405-657-0	02	1	9902-	●
5	BULB; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	1-82194-063-0	02	1	9902-0003	●
5	BULB; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	1-82194-063-0	02	1	0004-	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> 24V 75/70W	1-82194-063-0	02	1	0004-		●
12	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82118-014-0	02	1	9902-	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82118-012-0	02	1	9902-0003	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82118-012-0	02	1	0004-	●
12	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82118-012-0	02	1	0004-		●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	9902-9904	●
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9905-0003	●
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	0004-	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0004-		●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	8-94381-588-0	14	1	9902-9904	●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9905-0003	●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	0004-	●
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	8-94381-588-0	14	1	0004-		●
14	CAP; BULB,LAMP BUMPER W/HEADLAMPS<SLB>	1-86830-148-0	02	1	9902-9904	●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9905-0003	●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0004-	●
14	CAP; BULB,LAMP BUMPER W/HEADLAMPS<SLB>	1-86830-148-0	02	1	0004-		●
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 70W	8-97203-926-0	02	1	9902-	●
15	BULB; FOG LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W	1-82194-079-0	02	1	9902-0003	●
15	BULB; FOG LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W	1-82194-079-0	02	1	0004-	●
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> (B) 24V 55W	1-82194-079-0	02	1	0004-		●
18	SCREW; GEAR CASE BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING	1-82119-067-0	08	1	9902-9904	●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9905-0003	●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0004-	●
18	SCREW; GEAR CASE BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING	1-82119-067-0	08	1	0004-		●
23	COVER; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-147-0	02	1	9902-9904	●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9905-0003	●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0004-	●
23	COVER; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-147-0	02	1	0004-		●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS>	1-86830-247-2	01	1	9902-	●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-187-1	01	1	9902-0003	●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0004-	●	●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-188-2	01	1	0004-		●
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	9902-	●
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	9902-	●
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30W	8-97010-179-0	02	1	0004-		●
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-297-0	01	1	9902-	●
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-146-0	01	1	9902-	●
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-146-0	02	1	0004-		●
91	BULB; SIDE TURN SIGNAL ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) 24V 21W	1-82194-036-0	02	1	9902-	●
91	BULB; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) 24V 12W	1-82194-030-0	02	1	9902-0003	●
91	BULB; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) 24V 12W	1-82194-030-0	02	1	0004-	●
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0004-		●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9902-0003	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0004-	●	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	9902-0003	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0004-	●	●
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	9902-0003	●
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0004-	●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	9902-0003	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0004-	●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	9902-0003	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0004-	●	●
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	9902-0003	●
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0004-	●	●
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9902-0003	●
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0004-	●	●
202	GEAR UNIT; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-139-0	04	1	9902-9904	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9905-0003	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0004-	●
202	GEAR UNIT; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-139-0	04	1	0004-		●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-142-0	01	1	9902-9904	●
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9905-9911	●
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-0003	●
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	0004-	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-329-0	01	1	0004-		●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-144-0	01	1	9902-9904	●
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9905-9911	●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-0003	●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0004-	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-331-0	01	1	0004-		●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-141-0	01	1	9902-9904	●
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9905-9911	●
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-0003	●
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	0004-	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-328-0	01	1	0004-		●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-143-0	01	1	9902-9904	●
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9905-9911	●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-0003	●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0004-	●
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-330-0	01	1	0004-		●
242	SCREW; CORNERING LAMP CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9902-0003	●
242	SCREW; CORNERING LAMP CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0004-	●	●
242	SCREW; CORNERING LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9902-	●
321	HARNESS; SIDE FLASHER LAMP ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-82218-002-0	02	1	9902-	●
321	HARNESS; SIDE FLASHER LAMP EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-253-0	02	1	9902-0003	●
321	HARNESS; SIDE FLASHER LAMP EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-253-0	02	1	0004-	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0004-		●
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	9902-0003	●
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0004-	●	●
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	9902-0003	●
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0004-	●	●
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	9902-0003	●
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0004-	●	●
327	LAMP ASM; SIDE TURN SIGNAL ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-82210-228-1	01	1	9902-	●
327	LAMP ASM; SIDE TURN SIGNAL ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-82210-227-1	01	1	9902-	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-011-5	01	1	9902-0003	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-011-6	01	1	0004-	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0004-		●
327	LAMP ASM; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-007-5	01	1	9902-0003	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-007-6	01	1	0004-	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0004-		●
340	BULB; POSITION BUMPER W/HEADLAMPS<SLB> 24V 5W	1-82194-042-0	02	1	9902-9904	●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9905-0003	●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0004-	●
340	BULB; POSITION BUMPER W/HEADLAMPS<SLB> 24V 5W	1-82194-042-0	02	1	0004-		●
344	LAMP UNIT; SIDE TURN SIGNAL ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-82213-021-0	01	1	9902-	●
344	LAMP UNIT; SIDE TURN SIGNAL ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-82213-020-0	01	1	9902-	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-241-0	01	1	9902-0003	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-241-1	01	1	0004-	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0004-		●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-240-0	01	1	9902-0003	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-86830-240-1	01	1	0004-	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0004-		●
353	LAMP ASM; STEP EXC. CORNARING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	9902-	●
362	BULB; STEP LAMP EXC. CORNARING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	9902-	●
363	HARNESS; STEP LAMP EXC. CORNARING LAMP<TDS>	1-86830-296-0	01	1	9902-	●
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	9902-0003	●
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0004-	●	●

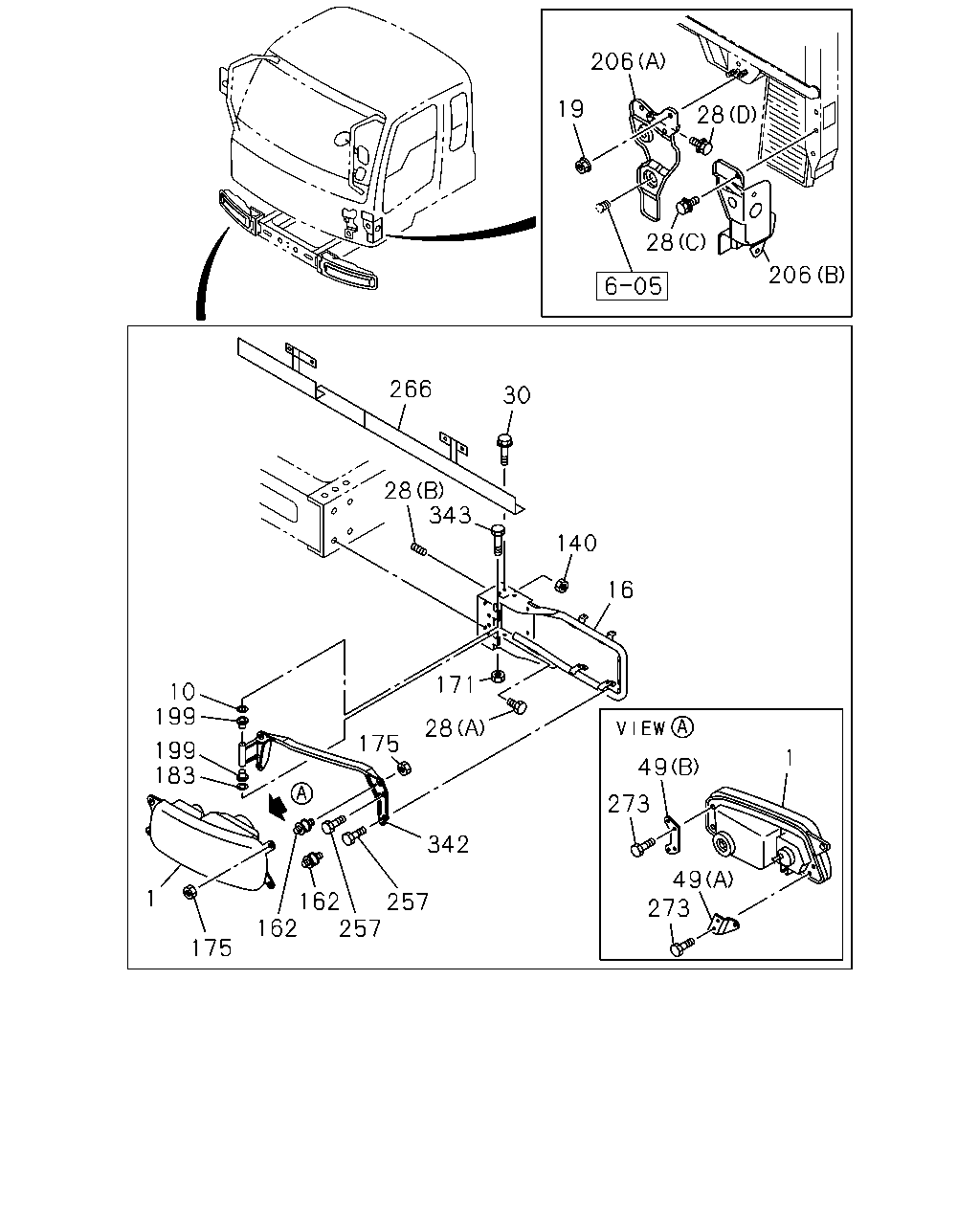

206 19 28 28 206 266 30 28 343 140 16 171 10 199 28 175 199 183 1 49 273 342 49 273 1 162 257 162 257 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-394-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-393-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-396-2	01	1	0004-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-395-2	01	1	0004-		●
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	9902-0003	●
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	0004-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-120-2	01	1	9902-0003	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-120-2	01	1	0004-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-119-2	01	1	9902-0003	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-119-2	01	1	0004-	●	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-0003	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X35 FLANGE	0-28081-035-0	06	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X35 FLANGE	0-28081-035-0	06	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9905-	●
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	9902-0003	●
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	0004-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	9902-0003	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0004-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	9902-0003	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0004-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	9902-0003	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0004-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0004-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	9902-0003	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0004-	●	●
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	9902-0003	●
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	0004-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9902-0003	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0004-	●	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	9902-0003	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	0004-	●	●
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	9902-0003	●
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	0004-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-5	01	1	9902-0003	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0004-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9902-0003	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	0004-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9902-0003	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0004-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9902-0003	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	0004-	●	●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	9902-0003	●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	0004-	●	●
266	STAY; BRKT,HEADLAMP	1-82117-128-1	01	1	9902-	●
266	STAY; BRKT,HEADLAMP	1-82117-137-1	01	1	0004-		●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28080-616-0	04	1	9902-9902	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	9903-0003	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	0004-	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 W/LK WASHER	0-50040-616-0	04	1	9902-9902	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	9902-0003	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	0004-	●	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	9902-0003	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	0004-	●	●
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	9902-0003	●
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	0004-	●	●

266 30 206 19 28 26 28 28 206 110 1 28 28 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-394-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA>	1-82110-393-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	9902-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	9902-	●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-396-2	01	1	0004-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-395-2	01	1	0004-		●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	9905-	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	9905-	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-0003	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0004-	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9905-	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9905-	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-0003	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X35 FLANGE	0-28081-035-0	06	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X35 FLANGE	0-28081-035-0	06	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	0004-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9905-	●
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	9902-0003	●
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	0004-	●	●
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	9905-	●
206	HOLDER; HEADLAMP (A)	1-65671-570-5	01	1	9902-0003	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0004-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9902-0003	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	0004-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9902-0003	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0004-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9902-0003	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	0004-	●	●
266	STAY; BRKT,HEADLAMP	1-82117-128-1	01	1	9902-	●
266	STAY; BRKT,HEADLAMP	1-82117-137-1	01	1	0004-		●

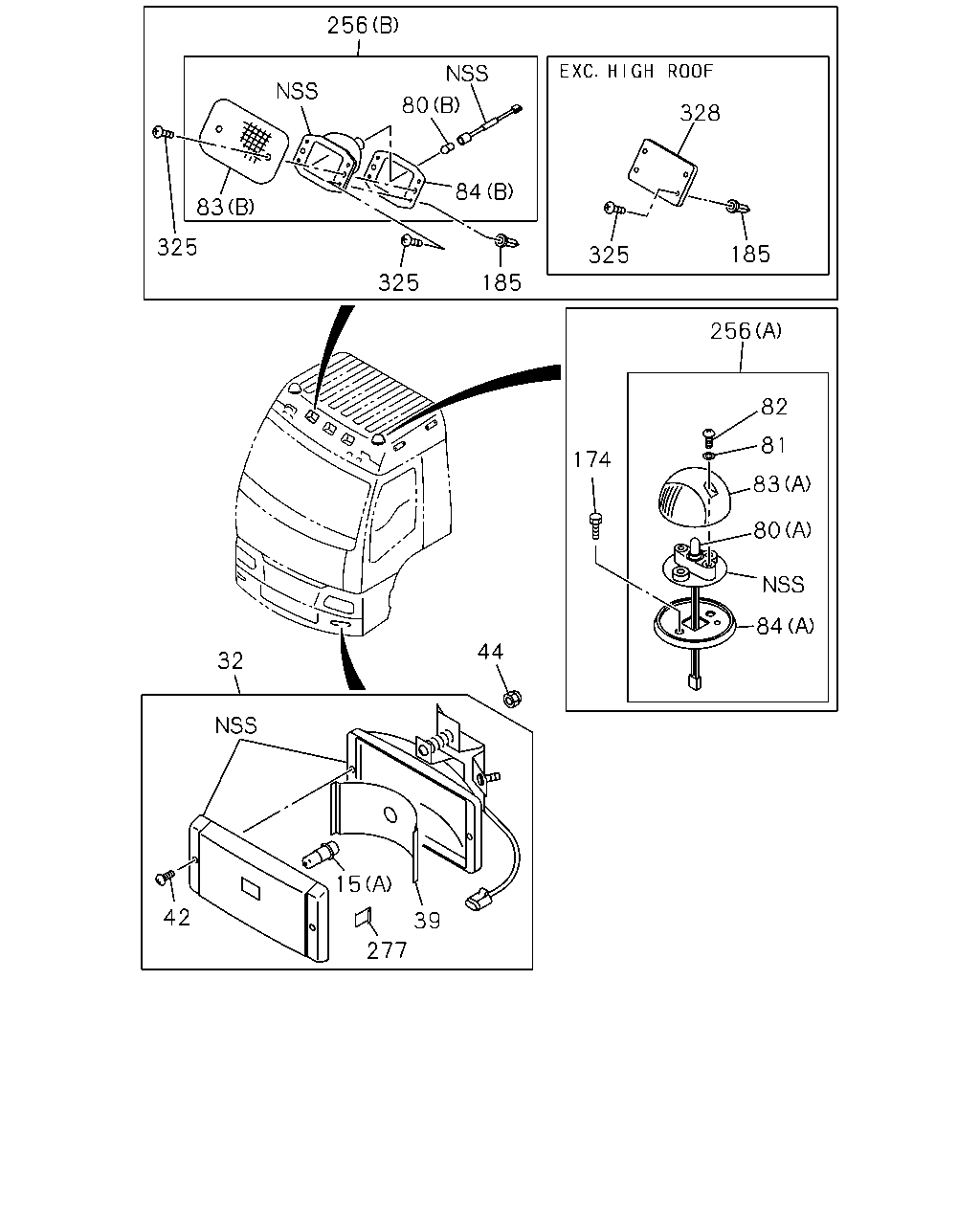

256 80 328 84 83 325 185 325 325 185 256 82 81 174 83 80 84 44 32 15 42 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 70W	8-97203-926-0	02	1	9902-	●
15	BULB; FOG LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W	1-82194-079-0	02	1	9902-0003	●
15	BULB; FOG LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W	1-82194-079-0	02	1	0004-	●
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> (B) 24V 55W	1-82194-079-0	02	1	0004-		●
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA>	8-97181-942-0	01	1	9902-	●
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA>	8-97181-940-0	01	1	9902-	●
39	UNIT; FOG LAMP HEADLAMPS VARIANT SQUARE<TEA>	8-97357-929-0	02	1	9902-	●
42	SCREW; LENS,FOG LAMP HEADLAMPS VARIANT SQUARE<TEA>	8-97357-931-0	04	1	9902-	●
44	NUT; FOG LAMP HEADLAMPS VARIANT SQUARE<TEA> M5 CAP NUT	9-61167-090-0	02	1	9902-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	9902-	●
80	BULB; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B) 24V 12W	9-82691-302-0	03	1	9905-	●
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9902-	●
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	9902-	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-86830-320-0	03	1	9905-	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-321-0	03	1	9902-0003	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-321-0	03	1	0004-	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	0004-		●
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	9902-	●
83	LENS; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-82215-068-0	03	1	9905-	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	9902-9904	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	9905-0003	●
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	9905-0003	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0004-	●
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9> (B)	1-86830-153-0	03	1	0004-	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	0004-		●
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	9902-	●
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X25	8-94279-204-0	04	1	9902-	●
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	9902-0003	●
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	0004-	●	●
256	LAMP; MARKER HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-82210-229-0	03	1	9905-	●
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-82210-230-0	03	1	9902-0003	●
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (B)	1-82210-230-0	03	1	0004-	●
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	0004-		●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-1	02	1	9902-	●
256	LAMP; MARKER MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-86830-170-0	03	1	9905-	●
277	CLIP; LENS,FOG LAMP HEADLAMPS VARIANT SQUARE<TEA>	8-97357-930-0	02	1	9902-	●
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9902-0003	●
325	SCREW; SPD INDICATOR LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9902-0003	●
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	0004-	●	●
325	SCREW; SPD INDICATOR LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	0004-	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9902-9904	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> M5X14 TAPPING	9-07066-514-0	12	1	9905-0003	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> M5X14 TAPPING	9-07066-514-0	12	1	0004-	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	0004-		●
328	COVER; LAMP EXC. HIGH ROOF<S2F>	1-76217-122-0	03	1	9902-9904	●
328	COVER; LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9>	1-76217-122-0	03	1	9905-0003	●
328	COVER; LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9>	1-76217-122-0	03	1	0004-	●
328	COVER; LAMP EXC. HIGH ROOF<S2F>	1-76217-122-0	03	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
