◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

6-66 — HEAD LINING AND TRIM (#77602) — 94 parça

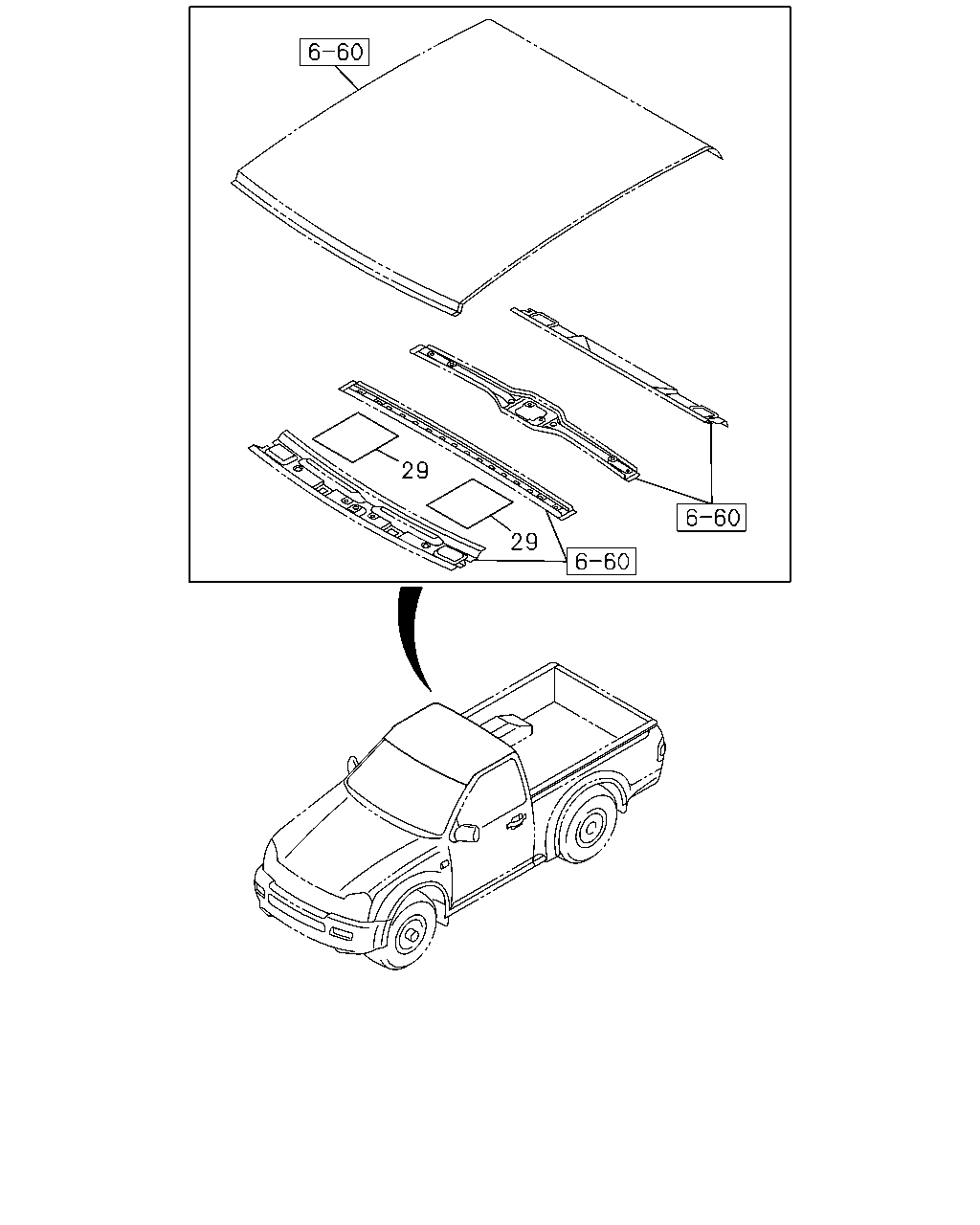

29 29

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	29	16.742 DEADENER; ROOF PANEL 4JJ1-TCS ENG(LFB)	8-97369-873-1	02	1	0610-	●	●

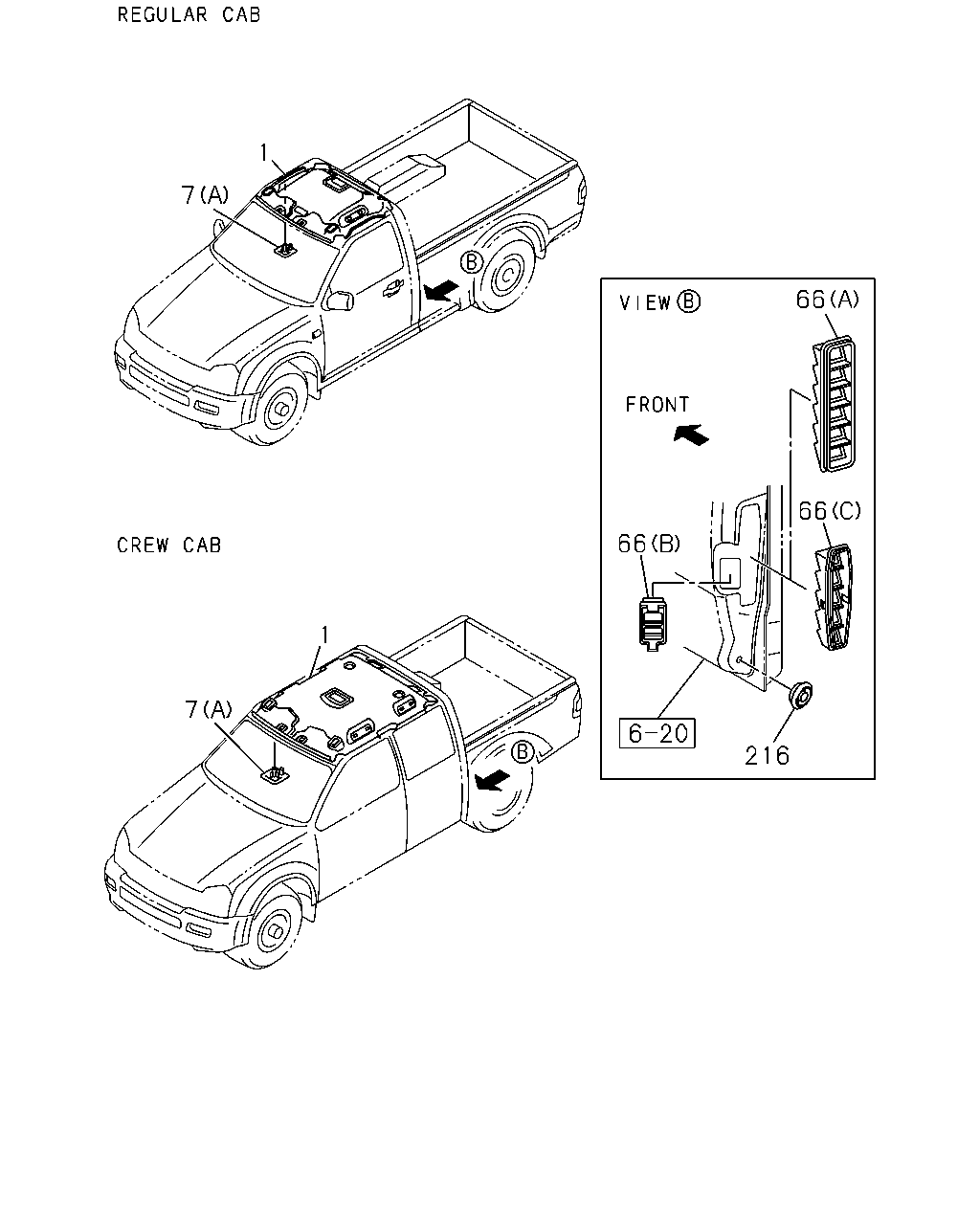

1 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-565-0	01	1	1004-			●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-744-0	01	1	1004-			●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-566-0	01	1	1004-	●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-745-0	01	1	1004-	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	1004-			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	1004-	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0306-0501			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	1004-			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0306-0501			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	1004-			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0306-0502	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	1004-	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0306-0502	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR BLACK(101) (A) BLACK	8-97418-567-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97298-442-0	02	1	0306-0609	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97298-442-0	02	1	0306-0609	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	0610-1003	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97403-535-0	02	1	0610-1003	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY	8-97403-535-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0306-	●	●	●	●

1 7 66 66 66 1 7 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-565-0	01	1	1004-			●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-744-0	01	1	1004-			●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> BLACK	8-97418-566-0	01	1	1004-	●	●
1	16.742 LINING; HD INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> BLACK	8-97418-745-0	01	1	1004-	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-122-0	01	1	0509-0603			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-889-0	01	1	0604-0609			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-890-0	01	1	1004-			●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-123-0	01	1	0509-0603	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-898-0	01	1	0604-0609	●	●
1	16.742 LINING; HD HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> LIGHT GRAY	8-97405-899-0	01	1	1004-	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97391-516-3	01	1	0306-0501			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-118-0	01	1	0502-0508			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-118-0	01	1	0509-0603			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-894-0	01	1	0604-0609			●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-895-0	01	1	1004-			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-439-3	01	1	0306-0501			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-117-0	01	1	0502-0508			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-117-0	01	1	0509-0603			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-891-0	01	1	0604-0609			●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	0610-1003			●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-892-0	01	1	1004-			●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97298-441-5	01	1	0306-0502	●	●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY	8-97401-120-0	01	1	0503-0508	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-120-0	01	1	0509-0603	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-904-0	01	1	0604-0609	●	●
1	16.742 LINING; HD MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-905-0	01	1	1004-	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97298-440-5	01	1	0306-0502	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY	8-97401-119-0	01	1	0503-0508	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97401-119-0	01	1	0509-0603	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-901-0	01	1	0604-0609	●	●
1	16.742 LINING; HD EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	0610-1003	●	●
1	16.742 LINING; HD INTERIOR COLOR IN VERY DARK GRAY(116) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> LIGHT GRAY	8-97405-902-0	01	1	1004-	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR BLACK(101) (A) BLACK	8-97418-567-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97298-442-0	02	1	0306-0609	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97298-442-0	02	1	0306-0609	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	0610-1003	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97403-535-0	02	1	0610-1003	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY	8-97403-535-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY	8-97403-535-0	02	1	1004-	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0306-	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97251-682-1	02	1	0306-			●	●
66	16.576 GRILLE; AIR OUTLET (C)	8-97311-440-2	02	1	0306-			●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-477-0	02	1	0306-	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97365-208-0	02	1	0306-	●	●
216	16.576 GROMMET; HOLE 16.575 OD=19	8-97365-823-0	02	1	0306-	●	●	●	●
