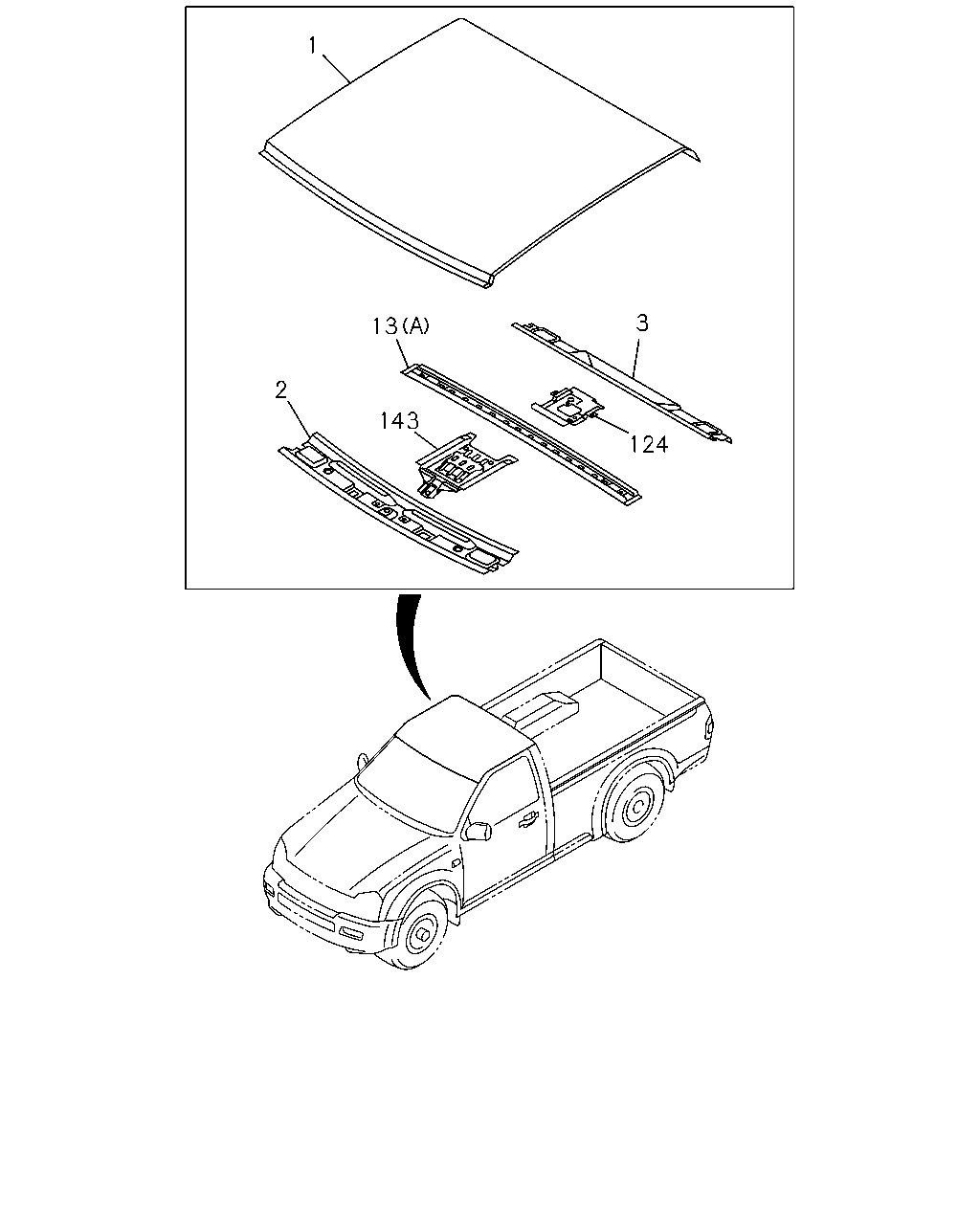

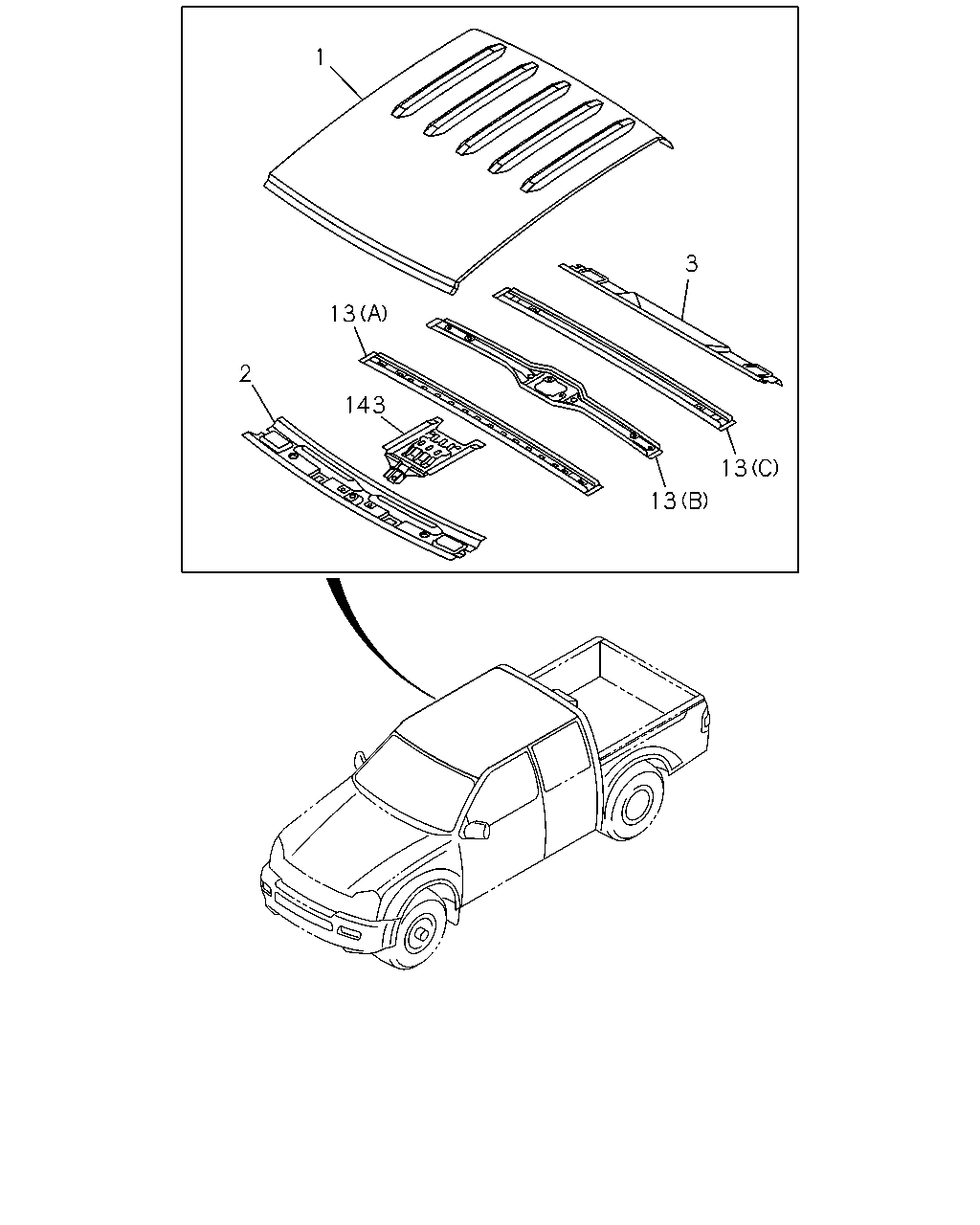

6-60 — ROOF PANEL (#77601) — 49 parça

1 3 13 2 143 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71>	8-98051-828-0	01	1	0710-	●	●
1	16.585 PANEL; ROOF ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-98051-827-0	01	1	0710-	●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-330-3	01	1	0306-0709			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-330-3	01	1	0710-0809			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-330-3	01	1	0810-			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>	8-97235-330-3	01	1	0810-			●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	0306-0709			●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-97235-326-3	01	1	0710-			●	●
1	16.585 PANEL; ROOF PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	0710-			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-93290-859-1	01	1	0306-0709	●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71>	8-93290-859-1	01	1	0710-	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-93298-720-1	01	1	0306-0402	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-93298-720-1	01	1	0403-0709	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX>	8-93298-720-1	01	1	0710-	●	●
2	16.585 PANEL; ROOF,CENTER	8-97235-276-4	01	1	0306-0709	●	●	●	●
2	16.585 PANEL; ROOF,CENTER	8-98050-942-0	01	1	0710-	●	●	●	●
3	16.585 PANEL; ROOF,RR	8-97235-282-3	01	1	0306-	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (A)	8-97235-279-3	01	1	0306-	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (C)	8-93291-041-1	01	1	0306-	●	●
13	16.585 PANEL; ROOF SUPPORT (B)	8-97235-281-3	01	1	0306-	●	●
124	16.585 BRACKET; ROOM LAMP	8-97235-999-1	01	1	0306-0709			●	●
124	16.585 BRACKET; ROOM LAMP EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-999-1	01	1	0710-0809			●	●
124	16.585 BRACKET; ROOM LAMP PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>	8-97235-999-1	01	1	0710-0809			●	●
124	16.585 BRACKET; ROOM LAMP EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-999-1	01	1	0810-			●	●
124	16.585 BRACKET; ROOM LAMP PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>	8-97235-999-1	01	1	0810-			●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6>	8-98011-826-0	01	1	0509-0709	●	●	●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6>	8-98050-943-0	01	1	0710-	●	●	●	●

1 3 13 2 143 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71>	8-98051-828-0	01	1	0710-	●	●
1	16.585 PANEL; ROOF ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-98051-827-0	01	1	0710-	●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-330-3	01	1	0306-0709			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-330-3	01	1	0710-0809			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-330-3	01	1	0810-			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>	8-97235-330-3	01	1	0810-			●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	0306-0709			●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-97235-326-3	01	1	0710-			●	●
1	16.585 PANEL; ROOF PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	0710-			●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-93290-859-1	01	1	0306-0709	●	●
1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71>	8-93290-859-1	01	1	0710-	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-93298-720-1	01	1	0306-0402	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU,THAILAND<8KX>	8-93298-720-1	01	1	0403-0709	●	●
1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX>	8-93298-720-1	01	1	0710-	●	●
2	16.585 PANEL; ROOF,CENTER	8-97235-276-4	01	1	0306-0709	●	●	●	●
2	16.585 PANEL; ROOF,CENTER	8-98050-942-0	01	1	0710-	●	●	●	●
3	16.585 PANEL; ROOF,RR	8-97235-282-3	01	1	0306-	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (A)	8-97235-279-3	01	1	0306-	●	●	●	●
13	16.585 PANEL; ROOF SUPPORT (C)	8-93291-041-1	01	1	0306-	●	●
13	16.585 PANEL; ROOF SUPPORT (B)	8-97235-281-3	01	1	0306-	●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6>	8-98011-826-0	01	1	0509-0709	●	●	●	●
143	16.584 BRACKET; CONSOLE HEADER CONSOLE<DK6>	8-98050-943-0	01	1	0710-	●	●	●	●
