◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#77600) — 91 parça
çizim 160609
3 3 3 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-724-0 01 1 0306- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-725-0 01 1 0306- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-93291-078-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-93291-079-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-93291-091-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-93291-092-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97294-032-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97402-848-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0610- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97294-033-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97402-850-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0610- ● ●
45 16.183 FINISHER; RR DOOR 8-97364-721-0 01 1 0306-0410 ● ●
45 16.183 FINISHER; RR DOOR 8-98003-177-0 01 1 0411-0412 ● ●
45 16.183 FINISHER; RR DOOR 8-98004-223-0 01 1 0501- ● ●
45 16.183 FINISHER; RR DOOR 8-97364-722-0 01 1 0306-0410 ● ●
45 16.183 FINISHER; RR DOOR 8-98003-178-0 01 1 0411-0412 ● ●
45 16.183 FINISHER; RR DOOR 8-98004-224-0 01 1 0501- ● ●

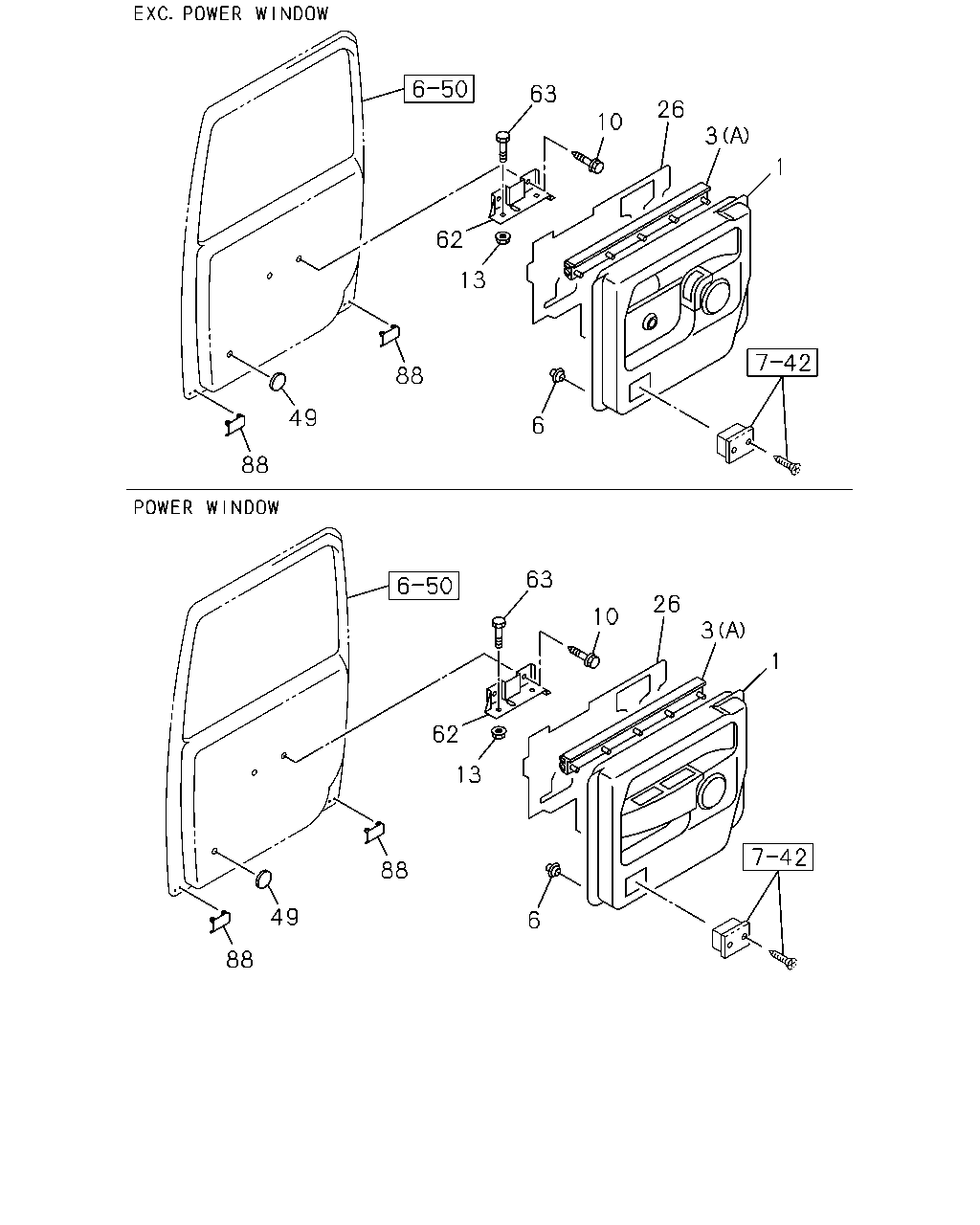

çizim 160614
63 26 10 3 1 62 13 88 49 6 88 63 26 10 3 1 62 13 88 49 6 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> SEAT COLOR RED<6SJ> RED 		8-97418-505-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> SEAT COLOR RED<6SJ> RED 		8-97418-506-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY 		8-97393-947-3 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> GRAY 		8-97400-179-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-932-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-932-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> DARK GRAY 		8-97393-948-3 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> SEAT CLOTH<7FL> GRAY 		8-97400-180-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-933-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-933-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97396-938-0 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> GRAY 		8-97400-822-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-939-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY 		8-97404-939-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97396-939-0 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> CLOTH SEAT MOQUETTE<8EP> GRAY 		8-97400-821-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-937-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY 		8-97404-937-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97394-036-3 01 1 0306-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-922-3 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-922-3 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97394-037-3 01 1 0306-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-924-3 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-924-3 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97394-494-2 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97401-486-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-928-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-928-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97394-495-2 01 1 0306-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97401-487-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-929-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-929-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97393-949-3 01 1 0306-0404 ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97393-949-3 01 1 0405-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97401-484-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-930-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-930-0 01 1 1004- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97393-950-3 01 1 0306-0404 ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97393-950-3 01 1 0405-0508 ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97401-485-0 01 1 0509-0609 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-931-0 01 1 0610-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-931-0 01 1 1004- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-724-0 01 1 0306- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-725-0 01 1 0306- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-93291-078-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-93291-079-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-93291-091-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-93291-092-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97294-032-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97402-848-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0610- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97294-033-2 01 1 0306-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97402-850-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0610- ● ●
6 16.165 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 14 1 0306- ● ●
10 16.155 SCREW; ARM REST
12.182 M5X14 		8-94152-495-0 04 1 0306- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 		8-94152-494-0 04 1 0306- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-889-0 01 1 0306- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-890-0 01 1 0306- ● ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0306- ● ●
62 16.165 BRACKET 8-93358-284-2 01 1 0306- ● ●
62 16.165 BRACKET 8-93358-285-2 01 1 0306- ● ●
63 16.165 BOLT
12.182 M5X14 		8-94152-495-0 04 1 0306-0504 ● ●
63 16.165 BOLT
EXC. POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14 		8-94152-495-0 04 1 0505- ● ●
88 16.270 PLUG; DOOR
16.155 		8-98009-500-0 04 1 0508- ● ●
