Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#7760) — 257 parça

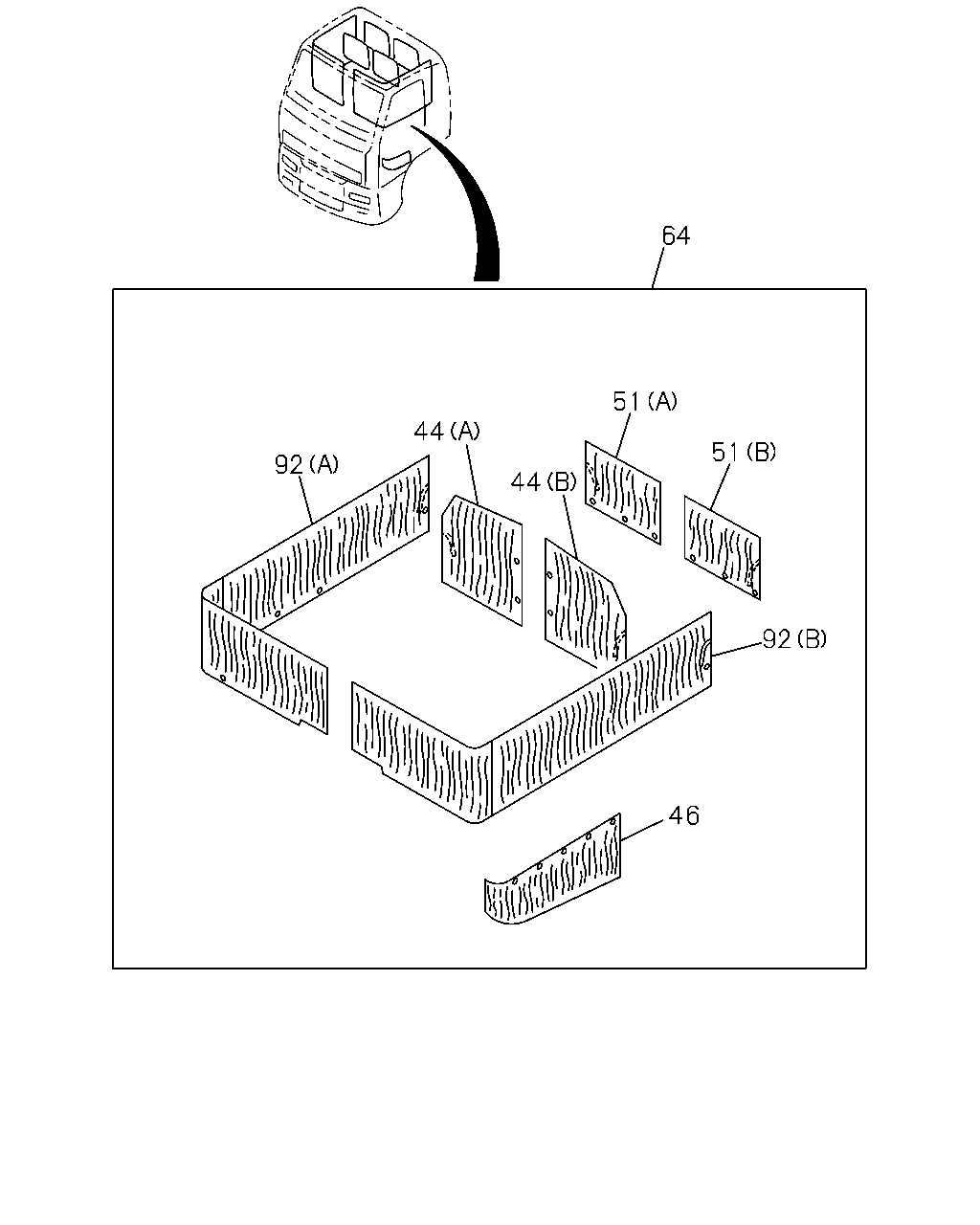

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-505-0	01	1	9902-0003	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-505-0	01	1	0004-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-504-0	01	1	9902-0003	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-504-0	01	1	0004-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B)	1-73907-481-0	01	1	9902-0003	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B)	1-73907-481-0	01	1	0004-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A)	1-73907-480-0	01	1	9902-0003	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A)	1-73907-480-0	01	1	0004-	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B)	1-73907-498-0	01	1	9905-	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (A)	1-73907-497-0	01	1	9905-	●	●
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (B)	1-73907-507-0	01	1	9905-	●	●
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (A)	1-73907-506-0	01	1	9905-	●	●
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-501-0	01	1	9905-	●
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-501-0	01	1	9905-	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-494-0	01	1	9905-	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	9902-0003	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	0004-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (B)	1-73907-483-0	01	1	9902-0003	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (B)	1-73907-483-0	01	1	0004-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (A)	1-73907-482-0	01	1	9902-0003	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (A)	1-73907-482-0	01	1	0004-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR> (B)	1-73907-500-0	01	1	9905-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR> (A)	1-73907-499-0	01	1	9905-	●	●
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-579-0	01	1	9902-0003	●
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-579-0	01	1	0004-	●	●
64	CURTAIN KIT HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-580-0	01	1	9902-0003	●
64	CURTAIN KIT HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-580-0	01	1	0004-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	9902-0003	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	0004-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	9902-0003	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	0004-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (B)	1-73907-485-0	01	1	9902-0003	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (B)	1-73907-485-0	01	1	0004-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (A)	1-73907-484-0	01	1	9902-0003	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> (A)	1-73907-484-0	01	1	0004-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR> (B)	1-73907-496-0	01	1	9905-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR> (A)	1-73907-495-0	01	1	9905-	●	●

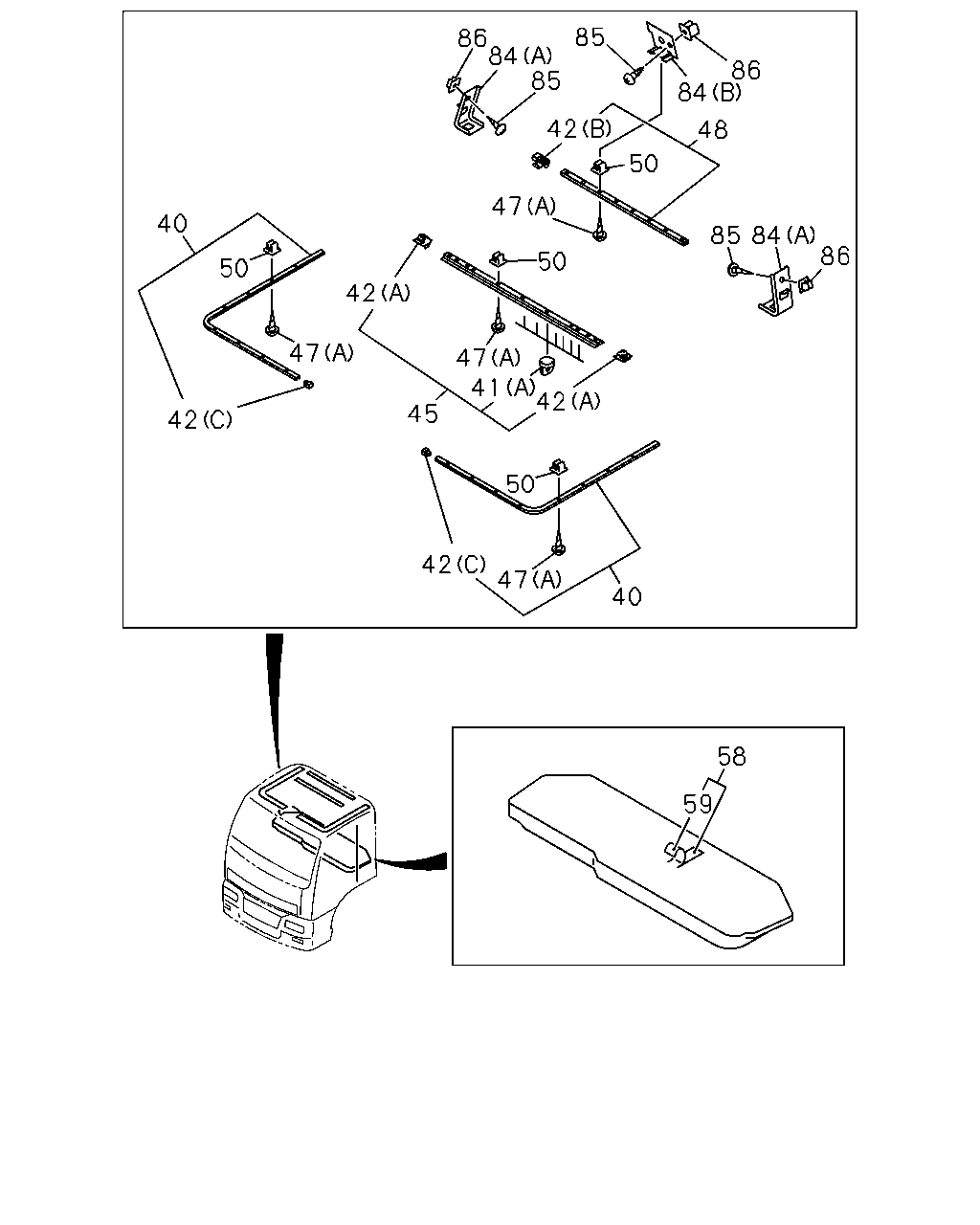

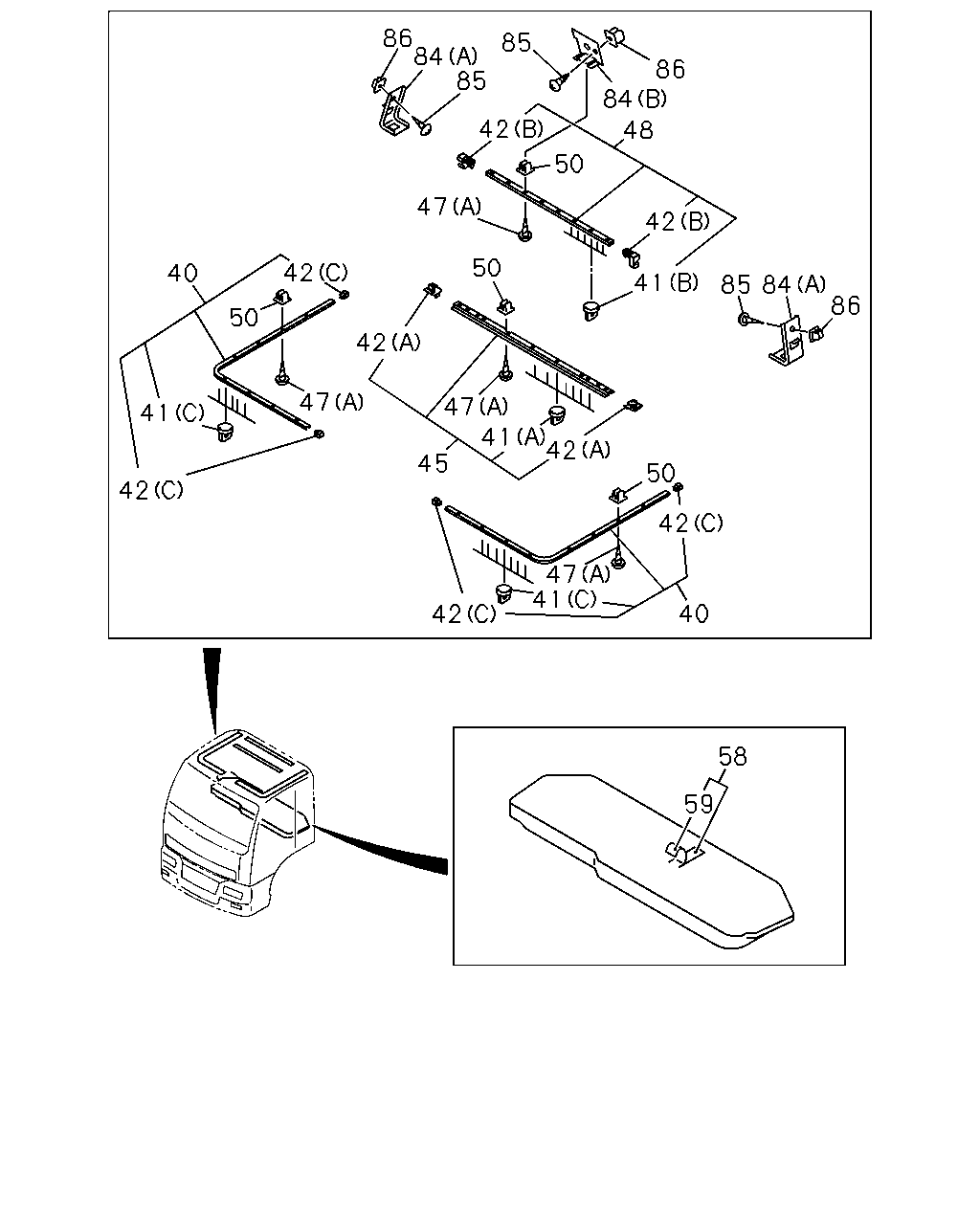

86 84 85 85 86 84 48 42 50 47 42 50 42 40 41 86 50 42 47 47 41 42 41 45 50 42 42 47 41 42 40 58 59 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9902-0003	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9902-0003	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9902-0002	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-0003	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9902-0002	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-0003	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	0004-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-0003	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	0004-0008	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0004-0008		●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0009-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	01	1	9902-0008	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	0004-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9902-0003	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	0004-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9902-0003	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	0004-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9902-0003	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	0004-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	8-94265-811-0	01	1	9902-0008	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	0004-0008		●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9902-0003	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	0004-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9902-9904	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-828-3	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-997-1	01	1	0004-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-909-0	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-998-0	01	1	0004-	●
58	BED; MAT	1-75117-990-1	01	1	0004-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9902-9904	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-862-1	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75127-086-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-935-0	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75127-087-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT	1-75127-082-0	01	1	0004-		●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9902-0003	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0004-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9902-0003	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	0004-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9902-0003	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0004-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9902-0003	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	0004-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9902-0003	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0004-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9902-0003	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0004-	●	●

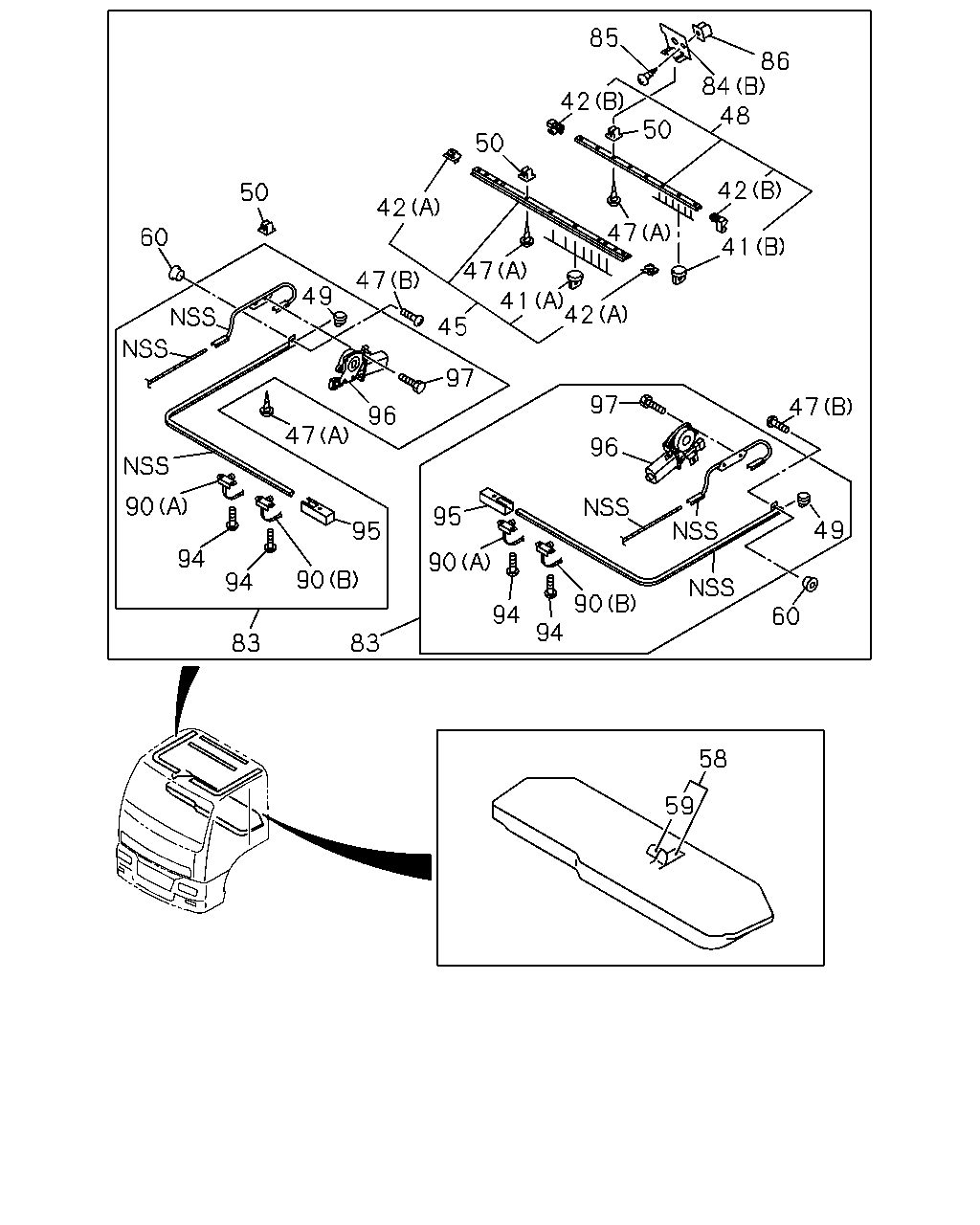

85 86 84 48 42 50 50 42 50 42 47 60 41 47 41 42 47 49 45 97 97 47 96 47 96 49 90 95 95 94 90 90 94 60 90 94 94 83 83 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	0004-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-0003	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	0004-0008	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0004-0008		●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0009-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	01	1	9902-0008	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	0004-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9902-0003	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	0004-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9902-0003	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	0004-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9902-0003	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	0004-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	8-94265-811-0	01	1	9902-0008	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	0004-0008		●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
49	HOOK; CURTAIN AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	32	1	9902-0003	●
49	HOOK; CURTAIN AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	32	1	0004-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9902-0003	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	0004-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9902-9904	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-828-3	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-997-1	01	1	0004-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-909-0	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-998-0	01	1	0004-	●
58	BED; MAT	1-75117-990-1	01	1	0004-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9902-9904	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-862-1	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75127-086-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-935-0	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75127-087-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT	1-75127-082-0	01	1	0004-		●
60	HOLDER AUTO ROUND CURTAIN<TAR>	1-79198-011-0	04	1	9902-0003	●
60	HOLDER AUTO ROUND CURTAIN<TAR>	1-79198-011-0	04	1	0004-	●	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-289-5	01	1	9902-0003	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-289-5	01	1	0004-	●	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-288-5	01	1	9902-0003	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-288-5	01	1	0004-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9902-0003	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0004-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9902-0003	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	0004-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9902-0003	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0004-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9902-0003	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	0004-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9902-0003	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0004-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9902-0003	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0004-	●	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (A)	1-73996-224-2	02	1	9902-0003	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (A)	1-73996-224-2	02	1	0004-	●	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B)	1-73996-225-2	02	1	9902-0003	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B)	1-73996-225-2	02	1	0004-	●	●
94	FIXING PARTS; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-256-0	10	1	9902-0003	●
94	FIXING PARTS; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-256-0	10	1	0004-	●	●
95	COVER; SWITCH,CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-254-0	02	1	9902-0003	●
95	COVER; SWITCH,CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-254-0	02	1	0004-	●	●
96	MOTOR ASM; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-255-0	02	1	9902-0003	●
96	MOTOR ASM; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-255-0	02	1	0004-	●	●
97	SCREW; MOTOR,CURTAIN RAIL AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER	9-03910-625-0	04	1	9902-0003	●
97	SCREW; MOTOR,CURTAIN RAIL AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER	9-03910-625-0	04	1	0004-	●	●

85 86 84 85 86 84 48 42 50 47 40 86 50 50 42 47 47 41 42 45 42 50 42 47 40 58 59 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9902-0003	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9902-0003	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9902-0002	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-0003	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0004-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9902-0002	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-0003	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C) H=14.5 DARK GRAY	1-73996-105-0	34	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY	1-73996-105-0	08	1	0004-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	9902-0003	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (A) H=14.5 DARK GRAY	1-73996-105-0	14	1	0004-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-0003	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0004-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	9902-0003	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	02	1	0004-0008	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0004-0008		●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	0009-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9902-0002	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B)	1-73996-146-2	01	1	9902-0008	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	0004-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9902-0003	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	0004-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9902-0003	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	0004-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9902-0003	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	0004-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9902-0003	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	0004-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	8-94265-811-0	01	1	9902-0008	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	0004-0008		●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9902-0003	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	0004-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9902-9904	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-828-3	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-997-1	01	1	0004-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-909-0	01	1	9905-0003	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-998-0	01	1	0004-	●
58	BED; MAT	1-75117-990-1	01	1	0004-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9902-9904	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75117-862-1	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK)	1-75127-086-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75117-935-0	01	1	9905-0003	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK)	1-75127-087-0	01	1	0004-	●
59	COVER ASM; TRIM,BED MAT	1-75127-082-0	01	1	0004-		●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9902-0003	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0004-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9902-0003	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	0004-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9902-0003	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0004-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9902-0003	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	0004-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9902-0003	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0004-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9902-0003	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
