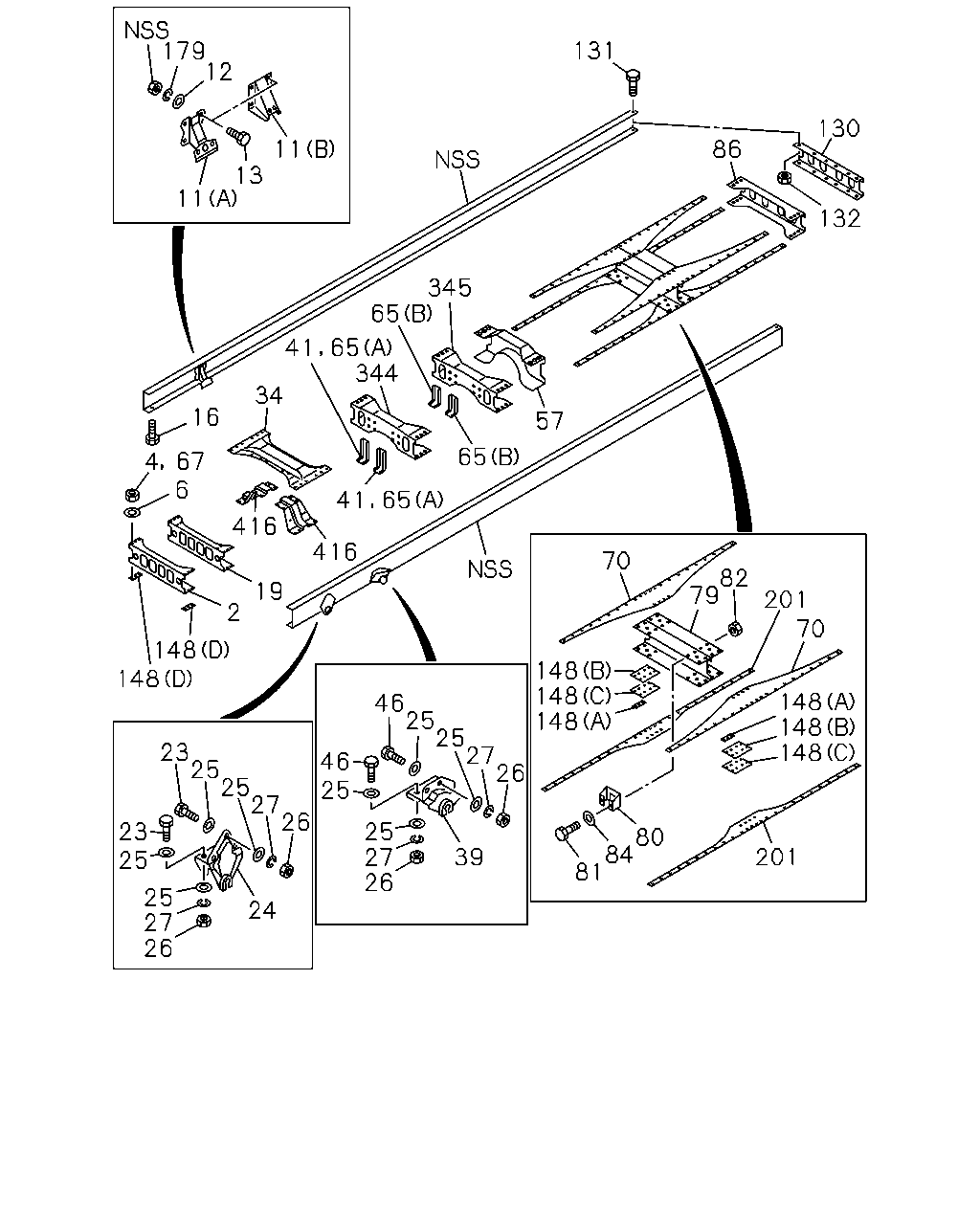

5-01 — FRAME AND OTHER PARTS (#776) — 78 parça

179 12 131 130 86 11 132 13 11 345 65 344 34 16 57 65 67 6 4 416 416 82 79 70 19 201 70 2 148 148 148 148 148 148 148 148 46 25 25 27 26 23 25 25 27 26 46 25 25 27 26 23 25 80 84 81 39 201 25 27 26 24 41 65 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-370-5	01	1	9204-	●	●	●
4	NUT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M16	9-99110-516-0	01	1	9204-		●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9204-9504		●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9505-	●	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> ID=16.2	9-09150-616-0	01	1	9505-		●	●
11	BRACKET; ENG MTG (A)	1-53211-187-1	02	1	9204-		●	●
11	BRACKET; ENG MTG (B)	1-53211-185-0	02	1	9505-	●
12	WASHER; PL,BRKT,ENG MTG ID=12.2	1-09503-224-0	24	1	9204-		●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	08	1	9204-	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.2	1-09503-224-0	21	1	9505-	●
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	08	1	9204-		●	●
13	BOLT; BRKT,ENG MTG M12X28	9-92061-228-0	08	1	9505-	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9204-9504		●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9505-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M16X40	0-20801-640-0	01	1	9505-		●	●
19	MEMBER; CROSS,2ND	1-53181-371-7	01	1	9204-	●	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9204-	●	●	●
23	BOLT; BRKT,SPR M14X50	9-92061-450-0	06	1	9204-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9204-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9204-	●	●	●
25	WASHER; PL,BRKT 6SA1 STD ENG(06L) ID=15	9-09651-069-0	24	1	9204-		●
25	WASHER; PL,BRKT 6SA1TC ENG(28L) ID=15	9-09651-069-0	28	1	9204-		●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	28	1	9204-	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9204-	●	●	●
26	NUT; BRKT,SPR 6SA1 STD ENG(06L) M14	9-99110-514-0	12	1	9204-		●
26	NUT; BRKT,SPR 6SA1TC ENG(28L) M14	9-99110-514-0	14	1	9204-		●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	14	1	9204-	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9204-	●	●	●
27	WASHER; LK,BRKT,FRT SPR 6SA1 STD ENG(06L) ID=14.2	9-09150-814-0	12	1	9204-		●
27	WASHER; LK,BRKT,FRT SPR 6SA1TC ENG(28L) ID=14.2	9-09150-814-0	14	1	9204-		●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-814-0	14	1	9204-	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-816-0	04	1	9204-	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9204-9404		●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-091-3	01	1	9204-		●	●
39	BRACKET; FRT SPR,RR	1-53352-090-3	01	1	9204-		●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9505-	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9505-	●
41	BRACKET; CENTER BRG,FRAME SIDE L=320	1-53271-359-0	02	1	9505-	●
46	BOLT; BRKT FIX 6SA1 STD ENG(06L) M14X50	9-92061-450-0	06	1	9204-		●
46	BOLT; BRKT FIX 6SA1TC ENG(28L) M14X50	9-92061-450-0	08	1	9204-		●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9204-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-190-2	01	1	9204-	●	●	●
65	BRACKET; CENTER BRG EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=305	1-53271-262-2	02	1	9204-		●
65	BRACKET; CENTER BRG EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=275	1-53271-308-1	02	1	9204-		●
65	BRACKET; CENTER BRG AUSTRALIA EQUIPMENT(RR3) (B) L=285	1-53271-261-2	02	1	9204-			●
65	BRACKET; CENTER BRG AUSTRALIA EQUIPMENT(RR3) (A) L=310	1-53271-305-1	02	1	9204-			●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9204-	●	●	●
70	GUSSET; TRUNNION,UPR	1-53161-317-2	02	1	9204-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-188-4	01	1	9204-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-403-1	01	1	9505-	●
80	BRACKET; C/MBR	1-53363-068-0	02	1	9505-	●
81	BOLT; BRKT M14X50	9-91066-450-0	02	1	9505-	●
82	NUT; BRKT M14	9-99110-514-0	02	1	9505-	●
84	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9505-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-191-2	01	1	9204-	●	●	●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9204-9211		●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●
131	BOLT; END C/MBR M12X35 W/LK WASHER	0-50041-235-0	04	1	9204-	●	●	●
132	NUT; END C/MBR M12	9-99110-512-0	04	1	9204-	●	●	●
148	SPACER; C/MBR (A)	1-53168-030-0	02	1	9204-		●	●
148	SPACER; C/MBR (B)	1-53168-218-1	02	1	9204-9504		●	●
148	SPACER; C/MBR (C)	1-53168-120-0	02	1	9505-	●	●	●
148	SPACER; C/MBR (C)	1-53168-219-1	02	1	9204-9504		●	●
148	SPACER; C/MBR (B)	1-53168-362-0	02	1	9505-	●	●	●
148	SPACER; C/MBR (D)	1-53168-268-0	02	1	9204-	●	●	●
148	SPACER; C/MBR (A)	1-53168-029-0	02	1	9505-	●
179	WASHER; LK ID=12.2	9-09150-812-0	16	1	9204-		●	●
179	WASHER; LK ID=12.2	9-09150-812-0	14	1	9505-	●
201	GUSSET; C/MBR EXC. AUSTRALIA EQUIPMENT(RR3)	1-53161-431-0	02	1	9204-		●
201	GUSSET; C/MBR AUSTRALIA EQUIPMENT(RR3)	1-53161-430-2	02	1	9204-			●
201	GUSSET; C/MBR	1-53161-529-1	02	1	9505-	●
344	MEMBER; CROSS,4TH	1-53171-972-3	01	1	9204-	●	●	●
345	MEMBER; CROSS,5TH	1-53171-972-3	01	1	9204-		●	●
416	GUSSET; 3RD C/MBR	1-53164-167-0	01	1	9204-9404		●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-168-0	01	1	9204-9404	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●
