6-47 — MUD GUARD AND INSULATOR (#77596) — 219 parça

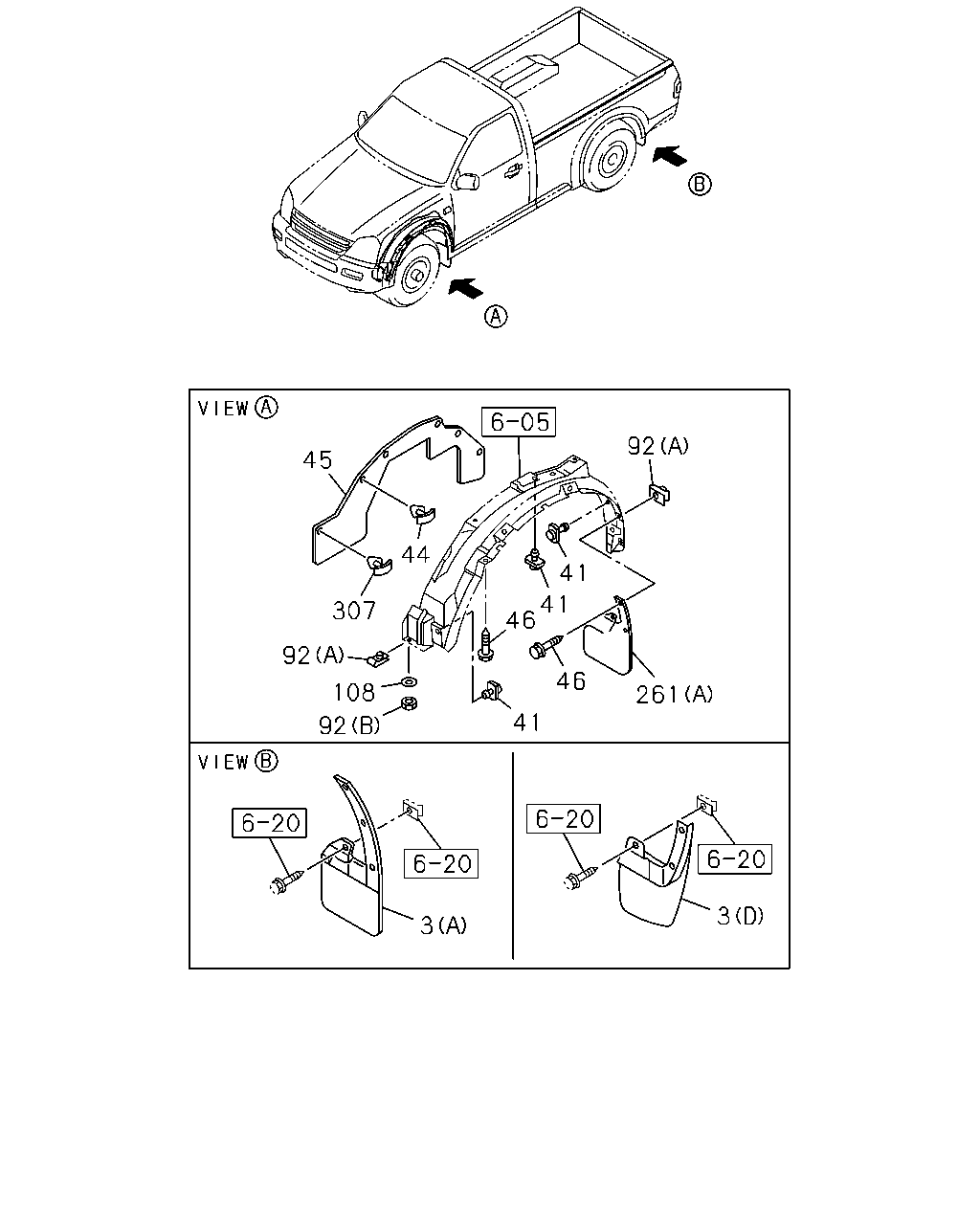

çizim 160563
92 45 44 41 41 46 307 92 46 108 261 41 92 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-657-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-658-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-98007-159-2 01 1 0610- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-98007-160-2 01 1 0610- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-241-0 01 1 0410-0609 ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-242-0 01 1 0410-0609 ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97350-478-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
(C) 		8-97350-478-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-655-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97350-479-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
(C) 		8-97350-479-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-656-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97235-418-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 0411- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97235-419-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 0411- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (A) 		8-97235-423-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-727-0 01 1 0411-0609 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-727-0 01 1 0610- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (A) 		8-97235-424-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-728-0 01 1 0411-0609 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-728-0 01 1 0610- ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 		8-94221-150-0 16 1 0403- ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 08.154 		8-94221-150-0 22 1 0403- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 14 1 0306-0402 ● ● ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 		8-94221-150-0 14 1 0403- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 14 1 0403- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 12 1 0306-0609 ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 0610- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-460-1 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-460-1 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-462-0 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-462-0 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-457-2 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-458-1 01 1 0306- ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 10 1 1004- ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 04 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1004- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0306-0402 ● ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 0610- ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (A) 		8-97125-519-0 12 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (A) 		8-97125-519-0 10 1 0610- ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> (A) 		8-97125-519-0 06 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> (A) 		8-97125-519-0 04 1 0610- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 14 1 0306-0402 ● ● ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> (A) 		8-97125-519-0 14 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 14 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> (A) 		8-97125-519-0 12 1 0610- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 12 1 0610- ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-98007-119-2 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-98007-120-2 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98002-237-0 01 1 0410-0609 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98024-148-0 01 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98002-239-0 01 1 0410-0609 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98024-149-0 01 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97235-471-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-721-0 01 1 0411- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97235-472-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-722-0 01 1 0411- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97235-473-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-723-0 01 1 0411-0609 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-723-0 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97235-474-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-724-0 01 1 0411-0609 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-724-0 01 1 0610- ●
307 08.155 RETAINER 8-98050-462-0 02 1 0610- ● ● ● ●

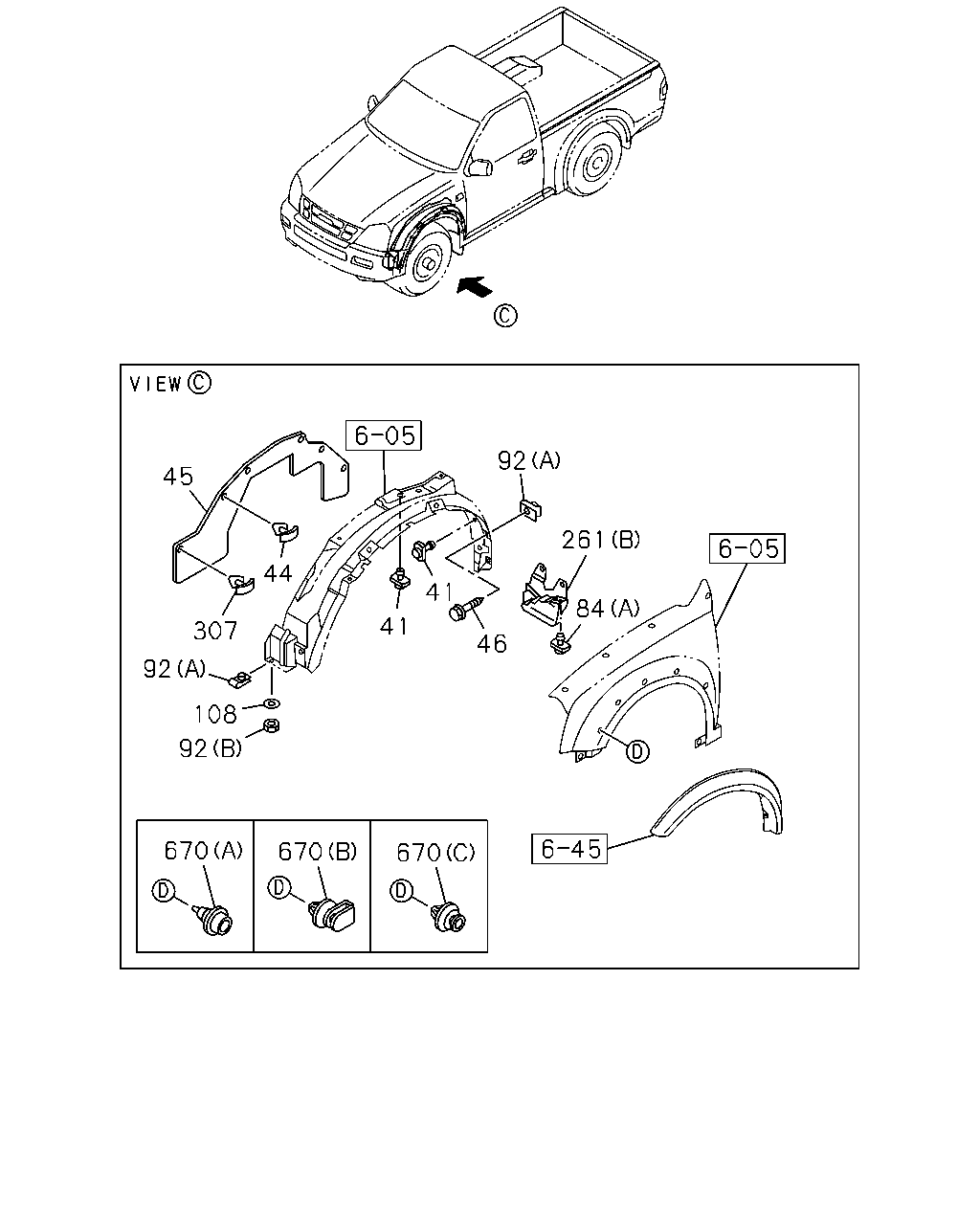

çizim 160573
92 45 261 44 84 41 41 307 46 92 108 92 670 670 670
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 		8-94221-150-0 16 1 0403- ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 08.154 		8-94221-150-0 22 1 0403- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 14 1 0306-0402 ● ● ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 		8-94221-150-0 14 1 0403- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 14 1 0403- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 12 1 0306-0609 ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 0610- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-460-1 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-460-1 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-462-0 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-462-0 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-457-2 01 1 0306- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-458-1 01 1 0306- ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 10 1 1004- ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 04 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1004- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0306-0402 ● ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0403-0612 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-1003 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) BLACK 		8-98023-678-0 13 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) BLACK 		8-98023-678-0 10 1 0612- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0407-0409 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 16 1 0410-0609 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) NATURAL 		8-97384-015-0 03 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0612- ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0612- ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0612- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 0610- ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (A) 		8-97125-519-0 12 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (A) 		8-97125-519-0 10 1 0610- ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> (A) 		8-97125-519-0 06 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>, FORMED MUD FLAP<6WL> (A) 		8-97125-519-0 04 1 0610- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 14 1 0306-0402 ● ● ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> (A) 		8-97125-519-0 14 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 14 1 0403-0609 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> (A) 		8-97125-519-0 12 1 0610- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 12 1 0610- ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-98007-119-2 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-98007-120-2 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98002-237-0 01 1 0410-0609 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98024-148-0 01 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98002-239-0 01 1 0410-0609 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) 		8-98024-149-0 01 1 0610- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97235-471-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-721-0 01 1 0411- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97235-472-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-722-0 01 1 0411- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97235-473-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-723-0 01 1 0411-0609 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-723-0 01 1 0610- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97235-474-1 01 1 0306-0410 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-724-0 01 1 0411-0609 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) 		8-97386-724-0 01 1 0610- ●
307 08.155 RETAINER 8-98050-462-0 02 1 0610- ● ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> (B) W/SEAL 		8-98023-691-0 04 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) W/SEAL 		8-98023-691-0 12 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> (C) WO/SEAL 		8-98057-416-0 14 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> (B) WO/SEAL 		8-98057-417-0 06 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 12 1 0410- ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 (A) 		8-97359-942-0 10 1 0410-0609 ● ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 10 1 0410-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> (C) W/SEAL 		8-98023-676-0 06 1 0610- ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) W/SEAL 		8-98023-676-0 06 1 0610- ●
670 08.155 FASTENER
(C) W/SEAL 		8-98023-676-0 06 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 (A) 		8-97359-942-0 05 1 0402-0609 ● ●
670 08.155 FASTENER
07.829 (A) 		8-97359-942-0 05 1 0402-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 02 1 0610- ● ●

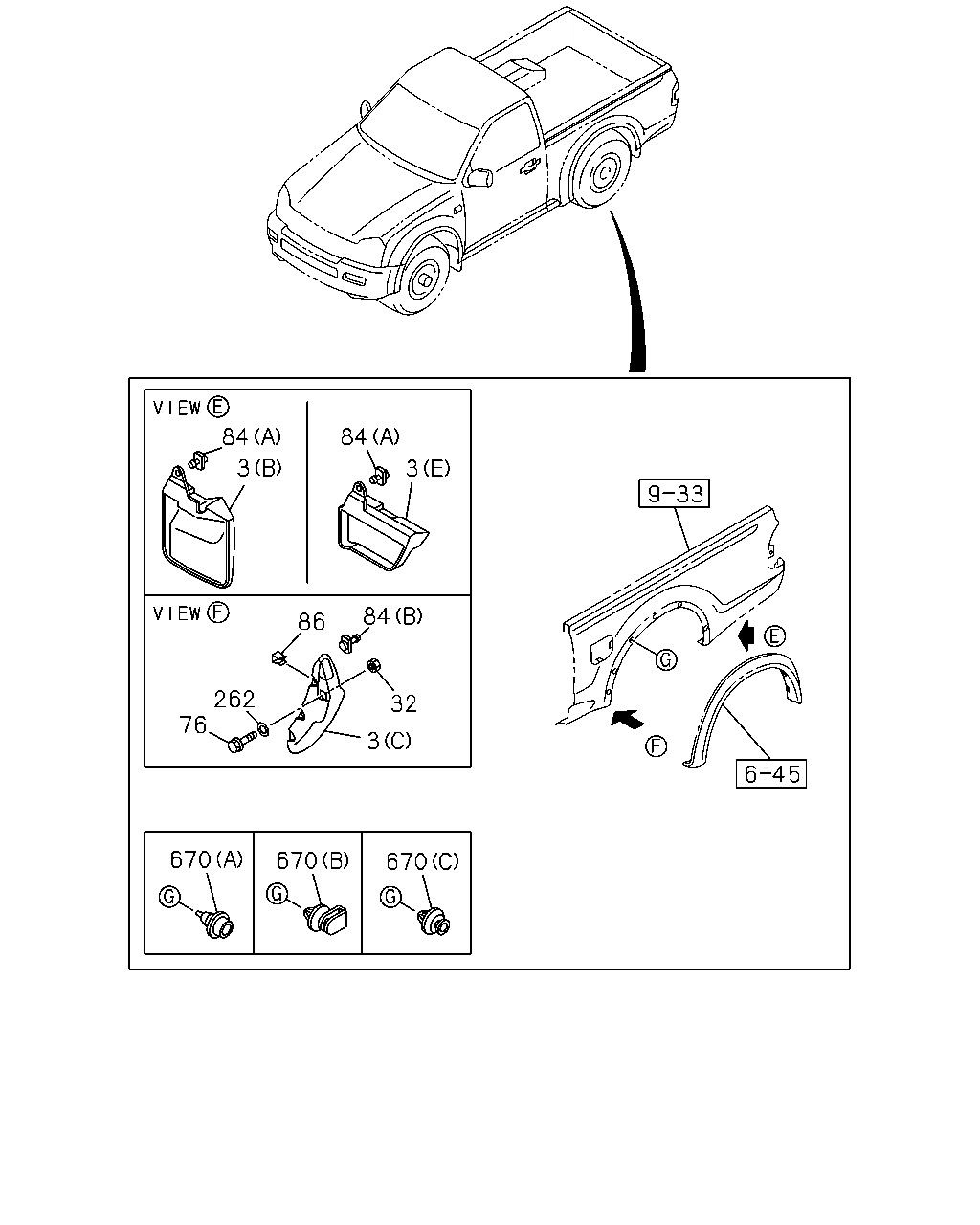

çizim 160580
84 84 3 3 84 86 262 76 32 3 670 670 670
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-657-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-658-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-98007-159-2 01 1 0610- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-98007-160-2 01 1 0610- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-241-0 01 1 0410-0609 ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-242-0 01 1 0410-0609 ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97350-478-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
(C) 		8-97350-478-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-655-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97350-479-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
(C) 		8-97350-479-1 01 1 0306-0609 ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98023-656-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97235-418-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 0411- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97235-419-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 0411- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (A) 		8-97235-423-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-727-0 01 1 0411-0609 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-727-0 01 1 0610- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (A) 		8-97235-424-1 01 1 0306-0410 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-728-0 01 1 0411-0609 ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (D) 		8-97386-728-0 01 1 0610- ●
32 08.155 NUT; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-98002-251-0 02 1 0410-0609 ● ●
32 08.155 NUT; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-98023-679-0 02 1 0610- ● ●
76 08.155 BOLT; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 05.155 		8-98002-252-0 02 1 0410-0609 ● ●
76 08.155 BOLT; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-98023-680-0 02 1 0610- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) BLACK 		8-98023-678-0 13 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) BLACK 		8-98023-678-0 10 1 0612- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0407-0409 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 16 1 0410-0609 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) NATURAL 		8-97384-015-0 03 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0612- ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0612- ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0612- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0410-0609 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (A) NATURAL 		8-97384-015-0 06 1 0610-0611 ● ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-97352-535-0 02 1 0410-0609 ● ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-98023-661-0 02 1 0610- ● ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 		8-97352-535-0 01 1 0306-0609 ●
86 08.154 CLIP; MUD GUARD 8-97352-535-0 01 1 0306-0609 ●
262 08.155 WASHER; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 05.155 		8-98002-253-0 02 1 0410-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> (B) W/SEAL 		8-98023-691-0 04 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (B) W/SEAL 		8-98023-691-0 12 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> (C) WO/SEAL 		8-98057-416-0 14 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> (B) WO/SEAL 		8-98057-417-0 06 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 12 1 0410- ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 (A) 		8-97359-942-0 10 1 0410-0609 ● ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 10 1 0410-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> (C) W/SEAL 		8-98023-676-0 06 1 0610- ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) (C) W/SEAL 		8-98023-676-0 06 1 0610- ●
670 08.155 FASTENER
(C) W/SEAL 		8-98023-676-0 06 1 0610- ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 (A) 		8-97359-942-0 05 1 0402-0609 ● ●
670 08.155 FASTENER
07.829 (A) 		8-97359-942-0 05 1 0402-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) 07.829 (A) 		8-97359-942-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
